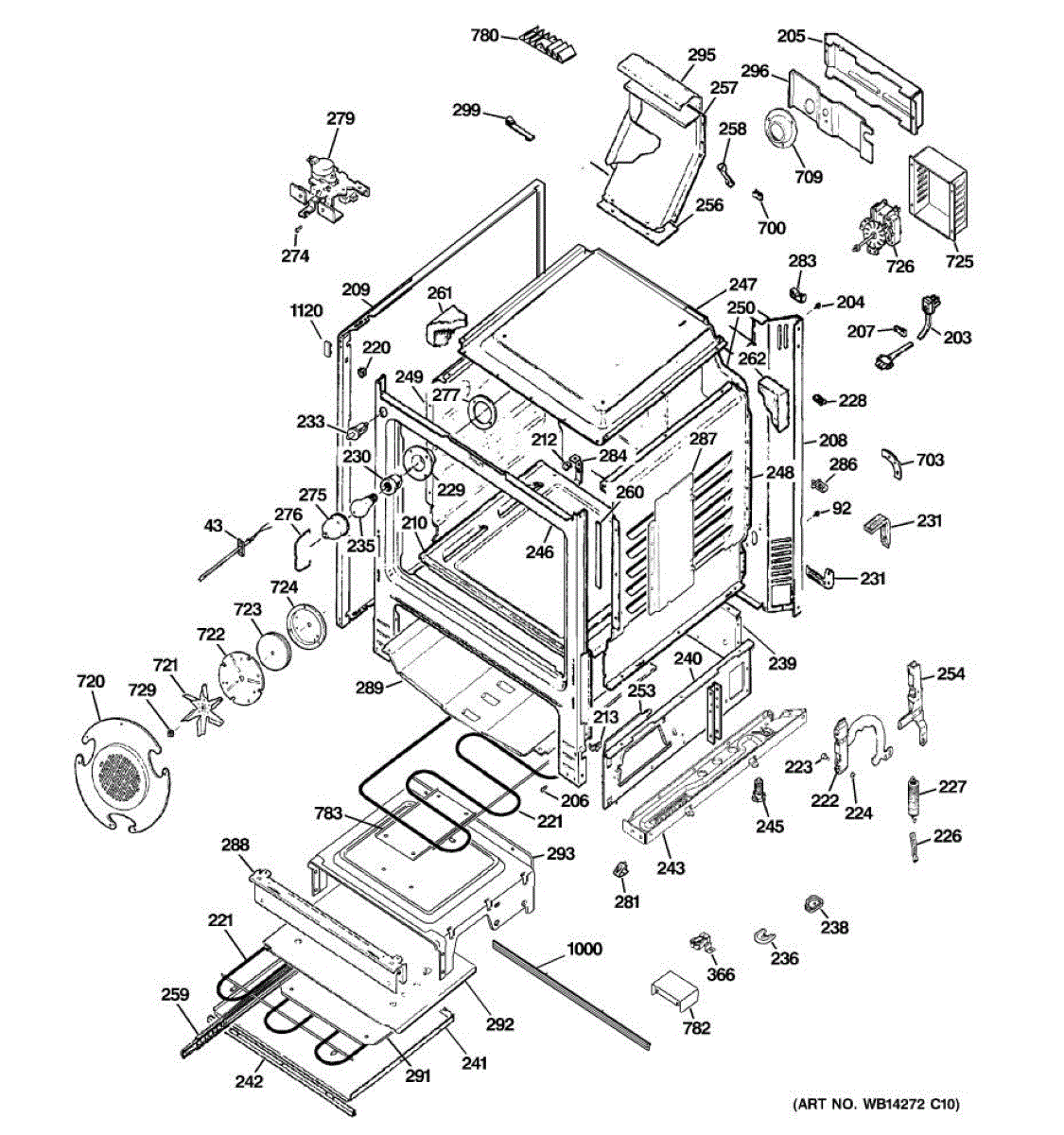

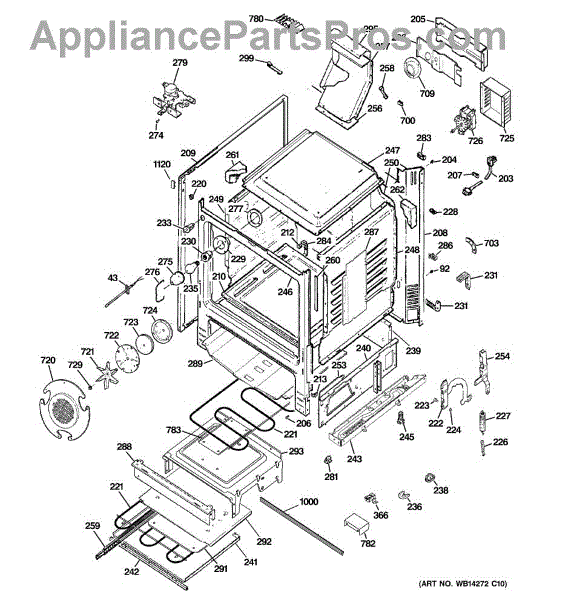

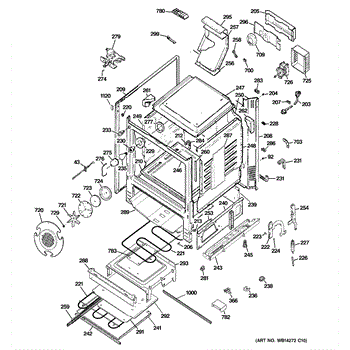

Parts for Ge JGB900SEP1SS: 03 - Body Parts

Fix an oven that won't reach temperature or runs too hot/cold. This temperature sensor monitors oven heat accurately. Easy 15-minute DIY repair.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Back lamp housing cover for gas ranges. Protects the back lamp assembly from damage. Replace if cracked, broken, or missing to restore proper coverage.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Replaces cracked, rusted, or corroded oven bottom pan and heat deflector. Installs in the base of your range oven cavity. Simple 2-screw removal.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

A top heating element that restores heat to an electric cooktop so pots and pans heat properly. Fits the range cooktop surface and replaces a damaged or non-heating radiant element for reliable cooking. What it does:

• Provides the cooking heat on

Oven not heating or baking unevenly? This bottom bake element restores proper heating for baking and roasting. Common fix for failed oven performance.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

This replacement back cover restores the appliance's rear enclosure to protect internal components and help maintain proper airflow. It replaces a cracked, dented or missing rear panel so the unit operates safely and cleanly. What it does

• Protects internal wiring, controls and components from dust, moisture and accidental contact
• Keeps airflow channels intact to support proper cooling and performance
• Stops rattling or vibration caused by a loose or damaged rear panel
• Helps maintain a finished appearance at the appliance's rear

• Disconnect power before starting any repair to avoid shock or injury
• Requires basic hand tools; remove mounting screws and any obstructing panels to fit the new cover
• Handle edges carefully and align screw holes before tightening to avoid stripping

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

This plunger switch is the push-style electrical switch that completes a circuit when an actuator is depressed, restoring reliable on/off signaling. Use it to replace a worn or broken plunger switch that causes intermittent or non-responsive operation. W

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

Replace your range's spacer base if it's cracked, broken, or missing. This structural component helps maintain proper spacing and alignment between parts.

This spacer base is a small mounting component that positions and supports adjacent range/oven parts, helping maintain proper alignment and eliminate movement. It's a simple replacement to restore secure fit and stable assembly. What it does:

• Provides a stable mounting point to keep panels or components correctly spaced and aligned
• Prevents rubbing, vibration, or shifting that can cause noise or uneven gaps
• Restores factory clearance where a worn or damaged spacer allowed parts to sit improperly
• Works as a passive support piece—no electrical function

• One spacer base

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing exterior panels or components; keep fasteners organized
• Inspect mating surfaces for damage or debris and replace any additionally damaged hardware

Replace your range's spacer base if it's cracked, broken, or missing. This structural component installs at the base to maintain proper spacing and alignment.

Side panel for range broil compartment. Replaces damaged, scratched, or discolored exterior panels. Restores structural integrity and appearance.

This bottom range panel is the lower interior/exterior panel that supports and protects the oven cavity and heating components. It restores proper airflow and keeps the oven underside sealed from spills and debris. What it does:

• Replaces a bent, rusted or missing lower oven panel to improve oven cleanliness and safety
• Helps maintain proper airflow under the oven cavity for consistent heating
• Covers and protects wiring and components beneath the oven from food and moisture
• Reduces drafts into the oven cavity caused by damaged or ill-fitting panels

• One bottom range panel

• High-level swap: remove oven drawer or lower access, unfasten retaining screws, replace panel, and refasten
• Disconnect power to the range before beginning any service
• Wear gloves to avoid sharp edges on metal panels and protect finished surfaces during installation

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Replace your gas range's oven top panel if cracked, damaged, or worn. This structural component covers the oven cavity and supports cooktop burners.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

This slide and bearing assembly restores smooth, stable movement to a refrigerator drawer. It replaces worn slides that cause sticking, sagging, or noisy operation so drawers open and close properly. What it does:

• Provides the sliding track and

Replaces the worn or broken slide and bearing assembly that guides your oven rack. Restores smooth in-and-out movement when hardware is damaged or missing.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Replacement insulation for the back wall of your range oven cavity. Replaces worn, damaged, or missing insulation to maintain proper heat retention.

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Right hand side

Left hand side

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Insulation panel that installs on top of the range warming drawer cavity. Replace if the original insulation is torn, compressed, or missing. Fits select models.

Insulation that fits around range vent openings to reduce noise and prevent heat loss. Replace if damaged, deteriorated, or missing for proper insulation.

Fix a range door that won't stay closed or latch properly with this door catch. Common fix for loose or misaligned oven doors. Moderate DIY repair.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.

Cooling fan cover for gas ranges. Installs over the internal cooling fan assembly. Replace if cracked, damaged, or missing to restore proper airflow.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Fan support plate for electric and gas ranges. Mounts and secures the cooling fan assembly. Replace if cracked, bent, or broken to restore proper support.

Convection fan stopped spinning or making noise? This motor drives the fan to circulate hot air for even baking. Moderate DIY repair—disconnect power first.

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spi

Diffuser vent trim for gas ranges. Installs on the cooktop surface to cover the vent opening. Replace if cracked, discolored, or missing.

Seals the burner assembly to the cooktop on gas ranges. Replace when worn to restore proper ignition, stable flame, and prevent spills from entering the burner well. Confirm fit by model number.

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.
