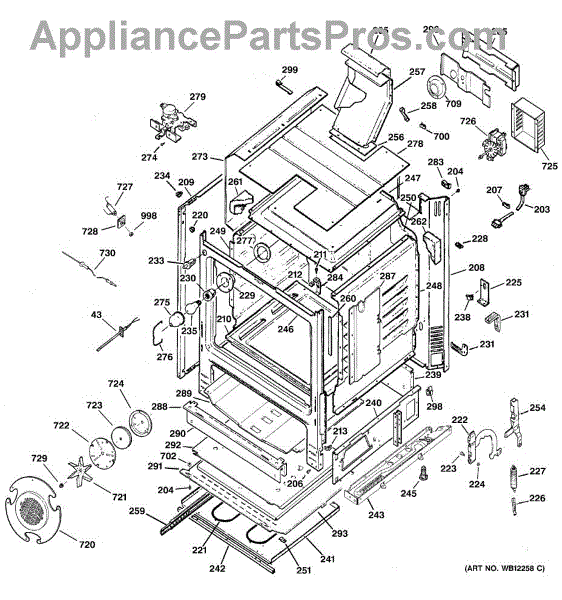

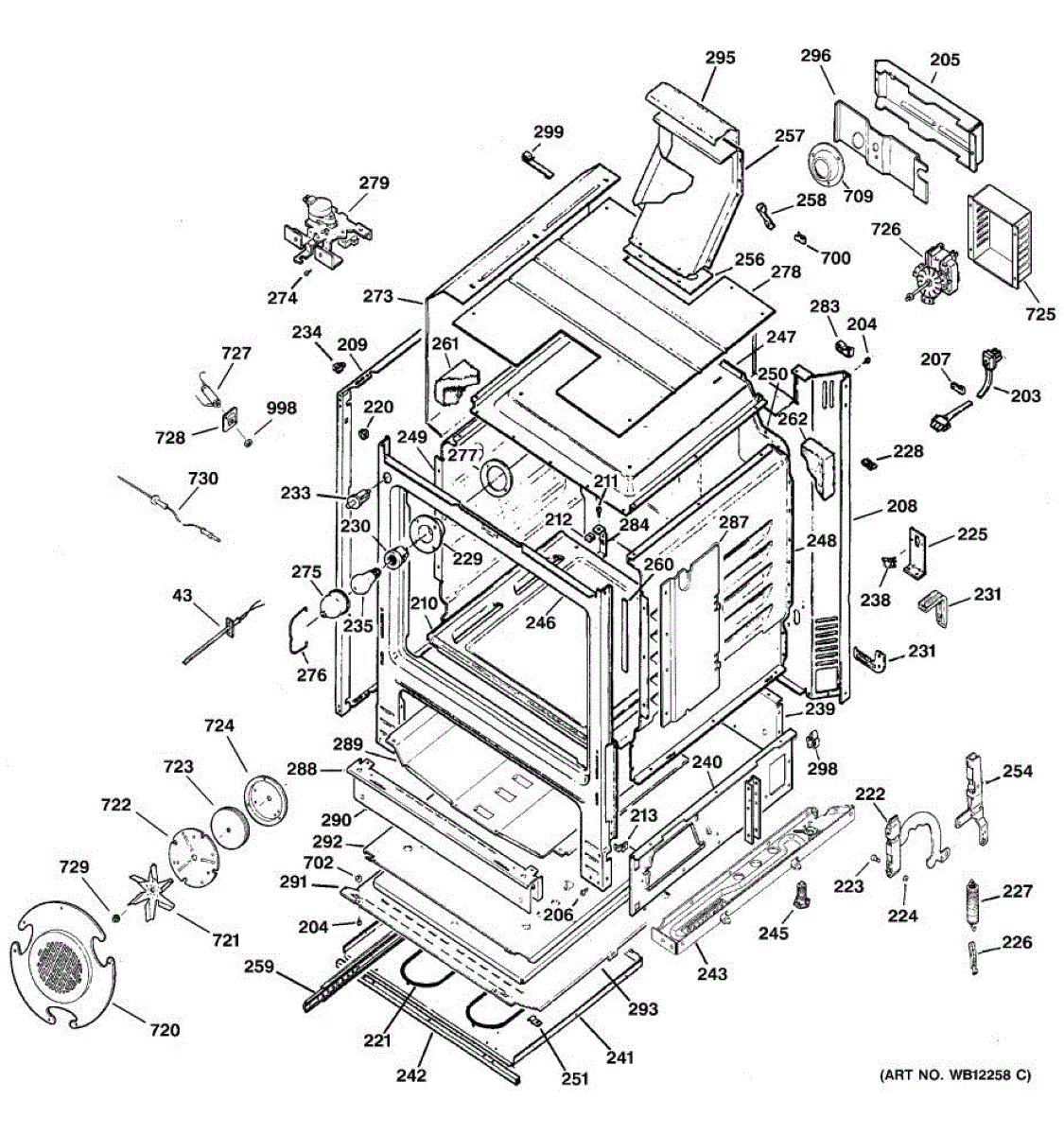

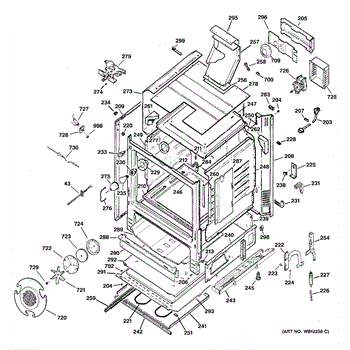

Parts for Ge JGB920TEC1WW: 03 - Body Parts

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Replacement power cord for gas ranges. Connects your unit to the wall outlet. Replace if cord is worn, cut, heat-damaged, or causing burning smells.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Rear housing panel that covers the back of your range. Replace this cover if it's cracked, dented, rusted, or missing to restore your appliance's appearance.

Mounting screw for refrigerator doors, shelves, kickplates, and interior components. Replace missing, stripped, or corroded screws during repairs.

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Color: White.

8-18 x 1/2 inch screw for gas range assembly. Replace when missing, stripped, or corroded during oven repairs or maintenance work.

Speed nut clip secures your range oven bottom panel. Replace when missing or damaged to prevent panel rattling. Verify fit with your model number.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

This thermodisc mounting bracket secures the temperature sensing disc (thermodisc) in the appliance, keeping the sensor positioned for accurate temperature response and reliable operation. Fits replacements where the original bracket is damaged or missing. What it does:

• Holds the thermodisc/temperature sensing element in the correct position for consistent temperature detection.
• Maintains stable contact between the sensing disc and the appliance surface or component.
• Prevents the thermodisc from shifting or rubbing, which can cause irregular temperature readings or cycling.
• Helps restore proper control behavior when a broken or bent bracket causes sensor misalignment.

• One thermodisc mounting bracket

• Disconnect power to the appliance before starting work to avoid shock or injury.
• Inspect the thermodisc for damage; replace the sensing disc separately if needed.
• Handle the thermodisc and wiring gently to avoid bending or damaging the sensor while installing the bracket.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Right-side guide support secures sliding drawer or shelf rails on your range. Replace if cracked, broken, or worn to restore smooth tracking and alignment.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Oven displaying wrong temperature or won't calibrate? This thermodisc sensor monitors cavity heat levels. Moderately easy DIY fix for temp issues.

Left hand side

Right hand side

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Replaces the right-hand side panel of your gas range oven. Needed when the original panel is cracked, dented, rusted, or structurally damaged.

Left hand side

Secures the heating element in your range. Replace if loose, damaged, or causing element misalignment. Confirm fit with your model number for proper installation.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Left hand side

Right hand side

Oven vent assembly for gas ranges. Mounts inside the oven cavity to channel heat and steam. Replace if cracked, damaged, or missing for proper ventilation.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap that lines the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, missing, or damaged during repairs.

Right hand side

Left hand side

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Oven door won't lock during self-clean cycle? This latch assembly includes motor and switches. Requires lifting cooktop for access. 1-2 hour repair.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Right hand side

Left hand side

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Metal radiation shield that mounts inside your range to protect internal components from heat. Replace if cracked, bent, or dislodged during service.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Protective bottom guard for your range. Shields internal components from debris and damage. Replace if cracked, bent, or missing for proper protection.

Middle

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Cooling fan cover for gas ranges. Installs over the internal cooling fan assembly. Replace if cracked, damaged, or missing to restore proper airflow.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Insulating pad that cushions and isolates the fan assembly in electric and gas ranges. Replace if cracked, compressed, or missing to reduce vibration noise.

Fan support plate for electric and gas ranges. Mounts and secures the cooling fan assembly. Replace if cracked, bent, or broken to restore proper support.

Convection fan stopped spinning or making noise? This motor drives the fan to circulate hot air for even baking. Moderate DIY repair—disconnect power first.

Mounting nut secures the convection fan blade to the motor spindle. Replace if lost, stripped, or damaged during fan service or repair work.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

Replacement mounting nut for ovens and ranges. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.
