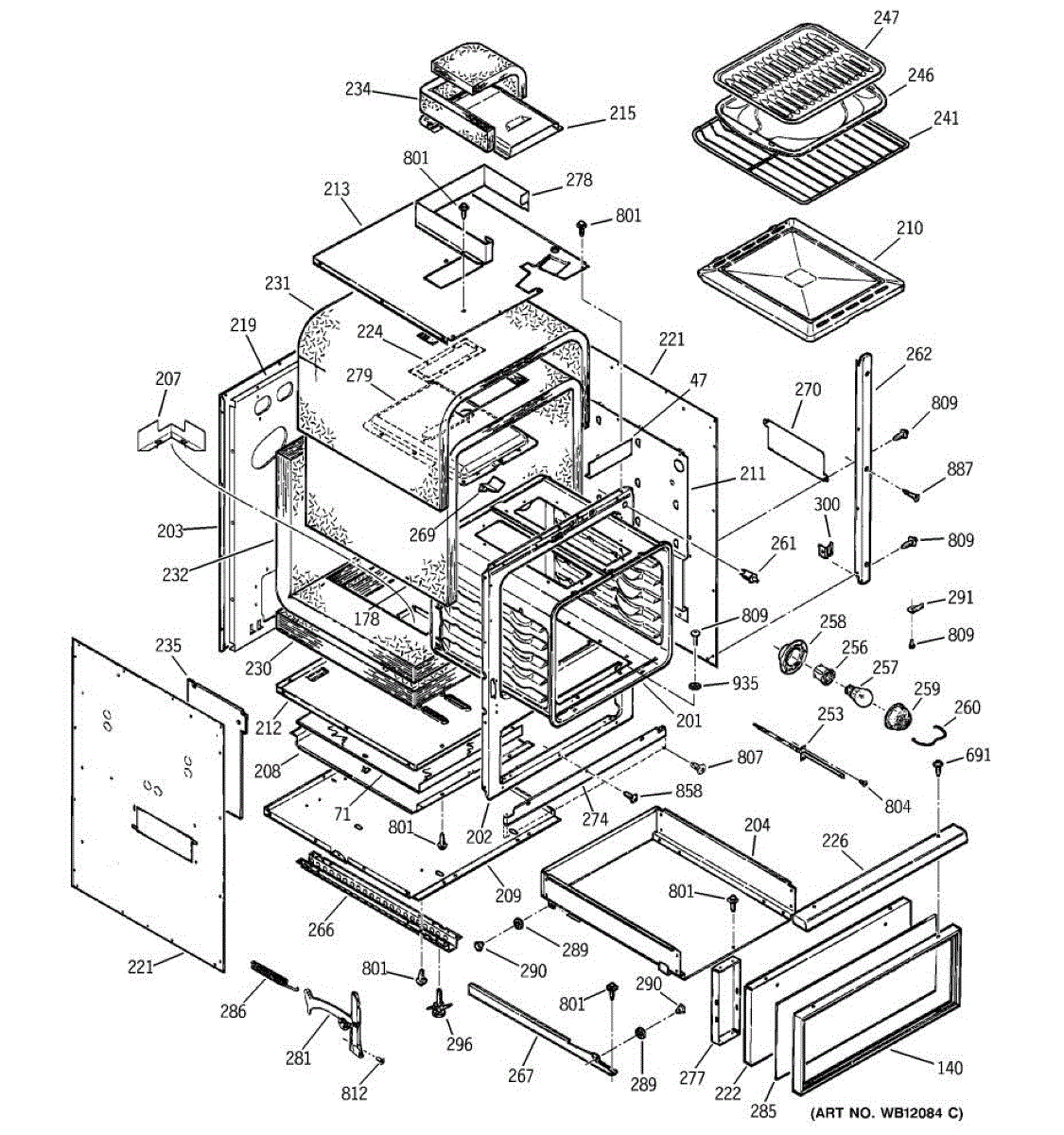

Parts for Ge JGRP17BEW4BB: 02 - Body Parts

Black front panel trim frame for ovens and ranges. Replaces cracked, broken, or missing lower trim pieces. Restores clean appearance to appliance exterior.

Insulation panel that fits on top and sides of your oven cavity. Replace if torn, compressed, missing, or damaged to restore heat retention and efficiency.

Oven range body assembly forms the main cabinet structure. Replace if cracked, damaged, or corroded. Essential structural component for wall ovens and ranges.

Replace your range's main bottom panel if the structural base is cracked, damaged, or missing. This panel supports the chassis and cabinet framework.

Replaces the inner cavity bottom panel in your oven's bake compartment. Order if your original panel is warped, rusted, stained, or damaged from use.

This oven bottom insulation retainer secures the oven's bottom insulation panel to help keep insulation in place and maintain proper heat distribution. Replaces a torn or loose retainer to reduce movement and rattling under the oven floor. What it does:

• Holds the oven bottom insulation firmly in position to prevent sagging or gaps.
• Helps stop insulation from shifting and causing rattling or debris buildup beneath the oven floor.
• Supports consistent internal oven temperatures by keeping insulation correctly located.
• Common symptom: loose or missing retainer may cause vibration, noise, or visible insulation displacement.

• Disconnect power (and gas if applicable) and allow the appliance to cool completely before servicing.
• Remove the oven bottom panel to access the insulation area; keep fasteners for reassembly.
• Handle insulation gently; avoid compressing or tearing the insulation material.
• Use basic hand tools.

Lower front panel for ovens and ranges. Replaces cracked, damaged, or missing front panels. Essential trim piece for a complete, finished appearance.

Outer insulation wrapper for ovens and ranges. Wraps around the oven cavity to provide heat and sound dampening. Replace if torn, compressed, or missing.

Thermal insulation panel for the back and bottom upper cavity of your oven. Replace if cracked, deteriorated, or missing to restore heat retention.

Replacement oven rack for GE electric and gas wall ovens and ranges. Installs inside oven cavity. Order when original rack is missing, warped, or worn.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Replace your oven light bulb socket to restore interior lighting. Fixes flickering or non-working oven lights. Confirm fit with your model number.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Structural support channel for gas range chassis. Secures frame components and maintains cabinet alignment. Replace if bent, cracked, or damaged.

Drawer glide assembly for oven storage or warming drawers. Replaces broken, worn, or damaged slide tracks that cause drawers to stick or fall off rails.

Drawer slide guide assembly for ovens and ranges. Replaces broken or worn drawer glides that cause drawers to stick, sag, or fall off track.

This light cup support secures the interior lighting assembly and helps position the light socket and lens for reliable illumination. It restores proper alignment and contact for the refrigerator or freezer interior light. What it does:

• Holds the light socket and lens in place to prevent shifting or detachment
• Ensures consistent light alignment so the bulb illuminates the interior correctly
• Addresses symptoms like a loose or hanging light, intermittent contact, or misaligned lens
• Compatible with common GE refrigerator interiors where the original cup support is used

• One light cup support

• Disconnect power before accessing the interior light assembly to avoid shock
• Remove the old cup support by unsnapping or unfastening retaining tabs as required
• Press the replacement into position until retaining tabs engage; test light function before reassembling shelves

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

Adjustable leveling leg that supports and stabilizes your range on uneven floors. Replace if broken, stripped, or missing to restore proper height.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or con

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Wood screw for securing range components and panels. Replaces lost, stripped, or damaged screws during repairs or reassembly of your oven or range.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.
