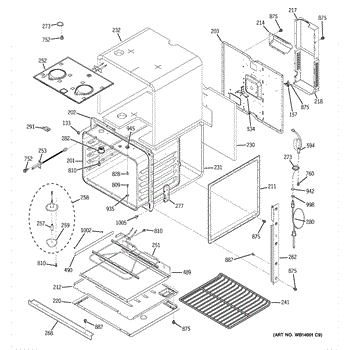

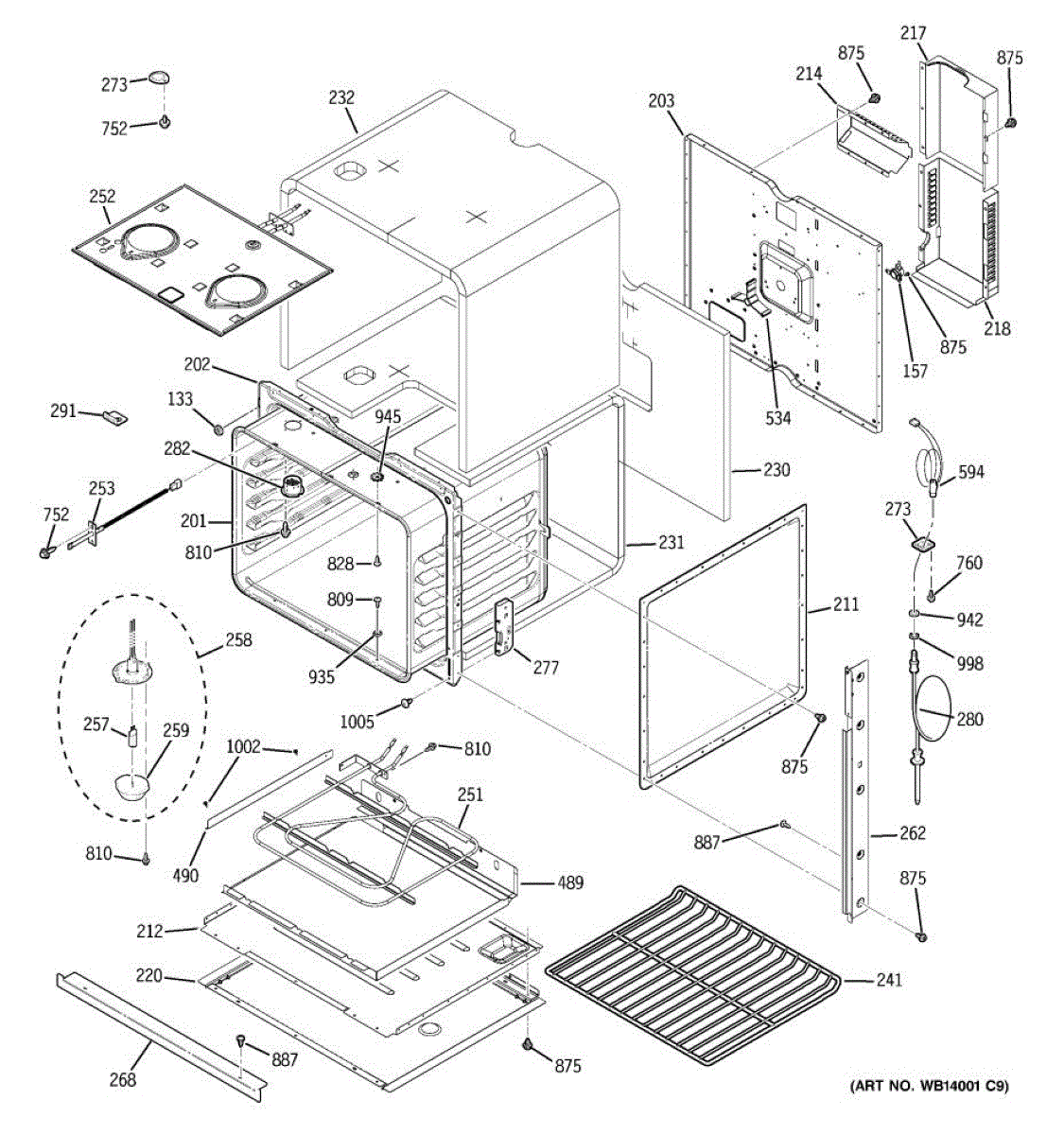

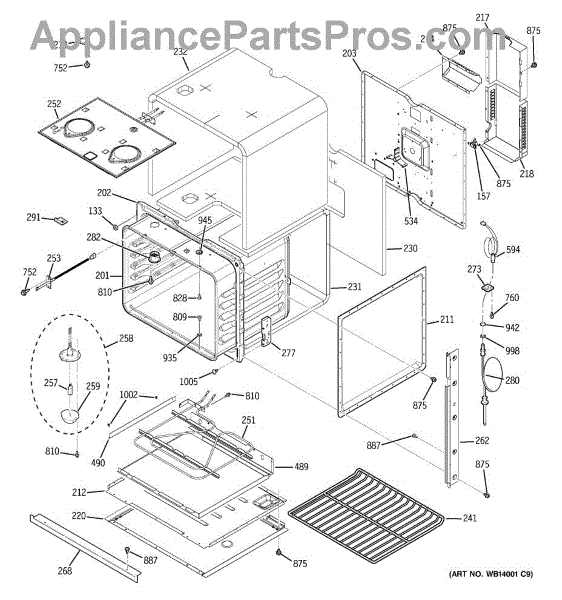

Parts for Ge PCK916BM3BB: 02 - Body Parts

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

The Hi-Limit Switch is an OEM replacement part for GE ranges. It is a safety component responsible for monitoring internal oven temperatures. The hi-limit switch helps prevent overheating by detecting when excessive heat has built up inside the oven cavity. It will automatically cut power to the bake/broil elements if temperatures rise too high.

Causes of a bad hi limit switch can include normal failure after years of exposure to heat, or issues with the electronic components or calibration.

Symptoms of a bad hi-limit switch include:

• The oven failing to heat up or bake/broil food properly
• Frequent thermal cut outs requiring the oven to be unplugged
• Delays in the oven reaching the set temperature
• Oven will not turn on

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This back insulation retainer secures the oven's rear insulation in place, keeping insulation from shifting and reducing rattling. It helps maintain proper oven cavity protection and a quieter operation. What it does:

• Holds the rear insulation securely against the oven back panel
• Prevents insulation from sagging or falling into the cavity
• Reduces rattling or vibration caused by loose insulation
• Helps the insulation stay in the correct position for safe operation

• One back insulation retainer

• Disconnect power (unplug or switch off breaker) and allow the appliance to cool before beginning.
• Access typically requires removing the oven's rear panel; keep fasteners organized for reassembly.
• Wear gloves and eye protection when handling insulation and sharp sheet metal edges.

This bottom insulation retainer secures oven/refrigerator insulation in place so the appliance maintains proper thermal protection and reduces heat transfer to surrounding components. It helps keep insulation positioned for reliable operation. What it does:

• Holds lower insulation panels or pads securely against the cabinet or liner
• Prevents insulation sagging or displacement that can cause noise or reduced thermal efficiency
• Helps maintain proper clearances to protect wiring and components from heat exposure
• Commonly replaced when the retainer is cracked, broken, or missing

• Service with the appliance powered off and disconnected from its power source
• Inspect surrounding insulation for damage; replace as needed to restore full protection
• Typically installs with clips or screws—retain existing fasteners unless replacement hardware is specified

Restore consistent baking performance with this lower-oven bake element assembly. It replaces a failed element so your oven can preheat correctly and maintain even heat during bake cycles.

• Provides the primary heat source in Bake mode
• Works with the oven controls to reach and hold the set temperature
• Common failure symptoms: no heat during Bake
• Extended preheat times or undercooked results
• Visible damage such as blistering, cracks, or breaks in the element

• Disconnect power at the circuit breaker before servicing
• Remove oven racks; take out element mounting screws and gently pull the element forward to access terminals
• Transfer one wire at a time to the new element; prevent wires from slipping back into the oven wall
• Ensure terminals are fully seated and the element is secured before restoring power

The Element Broil Assembly is an OEM replacement part for GE electric ranges. This assembly holds and secures the upper heating element that provides intense heat for broiling food items directly above the heating coils. Proper functioning of the element broil assembly allows for consistent and efficient broiling performance.

Symptoms of a bad element broil assembly include:

• Slow or inefficient broiling even on high heat settings
• Flickering or unstable heat from the upper broiler element
• Sagging, loose, or damaged assembly housing the element

Causes of failure can be normal wear over time, damage from harsh cleaning chemicals, or issues like bending or warping that prevent secure mounting of the broiler element.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Halogen Bulb Kit is an OEM replacement part for GE ranges. It includes replacement halogen light bulbs that illuminate the interior of the range. P

Causes of bad bulbs can include normal burnout over the lifespan of the bulbs or damage from excessive heat. Halogen bulbs are prone to fail after a few years of use in the hot oven environment.

Symptoms of bad or burnt out bulbs include:

• Dark or poor interior lighting inside the oven
• Inability to see food cooking clearly through the window
• Burned or blackened bulb elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Restore clear visibility inside your oven with this halogen lamp assembly. It replaces a failed light unit so you can monitor cooking progress through the door without opening the oven or losing heat.

• Provides bright interior lighting when the oven light is switched on or the door is opened
• Replaces a burned-out or heat-damaged lamp/socket assembly
• Helps you check doneness without interrupting cooking
• Common symptoms include: light not turning on, intermittent flicker, or visible damage/discoloration to the assembly

• Disconnect power at the circuit breaker and allow the oven to cool completely before servicing
• Handle the halogen capsule with clean gloves; avoid touching the glass
• Seat the assembly securely and route wiring as originally installed
• Test light operation before reassembling any covers or panels

This oven lamp lens is the clear glass cover that protects and focuses the interior lamp, helping keep the bulb safe from food, steam and debris while improving oven interior lighting for safer cooking and better visibility. What it does:

• Protects the oven light bulb from direct contact with spills, splatters and high heat.
• Helps diffuse and direct light for clearer visibility inside the oven cavity.
• Replaces cracked, chipped or missing lens that can rattle or allow debris to hit the bulb.
• Restores proper lamp function when the lens is damaged, reducing glare and hotspots.

• One oven lamp lens (glass).

• Disconnect power and allow the oven and bulb to cool completely before starting.
• Remove mounting screw(s) or lens holder clips, replace lens, and secure hardware snugly—do not overtighten.
• Use appropriate replacement bulb type and handle glass with care to avoid breakage and cuts.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vent tube assembly routes exhaust and airflow inside the oven/range so the appliance can vent heat and combustion gases away from critical components. Restores proper internal venting and can reduce overheating or unusual odors. What it does:

• Channels exhaust from the oven cavity to the exhaust/vent path
• Helps protect wiring and components from excess heat
• Supports consistent oven temperature by allowing proper airflow
• Can address symptoms like hot spots, burning smells, or tripped safety limits when the original vent is damaged

• One tube vent assembly as shown

• Recommended for appliance technicians or experienced DIYers; disconnect power before starting
• Verify correct orientation and secure all fasteners and gaskets to prevent leaks
• Inspect adjacent parts and replace if damaged
• Follow OEM service manual steps for access and torque specs where applicable

A side pan reflector that directs heat inside the oven cavity and helps protect the oven interior. Replaces a damaged or worn reflector to help maintain even heating and reduce hot spots during cooking. What it does:

• Reflects and redirects oven heat for more consistent cooking and baking
• Shields the oven wall from grease, spills and direct heat exposure
• Helps reduce uneven browning or hot spots caused by a missing or warped reflector
• Visible damage, excessive soot or warping are common signs the reflector needs replacement

• One side pan reflector

• Allow the oven to cool and disconnect power before installing
• Remove any loose debris or grease from the mounting area before fitting the new reflector
• Confirm correct side/orientation and secure per the oven's hardware; use manufacturer instructions when available

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

Package of 12

Black. 8-18 AB HXW 3/8

A replacement black trim screw that secures exterior trim and small panels on appliances, restoring proper fit and finish so pieces stay aligned and rattle-free. What it does

• Fastens appliance trim, bezels, and small decorative panels
• Keeps trim aligned to prevent gaps, rattling, and vibration noise
• Replaces missing or stripped trim fasteners to restore secure attachment
• Works wherever the OEM specifies a black trim screw of this style

• One black trim screw

• Disconnect power or unplug the appliance before starting any work
• Use the correct screwdriver size to avoid stripping the screw head
• Hand-start the screw, then snug—do not overtighten to prevent cracking the trim
• If access is tight, a magnetic screwdriver or bit holder can help

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
