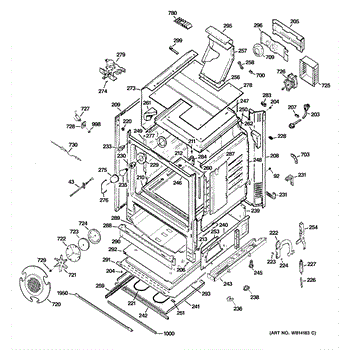

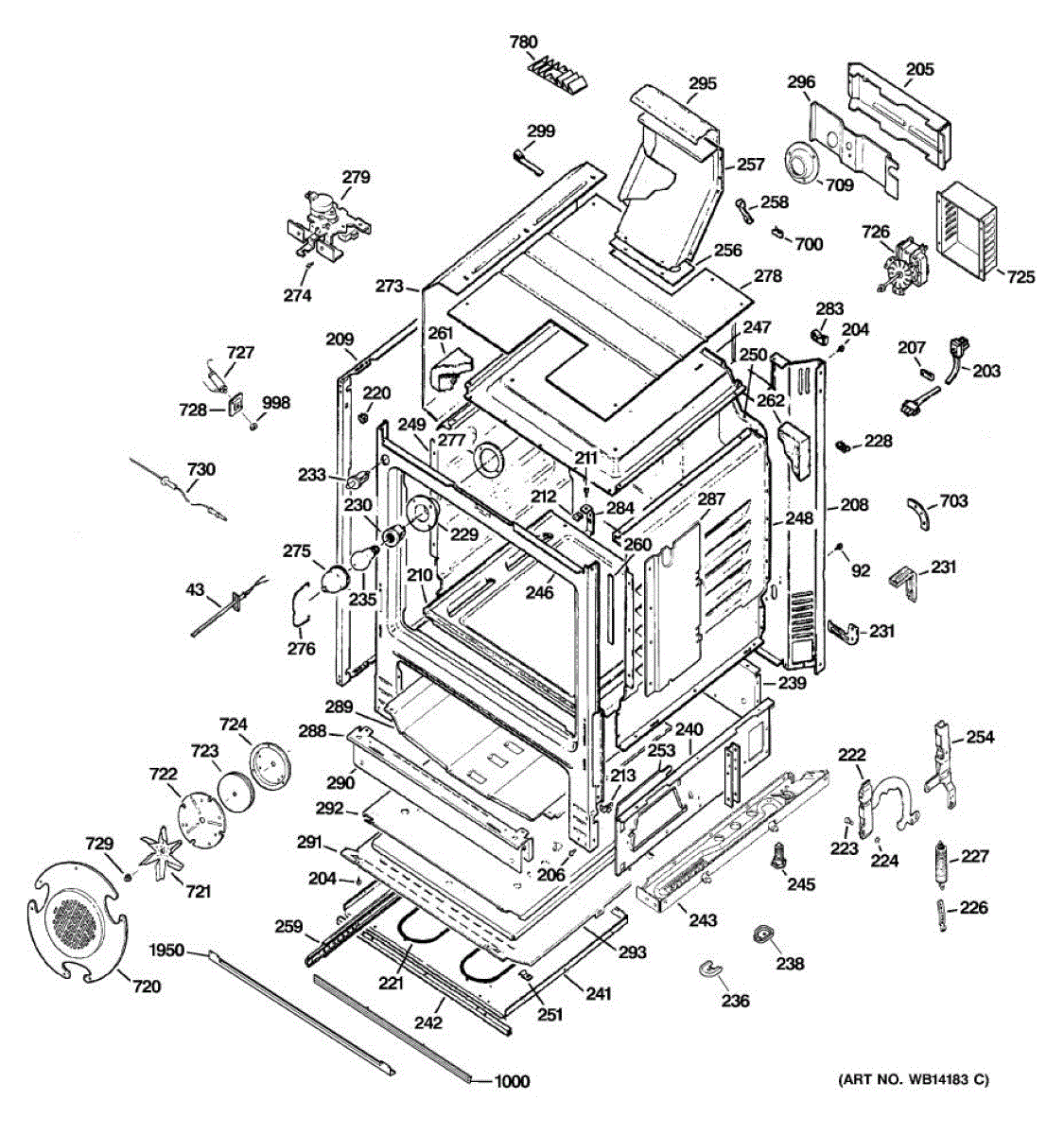

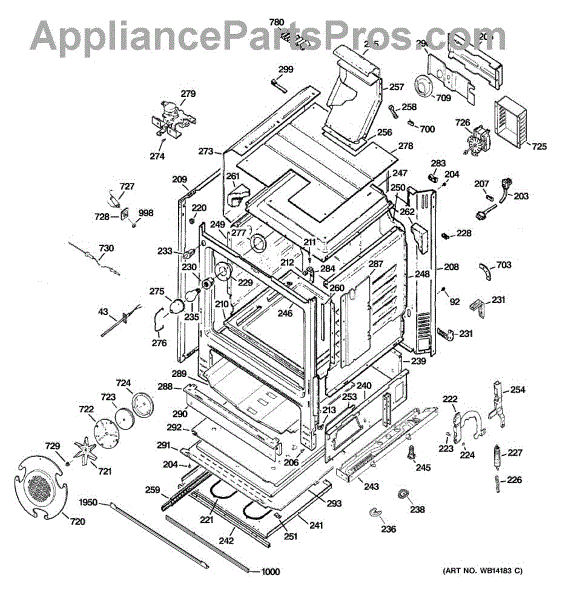

Parts for Ge PGB916SEM1SS: 03 - Body Parts

Oven not reaching or maintaining temperature? A faulty temperature sensor often causes inaccurate heating. Moderate DIY repair with video guidance.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Rear housing panel that covers the back of your range. Replace this cover if it's cracked, dented, rusted, or missing to restore your appliance's appearance.

Size: 10-32 GXTT FLP.595 S

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Replaces cracked, rusted, or corroded oven bottom pan and heat deflector. Installs in the base of your range oven cavity. Simple 2-screw removal.

Size: 8-18 x 1/2 inch.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Oven not heating on bake? This bake element heats the bottom of your oven cavity for even cooking. Fixes broken or visibly damaged heating elements.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

This bulb housing assembly holds and protects the light bulb inside your oven or range hood while providing electrical connections. It secures the bulb in the correct position and shields it from heat, grease, and food splatter during cooking. Replace this housing if the interior light doesn't work, bulbs burn out frequently, or the housing is cracked or damaged.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

This plunger switch is the push-style electrical switch that completes a circuit when an actuator is depressed, restoring reliable on/off signaling. Use it to replace a worn or broken plunger switch that causes intermittent or non-responsive operation. What it does:

• Closes an electrical circuit when the plunger is pushed, sending a signal to the appliance control.
• Commonly used where a door, lever or dispenser actuator must register a position or user input.
• Can correct symptoms like intermittent operation, a dispenser or mechanism that won't activate, or a stuck/unresponsive actuator.
• Acts as a direct mechanical-to-electrical interface—no electronics required.

• Disconnect power (unplug or turn off breaker) before servicing to avoid shock.
• Remove the access panel or housing to reach the switch; note actuator orientation before removal.
• Disconnect terminals or harness, then swap the old switch for the new one; reconnect terminals securely.
• Test the plunger action and appliance function before reinstalling panels.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Replace your range's spacer base if it's cracked, broken, or missing. This structural component helps maintain proper spacing and alignment between parts.

This spacer base is a small mounting component that positions and supports adjacent range/oven parts, helping maintain proper alignment and eliminate movement. It's a simple replacement to restore secure fit and stable assembly. What it does:

• Provides a stable mounting point to keep panels or components correctly spaced and aligned
• Prevents rubbing, vibration, or shifting that can cause noise or uneven gaps
• Restores factory clearance where a worn or damaged spacer allowed parts to sit improperly
• Works as a passive support piece—no electrical function

• One spacer base

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing exterior panels or components; keep fasteners organized
• Inspect mating surfaces for damage or debris and replace any additionally damaged hardware

Left hand side

Right hand side

Range bottom panel that forms the base of the cabinet frame. Replaces damaged, rusted, or missing bottom panels to restore structural integrity.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Replace your gas range's oven top panel if cracked, damaged, or worn. This structural component covers the oven cavity and supports cooktop burners.

Right hand side

Left hand side

Secures the heating element in your range. Replace if loose, damaged, or causing element misalignment. Confirm fit with your model number for proper installation.

Replace your range's access spring cover if it's cracked, broken, or missing. This protective housing installs over the spring mechanism for a complete look.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Right hand side

Left hand side

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap for range ovens. Installs around the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, or missing.

Left hand side

Right hand side

The range latch screw is a small fastener used to secure the door latch mechanism or latch strike plate firmly to the range frame. It keeps the latch components from shifting or loosening over time with repeated use. Replace this screw when the original is stripped, missing, or corroded, causing the latch assembly to feel loose or the oven door to not close securely.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Metal radiation shield that mounts inside your range to protect internal components from heat. Replace if cracked, bent, or dislodged during service.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Protective bottom guard for your range. Shields internal components from debris and damage. Replace if cracked, bent, or missing for proper protection.

Middle

Insulation that fits around range vent openings to reduce noise and prevent heat loss. Replace if damaged, deteriorated, or missing for proper insulation.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.

Cooling fan cover for gas ranges. Installs over the internal cooling fan assembly. Replace if cracked, damaged, or missing to restore proper airflow.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Fan support plate for electric and gas ranges. Mounts and secures the cooling fan assembly. Replace if cracked, bent, or broken to restore proper support.

Replace your cracked or broken range motor cover. This protective housing installs over the motor assembly to shield internal components from damage.

Convection fan stopped spinning or making noise? This motor drives the fan to circulate hot air for even baking. Moderate DIY repair—disconnect power first.

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spindle to turn and move the air around inside the oven. The fan helps the food to cook more evenly and reduces areas in the oven that are not cool enough or hot enough. If the fan is not working, the convection oven will not cook correctly.Convection ovens are different from regular ovens, and the fan is part of the reason. Convection ovens use the fan and an exhaust system to move the heat around inside the oven to cook food more evenly and faster. Many convection ovens have a setting that allows the oven to be used as a regular oven. If the nut is missing and the fan is inoperable, the oven can be used for regular cooking if it has this feature. Otherwise, the convection oven should not be used until the nut is replaced.This nut is a silver metal replacement part that is sold individually. It is designed for use in convection ovens made by GE and Kenmore.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a front frame gasket that seals the oven door against the oven cavity to prevent heat from escaping. It is typically made of a flexible, heat-resistant material that fits along the perimeter of the door or frame. Replace this gasket if you notice heat leaking around the oven door, uneven cooking temperatures, or visible wear, cracking, or hardening of the old seal.

Front bottom trim piece for electric and gas ranges. Replaces cracked, broken, or missing trim along the bottom edge of your range front panel.
