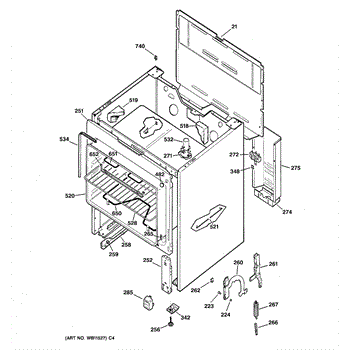

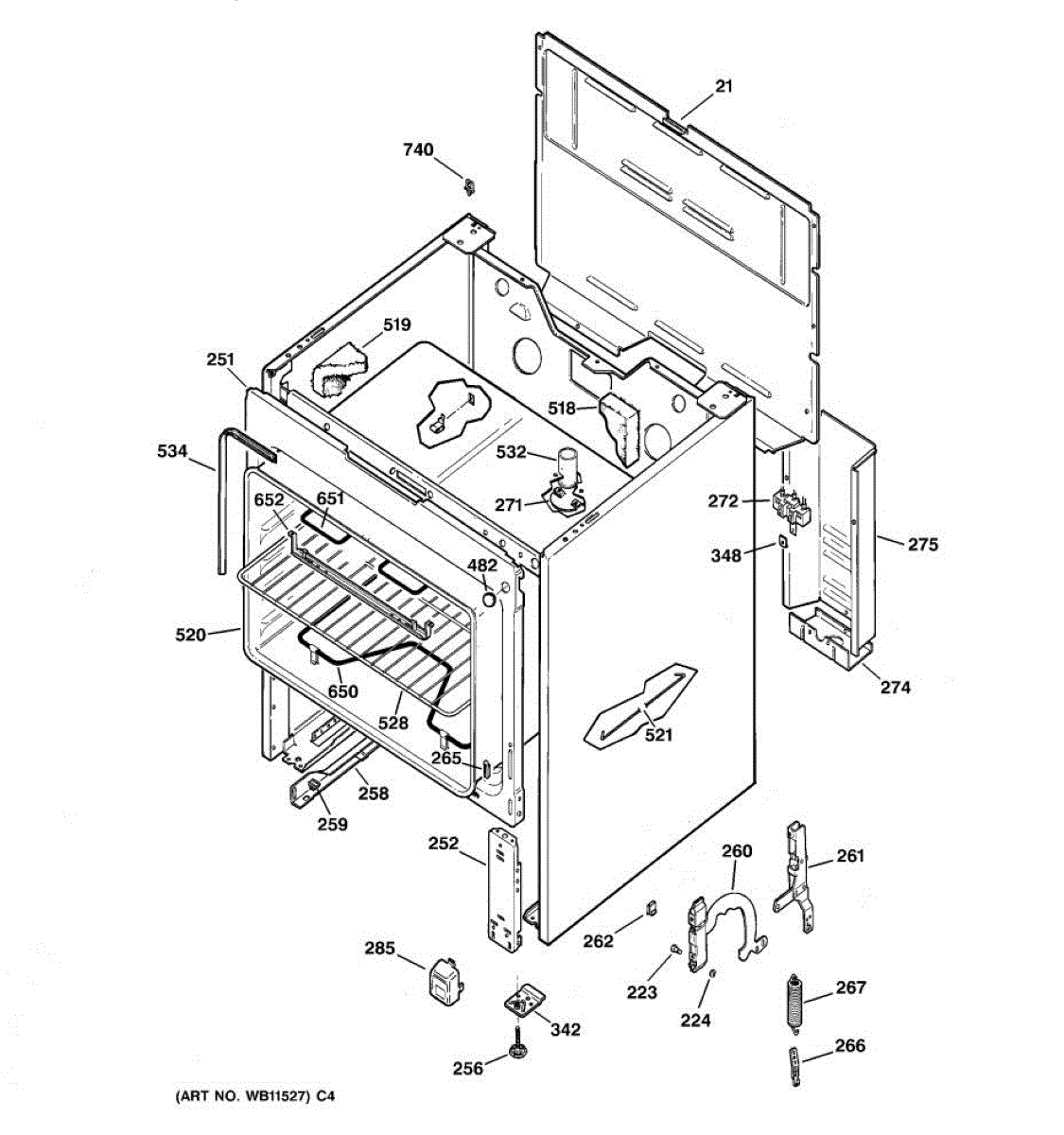

Parts for Ge RB525V3: 02 - Body Parts

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

Almond

Right hand side

Left hand side

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This terminal guard cover protects electrical connections from moisture, debris, and accidental contact while providing safe access for maintenance. It shields important wiring terminals from damage during normal appliance operation. Replace this cover if it's cracked, missing, or no longer provides adequate protection for electrical connections.

Thermal insulation blanket for the inner oven cavity. Replace if damaged, compressed, contaminated, or missing to restore heat retention and safety.

A replacement hook assembly that secures the oven door latch so the door closes and seals properly. Restores reliable door engagement for safe, even cooking and oven operation. What it does:

• Engages with the door latch to hold the oven door closed
• Helps maintain a proper oven seal for consistent cooking temperatures
• Common fix when the door won't stay closed or latch fails to engage
• Supports normal oven start/lock functions tied to door position

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; support the door while working to prevent damage
• Follow the appliance service manual for disassembly/reassembly steps

Metal oven rack provides stable support for cookware inside your range oven. Replace cracked, rusted, bent, or missing racks to restore proper function.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

If your oven won't heat or the bake element burned out, this replacement part restores proper baking. Easy 10-minute DIY install—unplug & swap.

Broiler won't heat or stays cold? This range broil element restores high-heat broiling. DIY-friendly repair, typically takes 20 minutes to replace.
