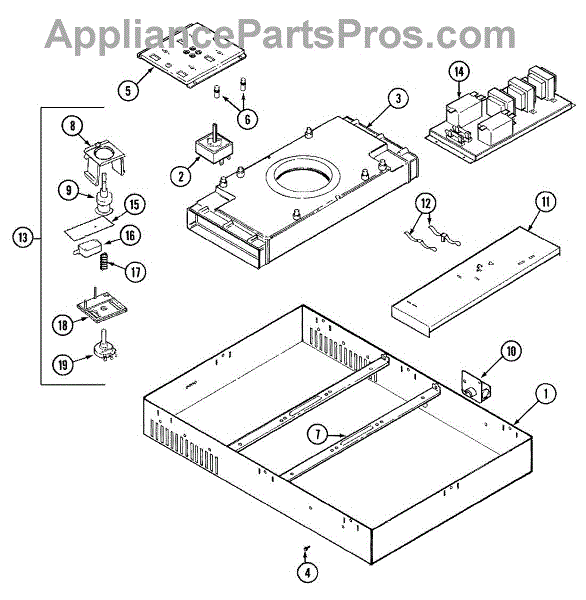

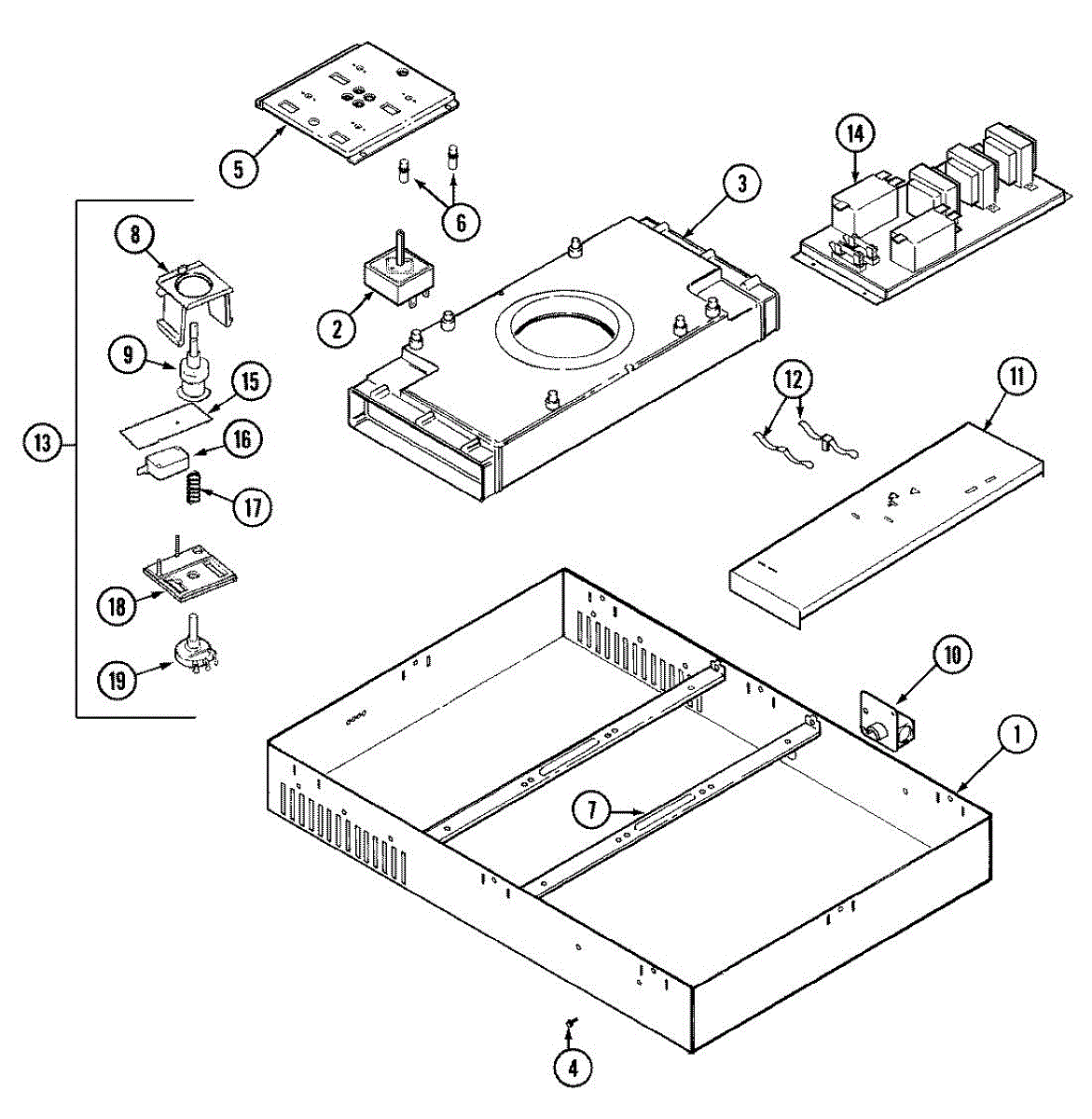

Parts for Jenn-Air CCE3451B: 01 - Body Parts

Size: 8-32 x 1/4 inch.

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw fastens appliance panels and components to restore secure mounting and stop rattling or loose parts. A basic, direct-fit fastener for routine repairs and reassembly. What it does:

• Secures panels, brackets, trim, or internal components to prevent movement and vibration
• Replaces missing or stripped screws that cause loose parts or rattling noises
• Restores reliable fastener retention for safe, stable operation
• Works wherever the OEM-specified screw is required for proper assembly

• Use the matching driver/socket and turn slowly to avoid stripping the head or threads
• Tighten until snug; do not over-torque to prevent damage to threads or housings
• Power off and unplug the appliance before attempting any repair
• If other fasteners or damaged mating threads are found, inspect surrounding components and replace as needed

This part has been discontinued by the manufacturer and is no longer available.

If looking for Clock please use Item Number: AP4097546 Manufacturer's Number: 74009196 (74009196) Made by Whirlpool

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

This violet insulated wire is a direct-replacement wiring lead used to restore a factory routing and color-coded connection in compatible appliances. It provides a ready-made, properly sized length for repairs and wiring continuity. What it does:

• Replaces a damaged, frayed, or missing violet lead to restore an electrical connection
• Preserves factory color coding for correct circuit identification during repairs
• Helps resolve intermittent connections or component failures caused by broken wiring
• Suitable for use where an 18" single-conductor, insulated lead is required

• Disconnect power to the appliance before beginning any repair.
• Use proper connectors/crimps or solder and insulating heat-shrink or approved electrical tape.
• Route the wire following the original path and secure away from moving or hot components.

This primary door interlock switch lets the microwave know the door is fully closed so cooking can start. Replacing a worn or sticking switch restores reliable start/stop response and helps prevent intermittent operation tied to door-latch signaling. What it does

• Confirms the door is closed to allow the control to power the cook circuit
• Common symptoms of a failed switch: won't start, stops when the door is jostled, or only runs when pressing on the door
• Installs on the latch/door switch bracket alongside secondary/monitor switches
• Helps correct inconsistent or no response when pressing Start

• One primary door interlock switch

• Disconnect power at the breaker; microwaves contain high-voltage components that can retain a dangerous charge
• Access the latch/switch bracket, then release the switch from its clip or screws
• Move wires to the same terminals on the new switch; match orientation/actuator position
• After reassembly, verify the unit does not run with the door open and starts consistently with the door closed

This part has been discontinued by the manufacturer and is no longer available.
