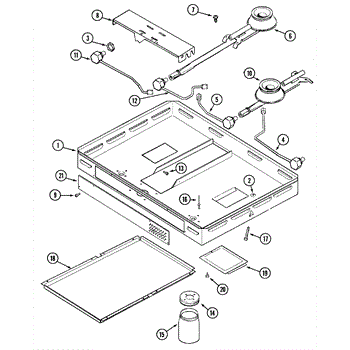

Parts for Jenn-Air CVG4280B: 02 - Body Parts

Replace a clogged or damaged rear burner with this surface burner head in black. It channels gas to the flame ports so the rear burner lights reliably and delivers a consistent, even flame for everyday cooking.

• Directs gas through precisely sized ports to form the rear burner flame pattern
• Interfaces with the spark igniter/electrode for dependable ignition
• Helps restore proper burner performance when ports are worn, corroded, or blocked
• Common symptoms: burner clicks but won't light, uneven or weak flame, yellow tipping, delayed ignition

• Shut off gas supply and disconnect power before servicing
• Remove grate and burner cap; take out mounting screws and lift the old burner head straight up over the igniter
• Align the new head over the orifice and igniter; secure with the existing screws
• Reassemble and test for proper ignition and flame on all burners

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement mounting bracket secures internal components and panels so parts stay aligned and stable during operation. It restores proper fit and reduces rattling or loose panels for safer, quieter performance. What it does

• Provides a secure mounting point for appliance panels or components.
• Restores alignment to panels or assemblies that have become loose or shifted.
• Helps eliminate rattling, vibration noise, or intermittent contact caused by a loose bracket.
• Used when existing bracket is cracked, bent, or missing.

• Disconnect power (and gas if applicable) before beginning any repairs.
• Use common hand tools; support panels while removing fasteners to prevent damage.
• Handle edges carefully to avoid cuts; wear gloves if needed.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This surface burner head redistributes gas from the orifice to create an even flame on your range or cooktop. Replacing a clogged or damaged head helps restore reliable ignition and consistent heat for everyday cooking.

• Channels gas to the burner ports for a uniform flame pattern
• Works with the igniter/spark electrode to light the burner
• Can help resolve weak, yellow, or uneven flames caused by blockage or wear
• Common symptoms: burner won't light, takes multiple clicks to ignite, or flames that sputter/go out

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove grate and burner cap, then lift off the old head
• Clean the orifice area; seat the new head squarely on the orifice
• Reassemble and test ignition and flame; check for leaks if any connections were disturbed

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

This part has been discontinued by the manufacturer and is no longer available.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
