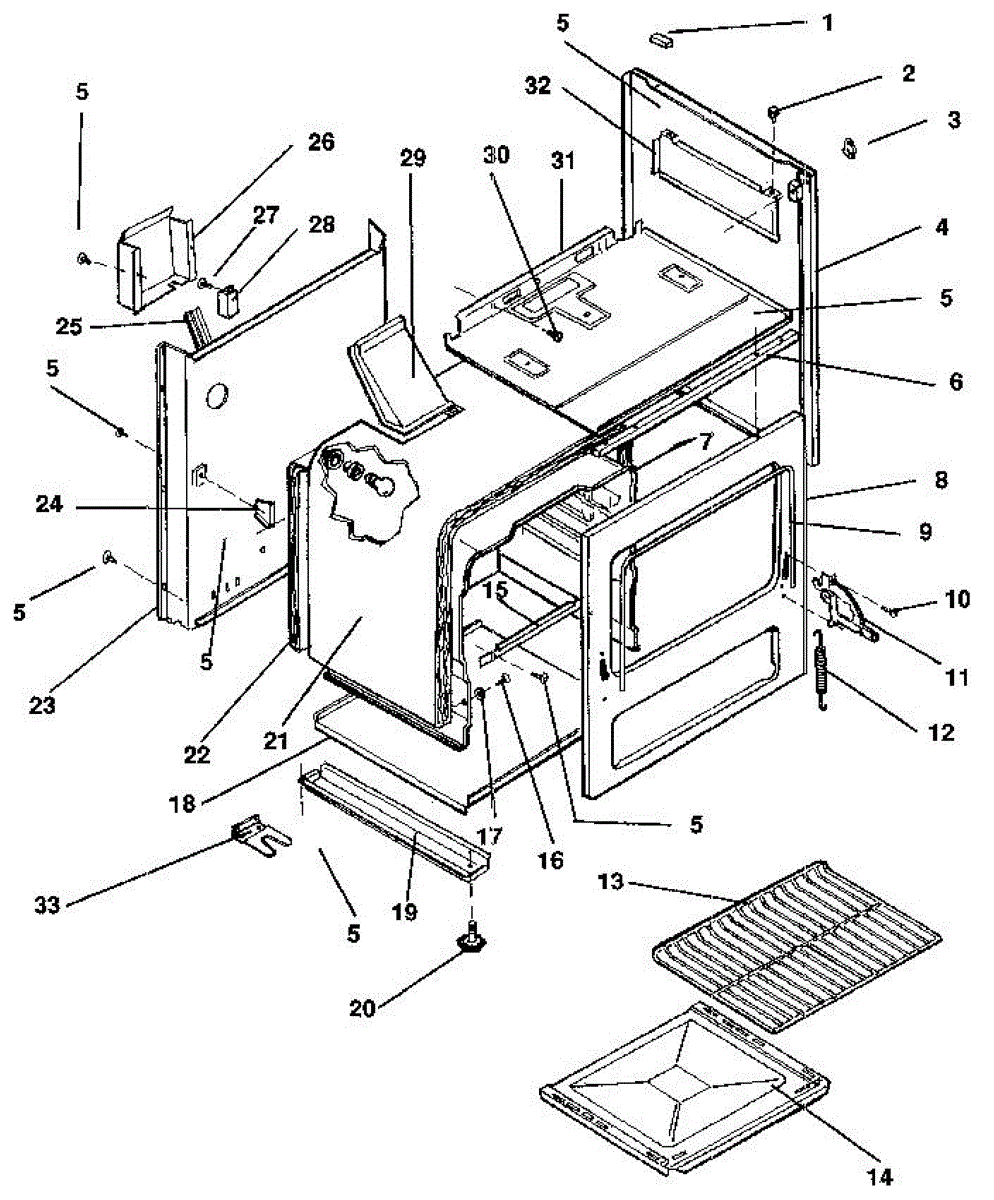

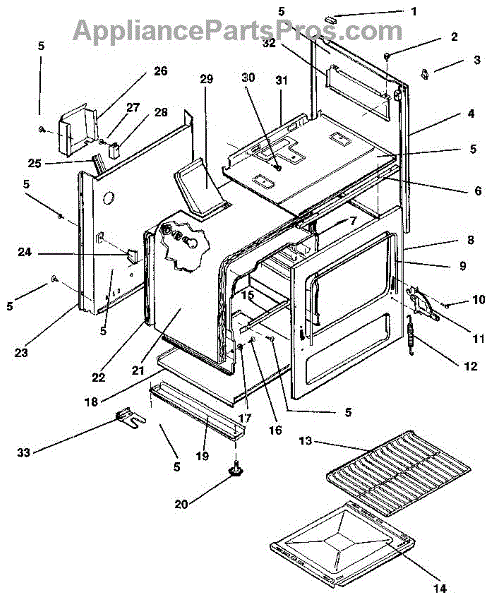

Parts for Kenmore 119.7028811 (1197028811, 119 7028811): Body Parts

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

Hex washer head ,10-32 x 0.375. Ground

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: For the right side use 318348800

The Hinge Assembly is an OEM part for Frigidaire ranges. This part allows the oven door to open and close smoothly while providing a secure attachment to the range body.

Causes of a bad Hinge Assembly can include wear and tear over time, physical damage from impact or mishandling, or failure of the internal mechanisms due to exposure to high temperatures or debris buildup.

Symptoms of a bad Hinge Assembly include:

• Difficulty opening or closing the oven door
• The door feeling loose or wobbly when opening or closing
• The door failing to stay in the open position
• Excessive noise or grinding sounds when operating the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly
