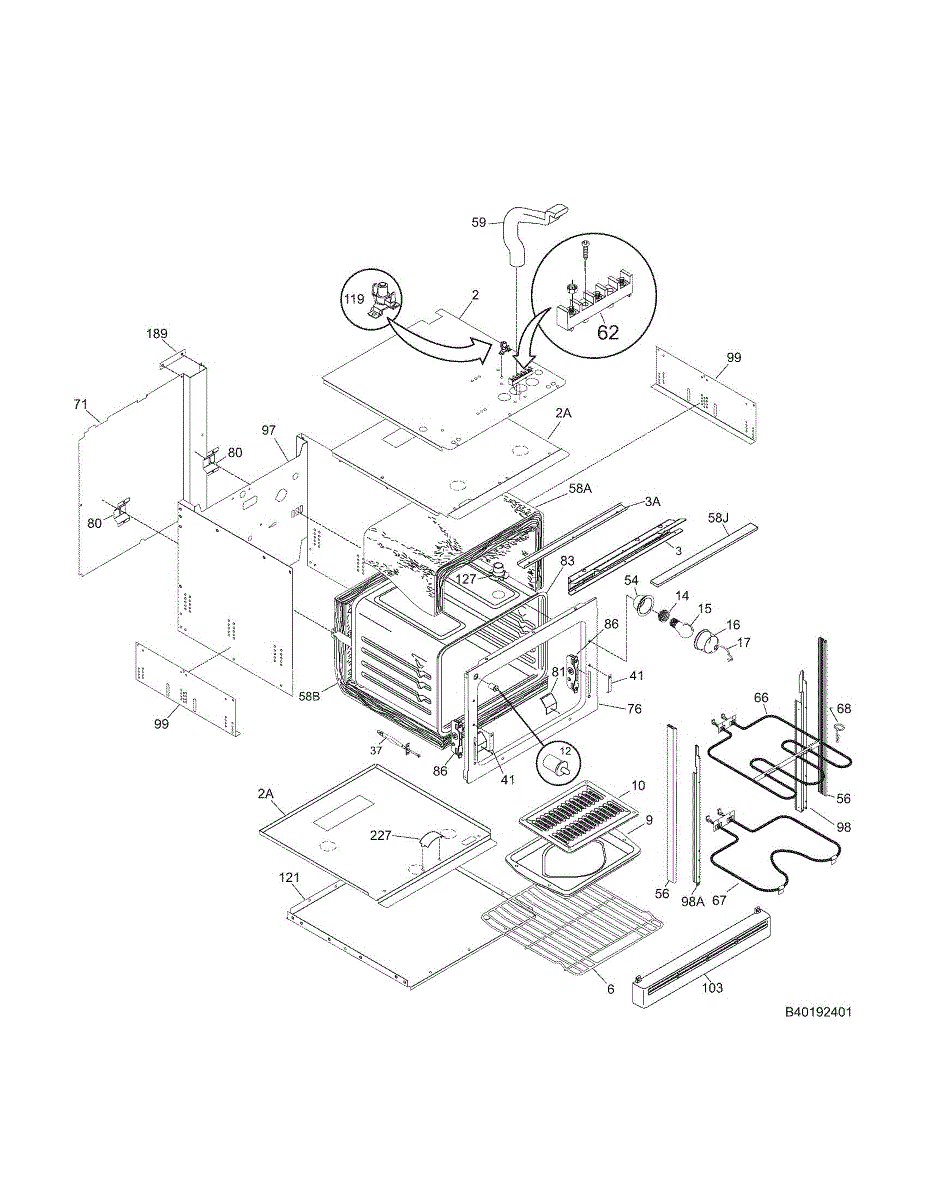

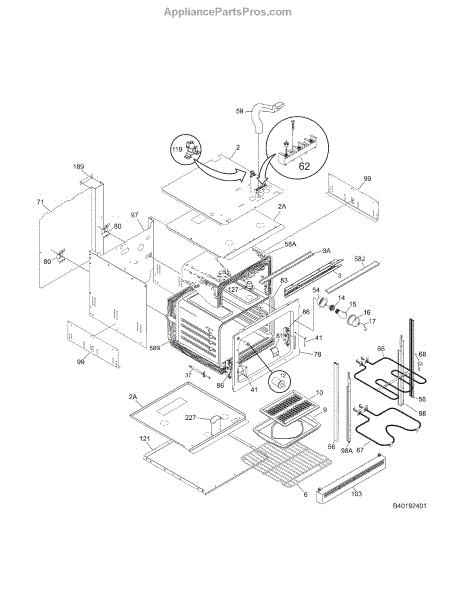

Parts for Kenmore 790.40192402 (79040192402, 790 40192402): Body Parts

This oven rack replaces a worn, bent, or missing rack to restore secure, level support for bakeware and cookware. It gives smooth slide-and-lock support so pans cook evenly and stay stable while you load and remove food. What it does

• Provides a sturdy shelf for cookware and bakeware inside the oven cavity
• Restores proper spacing and airflow for even cooking and browning
• Replaces racks that are bent, warped, rusted, or no longer sliding smoothly
• Helps prevent cookware from tipping or sliding when inserting or removing pans

• One oven rack

• Install by sliding into the oven side rails at the desired height; no tools typically required
• Wear gloves to avoid pinched fingers and allow the oven to cool completely before removing or installing
• Only use racks and accessories rated for your oven's maximum temperature

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electric heating element restores consistent, reliable heat in your appliance, so cooking or warming functions work as intended. Replace a failed element to eliminate slow heat-up, uneven temperatures, or no-heat conditions.

• Converts electrical power into heat for the appliance's designated cavity or surface
• Common failure symptoms: no heat, uneven heating, very slow preheat/warm-up
• Visual clues: breaks, blisters, or hot spots on the coil
• May cause the unit to cycle erratically or trip a breaker if shorted

• Disconnect power at the breaker or unplug before servicing; allow all components to cool
• Wear cut-resistant gloves; avoid bending or kinking the element
• Photograph wiring and transfer connectors one-for-one; ensure tight, clean terminal fits
• Inspect wires/terminals for heat damage and replace any compromised connectors

Oven won't heat or bakes unevenly? A failed bake element is likely the cause. This lower heating element replacement typically takes 30 minutes or less.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Ranges, wall ovens, microwaves, and microwave oven combination appliances require the use of hinges to operate efficiently. The hinges work in part with the aid of hinge receptacles. If the hinge receptacles are no longer performing their function, a replacement part is required.There are two door hinge receptacles on the doors of most appliances. Inspect both for damage before ordering. If there is a problem, the door will not open or close easily. Before making a repair to any appliance, make sure to unplug the unit from its power source prior to starting the replacement. Remove the old hinge receptacle if there is one in place. Secure the new one in the proper position. Test the door by opening and closing. Make any necessary adjustments for a secure fit.This hinge receptacle is an authentic OEM replacement part. It comes sourced directly from the manufacturer. The part is made of high-quality, durable materials. The piece is compatible with several models of appliances, including ranges, microwaves, and wall ovens. It fits into devices produced by Electrolux, Gibson, Kelvinator, Westinghouse, and Frigidaire brands.

This back-side wrapper is the outer rear panel that covers and protects the appliance's rear components while restoring the unit's finished appearance. It helps keep wiring and parts shielded from dust and incidental contact. What it does:

• Covers the appliance's rear area to protect wiring and components from dust and damage
• Restores a finished exterior surface for a neat appearance
• Helps reduce incidental contact with internal parts during normal use
• Can stop minor drafts or air movement that occur through a damaged or missing rear wrapper

• Disconnect power to the appliance before beginning any service
• Remove access panels or mounting clips as required to reach the rear wrapper
• Use basic hand tools; support the panel during removal/installation to avoid scratching adjacent surfaces

Oven overheating or won't heat properly? This safety thermostat monitors backguard temperature to prevent overheating. Simple DIY fix restores safe operation.

This part has been discontinued by the manufacturer and is no longer available.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Wire junction box assembly for wall ovens. Houses and protects electrical connections. Replace if cracked, damaged, or missing to properly enclose wiring.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.
