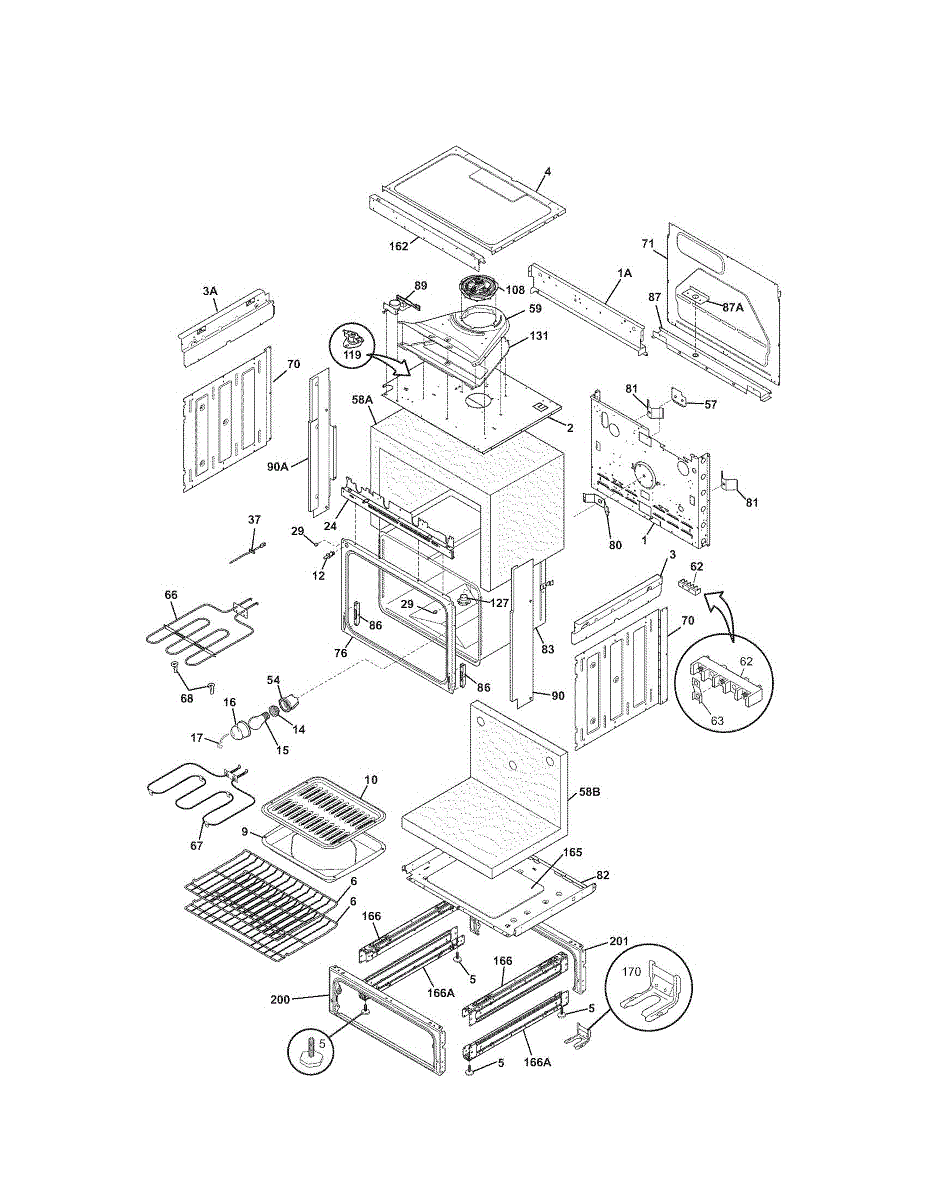

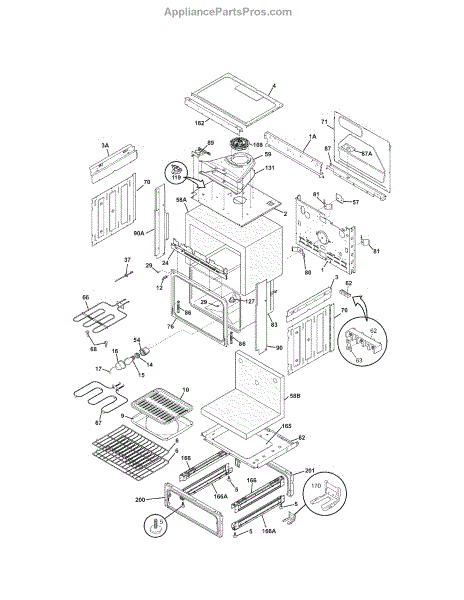

Parts for Kenmore 790.46763905 (79046763905, 790 46763905): Body Parts

Rear panel back for ovens and ranges. Replaces cracked, damaged, or missing exterior back panels. Essential structural part for cabinet integrity.

Replaces a worn, cracked, or damaged range control panel. Restores the front console interface where buttons and display are located for settings.

Replacement control panel for your range. This front panel houses controls and display. Needed when the original panel is cracked, damaged, or worn.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Replace your oven's support plate if it's cracked, broken, or missing. This structural component mounts inside the oven cavity to secure internal parts.

Insulation panel for oven cavity. Replaces worn, damaged, or missing insulation that provides thermal protection and sound dampening around your oven.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Support plate for electric ranges. Mounts internally to provide structural support. Replace if cracked, broken, or damaged during service or repairs.

Broiler not heating or turning red? This broil element restores high-heat broiling. DIY-friendly repair, typically takes 10-15 minutes with basic tools.

Oven not heating or baking unevenly? The bake element often fails after years of use. Easy DIY fix in minutes—unplug, unscrew, and replace wires.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix F95 error codes or doors that won't lock with this oven door latch motor. Restores self-cleaning function. Moderate difficulty, 30-45 minute repair.

This is a black filler panel designed to mount on the left side of the range. It covers the gap between the range and adjacent cabinetry for a finished, built-in appearance. Replace this panel if it is cracked, warped, discolored, or missing.

This is the cooling fan motor that draws air across the oven cavity and control panel area to prevent overheating of surrounding cabinetry and electronic components. It typically runs during and after oven use to dissipate heat. Replace this motor if the oven shuts off unexpectedly due to overheating, the cooling fan does not spin, or you notice excessive heat around the control panel or cabinet surfaces near the range.

Oven won't heat after self-cleaning? This high-limit thermostat cuts power when temperatures get too high. Moderately easy DIY repair fix.

Vent adapter assembly installs in the oven cavity to connect ventilation ducts. Replace if cracked, damaged, or missing to restore proper airflow.

This is the bottom panel of the oven cooling fan air duct assembly, which directs airflow to cool internal components and control electronics during and after cooking. It helps prevent overheating of surrounding cabinetry and sensitive parts. Replace this piece if it is warped, cracked, or missing, which can lead to excessive heat buildup around controls or the oven exterior becoming unusually hot.

Secures internal components to your range cabinet. Replace this bracket if the original is broken, bent, or missing to restore proper alignment.

Anti-tip safety bracket secures your range to the wall or floor, preventing dangerous tipping. Replace if broken, missing, or damaged during installation.

Structural frame and wheel assembly for electric ranges. Replaces damaged, bent, or broken frame components. Installs at base to support appliance mobility.

Structural frame component for electric and gas ranges. Replaces damaged, bent, or corroded frame that affects cabinet integrity or appliance stability.

Replace your range's wiring harness if damaged, frayed, or showing signs of wear. This internal electrical component connects power throughout your range.

Secures the glass panel on your oven door. Replace if the bracket is cracked, bent, or missing to properly hold the glass in place and restore door integrity.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

This is a metal mounting bracket used to secure an over-the-range microwave to the wall or cabinet during installation. It provides structural support and helps keep the microwave properly aligned and stable. Replace this bracket if it is bent, broken, or missing, which can cause the microwave to sit unevenly or become unsafe.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.
