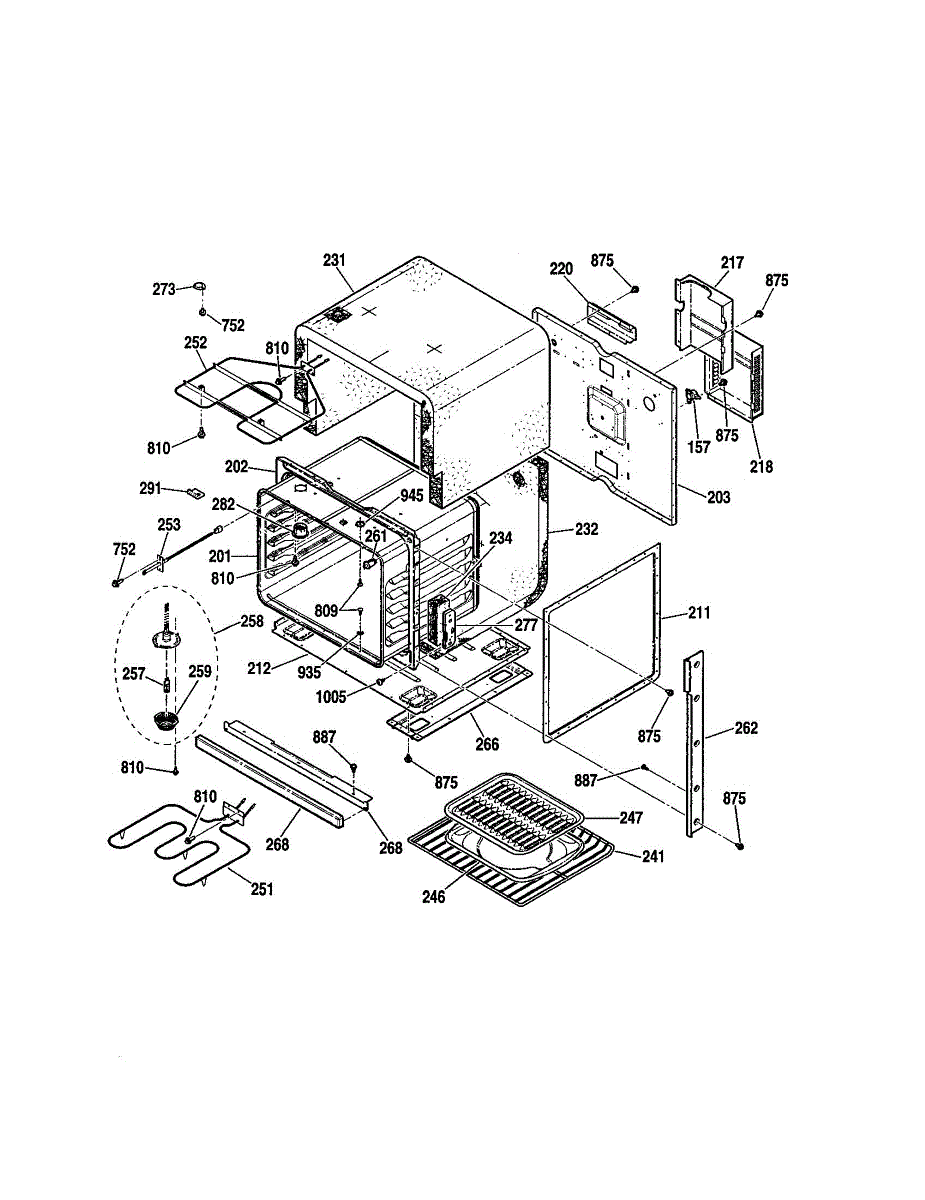

Parts for Kenmore 911.47709200 (91147709200, 911 47709200): Body Parts

Oven won't heat or shuts off after reaching temperature? The hi-limit thermal switch prevents overheating. DIY repair takes 30-60 minutes.

Secures bottom insulation panel in place to maintain proper thermal protection. Replace if cracked, broken, or missing to keep insulation positioned.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? A faulty bake element is often the cause. This bottom heating element is straightforward to replace yourself.

Oven not broiling or browning food? The broil element provides high heat at the top of the oven. Simple 5-10 minute DIY fix with basic tools.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Replace your oven's halogen bulb when the interior light burns out or dims. Illuminates the oven cavity so you can monitor cooking without opening the door.

Replace the vertical side trim assembly on your oven or wall oven. This cosmetic trim piece covers the side edge and may need replacement if cracked or damaged.

Vertical side trim panel for wall ovens. Installs along the right side edge to cover gaps and provide a finished look. Replace if cracked or missing.

This is a metal base rail that mounts inside the oven cavity and provides a track or support structure for internal components such as racks or drawer slides. It helps guide and stabilize parts as they slide in and out of the oven. Replace this rail if it is bent, corroded, or broken, causing racks or other components to sit unevenly or not slide smoothly.

Restores the lower front edge appearance of your 27-inch wall oven. Replaces cracked, dented, or missing trim for a clean, finished look.

Black bottom trim panel for wall ovens. Covers the lower edge of the oven opening. Replace if cracked, chipped, or discolored for a finished look.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Hinge receiver that mounts to the oven frame and accepts the door hinge arm. Replace if cracked, worn, or damaged to restore proper door support.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
