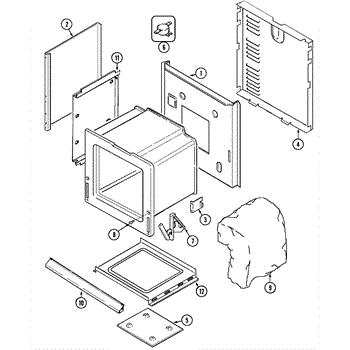

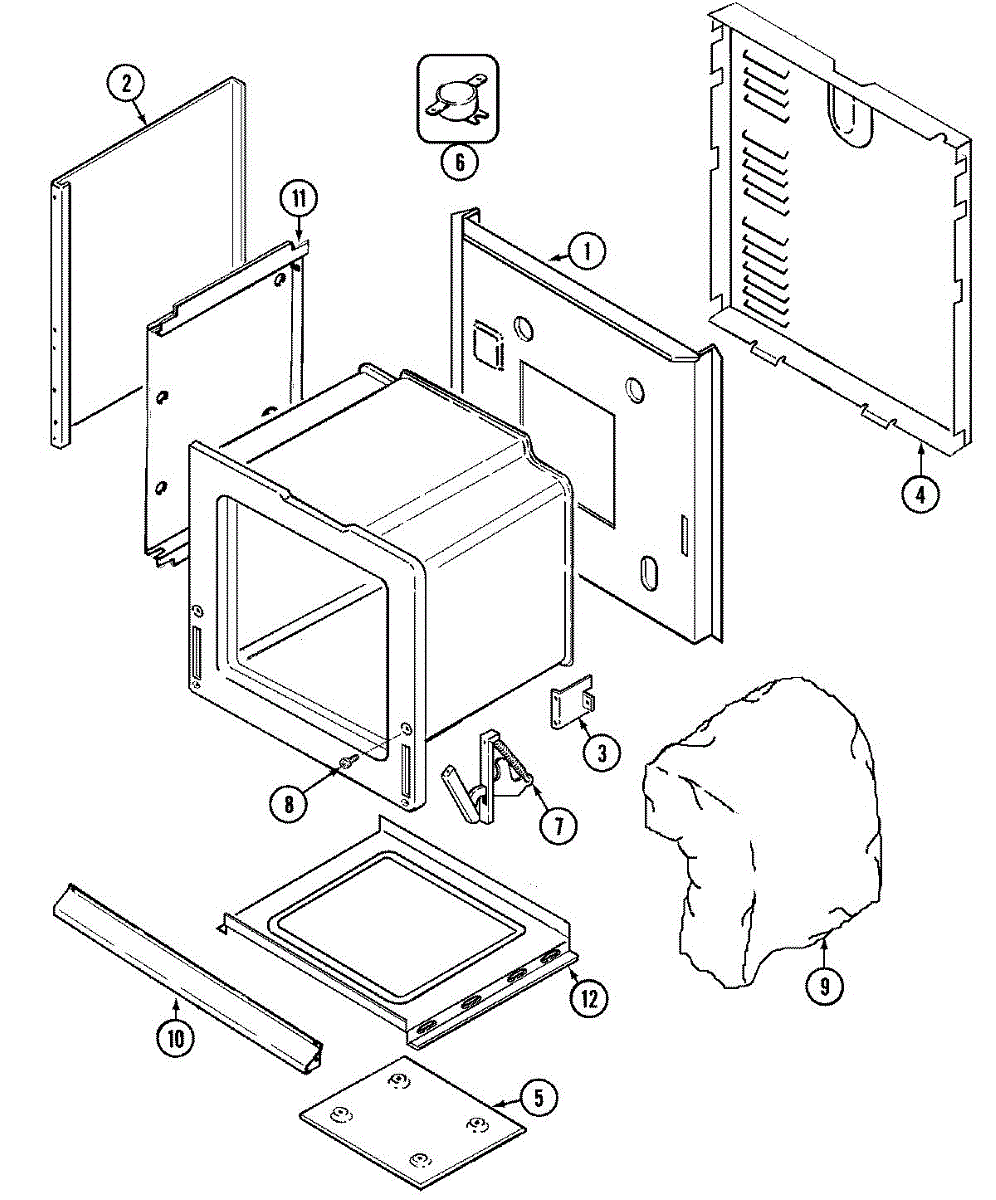

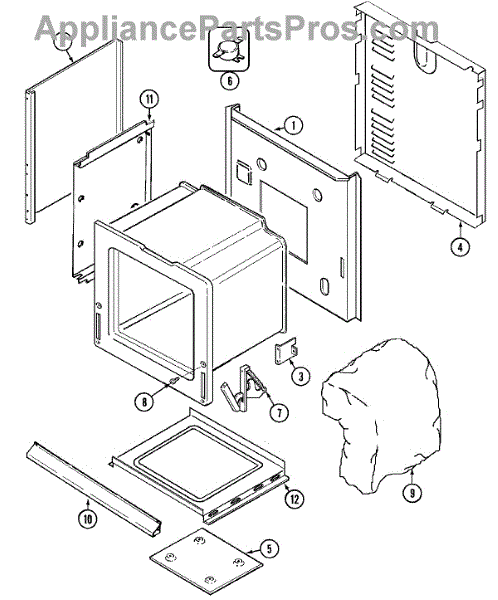

Parts for Magic Chef 9875XVB: 01 - Body Parts

This high-limit thermostat (hi-limit switch) is a temperature safety device that stops the heating circuit if the appliance overheats, helping protect the unit and restore proper heat control when replaced. What it does:

• Opens the heating circuit if internal temperature exceeds safe limits to prevent overheating.
• Controls whether the heater/element receives power based on temperature.
• When faulty, common symptoms include no heat or intermittent heating and repeated thermal cutouts.
• Can be tested for continuity to confirm electrical function.

• One high-limit thermostat (hi-limit switch).

• Disconnect power before inspecting or replacing; risk of shock or injury if energized.
• Note and label wire locations or take a photo before removal for correct reassembly.
• Verify part compatibility with your model before installing; confirm continuity after installation.

Size: 10-24X5/16-NI

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
