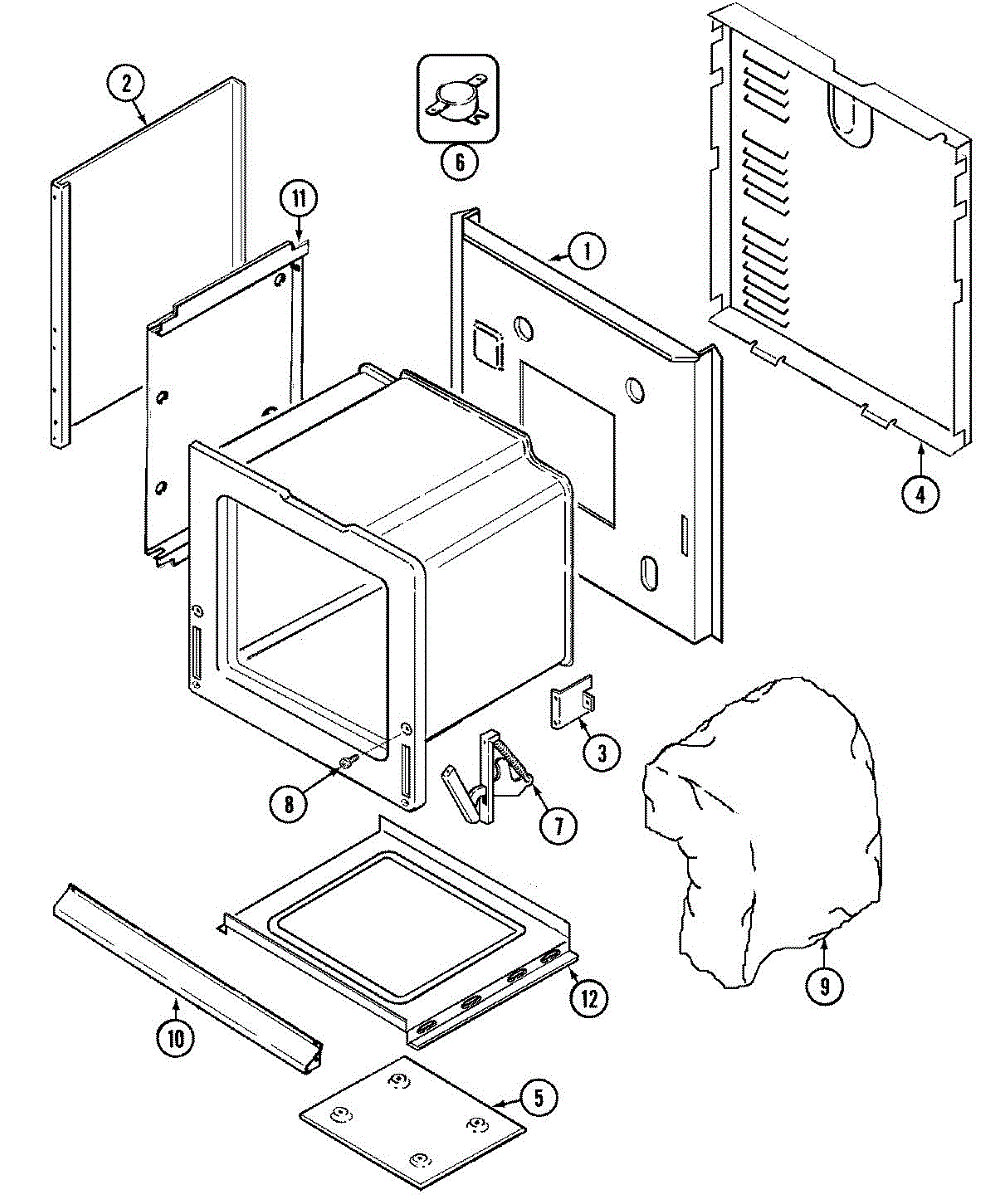

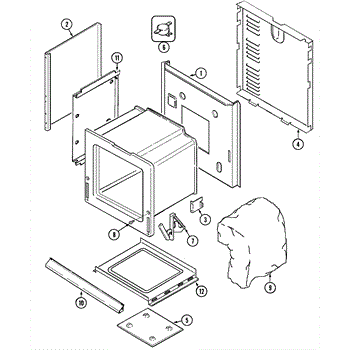

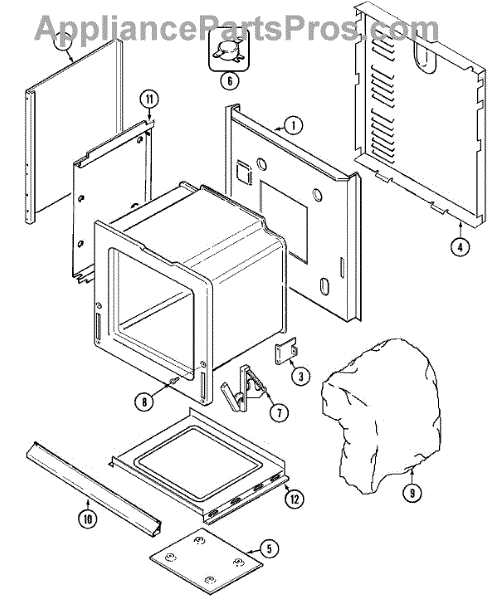

Parts for Magic Chef C9875XVB: 01 - Body Parts

This high-limit thermostat (hi-limit switch) is a temperature safety device that stops the heating circuit if the appliance overheats, helping protect the unit and restore proper heat control when replaced. What it does:

• Opens the heating circuit if internal temperature exceeds safe limits to prevent overheating.
• Controls whether the heater/element receives power based on temperature.
• When faulty, common symptoms include no heat or intermittent heating and repeated thermal cutouts.
• Can be tested for continuity to confirm electrical function.

• One high-limit thermostat (hi-limit switch).

• Disconnect power before inspecting or replacing; risk of shock or injury if energized.
• Note and label wire locations or take a photo before removal for correct reassembly.
• Verify part compatibility with your model before installing; confirm continuity after installation.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
