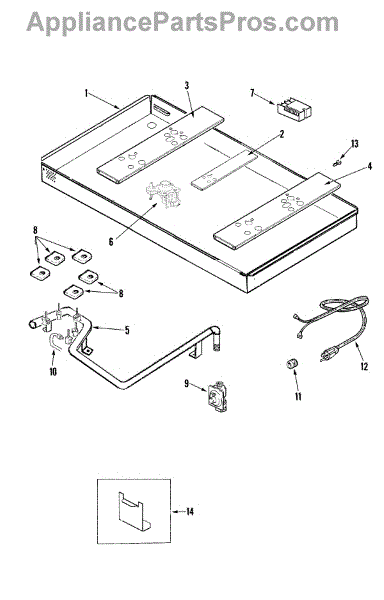

Parts for Magic Chef CGC2536ADB: 01 - Body Parts

This surface burner orifice holder channels gas from the valve to the burner and positions the orifice correctly for the 9.2K burner. Replacing a damaged holder restores proper gas flow, ignition, and consistent flame performance.

• Routes gas from the surface valve to the burner and houses the orifice
• Provides correct orifice alignment/seal for the designated 9.2K burner
• Helps ensure stable flame height and reliable ignition
• Typical failure symptoms: weak or uneven flame, delayed ignition, or gas odor near that burner

• Disconnect power and shut off gas; allow appliance to cool before servicing
• Remove burner cap and head to access, then support fittings with two wrenches when loosening/tightening to avoid stressing the manifold
• Transfer any reusable parts from the original assembly only as directed by your model's service information
• After installation, restore gas and check all connections for leaks with an approved leak-detection solution; verify flame and ignition

This surface burner orifice holder is a genuine Whirlpool part, sold individually. This surface burner orifice holder can be used as a replacement part in a gas range. This part holds the components of the burners in place, such as the igniter, the burner cap, the retaining nut, the spring clips, and the burner grates.If the surface burner orifice holder of one of the burners is lost or misplaced, the component should be immediately replaced with this genuine OEM replacement part. If the surface burner orifice holder is damaged, the component should be removed and replaced. The repair or replacement process is simple. The repair or replacement will require a putty knife and a screwdriver. Work gloves should be worn during the repair or replacement process.This is an OEM part sourced directly from the manufacturer. This surface burner orifice holder is compatible with the following appliance brands: Whirlpool and Amana.

This orifice holder routes gas from the surface burner valve to the burner head. Sized for a 12K burner, it restores proper gas flow and reliable ignition when the original holder is damaged, clogged, or misaligned.

• Positions the orifice and channels gas to the burner head on a 12,000-BTU burner
• Maintains correct gas flow for a steady, consistent flame
• Common symptoms: burner won't ignite though the igniter sparks, weak/uneven flame, or stripped/damaged threads at the holder
• Match the 12K rating to the correct burner location per your model's parts diagram

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner parts; lift the cooktop as needed to access the holder
• Transfer any brackets/gaskets from the original and install squarely; do not overtighten fittings
• Restore gas and check all connections with a non-corrosive leak-detection solution; verify ignition and flame quality

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

This switch/wire lead assembly is used on select ranges and wall ovens to control a specific function. Replacing a worn switch restores positive on/off control and reliable power flow through the attached leads. What it does:

• Opens or closes the circuit for the assigned feature when actuated
• Routes power through the attached leads to the controlled component
• Symptoms can include: feature won't start, won't turn off, intermittent operation, or heat-discolored/burned terminals or wires
• May feel loose or fail to click/hold position compared to normal operation

• One switch with attached wire leads

• Disconnect power at the breaker before servicing
• Access the control panel or mounting area; note wire locations (take a photo for reference)
• Transfer wires one at a time to the new switch; reuse original mounting hardware
• Restore power and test the function before final reassembly

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This burner tube directs gas from the valve to the burner head so the cooktop lights and maintains a steady flame. It's a direct-fit service part that restores proper gas flow and burner performance. What it does:

• Channels gas safely from the valve to the burner head for ignition and steady flame
• Helps maintain even flame distribution across the burner
• Commonly replaced when burners won't light or flame is weak/uneven
• Supports correct burner assembly alignment for reliable operation

• One burner tube

• Turn off the gas supply and unplug the appliance before servicing
• Verify proper orientation and seating against the valve and burner head during installation
• Use basic hand tools; avoid damaging the tube or nearby components
• After installation, check for gas leaks with a soapy-water solution — do not use an open flame; if you smell gas, shut off supply.

This burner tube replaces a damaged or corroded gas tube that routes fuel to the cooktop/oven burner, restoring proper gas flow and stable flames for reliable cooking. Designed as a direct-fit replacement when matched to your appliance model. What it does:

• Channels gas from the manifold to the burner so the burner can ignite and produce an even flame
• Helps maintain consistent flame pattern and heat distribution when functioning properly
• A damaged, dented or corroded tube can cause uneven flames, burner failure to light, or visible gas odor
• Use as a one-for-one replacement to restore safe, normal burner operation

• Shut off the appliance's gas supply and electrical power before servicing
• Remove nearby burner components and connectors carefully to access the tube; keep orientation for correct reassembly
• Inspect and replace any worn gaskets or fittings and ensure tight, leak-free connections when reinstalled

This burner tube directs gas from the oven manifold to the bake burner, ensuring a consistent flame for oven heating. It replaces a damaged or corroded tube to restore proper burner operation and heat distribution. What it does:

• Channels gas to the bake/broil burner for safe and consistent combustion
• Helps maintain even oven temperatures when functioning properly
• Can prevent burner misfires or poor ignition caused by holes, dents, or corrosion
• Often replaced when flames are weak, uneven, or the burner won't light reliably

• One replacement burner tube

• Turn off the appliance and shut off the gas supply before attempting any service
• Inspect gaskets and fittings; replace any damaged seals to prevent leaks
• Installation may require removal of oven liners or burner assembly

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage
