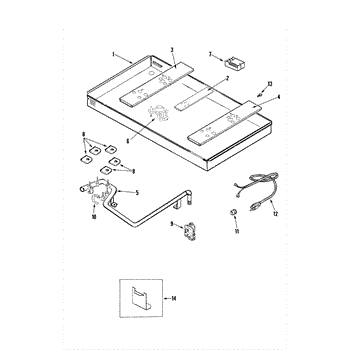

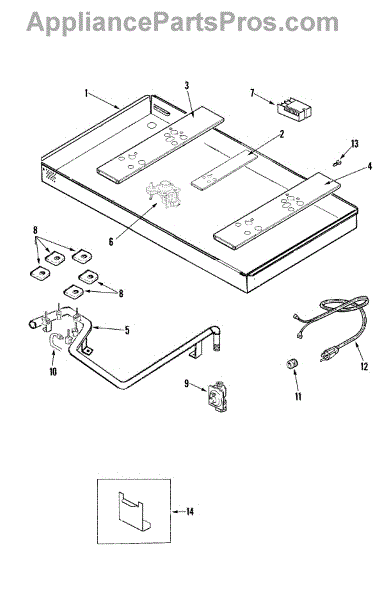

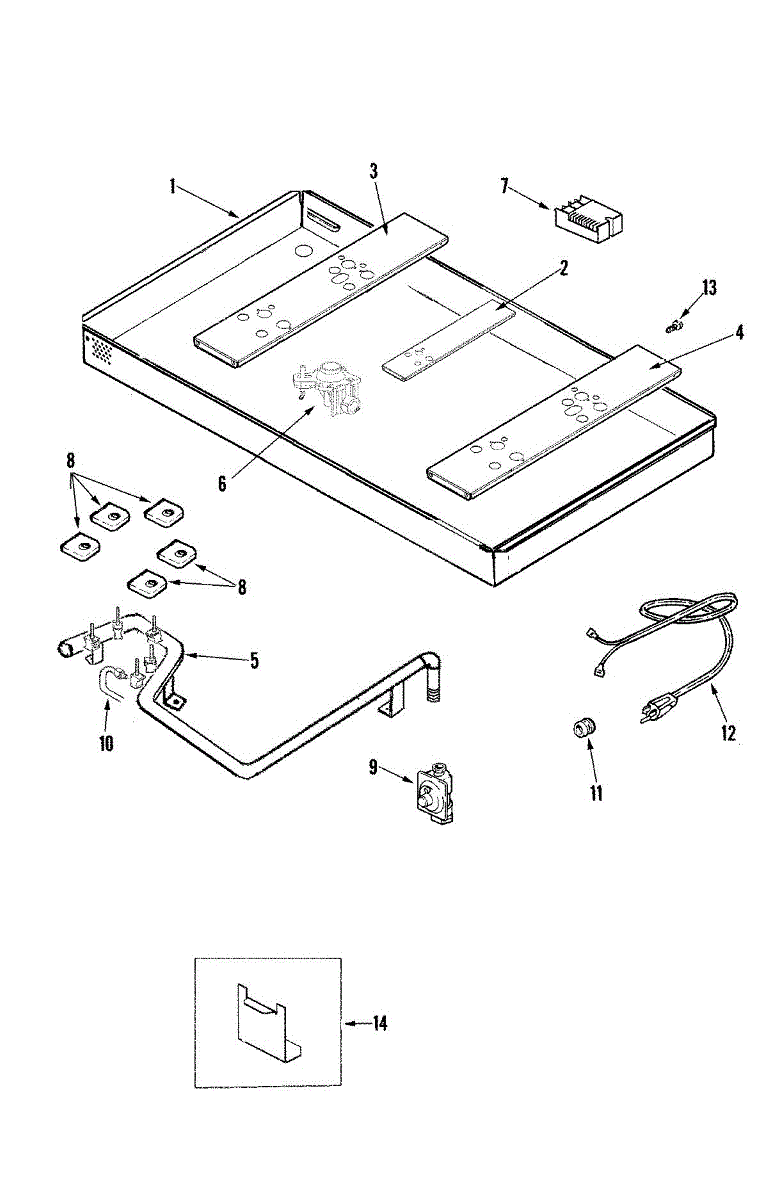

Parts for Magic Chef CGC2536ADW: 01 - Body Parts

This surface burner orifice holder is a genuine Whirlpool part, sold individually. This surface burner orifice holder can be used as a replacement part in a gas range. This part holds the components of the burners in place, such as the igniter, the burner cap, the retaining nut, the spring clips, and the burner grates.If the surface burner orifice holder of one of the burners is lost or misplaced, the component should be immediately replaced with this genuine OEM replacement part. If the surface burner orifice holder is damaged, the component should be removed and replaced. The repair or replacement process is simple. The repair or replacement will require a putty knife and a screwdriver. Work gloves should be worn during the repair or replacement process.This is an OEM part sourced directly from the manufacturer. This surface burner orifice holder is compatible with the following appliance brands: Whirlpool and Amana.

Fix weak flames or uneven heating on your gas cooktop. This burner orifice holder channels gas from the valve to the burner for proper ignition.

Fixes weak flame or ignition failure on 12K burners. This orifice holder restores proper gas flow when clogged or damaged. Moderate DIY repair.

Gas burner won't ignite or spark? This surface burner spark electrode generates the spark to light your cooktop burner. Moderate DIY repair.

Burners won't light? No spark on any burners? The spark module generates sparks to ignite gas burners. Easy DIY repair—usually takes under 30 minutes.

Fix burners that won't light with this cooktop igniter switch wire assembly. Restores reliable spark ignition when switches fail. Moderate DIY repair.

Controls and stabilizes gas supply to your cooktop's burner system. Replace if the regulator is damaged, leaking, or failing to maintain proper pressure.

This burner tube directs gas from the valve to the burner head so the cooktop lights and maintains a steady flame. It's a direct-fit service part that restores proper gas flow and burner performance. What it does:

• Channels gas safely from the valve to the burner head for ignition and steady flame
• Helps maintain even flame distribution across the burner
• Commonly replaced when burners won't light or flame is weak/uneven
• Supports correct burner assembly alignment for reliable operation

• One burner tube

• Turn off the gas supply and unplug the appliance before servicing
• Verify proper orientation and seating against the valve and burner head during installation
• Use basic hand tools; avoid damaging the tube or nearby components
• After installation, check for gas leaks with a soapy-water solution — do not use an open flame; if you smell gas, shut off supply.

This burner tube replaces a damaged or corroded gas tube that routes fuel to the cooktop/oven burner, restoring proper gas flow and stable flames for reliable cooking. Designed as a direct-fit replacement when matched to your appliance model. What it does:

• Channels gas from the manifold to the burner so the burner can ignite and produce an even flame
• Helps maintain consistent flame pattern and heat distribution when functioning properly
• A damaged, dented or corroded tube can cause uneven flames, burner failure to light, or visible gas odor
• Use as a one-for-one replacement to restore safe, normal burner operation

• Shut off the appliance's gas supply and electrical power before servicing
• Remove nearby burner components and connectors carefully to access the tube; keep orientation for correct reassembly
• Inspect and replace any worn gaskets or fittings and ensure tight, leak-free connections when reinstalled

This burner tube directs gas from the oven manifold to the bake burner, ensuring a consistent flame for oven heating. It replaces a damaged or corroded tube to restore proper burner operation and heat distribution. What it does:

• Channels gas to the bake/broil burner for safe and consistent combustion
• Helps maintain even oven temperatures when functioning properly
• Can prevent burner misfires or poor ignition caused by holes, dents, or corrosion
• Often replaced when flames are weak, uneven, or the burner won't light reliably

• One replacement burner tube

• Turn off the appliance and shut off the gas supply before attempting any service
• Inspect gaskets and fittings; replace any damaged seals to prevent leaks
• Installation may require removal of oven liners or burner assembly

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement #10 x 2 inch mounting screw for securing panels, brackets, and components in cooktops, ranges, and refrigerators. Replaces lost or stripped screws.

Tie-down mounting bracket secures your gas cooktop to the counter opening during installation. Replace if bent, broken, or missing to prevent shifting.
