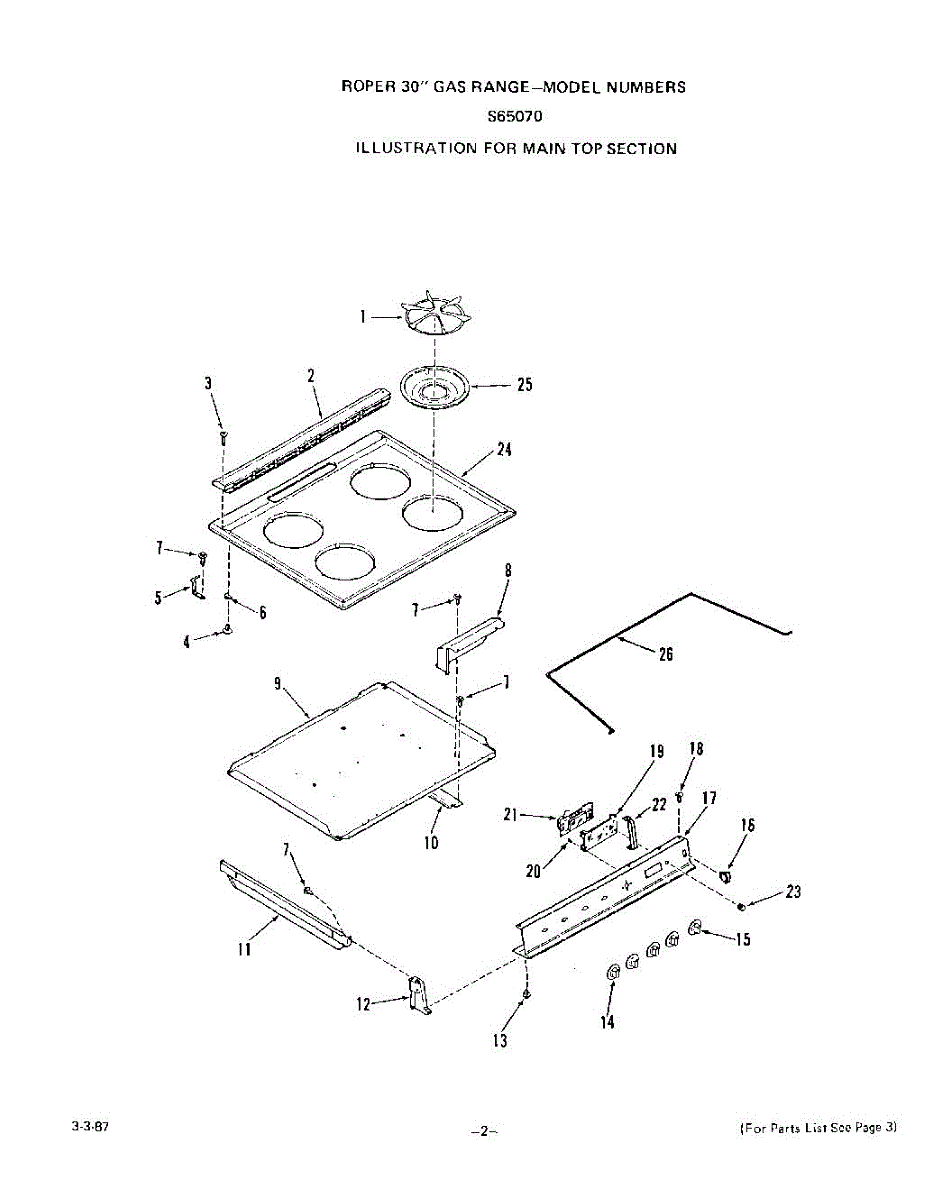

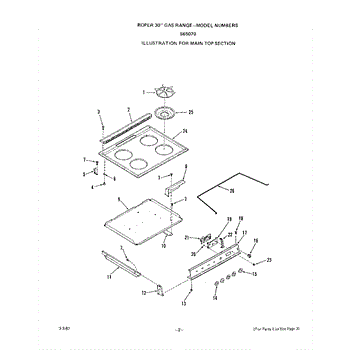

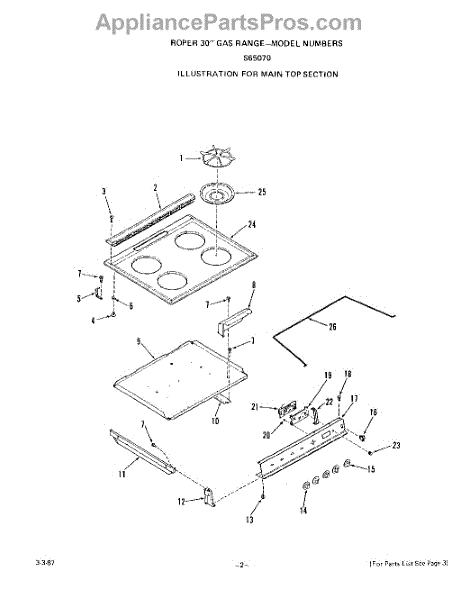

Parts for Roper S6507X0: 03 - Body Parts

Color: Black.

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

ST10-16 X 7/16"

This replacement burner box bottom is the lower metal pan that supports and protects the range's burner assembly, helping contain spills and direct heat away from internal components for safer, more reliable operation. What it does:

• Provides a protective base for the burner assembly and internal wiring/components
• Helps channel heat and spills away from sensitive parts to reduce corrosion and damage
• Keeps burners aligned and seated properly for consistent ignition and flame pattern
• Worn, rusted, or warped pans can lead to uneven flames, burner misalignment, or visible damage under the cooktop

• Disconnect the appliance from power and shut off the gas supply before servicing
• Allow the range to cool completely and remove surface components (grates, burners, cooktop) per the owner's manual
• Handle metal edges carefully; rusted parts may have sharp areas
• Follow OEM instructions and torque guidelines when reinstalling; replace any damaged fasteners or gaskets as needed

Color: Black

This part has been discontinued and is no longer available.

Chrome drip pan installs under cooktop burners to catch spills and boil-overs. Replace cracked, stained, or missing pans to restore clean appearance.
