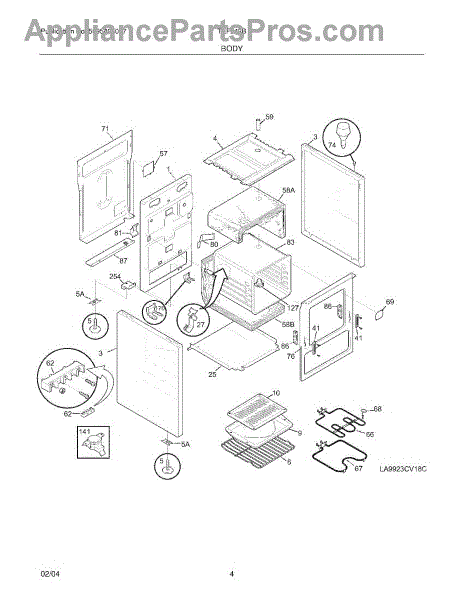

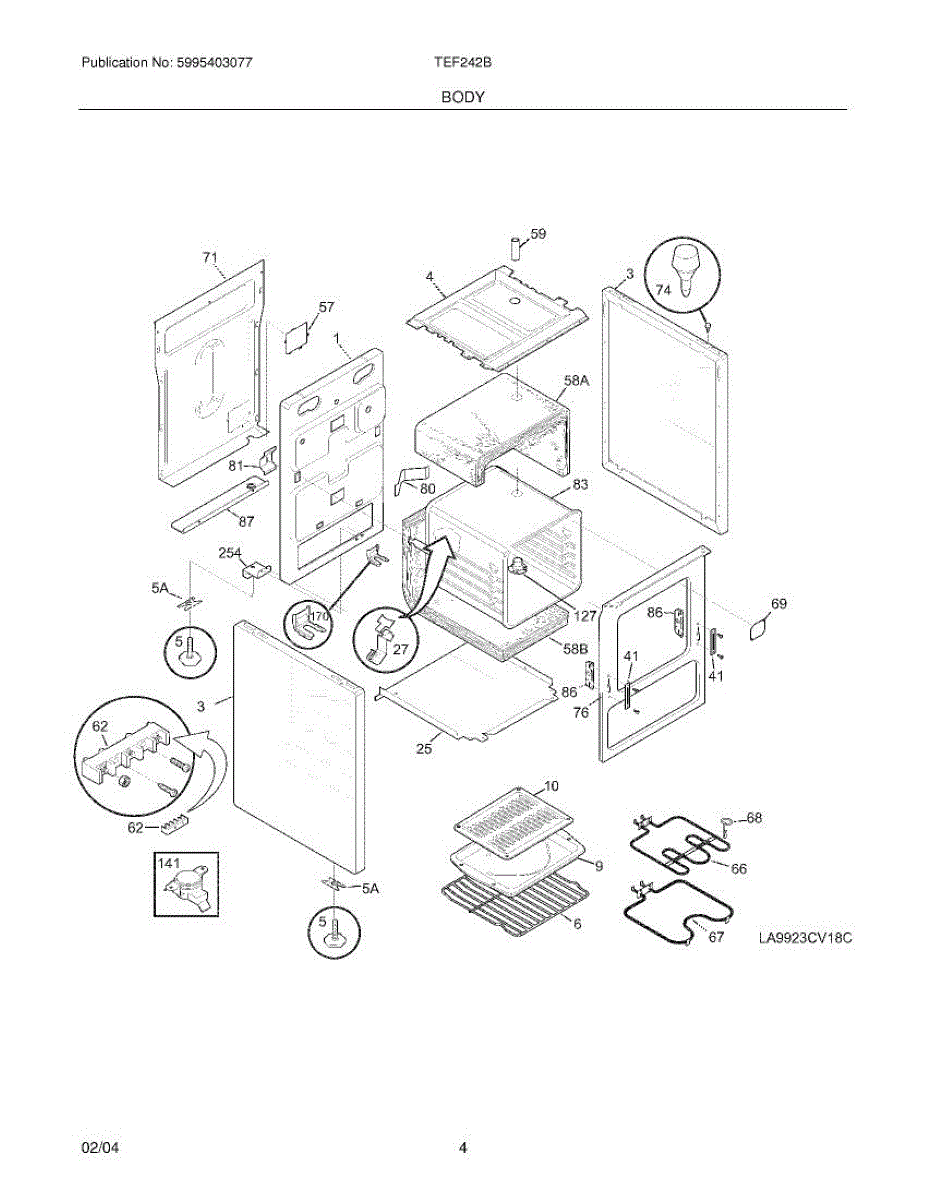

Parts for Tappan TEF242BU2: 05 - Body Parts

This burner box is the replacement inner oven box assembly that houses and protects the oven's burner components, helping maintain proper combustion and heat flow for reliable oven performance. What it does:

• Encloses and supports the oven burner and related components to keep them aligned and protected
• Directs combustion airflow and helps maintain even heat distribution in the oven cavity
• Prevents heat and flame from contacting adjacent cabinet parts and wiring
• Commonly replaced when you see ignition trouble, uneven baking or visible soot/sooting inside the oven

• Turn off power and gas to the appliance before beginning any service
• Inspect and replace any damaged gaskets, insulation or mounting hardware during installation
• Follow the oven manufacturer's service instructions; use proper tools and fasteners to ensure a gas-tight fit

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Secures panels and components in your range or oven. Replace if broken, bent, or missing to prevent shifting and reduce vibration noise. Confirm fit.

This replacement tube routes water within the refrigerator to restore normal water flow and ice-making. It replaces a worn, cracked or clogged water line to reduce leaks and water delivery issues. What it does:

• Carries water between the supply and internal components such as the ice maker or dispenser
• Restores proper water flow when the original tube is cracked, split, or clogged
• Helps stop leaks caused by aged or damaged tubing
• Supports reliable ice production and dispenser operation when installed correctly

• Shut off the refrigerator power and water supply before starting any work
• Use basic hand tools; avoid sharp bends or kinks when routing the tube
• Replace any damaged fittings or seals and tighten connections snugly to prevent leaks
• After installation, restore water and power, then check all connections for leaks and proper operation

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Broiler not heating or turning red? This broil element restores high-heat broiling. DIY-friendly repair, typically takes 10-15 minutes with basic tools.

Oven won't heat or bake properly? A failed bake element is usually the cause. This bottom heating element restores even baking. Easy 15-minute DIY fix.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Rubber bumper that cushions the oven door when closed. Installs on the frame to prevent metal-on-metal contact. Replace if cracked, missing, or worn.

Replace your oven safety thermostat if your oven overheats or won't reach temperature. This critical safety component prevents dangerous overheating.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
