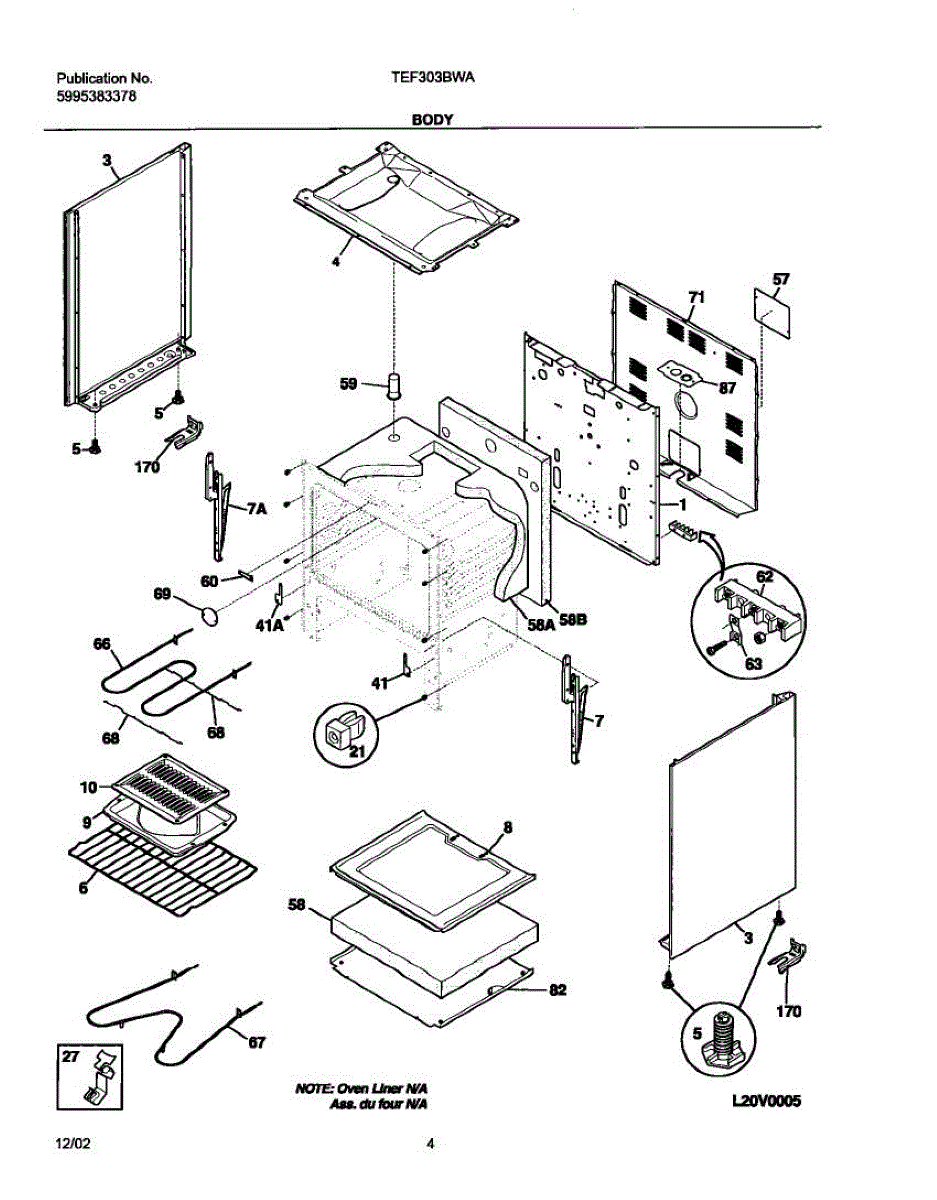

Parts for Tappan TEF303BWA: 05 - Body Parts

This burner box is the steel housing that supports and protects the gas valves, burners and internal gas components in a gas range. It restores proper alignment and containment for safe, efficient burner operation. What it does:

• Houses and secures the range's gas valves, burners and related internal parts
• Directs and contains gas flow and flame components for reliable ignition
• Helps prevent gas or flame exposure to surrounding cabinet areas
• Commonly replaced when the original box is dented, damaged, corroded or interfering with burner alignment

• Replace only after disconnecting gas and power; follow appliance shut-off procedures
• Inspect related seals, gaskets, valves and fasteners during installation; replace as needed
• Use common hand tools; avoid bending or distorting the box during fitment

Plastic leveling leg.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement refrigerator door hinge that supports proper door alignment and smooth opening and closing. Restores secure door operation to prevent sagging, binding or air leaks when a hinge is worn or damaged.

• Supports and pivots the refrigerator door for stable, reliable opening and closing.
• Maintains door alignment to reduce gaps that can cause cold air loss and temperature issues.
• Designed to match factory fit and function for the door hinge mechanism.

• Disconnect power and remove food from the door before starting to reduce risk of injury or damage.
• Support the door while removing and installing the hinge to prevent it from falling or bending.
• Retain original mounting hardware; use the correct screws and torque values per the service manual.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This body-side spacer installs on the cabinet side of the door or lid hardware. It sets the correct stand-off and alignment so the handle or latch feels solid and sits flush for a clean, secure fit. What it does:

• Positions and supports door/lid hardware on the cabinet/body side
• Maintains proper spacing to help prevent rubbing or scuffing of the panel
• Helps keep the handle or latch tight and aligned
• Common symptoms: loose or wobbly handle/latch, uneven alignment, visible gap or scuff marks at the mounting point

• Includes 1 body-side spacer

• Disconnect power to the appliance before servicing
• Support the handle/latch, remove the cabinet-side mounting screws, place the spacer, realign hardware, and reinstall screws snugly
• Reuse the original fasteners; avoid overtightening to prevent cracking the spacer or stripping threads
• Check door operation and alignment before finishing

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Oven wrapper insulation that surrounds the oven cavity to retain heat, protect outer panels, and improve temperature stability—helping reduce exterior heat and support more consistent cooking results. What it does:

• Wraps the oven cavity to reduce heat transfer to the cabinet and outer panels.
• Helps maintain internal oven temperatures for more even baking and cooking.
• Damaged or missing insulation can allow outer surfaces to run hot, cause longer preheat times, or contribute to uneven cooking.
• Reduces the risk of heat-related damage to surrounding cabinetry and components.

• Disconnect power and allow the appliance to cool completely before servicing.
• Handle insulation with care; avoid compressing or tearing the material during installation.
• Reinstall using original mounting clips or hardware; verify proper fit around the oven cavity before replacing panels.

This oven back insulation panel fits behind the oven cavity to help contain heat and protect rear components. It replaces missing or damaged insulation to help restore normal oven heating behavior and reduce heat transfer to surrounding areas. What it does:

• Limits heat loss from the rear of the oven cavity to help maintain cooking temperature
• Helps reduce excessive heat transfer to rear components and cabinetry
• Use when insulation is torn, compressed, burned, or when the oven takes noticeably longer to preheat
• Helps prevent heat-related damage to wiring, electronics, and nearby parts

• Disconnect power to the appliance before starting any repair
• Access may require pulling the range/oven away from the wall and removing a rear access panel
• Wear gloves and a dust mask when handling old insulation; avoid compressing or tearing the replacement
• Follow OEM instructions for securing insulation with the original clips/adhesive or fasteners

This oven insulation surrounds the oven cavity to retain heat and protect nearby components and cabinetry. Replacing a burnt or deteriorated insulation blanket restores temperature stability and helps keep exterior surfaces cooler on your range during cooking.

• Minimizes heat loss for more consistent baking temperatures
• Shields wiring, controls, and adjacent cabinets from excessive heat
• Damaged insulation can cause long preheat times or trouble maintaining set temperature
• Exterior panels or control area may feel unusually hot, or a burnt odor may persist after spills

• Disconnect power at the breaker; shut off gas
• Allow the appliance to cool completely before service
• Access typically requires pulling the range and removing outer panels; note original routing and retainers for reassembly
• Handle insulation carefully; wear gloves, eye protection, and a dust mask to avoid irritation from fibers

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM replacement part for Frigidaire ovens. It is located at the top of the oven cavity and is responsible for providing the high heat required for broiling. This element heats up quickly and evenly to cook food from above, giving it a crisp and browned finish.

Over time, the broil element can degrade due to the high temperatures it operates under, as well as normal wear and tear from repeated use. Electrical surges or physical damage from cleaning or moving oven racks can also cause the element to fail. These factors can lead to the element no longer heating up properly or becoming completely non-functional.

Symptoms of a bad broil element include:

• The broiler not heating up or heating unevenly
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when attempting to use the broiler
• The oven taking longer to broil food or not achieving the desired browning effect
• The element not glowing red-hot during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bake Element is an OEM replacement part for Frigidaire ovens that provides the heat necessary for baking. Located at the bottom of the oven, the bake element heats up when electrical current flows through it, converting electricity into heat. This heat is then distributed throughout the oven cavity to cook or bake the food evenly.  Measures approximately 19 ¼ inches x 17 ¾ inches

Causes of a bad bake element can include visible damage such as blistering, cracking, or splitting of the element itself. Over time, exposure to high temperatures can lead to material fatigue and eventual failure. Electrical issues, such as a short circuit or a power surge, can also damage the element, preventing it from heating properly.

Symptoms of a bad Bake Element include:

• Oven not heating to the set temperature
• Uneven cooking or baking results
• Visible damage to the element

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Support for broil heating element.

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This small push-in plug button caps the opening in an oven bottom to keep the cavity clean and finished-looking. It prevents food and debris from falling into the oven base and restores a secure, even interior surface. What it does:

• Covers and seals the hole in the oven bottom to prevent debris buildup
• Helps maintain a finished appearance and reduces hotspots around openings
• Stops loose items from dropping into the oven base and interfering with components
• Simple, low-profile cap designed for a snug, friction-fit installation

• Turn the oven off and allow it to cool completely before installing
• Press the plug button firmly into the opening until it seats flush
• Use a non-marring tool if needed to avoid scratching the oven surface
• Replace with the correct OEM part if the plug does not fit securely or is damaged

Size: 8-18ab x 0.5 inch.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This oven light button is the user-facing push button used to operate the oven light. It restores a damaged or missing control button so the light can be turned on and off easily. What it does:

• Acts as the push button for the oven light control assembly.
• Replaces cracked, worn, or missing oven light buttons that are hard to press or no longer stay in place.
• Helps restore normal user control of the oven interior light without replacing the entire switch assembly.
• Fits into the existing control panel opening and interfaces with the factory light switch mechanism.

• Turn off power to the appliance before attempting any repair to avoid shock—unplug or switch off the breaker.
• Remove control panel trim or bezel as required to access the button; retain all fasteners for reassembly.
• Inspect the underlying switch and wiring; replace the switch if the button does not resolve the issue.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

Color: Black

Size: 8-32t x 0.500 inch. Color: Black.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
