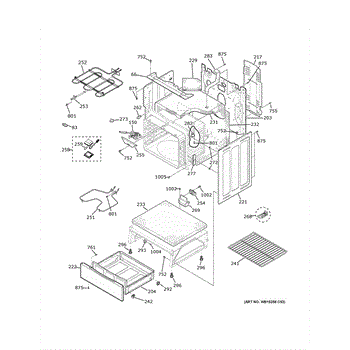

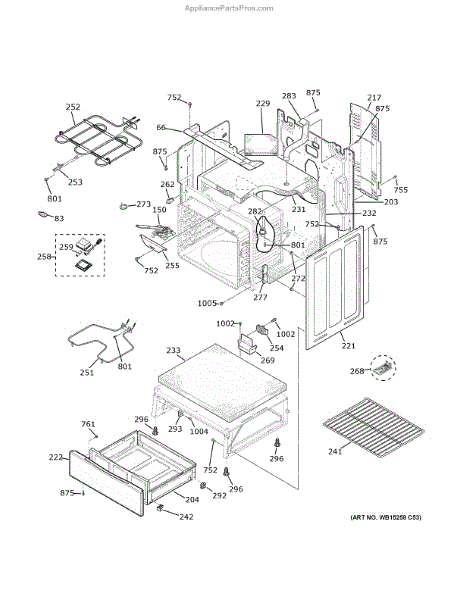

Parts for Ge JB655SKCSS: Body Parts

The Black Latch and Handle Assembly is an OEM part for GE ranges. The latch mechanism ensures the door remains closed during the baking or broiling processes, contributing to consistent cooking temperatures and enhancing safety by preventing accidental openings.

Signs that you may need to replace the Black Latch and Handle Assembly include difficulty in opening or closing the oven door, a loose or wobbly handle, or if the latch fails to secure the door properly.

Symptoms of a bad latch and handle assembly include:

• Oven door not closing securely
• Difficulty in opening or closing the oven door
• Loose or damaged handle
• Visible damage or wear to the latch or handle components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement drawer-and-slide assembly restores smooth, stable operation of the lower drawer compartment. Swap out a bent, jammed, or missing assembly to regain easy access and proper alignment.

• Supports and guides the lower drawer as it opens and closes
• Helps the drawer travel smoothly and sit flush when closed
• Replaces damaged components causing sticking, wobbling, or misalignment
• Common symptoms: drawer difficult to move, falls off track, or won't close fully

• Disconnect power and allow the appliance to cool completely; shut off gas supply if applicable.
• Remove the existing drawer; retain any screws, brackets, or clips reused on your model.
• Engage the new assembly fully on the track/slide and verify proper alignment.
• Open and close the drawer several times to ensure smooth travel before returning to service.

This drawer panel is the finished front of the appliance's drawer. It refreshes the exterior appearance and provides the correct mounting surface for the handle so the drawer front fits securely and aligns properly. What it does:

• Attaches to the drawer box to create a finished exterior surface
• Provides mounting points for the drawer handle/pull
• Helps maintain proper drawer front alignment with adjacent panels
• Common replacement for panels that are dented, scratched, cracked, or won't stay secured
• Addresses a loose or misaligned drawer front when the panel is damaged

• 1 drawer panel

• Disconnect power at the breaker and allow the unit to cool before servicing
• Remove the drawer; transfer the handle and any reusable hardware from the old panel
• Protect the finish; wear cut-resistant gloves and handle edges carefully
• Tighten fasteners snugly without overtightening; confirm alignment before restoring power

This oven cavity insulation replaces the thermal lining that surrounds the oven interior to help retain heat and improve cooking performance. Restores proper cavity insulation for safer, more efficient oven operation. What it does:

• Replaces worn or damaged insulation that can deteriorate over time
• Helps keep heat inside the oven for more consistent baking and roasting
• Reduces heat transfer to the exterior cabinet and nearby components
• Can address issues like excess heat felt at the oven exterior or degraded cooking consistency

• One oven cavity insulation pad

• Intended for installation behind the oven liner; access typically requires removing the oven door and interior panels
• Handle with care and wear gloves—insulation fibers can irritate skin and lungs
• Ensure power is disconnected at the breaker before beginning service
• Follow OEM instructions and use factory-fastening clips or screws when reinstalling

This oven back insulation replaces the rear insulation panel to help contain oven heat and protect surrounding components — supporting consistent cooking temperatures and reducing heat transfer to the cabinet. Fits as the factory replacement panel. What it does:

• Provides thermal barrier between the oven cavity and rear cabinet, helping maintain set temperatures.
• Helps protect wiring, controls and surrounding components from excess heat.
• Can reduce external cabinet heating and help prevent heat-related discoloration or damage.
• Commonly replaced when insulation is damaged, burned, or missing after service.

• One oven back insulation panel

• Disconnect power (and gas supply if applicable) before beginning any service.
• Handle with gloves; avoid compressing or tearing the insulation material during installation.
• Removal typically requires accessing the oven rear or removing the range from its opening — follow your model's service instructions.
• Use the exact replacement part and secure per OEM fasteners and procedures.

This oven bottom insulation replaces the loose pad under the oven cavity to help reduce heat transfer and protect the outer cabinet. It restores proper insulation around the oven floor for more consistent oven performance. What it does:

• Replaces the thermal insulation pad located under the oven cavity to help contain oven heat
• Helps reduce heat transfer to the outer cabinet and surrounding components
• Can address symptoms like higher outer cabinet temperatures, uneven baking, or heat felt at the control console area
• Maintains the intended oven airflow path and component protection during normal operation

• One oven bottom insulation pad (1 piece)

• Disconnect power to the appliance before beginning any repair
• Remove oven racks and the oven bottom panel to access the insulation; handle the insulation gently as it can be fragile
• Reinstall panels and racks securely after replacement; ensure insulation is positioned properly
• If insulation is damaged, contaminated, or shows signs of moisture, replace it rather than attempting repairs

The Oven Rack is an OEM part for GE ovens. This rack provides a stable and durable surface for placing baking dishes, pans, and trays inside the oven. Designed to fit perfectly within the oven cavity, it ensures proper airflow around the food, contributing to even cooking and baking results. The rack measures approximately 24"X17".

Common causes of a bad oven rack include bending or warping from heavy loads, rusting or corrosion due to prolonged exposure to moisture, or accidental damage during cleaning or handling.

Symptoms of a bad oven rack include:

• Warped or bent rack wires
• Difficulty sliding the rack in and out of the oven
• Uneven cooking due to improper rack placement
• Rust or flaking metal on the rack

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The drawer wedge aligns and stabilizes your range's lower storage/warming drawer so it slides smoothly and closes flush. Replacing a worn wedge restores proper fit and helps prevent rattling, scraping, and an uneven drawer gap.

• Keeps the lower drawer centered and level in the cabinet
• Provides a firm stop/spacing for a flush, consistent close
• Reduces side-to-side play and vibration during use
• Common symptoms: crooked drawer, uneven front gap, scraping noises, drawer not closing fully

• Disconnect power and allow the range to cool before servicing
• Remove the lower drawer to access the wedge location
• Note the wedge's orientation; install the new wedge in the same position
• Reinstall the drawer and verify smooth travel and proper alignment

The Bake Element is an OEM part for GE wall ovens and ranges. It generates the necessary heat through a series of exposed coils to bake and brown food consistently.

Symptoms of a failed bake element include:

• Inability to reach or maintain proper baking temperatures
• Burned-out coils causing uneven or sporadic heating
• Error codes relating to sensor detection of element issues
• Premature element failure can create a hazardous smell or smoke

Causes may be normal wear of the coil material over many use cycles in high heat. Without a functioning bake element, the oven cannot reliably or safely perform its baking function.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Broil Element is an OEM component specially designed for GE electric wall ovens and ranges. As the dedicated broiling element, it is responsible for efficiently radiating intense heat from above to quickly sear and brown foods.

Causes of a bad broil element can include fractures, breaks, or cracking of the calrod heating elements over many heating and cooling cycles.

Symptoms of a bad broil element include:

• Inadequate or inefficient broiling performance
• Broiling times much longer than expected
• Hot or cold spots under food during broiling
• Error codes related to oven temperature issues

Compatible appliance brands also include Monogram, Frigidaire Gallery, some KitchenAid, and Kenmore wall oven models.


The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM part for GE electric ranges. It provides connections between internal wiring and the home's electrical supply.

Causes of failure can include corrosion of metal prongs from heat and moisture exposure over time, splitting insulation sheathing from continuous vibrations, or loosened mounting fasteners.

Symptoms of a faulty terminal block include:

• Intermittent or unstable power to heating elements surfaces
• Loose, frayed, or corroded wire attachments risking electrical faults
• Inability to maintain programmed cooking temperatures

This part is also compatible with Hotpoint and RCA electric range models.

A halogen lamp assembly that restores bright, focused light inside the oven cavity so you can monitor cooking without opening the door. Designed to replace a damaged or burned-out oven light quickly and cleanly. What it does:

• Provides bright, concentrated illumination for better visibility while baking, roasting, or broiling.
• Replaces a burned-out, dim, flickering, or broken oven light.
• Sits in the oven lamp housing and connects to the oven's existing wiring for direct, stable power.
• Uses a sealed halogen lamp suited for high-temperature appliance interiors.

• One halogen lamp assembly

• Disconnect power to the appliance before starting any work to prevent shock or injury.
• Allow the oven to cool fully; halogen bulbs and housing may be hot and can break if handled while hot.
• Handle glass components carefully; avoid touching the bulb glass with bare hands.

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This hinge receiver secures the appliance door hinge to the cabinet/frame so the door pivots and seals correctly. Replaces a worn or damaged receiver to restore proper door alignment and operation. What it does

• Mounts on the cabinet/frame to receive and support the door hinge pin
• Keeps the door aligned so it opens and closes smoothly
• Commonly replaced when a door sags, rubs, or won't seal fully
• Helps eliminate clicking, binding, or uneven gaps caused by a broken receiver

• Disconnect power (and water supply for appliances with water lines) and remove food/items from the door area as needed
• Use appropriate hand tools; support the door while removing or installing hinge components to prevent drops or injury
• If hardware is corroded or damaged, replace them—only re-use fasteners that are undamaged and appropriately rated

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

Size: 8-18 BA POR 3/4 SN
