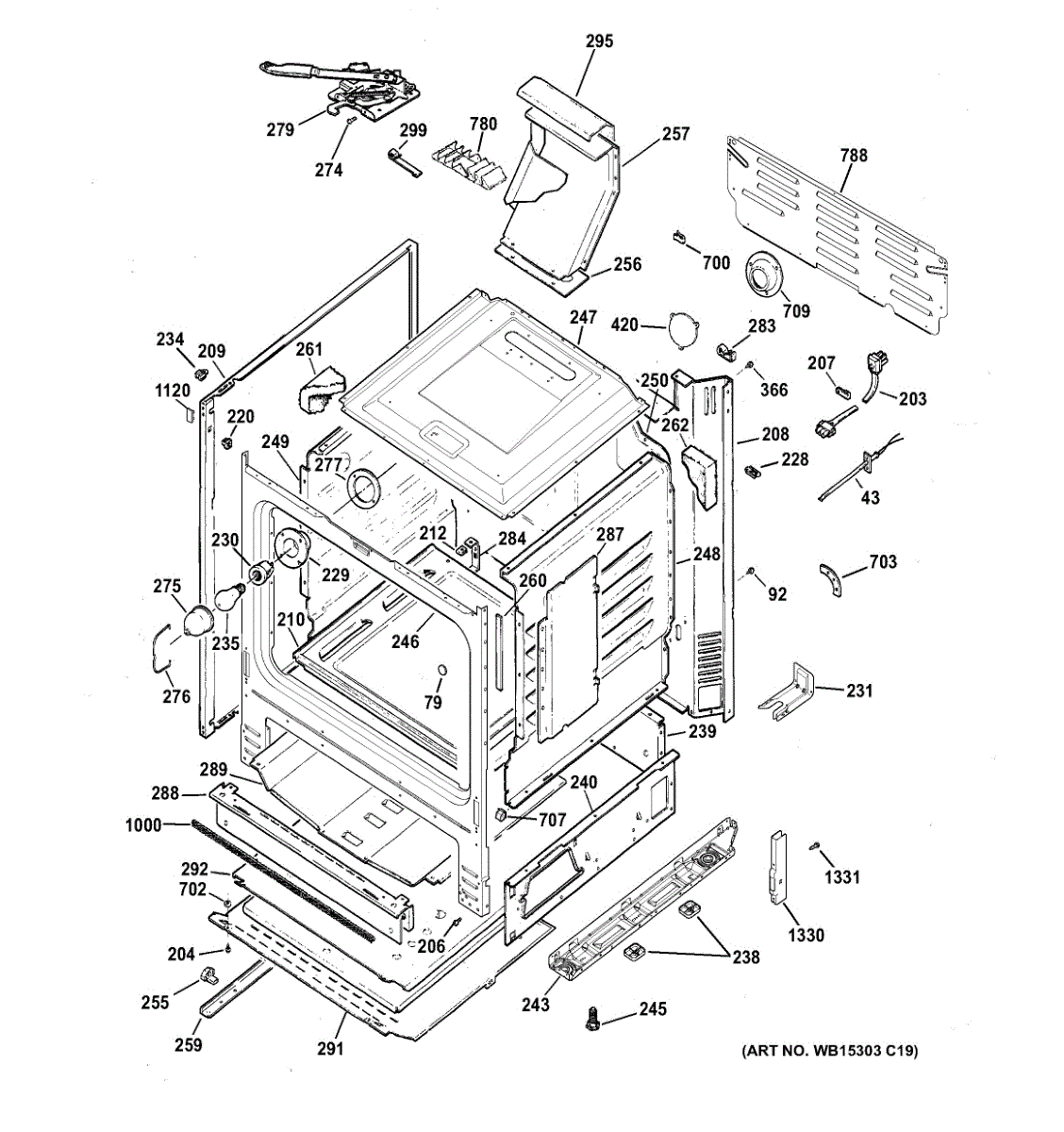

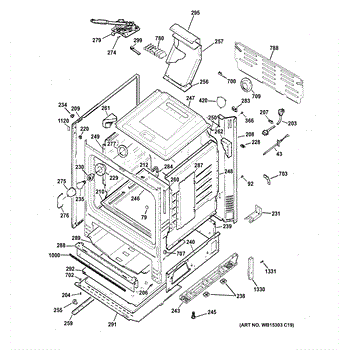

Parts for Ge JGB620DEF2BB: Body Parts

The Temperature Sensor is an OEM part for GE ovens and ranges, accurately measures and controls the temperature within the oven cavity. This part ensures your oven heats to the desired temperature and maintains it throughout the cooking process, providing consistent and reliable cooking results.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, physical damage, or wear and tear over time that affects its accuracy.

Symptoms of a bad Temperature Sensor include:

• The oven not reaching the set temperature or displaying an error code related to temperature regulation.
• Unpredictable oven temperatures, leading to inconsistent cooking results.
• The oven taking longer than usual to preheat, or not heating at all, indicating that the sensor is not properly gauging and adjusting the temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This line cord supplies electrical power from the wall outlet to the appliance. Replacing a worn, cut, or heat-damaged cord restores safe, reliable power and can help resolve no-power or intermittent operation issues.

• Delivers AC power from the outlet to the unit's electrical system
• Helps correct no-power or intermittent power when the cord is moved
• Ideal replacement for cords with cuts, fraying, or burn/discoloration on the plug
• Supports proper grounding and safe operation when installed correctly

• Disconnect power before servicing; ensure the appliance is fully de-energized
• Match wire routing and connections to the product's wiring diagram; ensure a secure ground
• Use an appropriate strain relief if required by the product to prevent abrasion
• Route the cord away from sharp edges, moving parts, and hot surfaces

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The Bottom Oven and Deflector Assembly is an OEM part for GE ovens. It serves the dual purpose of acting as a base for the oven and deflecting heat for more efficient cooking.

Causes of a bad Bottom Oven and Deflector Assembly can include exposure to high heat over extended periods, accidental impact or mishandling, and general wear and tear from regular use.

Symptoms of a bad Bottom Oven and Deflector Assembly include:

• Uneven cooking or baking results
• Visible cracks, warping, or damage to the assembly
• Unusual noises during oven operation
• Difficulty in maintaining set oven temperatures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

Left hand side

Right hand side

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This oven back insulation panel replaces the thermal lining at the rear of the oven cavity to help retain heat and protect surrounding components for more consistent baking and roasting performance. What it does:

• Replaces worn or damaged rear oven insulation that can allow excess heat loss
• Helps maintain stable oven temperatures for more even cooking
• Protects rear electronics, wiring, and cabinet materials from excess heat
• Can reduce heat transfer to surrounding cabinetry and lower exterior surface temperatures
• Address scorch or burning smells coming from the oven cavity due to deteriorated insulation

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely.
• Handle the insulation gently to avoid tearing; use gloves and eye protection as needed.
• Typically installed from the back of the oven cavity and secured with factory clips or screws.

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This latch assembly restores a secure, positive closure on compatible GE cooking appliances. It engages the strike to keep the door closed and helps ensure features that require a latched door can run safely. What it does:

• Engages with the strike to keep the door securely closed
• Helps prevent heat loss from a loose or popping door
• Supports proper operation of cycles that require a latched door
• Replaces a bent, worn, or broken latch mechanism

• 1 latch assembly

• Disconnect power at the breaker; allow the appliance to cool completely before servicing
• Remove access panels/trim as outlined in the service manual to reach the latch
• Transfer any reusable mounting hardware; align the latch with the strike for smooth engagement
• Test door closure and operation before restoring power

Right hand side

Left hand side

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.
