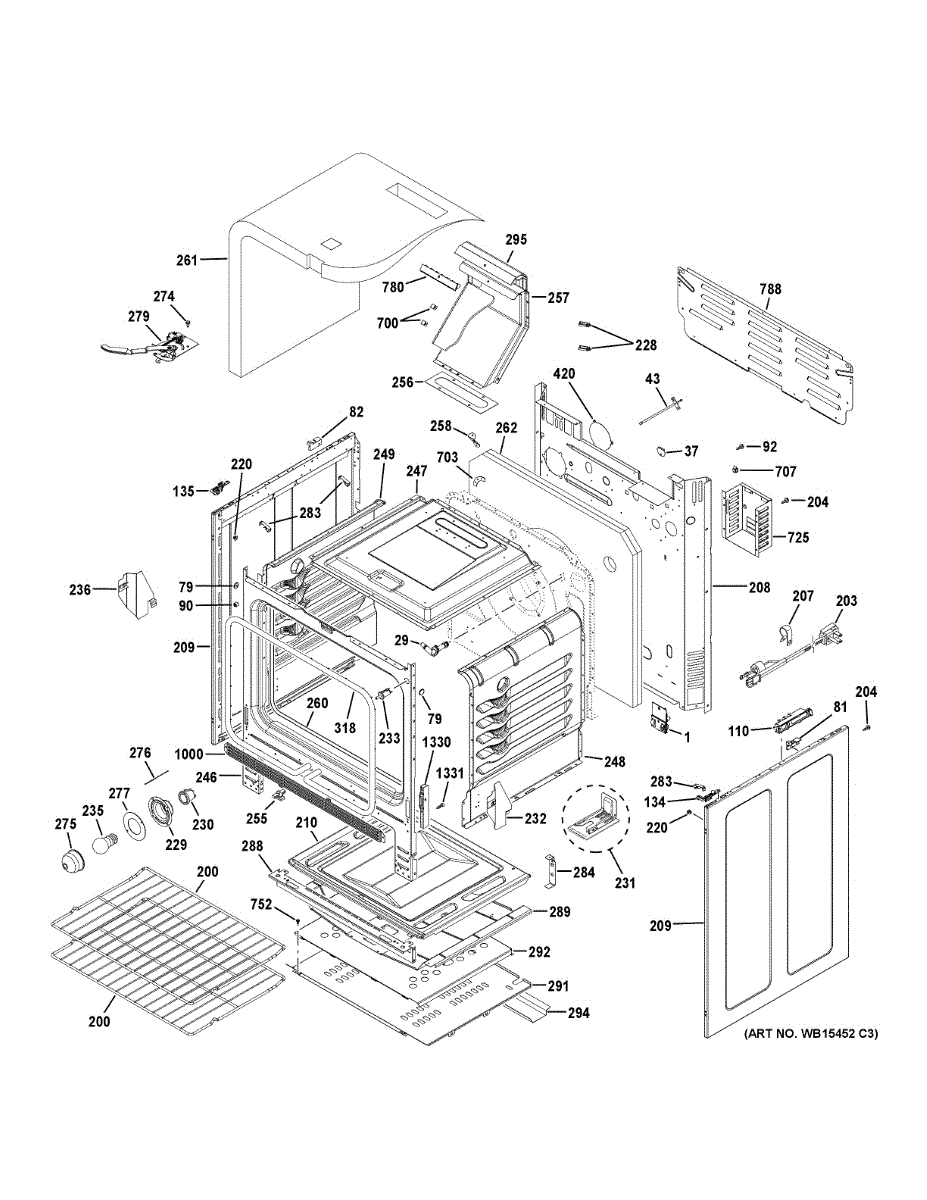

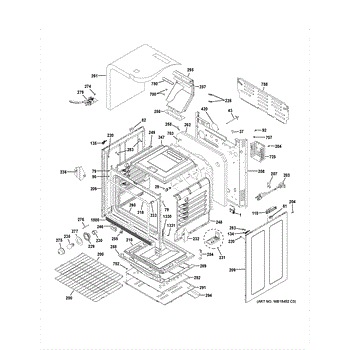

Parts for Ge JGB720BEJ1TS: Body Parts

This LP conversion kit lets a compatible gas range use liquid propane by replacing factory orifices and related components for correct burner performance and safe operation after fuel changeover. What it does:

• Replaces orifices and parts needed to change burners from natural gas to LP
• Ensures proper flame shape and heat output when using propane
• Prevents poor combustion, uneven heating, or hard-to-light burners after conversion
• Enables safe, manufacturer-specified fuel change when installed per instructions

• Read and follow the included instructions exactly; only install on appliances specified by the manufacturer
• Shut off the gas supply and electrical power before beginning work
• After installation, check all fittings for leaks and verify proper flame and operation before regular use

This LP high-altitude conversion kit adapts select gas cooking appliances for liquid propane use at elevation. It properly meters gas flow so burners light easily and produce clean, stable flames in thin-air conditions.

• Configures the appliance for LP operation in high-altitude installations
• Calibrates fuel delivery to maintain proper flame size and combustion
• Helps address yellow/sooty flames, flame lift, or hard-to-control simmer after conversion
• Promotes reliable ignition and even heat across burners

• Conversion affects gas type and pressure; must be performed per the manufacturer's instructions and local codes
• Shut off gas and power before service; work in a well-ventilated area away from open flames or sparks
• After conversion, leak-test all connections and adjust air shutters per model guidance if applicable
• Intended for LP high-altitude applications only; use the model-specific kit specified by the manufacturer

The Range NG High Altitude Kit is an OEM part for GE gas ranges. This high-altitude conversion kit allows the range to operate properly at elevations above 2000 feet.

Causes related to needing this kit are using the range at a high elevation without proper adjustment for decreased air pressure and oxygen levels.

Symptoms of needing this high-altitude kit include:

• Unstable or inconsistent flame during operation
• Excessive cooking times
• Incomplete combustion of gas resulting in carbon monoxide issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Elbow 90° Asm is an OEM replacement part for GE gas ranges. It joins sections of burner piping at precise right angles, guiding fuel and air flow to burner heads.

Causes of a bad elbow joint can be wear from years of vibrations, cracks developing from heat cycling, or accidental damage during maintenance.

Symptoms of a faulty elbow include:

• Yellow burner flames or incomplete combustion
• Gas smell or leaks around pipes
• Reduced heat levels from affected burners
• Premature deterioration of other components

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models too.

The Temperature Sensor is an OEM part for GE ovens and ranges, accurately measures and controls the temperature within the oven cavity. This part ensures your oven heats to the desired temperature and maintains it throughout the cooking process, providing consistent and reliable cooking results.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, physical damage, or wear and tear over time that affects its accuracy.

Symptoms of a bad Temperature Sensor include:

• The oven not reaching the set temperature or displaying an error code related to temperature regulation.
• Unpredictable oven temperatures, leading to inconsistent cooking results.
• The oven taking longer than usual to preheat, or not heating at all, indicating that the sensor is not properly gauging and adjusting the temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement front frame bumper that cushions and supports the appliance's front frame or door trim, helping reduce vibration and prevent metal-on-metal contact—restoring a secure, quiet fit for the door or trim assembly. What it does:

• Cushions the front frame/door trim to prevent wear, chipping, and metal rubbing.
• Helps align and stabilize the door/frame for proper closing and fit.
• Reduces rattling and vibration noise during operation.
• Commonly replaced when the door feels loose, rubs against the cabinet, or makes noise.

• Disconnect power to the appliance before beginning any repair.
• May require removal of the door trim or front panel—use basic hand tools and keep fasteners organized.
• Seat the bumper fully in its mounting location; avoid forcing or deforming the part.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Ignition Module is an OEM part for GE ranges. This part generates the spark that ignites the gas burners on the cooktop. It ensures that the burners light efficiently and safely, allowing for reliable cooking performance.

Causes of a bad ignition module can include electrical surges, general wear and tear, or damage from exposure to moisture or high temperatures.

Symptoms of a bad ignition module include:

• Burners not igniting or taking longer to ignite
• Weak or inconsistent spark
• Clicking sound without ignition
• Burners going out shortly after being lit

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The bottom oven and deflector assembly is an OEM part for GE ranges. It serves as the protective shield for the bottom of the oven, preventing any drips, spills, or food debris from falling into the internal part of the range.

A bad bottom oven and deflector assembly can result in issues such as increased smoke during cooking, difficulty in cleaning the oven, or potential damage to the heating elements. Causes of a bad part can include wear and tear over time, accidental spills or exposure to high heat.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive smoke or burning smell during cooking
• Difficulty in cleaning the oven due to accumulated debris
• Uneven heating or cooking results
• Visible damage or warping of the deflector

Replace your worn-out or damaged bottom oven and deflector assembly with this genuine OEM GE part to restore your range.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is the right side hinge guard. For left side use WB34K4.

This plunger switch is the push-style electrical switch that completes a circuit when an actuator is depressed, restoring reliable on/off signaling. Use it to replace a worn or broken plunger switch that causes intermittent or non-responsive operation. What it does:

• Closes an electrical circuit when the plunger is pushed, sending a signal to the appliance control.
• Commonly used where a door, lever or dispenser actuator must register a position or user input.
• Can correct symptoms like intermittent operation, a dispenser or mechanism that won't activate, or a stuck/unresponsive actuator.
• Acts as a direct mechanical-to-electrical interface—no electronics required.

• Disconnect power (unplug or turn off breaker) before servicing to avoid shock.
• Remove the access panel or housing to reach the switch; note actuator orientation before removal.
• Disconnect terminals or harness, then swap the old switch for the new one; reconnect terminals securely.
• Test the plunger action and appliance function before reinstalling panels.

This is the left side hinge guard. For right side use WB34K3.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This oven insulation wrap replaces the worn or damaged insulation that lines the oven cavity to help contain heat and support consistent bake/roast performance. It restores proper thermal buffering and helps limit heat transfer to surrounding panels. What it does

• Replaces deteriorated oven cavity insulation to reduce heat loss and help maintain even oven temperatures.
• Helps prevent excessive exterior panel heating and reduces energy waste when insulation is compromised.
• Can address symptoms such as hot exterior surfaces, uneven baking, burning smells, or visible torn/charred insulation.
• Fits behind oven liners/panels to restore the oven's designed thermal barrier.

• One oven insulation wrap as shown.

• Disconnect power (and gas if applicable) before service and allow the appliance to fully cool.
• Access typically requires removing the oven door and/or interior panels—use proper tools and keep fasteners organized.
• Handle insulation with gloves; avoid compressing or bunching the material when positioning.
• If clips, adhesive, or mounting hardware are needed, verify whether they are included.

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This latch assembly restores a secure, positive closure on compatible GE cooking appliances. It engages the strike to keep the door closed and helps ensure features that require a latched door can run safely. What it does:

• Engages with the strike to keep the door securely closed
• Helps prevent heat loss from a loose or popping door
• Supports proper operation of cycles that require a latched door
• Replaces a bent, worn, or broken latch mechanism

• 1 latch assembly

• Disconnect power at the breaker; allow the appliance to cool completely before servicing
• Remove access panels/trim as outlined in the service manual to reach the latch
• Transfer any reusable mounting hardware; align the latch with the strike for smooth engagement
• Test door closure and operation before restoring power

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This receiver hinge is the fixed bracket in the oven frame that the door's hinge arm locks into. Replacing a worn receiver helps the door close squarely and seal correctly for safe, efficient cooking.

• Anchors the door hinge arm to the oven frame
• Keeps the door aligned and supported during opening and closing
• Wear or damage can cause a door that won't close fully or sits uneven
• May lead to heat escaping or a loose, wobbly door feel

• Disconnect power; if a gas range, shut off gas and allow the unit to cool completely
• Remove the door to access the hinge receivers in the frame
• Install the new receiver in the same orientation; ensure the hinge arm is fully seated
• Check door alignment and closure before returning to service
