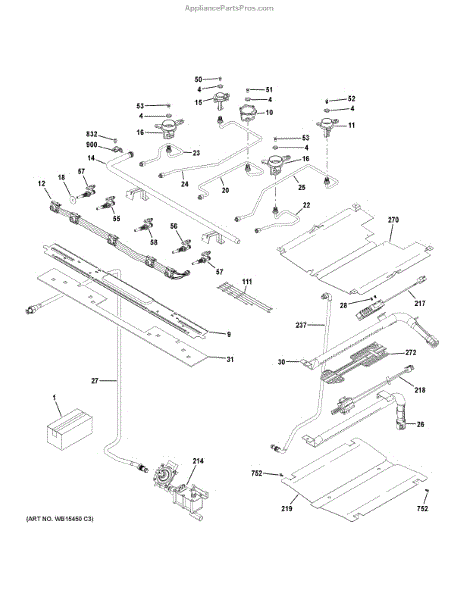

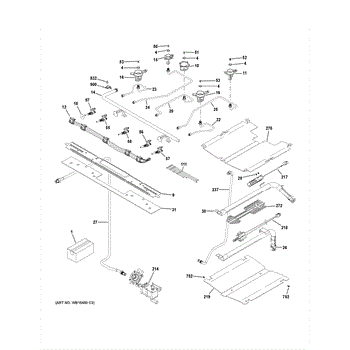

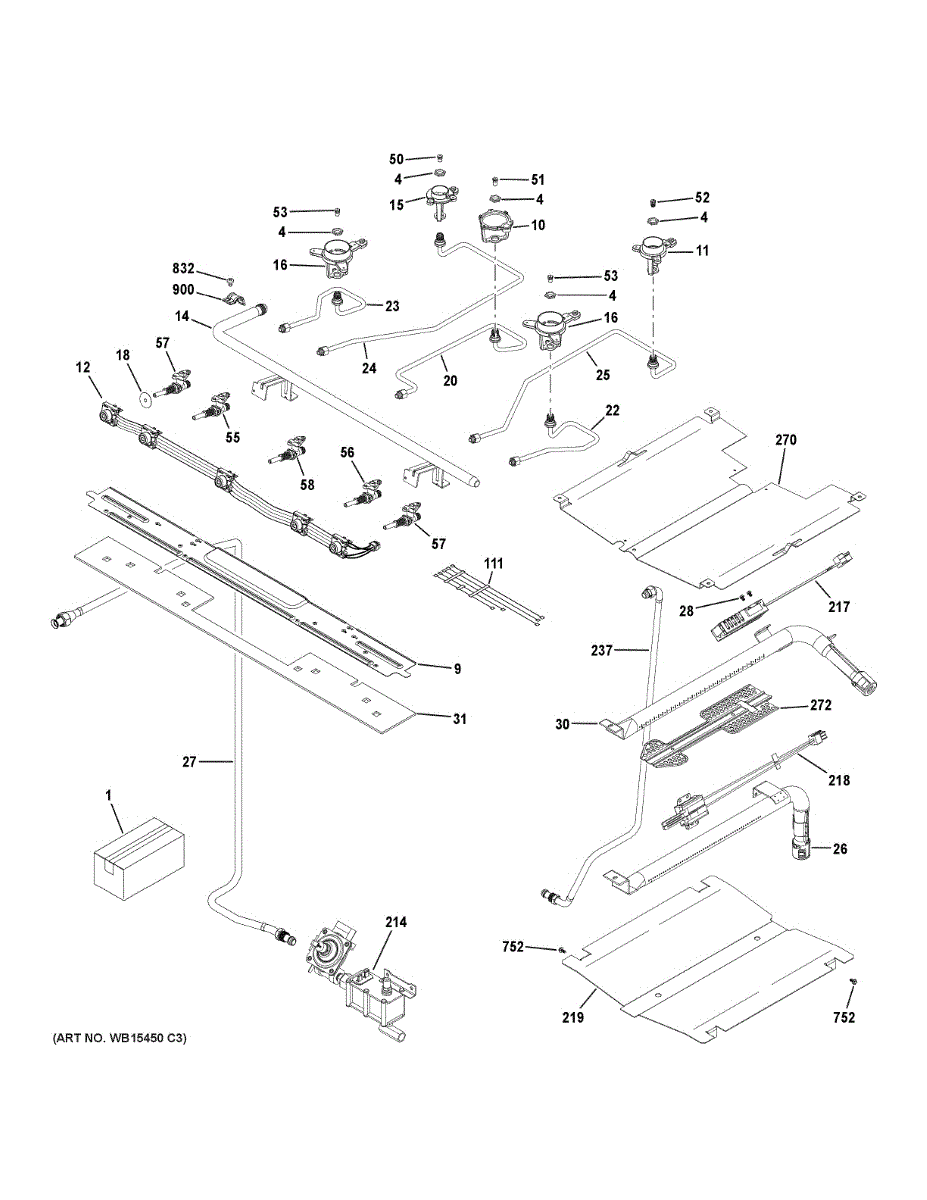

Parts for Ge JGB720BEJ1TS: Gas & Burner Parts

This LP conversion kit lets a compatible gas range use liquid propane by replacing factory orifices and related components for correct burner performance and safe operation after fuel changeover. What it does:

• Replaces orifices and parts needed to change burners from natural gas to LP
• Ensures proper flame shape and heat output when using propane
• Prevents poor combustion, uneven heating, or hard-to-light burners after conversion
• Enables safe, manufacturer-specified fuel change when installed per instructions

• Read and follow the included instructions exactly; only install on appliances specified by the manufacturer
• Shut off the gas supply and electrical power before beginning work
• After installation, check all fittings for leaks and verify proper flame and operation before regular use

This LP high-altitude conversion kit adapts select gas cooking appliances for liquid propane use at elevation. It properly meters gas flow so burners light easily and produce clean, stable flames in thin-air conditions.

• Configures the appliance for LP operation in high-altitude installations
• Calibrates fuel delivery to maintain proper flame size and combustion
• Helps address yellow/sooty flames, flame lift, or hard-to-control simmer after conversion
• Promotes reliable ignition and even heat across burners

• Conversion affects gas type and pressure; must be performed per the manufacturer's instructions and local codes
• Shut off gas and power before service; work in a well-ventilated area away from open flames or sparks
• After conversion, leak-test all connections and adjust air shutters per model guidance if applicable
• Intended for LP high-altitude applications only; use the model-specific kit specified by the manufacturer

The Range NG High Altitude Kit is an OEM part for GE gas ranges. This high-altitude conversion kit allows the range to operate properly at elevations above 2000 feet.

Causes related to needing this kit are using the range at a high elevation without proper adjustment for decreased air pressure and oxygen levels.

Symptoms of needing this high-altitude kit include:

• Unstable or inconsistent flame during operation
• Excessive cooking times
• Incomplete combustion of gas resulting in carbon monoxide issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

The Medium surface burner base is an OEM part for GE ranges. It serves as the base for the surface burners, covering and protecting the burner cavities.

Causes of a bad surface burner base include warping or deformation from high heat over time, cracks or breaks from impact damage, or corrosion from liquid spills or grease accumulation.

Symptoms of a bad surface burner base include:

• Burners no longer sitting flush or securely on the cooktop surface
• Excessive air gaps around the burners allowing gas/flames to escape
• Difficulty cleaning due to liquid leaks into the burner cavities
• Visible cracks, breaks, or deformities in the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch and Wiring Harness Assembly is an OEM replacement part for GE gas ranges. This assembly includes all of the switches and wiring responsible for igniting the surface burners on the range.

Causes of a bad switch assembly can include exposed leads cracking from normal heating/cooling cycles over time. Intermittent short circuits may also occur due to stressed wires moving within the insulation.

Symptoms of a bad switch assembly include:

• Unresponsive control dials failing to ignite burners
• Crackling or popping noises heard coming from controls
• Error messages appearing frequently on displays
• Exposed or damaged wiring observed behind the control panel

This genuine GE assembly ensures smooth, accurate cooking throughout the appliance's lifetime. Compatible with Hotpoint, RCA, or Kenmore gas ranges as well.

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

This genuine OEM GE replacement is compatible with additional Hotpoint, RCA and Kenmore gas range models.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

A replacement orifice holder that secures the burner orifice to the gas tube, ensuring proper alignment for consistent flame and reliable ignition. Fits compatible gas ranges and ovens to restore correct burner operation. What it does:

• Holds the gas orifice in place on the burner tube so fuel is delivered to the burner correctly
• Helps maintain an even, stable flame for consistent cooking temperatures
• Can resolve symptoms like weak or uneven flames and ignition problems related to a loose or misaligned orifice
• Works with OEM orifices and burner assemblies as part of the gas delivery system

• One orifice holder

• Turn off the appliance power and shut off the gas supply before servicing
• Use correct tools and thread engagement; hand-start threads then tighten securely to avoid leaks
• After installation, check all connections for leaks with a safe method (soapy water) and follow local codes

This orifice holder secures the burner orifice and positions gas flow to the cooktop/oven burner for reliable ignition and stable flame. It replaces a worn or damaged holder to restore proper burner alignment and operation. What it does:

• Holds the burner orifice in place so gas is delivered correctly to the burner
• Helps maintain a steady flame for even cooking and consistent ignition
• Can resolve issues where a burner won't light or produces a weak/uneven flame
• Keeps the orifice aligned with the burner tube to prevent gas flow restrictions

• Turn off gas supply and electrical power before starting any service
• Remove burner grates and caps to access the orifice holder; replace with the exact part
• Reassemble components carefully and restore gas; check for leaks using a soap solution or approved gas leak detector

The Orifice Holder is an OEM part for GE gas ranges. It secures the orifice spud in place, maintaining proper alignment of gas ports to burner tubes.

The orifice holder prevents any movement or misalignment of gas passages, ensuring uninterrupted and precise fuel delivery. Correct positioning is critical for safe, efficient combustion and optimal heat levels.

Causes of a faulty holder can include wear and tear, damage from impact or heat exposure, or loose fasteners allowing misalignment over time.

Symptoms of a bad orifice holder include:

• Unstable or uneven burner flames
• Inability to adjust oven temperature as needed
• Gas leaks near burner area
• Abnormal burner combustion noises

Replacing with this genuine OEM GE part restores secure orifice placement and optimized gas flow. It is also compatible with Hotpoint, KitchenAid, and select Kenmore gas range models.


The Oven Orifice Spud LP is an OEM part for GE gas ovens. This part controls the flow of liquid propane (LP) gas into the oven burner box. The oven orifice spud plays a role in gas combustion, adjusting flow to match the needs of a liquid propane system. It connects directly to the gas supply, so an improperly sized or damaged spud can lead to gas leaks or incomplete burning.

Causes of a bad oven orifice spud include normal wear over time from constant heating cycles, exposure to cleaning chemicals, or damage during part replacement.

Symptoms of needing a replacement include:

• Uneven or inconsistent oven heating
• Extended cooking times or inability to reach desired temperatures
• Gas smell coming from the oven area
• Visible damage or cracks on the spud itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice holder secures the burner orifice to a gas range or cooktop, positioning the orifice for a consistent gas flow and reliable ignition. Replaces a worn or damaged holder to restore correct burner alignment and flame performance. What it does:

• Holds the burner orifice in the correct position so gas flows properly to the burner
• Helps maintain an even, steady flame for consistent cooking performance
• Can resolve burner issues like weak or uneven flames or burners that fail to light
• Prevents orifice movement that can cause inefficient combustion or ignition problems

• One orifice holder

• Turn off the appliance and shut off the gas supply before starting; disconnect power if applicable
• Replace only with the correct OEM part for your model to ensure proper fit and orifice alignment
• Hand-start threads and tighten securely; avoid over-tightening which can damage the holder
• After installation, restore gas and power, then test burners and check for leaks (use a soapy water solution, never an open flame)

The Burner Bake Tube is an OEM part for GE gas ovens and ranges. It acts as the path by which gas travels from the valve to the burner, where it is ignited and the flame produced.

Symptoms of a bad burner tube include:

• Inability to ignite or extinguish the gas flame properly
• Burner flames that appear abnormal in color or size
• Decreased gas pressure at the burner resulting in weak flames
• Frequent sensor issues or interrupted baking

Causes can be cracks in the tubing allowing gas leaks, blockages restricting fuel flow, or permanent damage from overheating. Installing this GE replacement restores efficient combustion ensuring reliable oven or range operation.

Compatible with Hotpoint, RCA, and select Kenmore models as well, replacing yours prevents future troubles from minor issues left unaddressed.


This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This broil burner provides concentrated heat for the oven's broil function, restoring high-temperature top-down cooking for browning and searing. Designed to match the original part shape and heat output for safe, consistent performance. What it does:

• Generates the concentrated high heat used during the oven's broil cycle
• Helps restore proper browning, crisping, and searing on top of foods
• Commonly replaced when broil heat is weak, uneven, or the burner won't light
• Works as the direct heating element for the oven's broil operation

• Disconnect power (and gas supply, if applicable) before beginning service
• Handle carefully; edges may be sharp and burner surfaces can be fragile

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

Medium LP orifice

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice spud secures and positions the gas orifice for a range or cooktop burner, helping deliver a consistent gas flow for proper ignition and flame control. It's a direct-fit replacement designed for safe, reliable burner operation. What it does:

• Holds and centers the gas orifice at the burner inlet for correct flame pattern and heat output
• Ensures a sealed connection between the burner tube and orifice to prevent leaks
• Helps restore normal ignition and steady flames when a damaged or missing spud causes weak or uneven burners
• Compatible with common range/cooktop gas burner assemblies

• One orifice spud

• Turn off gas supply and electrical power before attempting service
• Only install with the exact OEM part number; hand-start the thread, then tighten to secure—do not overtighten
• After installation, check all connections for leaks with a leak-detection solution or soapy water; never use an open flame to test
• If you smell gas, shut off supply immediately.

The Surface Burner Valve is an OEM replacement part for GE gas ranges. Located beneath each burner head, this valve regulates gas flow to its associated burner for consistent temperature control.

Causes of faulty valves often relate to corrosion or debris accumulation from gas vapors over time. Physical damage from impacts or misuse could also restrict proper valve function.

Symptoms include:

•  Burners failing to ignite or heat properly
•  Inability to adjust temperatures across burner settings
•  Abnormally loud noises or small flame projects during use

This genuine GE part is compatible with Hotpoint, RCA, and select Kenmore range models as well.

The Valve and Burner Assembly is an OEM part for GE gas ranges. As the central mechanism delivering gas fuel to each burner, it works to control flames precisely while maintaining consistent heat levels.

Causes of a bad valve and burner assembly include failure of internal valves, cracks in manifolds allowing gas leaks, or blockages restricting proper fuel flow.

Symptoms of a bad valve burner include:

• Inability to ignite or extinguish burners properly
• Burners that produce unstable or excessively large/small flames
• Difficulty maintaining the desired heat setting
• Repeated sensor errors or shutdowns

This GE replacement assembly ensures your range's stove-top functions safely and dependably by accurately metering gas movement. It is also compatible with Hotpoint, RCA, and Kenmore models. Install yours today before minor issues require costly repairs.


The Valve Burner is an OEM part for GE gas ranges. It delivers gas to the cooktop through a valve system. This burner distributes gas evenly across its surface to provide consistent heating for pots and pans.

Causes can be wear over time, defects, dirt/debris buildup affecting the valve mechanism, or damage from mishandling.

Symptoms of a bad valve burner include:

• Uneven or abnormal flames when lit
• Inability to control burner flames and temperatures
• Burner making clicking/hissing noises
• No gas flow or faulty ignition

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This surface burner valve regulates gas flow to a single cooktop burner for smooth, precise flame control. Replacing a worn valve can restore reliable ignition and adjustment on the affected burner while maintaining safe operation.

• Regulates and meters gas from the manifold to one surface burner
• Works with the control knob to provide simmer-to-high flame settings
• Common failure symptoms include: burner won't ignite, weak or unstable flame, gas odor near the knob/valve area, or a knob that is hard to turn
• Labeled "270" per GE specification to match the correct valve style/position used in select models

• Disconnect power and shut off the gas supply before servicing
• Access the manifold; note the valve's position and orientation before removal
• Reassemble and check all connections for leaks using an approved leak-detection solution
• If the burner still won't light, also inspect the burner orifice, igniter, and spark system

The Electrode & Harness Assembly is an OEM part for GE gas ranges. It features ignition electrodes and a wiring harness that facilitates oven ignition. This assembly is responsible for sending high-voltage sparks to light the oven's pilot and main burners on command.

Symptoms of a bad electrode and harness assembly include:

• Oven pilot or burners failing to ignite properly
• Delayed ignition or repeated ignition attempts needed
• Indicator lights signaling ignition errors

Causes can be cracks, wear, or damage to the insulated electrodes from repeated heating cycles. Over time this may lead to arcing or shorting of electrical connections.

Proper sparking ensures safe and reliable cooking functions. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Valve Control Assembly is an OEM part for GE gas ranges. This assembly governs the gas valves that deliver fuel to each burner on the cooktop for precise flame control. Programmed settings adjust gas flow based on temperature and cooking requirements.

Causes of a bad Valve Control Assembly can include worn valve components, clogged gas ports, or failure of electronic controls from heat exposure over time.

Symptoms of a bad gas range Valve Control Assembly include:

• Inconsistent or abnormal burner flames
• Inability to regulate flame sizes as desired
• One or more burners not functioning properly
• Improper gas pressure levels reaching the burners

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This glow-bar oven igniter lights the gas burner. When energized, it heats and draws current through the safety valve so the bake or broil flame ignites reliably and the oven reaches the set temperature. What it does:

• Heats and ignites the oven's bake or broil burner
• Draws the correct current to open the gas safety valve
• Can address no-heat or no-ignition conditions
• Helps resolve very slow preheat or inconsistent oven temperatures
• Useful when the igniter glows but the burner never lights

• 1 glow-bar igniter

• Disconnect power and shut off gas supply before servicing
• Access from the oven cavity; remove racks, oven bottom, and flame spreader as needed
• Handle the igniter carefully—element is fragile; avoid touching the carbide/ceramic tip
• Secure connections and route wires away from flames and high-heat areas; test operation after reassembly

This hot surface oven igniter heats up and lights the gas at the burner. Replacing a weak, cracked, or non-glowing igniter often restores reliable ignition when a gas oven won't heat or preheats very slowly.

• Heats to ignite gas at the oven or broiler burner
• Draws the correct current to open the safety gas valve
• Common symptoms: no heat, intermittent heat, glows but no flame, very slow preheat, no glow at all
• Helps restore consistent burner ignition and temperature recovery

• Disconnect power and shut off gas; allow the appliance to cool completely
• Handle by the base/bracket only—the ceramic element is very fragile
• Reuse original mounting screws; route wires away from the flame path
• After install, verify a steady bright glow followed by burner ignition

This tube burner supply is the replacement gas tube that delivers fuel from the range/oven valve to the burner, restoring proper gas flow for reliable ignition and consistent flame performance. What it does:

• Directs gas from the appliance valve to the burner for normal operation
• Replaces cracked, corroded, or clogged burner tubing that can cause fuel flow disruption
• Helps correct symptoms such as burners that won't light, weak or uneven flames, or intermittent ignition
• Restores a sealed path for gas to reduce leakage risk when installed and tightened correctly

• Turn off gas supply and electrical power to the appliance before beginning work
• Verify proper fit and orientation to the valve and burner; use the OEM clamp/hardware if provided
• After installation, check all connections for leaks (soap-and-water test) and restore power per the appliance manual

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

Package of 12
