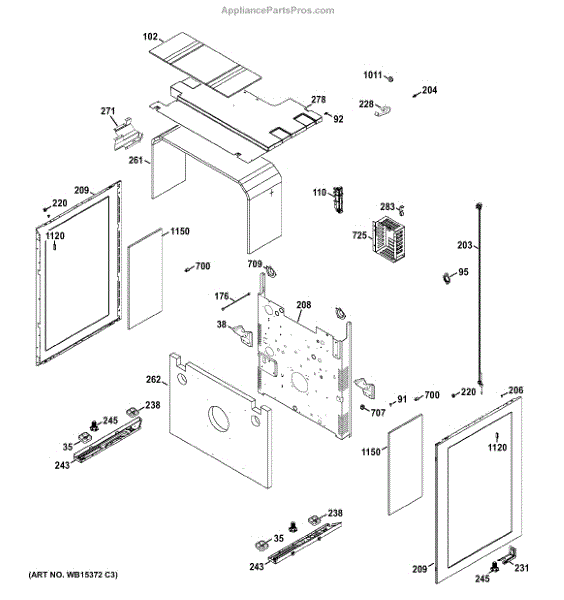

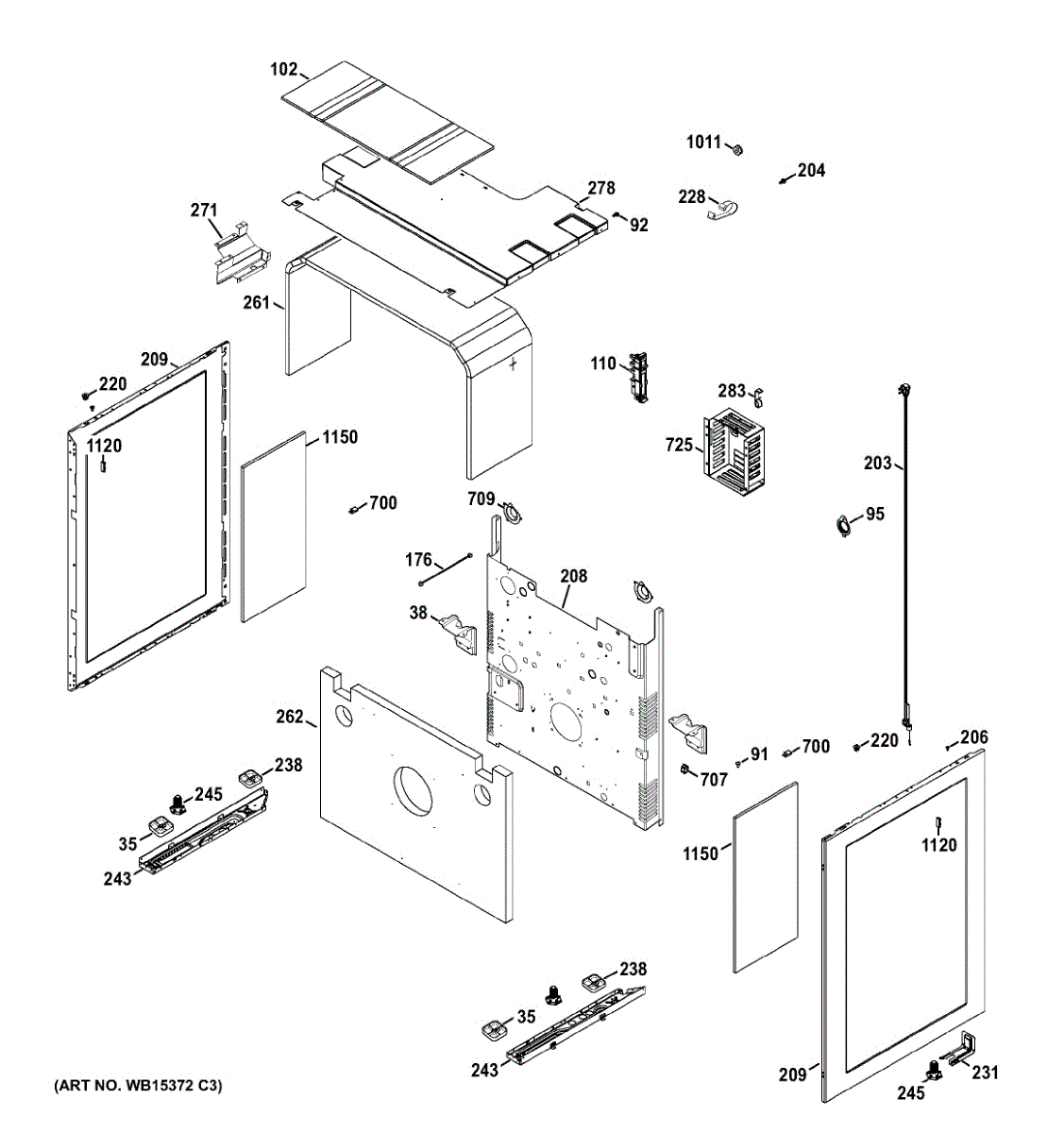

Parts for Ge JGB870DEF2BB: Body Parts

Base spacer for gas ranges. Installs at the bottom of the range to provide proper spacing and support. Replace if cracked, broken, or missing.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

This cover cap is a direct-replacement trim piece that covers an exposed control shaft or fastener, restoring a clean finished appearance and helping keep dirt and debris out of the opening. Ideal for cosmetic repairs and simple maintenance. What it does:

• Covers and protects an exposed shaft, screw head, or fastener from dirt and damage
• Restores the original finished look of the control area or panel
• Helps reduce snagging on clothing or objects around the shaft
• Prevents debris buildup that can affect surrounding components

• Always unplug the appliance or disconnect power (and water if applicable) before servicing.
• Many installs are push-fit—remove the knob or trim, press the cap into place, and reassemble.
• Keep parts organized for reassembly.

If burners won't ignite automatically but light with a match, the spark module likely failed. Accessed from the back of the range, moderate difficulty.

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

Replacement power cord for gas ranges. Installs at the rear connection to supply mains electricity. Order when your original cord is frayed, cut, damaged, or worn.

Package of 12

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Side panel for gas ranges. Replaces cracked, dented, or damaged exterior panels. Installs on the side of the range to restore appearance and protect internal components.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.

Positions and supports internal components to maintain proper alignment and clearance. Replace if cracked, broken, or missing to restore stability.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Support base for electric and gas ranges. Installs at the bottom to provide structural stability. Replace if cracked, broken, or damaged over time.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

This oven back insulation replaces the thermal barrier mounted at the rear of the oven cavity to help keep heat inside the cooking chamber and protect rear components. It restores proper cavity insulation for more even cooking and safer exterior temperatures. What it does:

• Provides a thermal barrier at the back of the oven cavity to reduce heat loss and help maintain consistent baking and roasting temperatures.
• Helps protect wiring, controls, and exterior cabinet panels from excessive heat exposure.
• Can reduce unusually hot exterior surfaces and long preheat or recovery times when worn or damaged.
• Offers minor sound-dampening for normal oven operation.

• One oven back insulation panel

• Disconnect power (and gas supply for gas ranges) before starting — follow your appliance safety procedures.
• Remove oven racks and access the rear cavity to replace insulation; handle gently to avoid tearing or compressing the material.
• Wear gloves and a dust mask if insulation is dusty; avoid inhaling fibers.
• Reassemble all panels and verify proper sealing before returning power and testing oven operation.

Insulation guard that installs under the cooktop surface of your gas range. Replace if cracked, torn, or deteriorated to maintain heat efficiency.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.

Dim or dark oven interior? This lamp cover protects and diffuses your range's light bulb for clear visibility. Replaces cracked or missing lens. Easy fix.

A single 6-32 keps nut that secures panels and components by combining a hex nut with a captive lock washer for vibration-resistant fastening. Fits standard 6-32 machine screws to restore proper fastener function and fit. What it does:

• Provides a secure threaded connection for 6-32 screws where a built-in lock washer prevents loosening.
• Commonly used to fasten panels, brackets, and small components prone to vibration.
• Replaces missing, stripped, or damaged nuts causing loose panels, rattling, or misaligned parts.
• Works with standard 6-32 threaded hardware in appliance assemblies.

• One keps nut (6-32).

• Unplug or disconnect power before working on the appliance.
• Hand-start the nut on the screw to avoid cross-threading, then tighten with the appropriate wrench or socket.
• Do not overtighten; stop when snug and the captive washer seats against the surface.
• If threads are damaged, replace the mating screw or repair the threads before installing.
