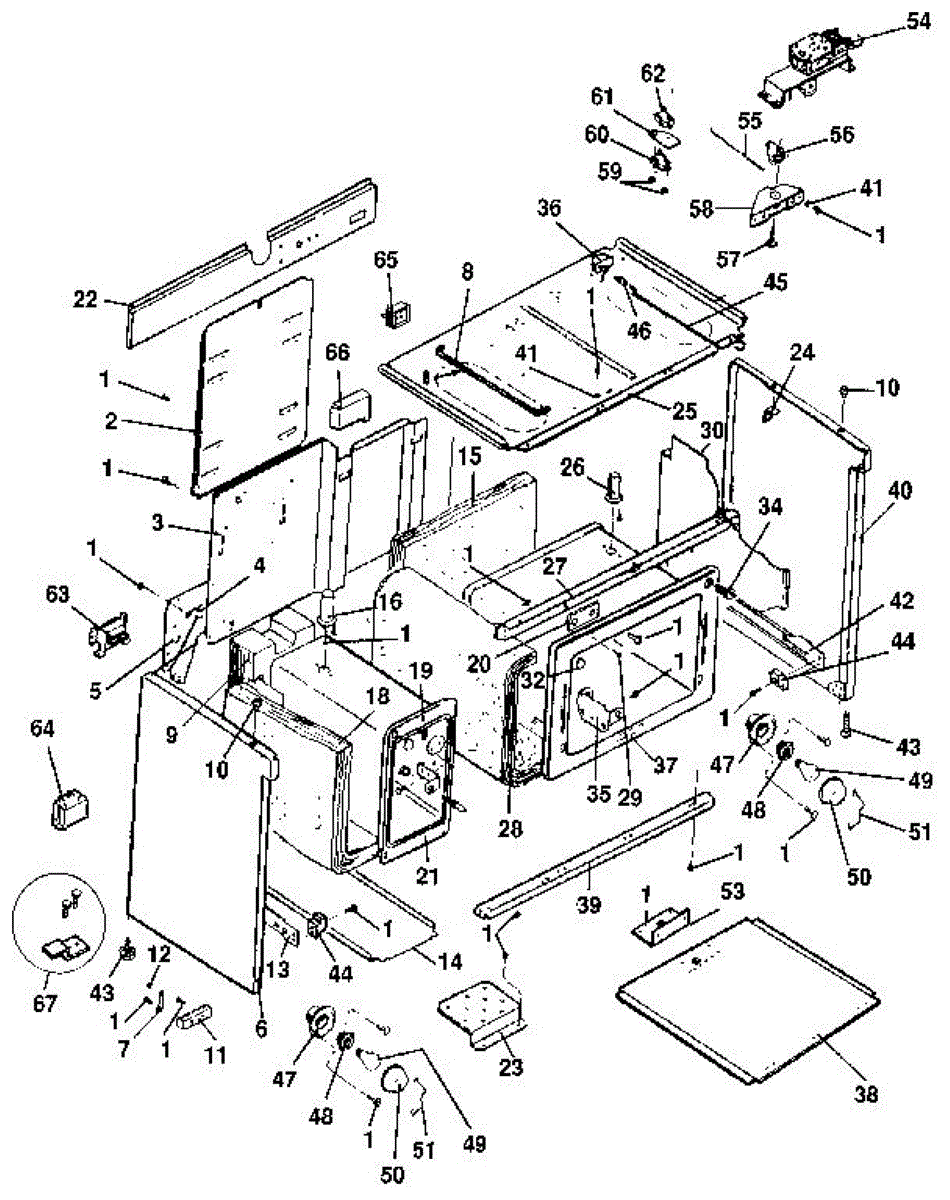

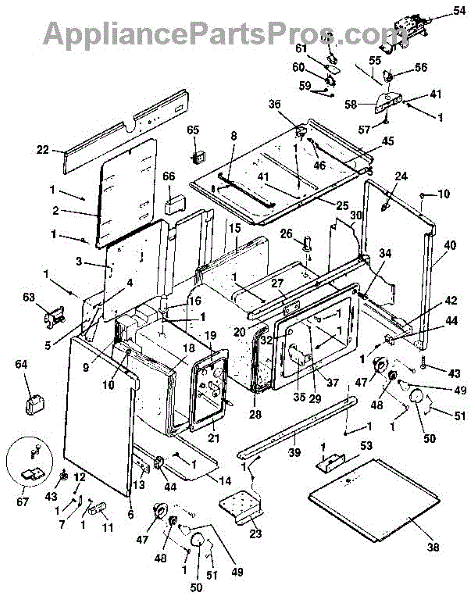

Parts for Kenmore 790.9468895 (7909468895, 790 9468895): Body Section Parts

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

This part has been discontinued by the manufacturer and is no longer available.

Support rod that holds the cooktop top in place. Replace this structural pin if the original is broken, bent, or missing to properly secure the top.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Secures panels and components in your range or oven. Replace if broken, bent, or missing to prevent shifting and reduce vibration noise. Confirm fit.

This strike plate fits the door latch assembly to provide a secure contact point for the latch so the appliance door closes and stays latched. It restores proper door alignment and reliable closing action. What it does:

• Provides a durable contact surface for the door latch to engage
• Helps the door close fully and remain securely latched
• Reduces rattling or misalignment caused by a worn or damaged strike
• Can prevent door-open errors or improper sealing related to latch engagement

• Disconnect power to the appliance before starting any repair
• Remove the access panel or door trim to reach the strike; keep fasteners organized
• Align the strike plate with the latch before tightening screws to ensure smooth engagement

This lower oven heat shield is a factory-style replacement panel that protects internal components from direct bake-broil heat and helps direct oven airflow for consistent cooking. Restores heat protection and prevents heat-related damage to nearby parts. What it does:

• Shields wiring, insulation and under-oven components from direct heat and hot spots
• Helps control internal oven heat flow for more even cooking
• Reduces risk of scorched or warped parts caused by excessive localized heat
• Common symptom: visible heat damage, burnt insulation, or a missing/warped shield

• Disconnect power (and gas supply if applicable) and allow the oven to fully cool before beginning work
• Handle carefully; edges may be sharp—wear gloves and eye protection
• Basic hand tools usually required; follow for exact fastener locations
• If corrosion or adjacent component damage is present, inspect and replace affected parts as needed

A single replacement mounting screw that secures the transformer to the appliance chassis. Keeps the transformer firmly attached to help maintain reliable power to the controls and reduce vibration-related noise. What it does:

• Secures the control/door transformer to the appliance chassis or bracket.
• Prevents transformer movement that can cause rattling or vibration noise.
• Helps maintain proper electrical connections by keeping the transformer stable.
• A missing or loose screw can lead to intermittent power to controls or unusual sounds.

• Always disconnect power to the appliance before starting work.
• Use the correct screwdriver to avoid stripping the head; tighten snugly but do not overtighten.
• Keep original hardware and screw length and thread match before installing.
• If the transformer or wiring looks damaged, replace or inspect components as needed before reassembly.

Has two terminals.

Sold individually.

Nylon guide that supports the front of your range oven drawer as it slides in and out. Replace if cracked, broken, or worn causing drawer misalignment.

Replace a worn, broken, or missing switch rod on your range. This control rod connects to the switch mechanism and may need replacement if damaged.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
