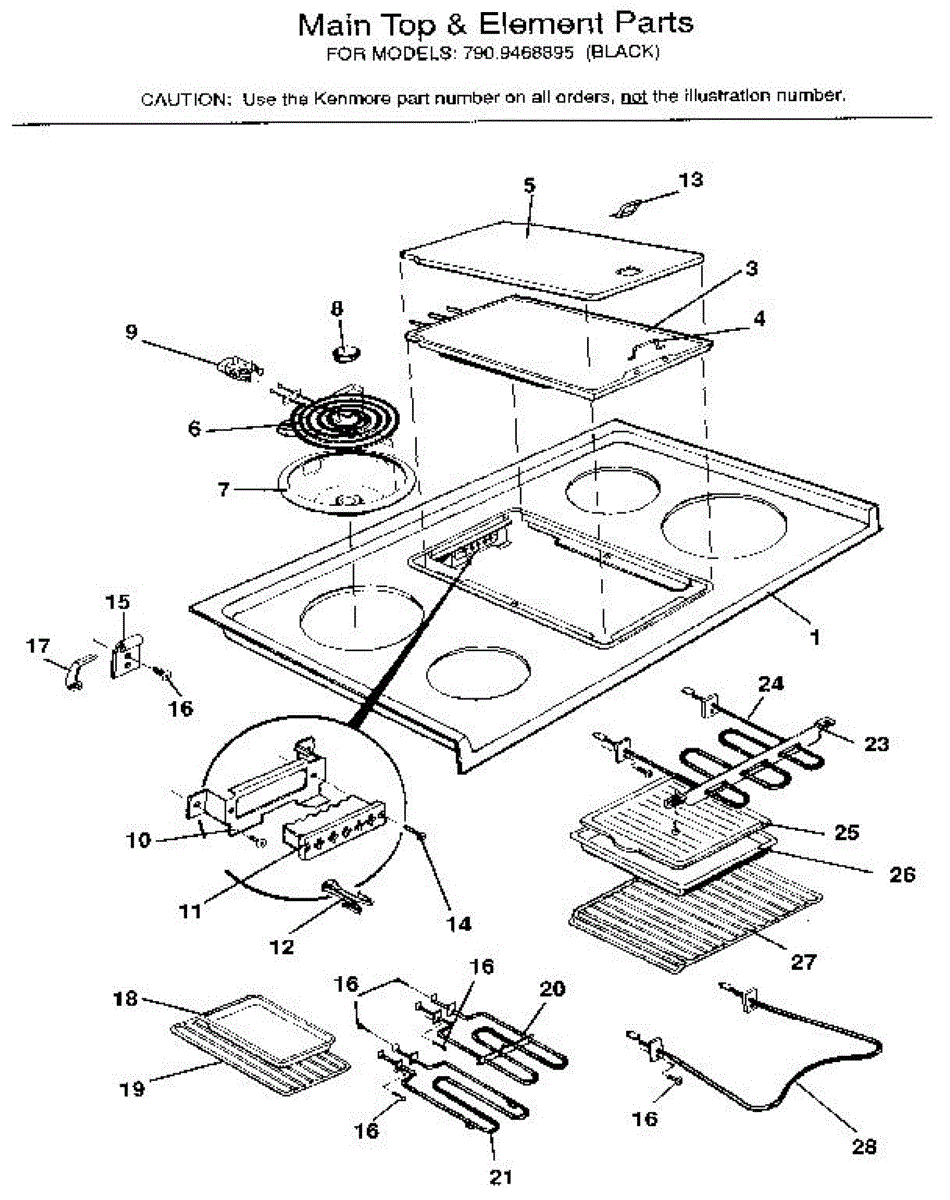

Parts for Kenmore 790.9468895 (7909468895, 790 9468895): Main Top Section Parts

Replace a broken or missing griddle handle on your cooktop. This handle attaches to the griddle edge for safe lifting and positioning of hot surfaces.

If your burner isn't heating evenly or won't heat at all, this 6-inch coil element typically solves the problem. Simple plug-in replacement. Video guide.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

This is a black surface burner cap that sits on top of the burner base to distribute the flame evenly across the cookware. It covers the center of the burner assembly and helps produce a uniform ring of flame. Replace this cap if it is cracked, chipped, warped, or if you notice uneven flame patterns during cooking.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

Range won't power on or loses electrical connection? This terminal block secures the power cord connection. Direct part replacement restores reliable operation.

The terminal block clip is a small fastener that secures the power cord's terminal block connections inside your appliance. It holds the wiring terminals firmly in place to maintain safe and reliable electrical contact. Replace this part if the clip is cracked or missing, causing loose wiring connections, intermittent power issues, or visible arcing at the terminal block.

This handle cover protects and finishes the end of a refrigerator door handle, restoring appearance and covering mounting hardware for a clean look. It's a simple cosmetic replacement that helps prevent dirt buildup and wear. What it does:

• Replaces a cracked, faded, or missing door handle end cap
• Covers exposed screws and mounting points for a neater door finish
• Helps keep dirt and moisture out of the handle mounting area
• Restores the original appearance of the door handle

• Basic screw or snap-on installation; handle may need loosening or removal to install
• Turn off power to the appliance only if required by your model's service instructions
• Use proper tools and avoid overtightening fasteners to prevent cracking

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Left hinge pin for range door pivot assembly. Replace if the original pin is bent, worn, or missing to restore proper door alignment and smooth operation.

Color: chrome. Measures about 10 inches wide by 17 inches deep.

Broiler won't heat or heats unevenly? This upper oven broil element delivers intense top-down heat for broiling. Simple DIY repair takes under an hour.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven not heating or baking unevenly? This lower bake element restores proper heating. Easy DIY repair—disconnect power, unscrew element, swap wires.

This part has been discontinued by the manufacturer and is no longer available.
