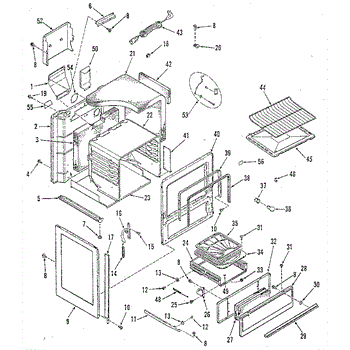

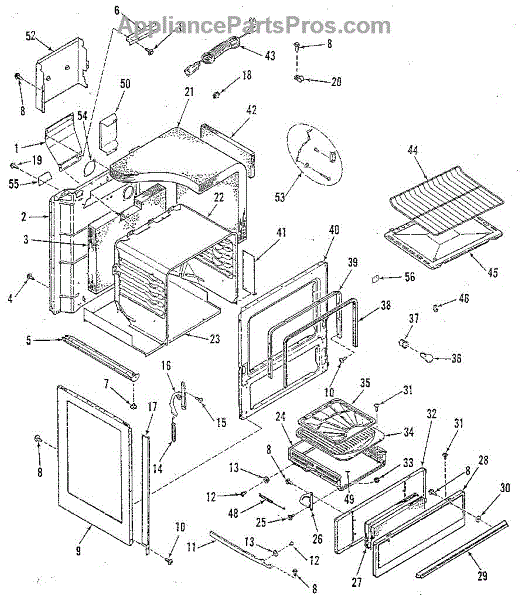

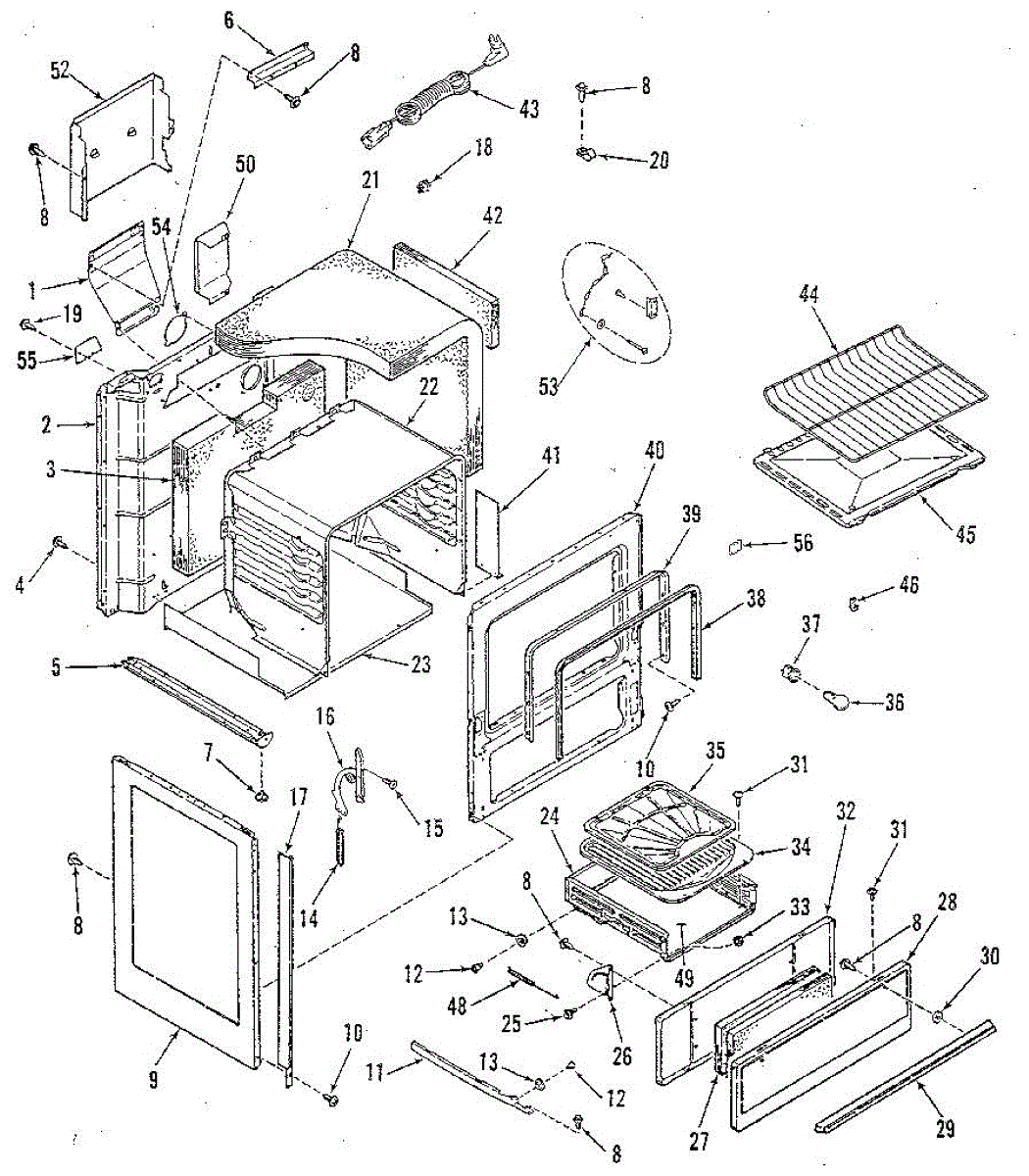

Parts for Kenmore 911.3618890 (9113618890, 911 3618890): Body Section Parts

This flue deflector assembly redirects hot gases away from the oven cavity, helping maintain proper venting and consistent bake/roast performance. It replaces a worn or damaged deflector to restore correct exhaust flow. What it does:

• Guides exhaust gases from the oven cavity toward the flue/chimney opening
• Helps maintain even cooking by preventing hot spots caused by misdirected airflow
• Commonly replaced when warped, cracked, or detached after heavy use
• Works as part of the oven venting system to support safe heat management

• Turn off power to the appliance and shut off the gas supply before starting work.
• Use basic hand tools; keep fasteners and brackets separate to avoid misplacement.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

ST10-16 X 7/16"

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

Range won't power on or burners not heating? The terminal block connects power to your range. Common repair for electrical connection issues.

Replacement mounting bolt for ovens and ranges. Used to secure internal components or panels. Order a new bolt if yours is stripped, missing, or damaged.

Replacement tension spring for oven doors, latches, and assemblies. Restores proper tension when the original spring has stretched, broken, or worn out.

Chain from floor to range design
