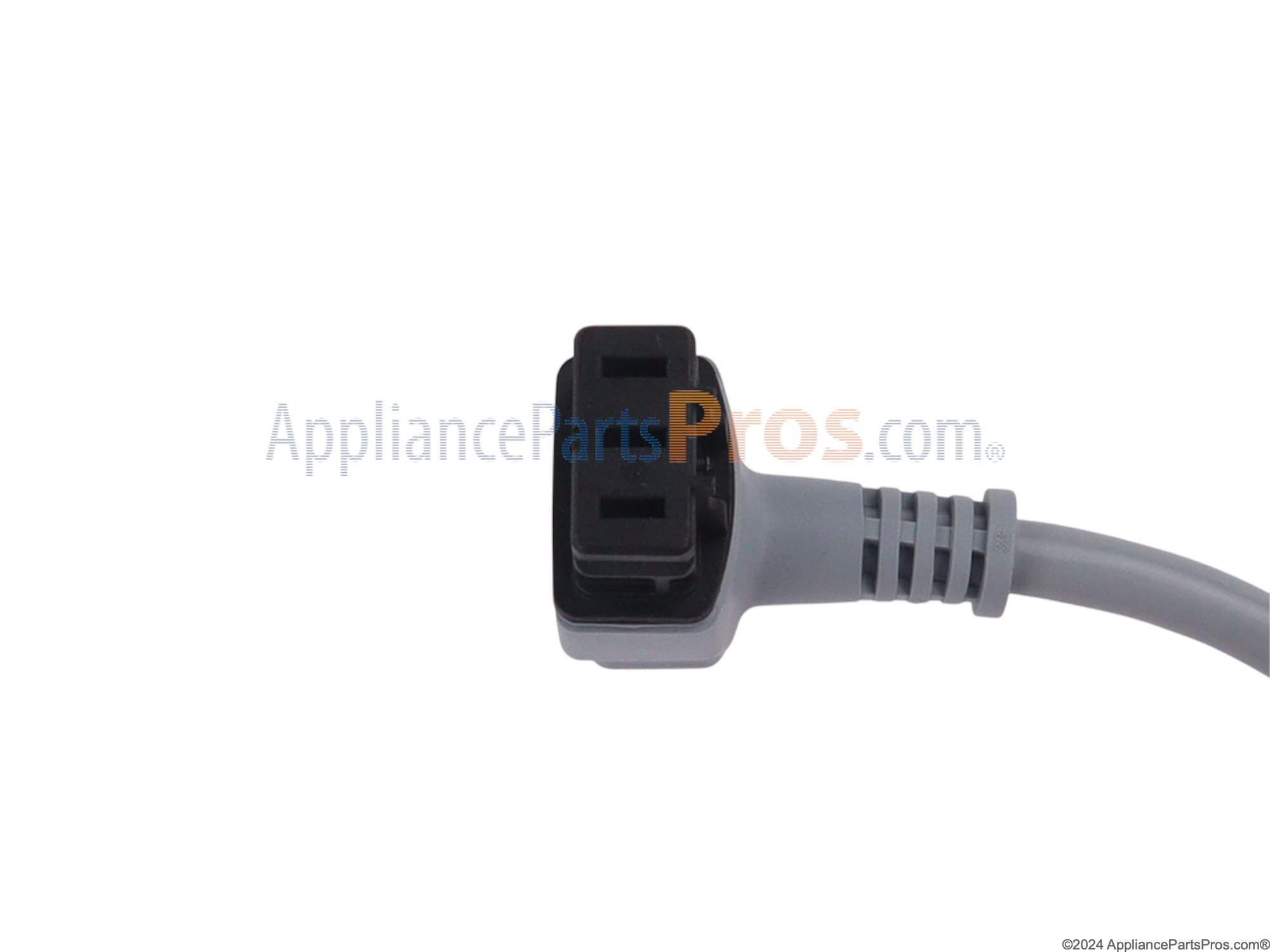

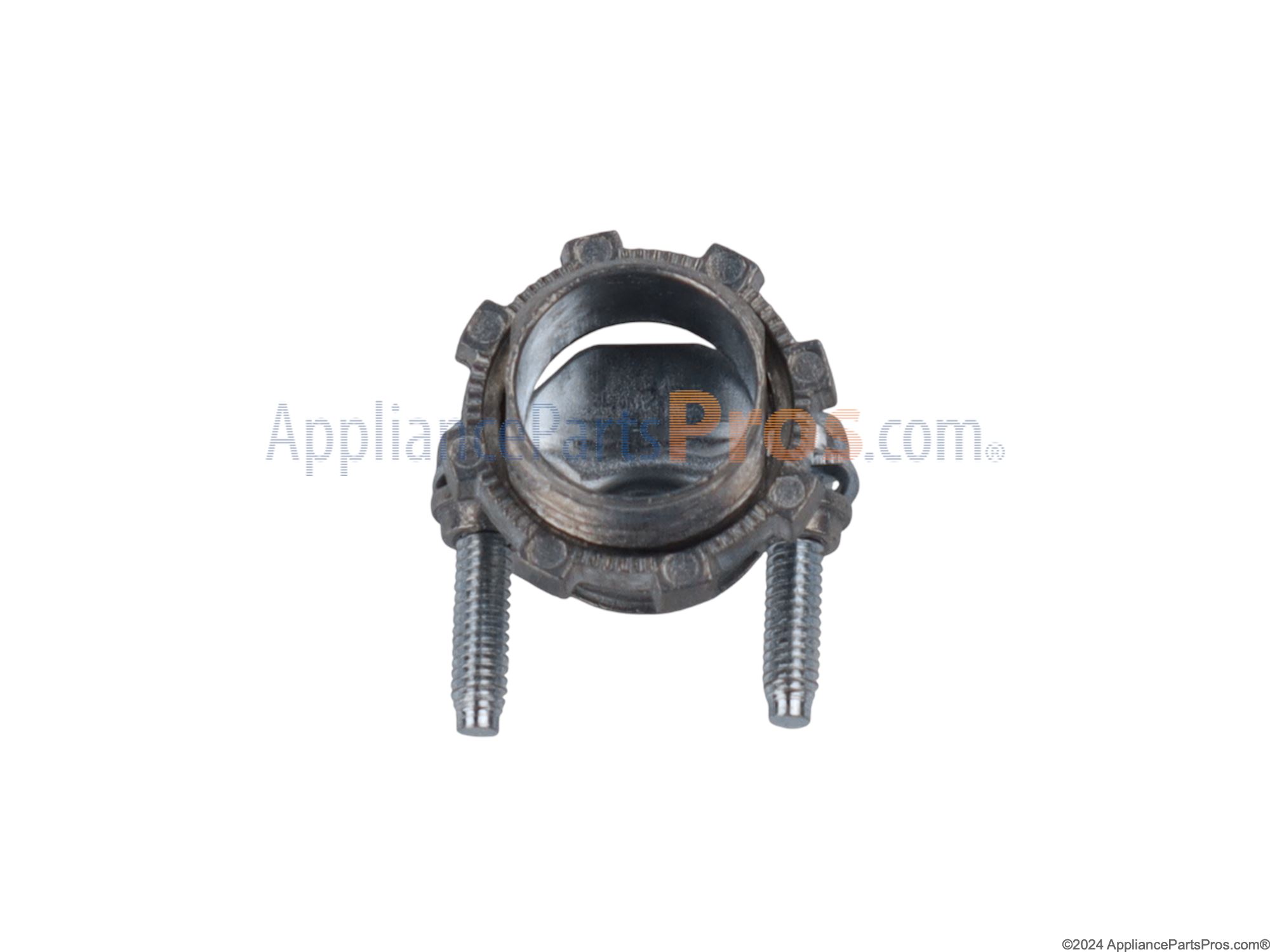

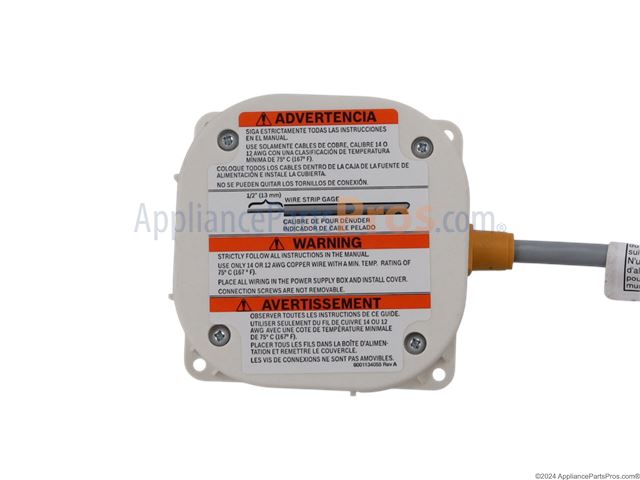

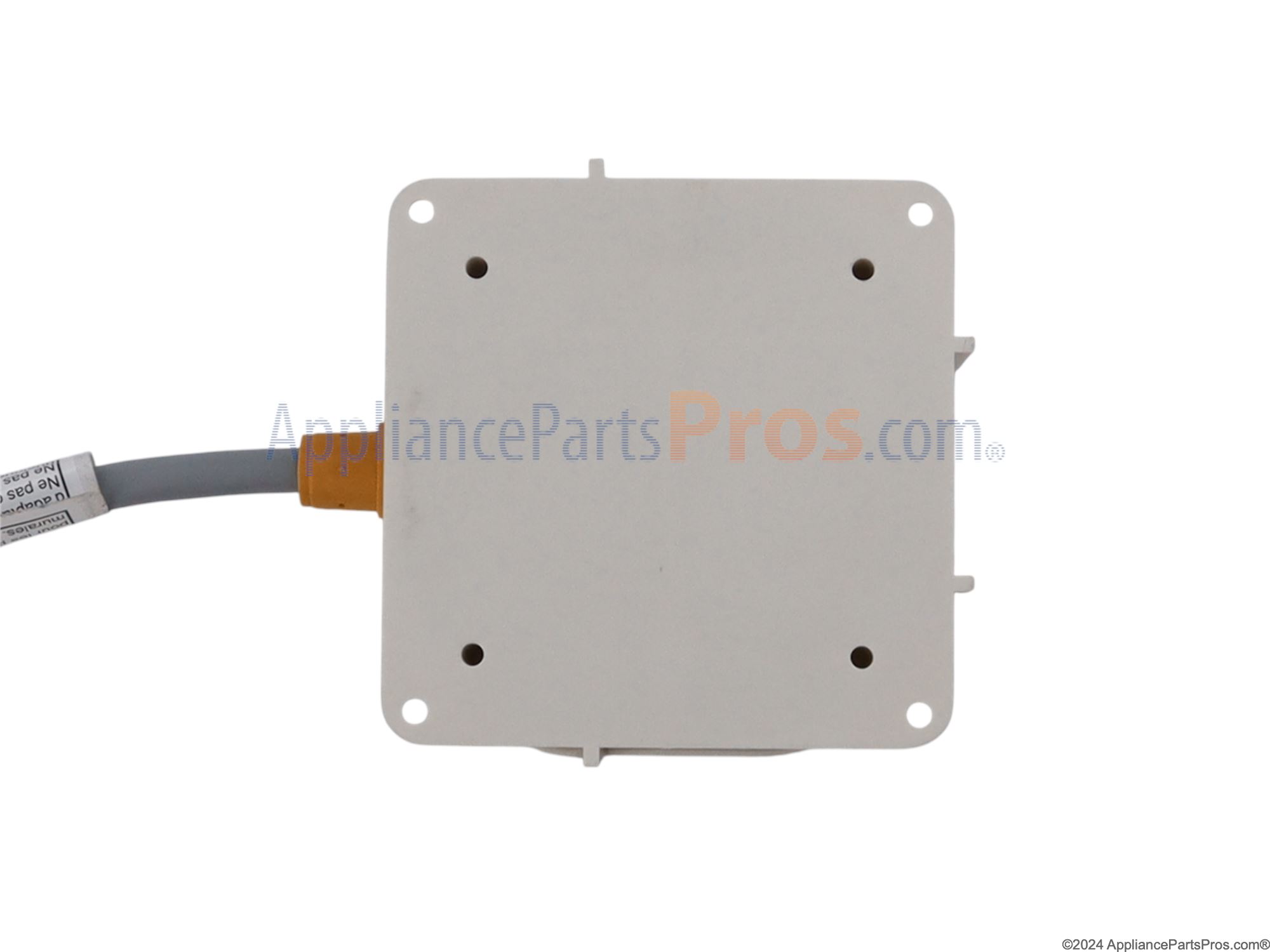

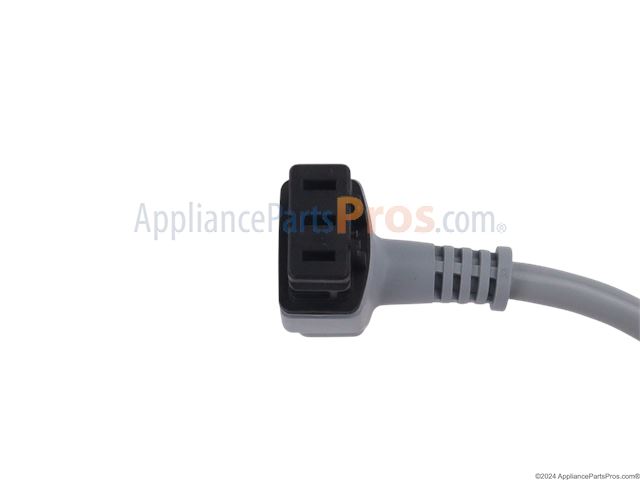

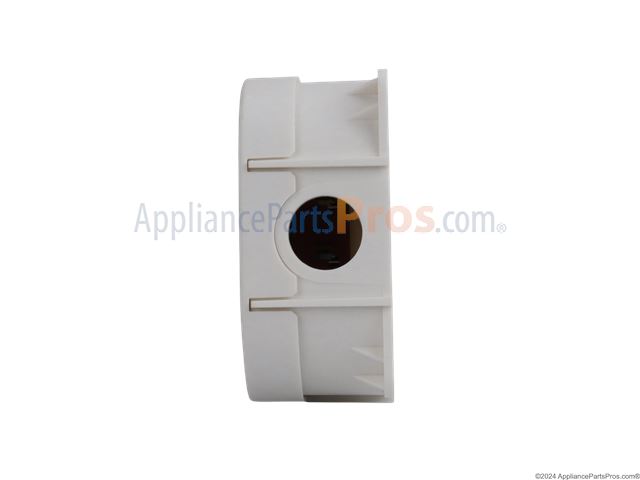

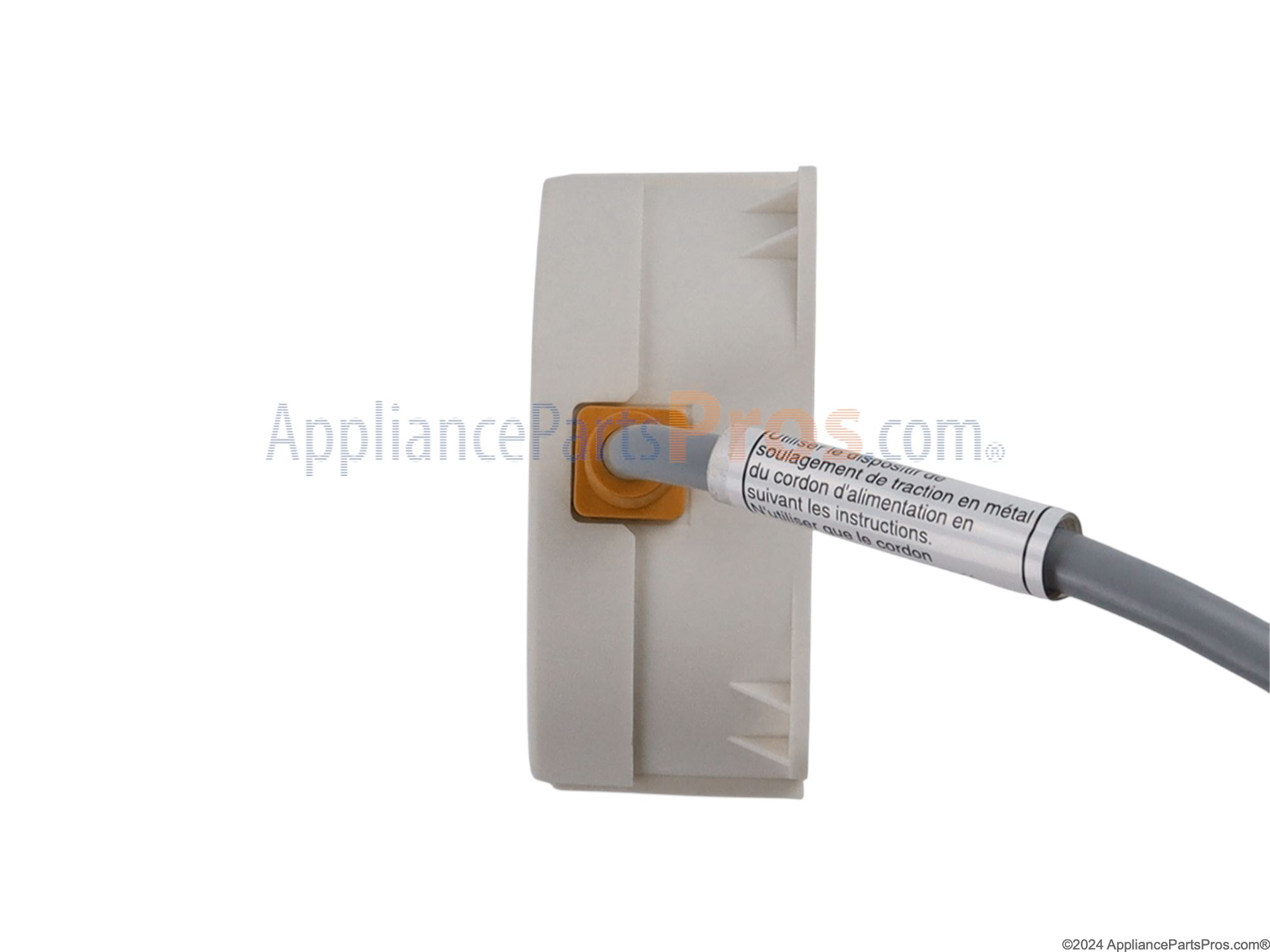

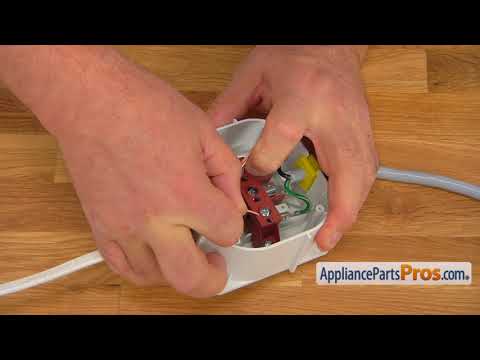

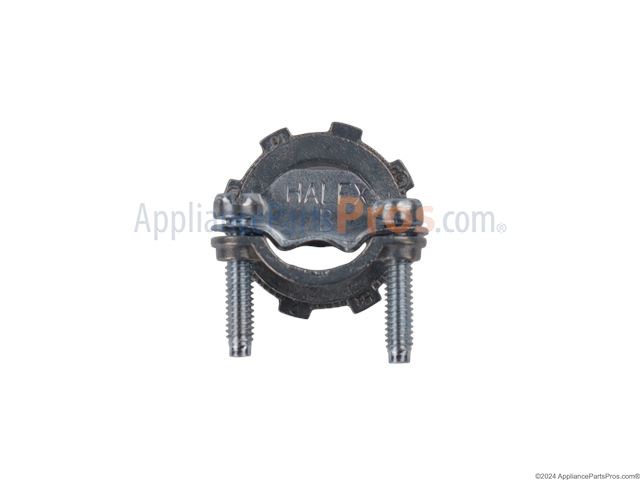

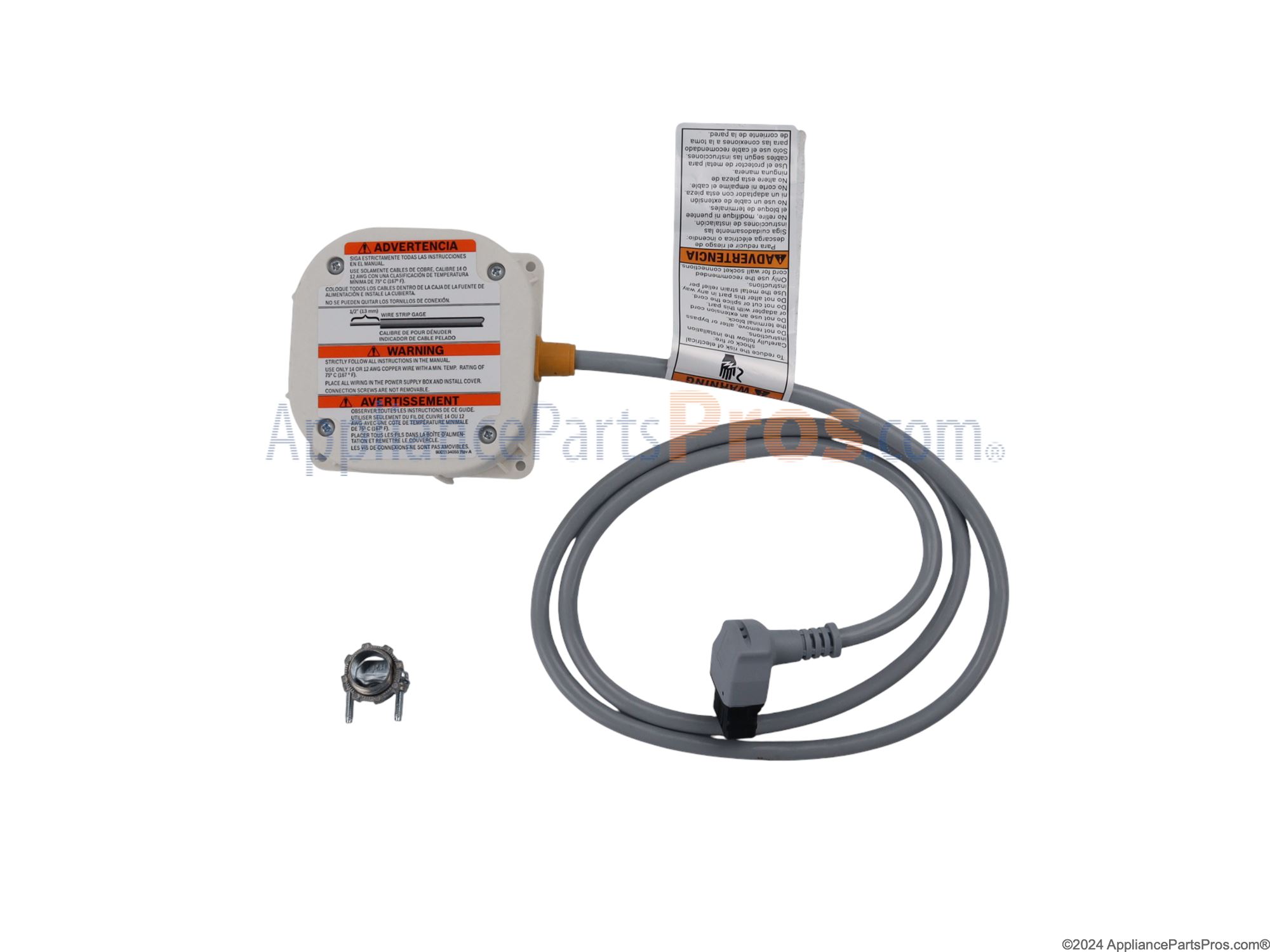

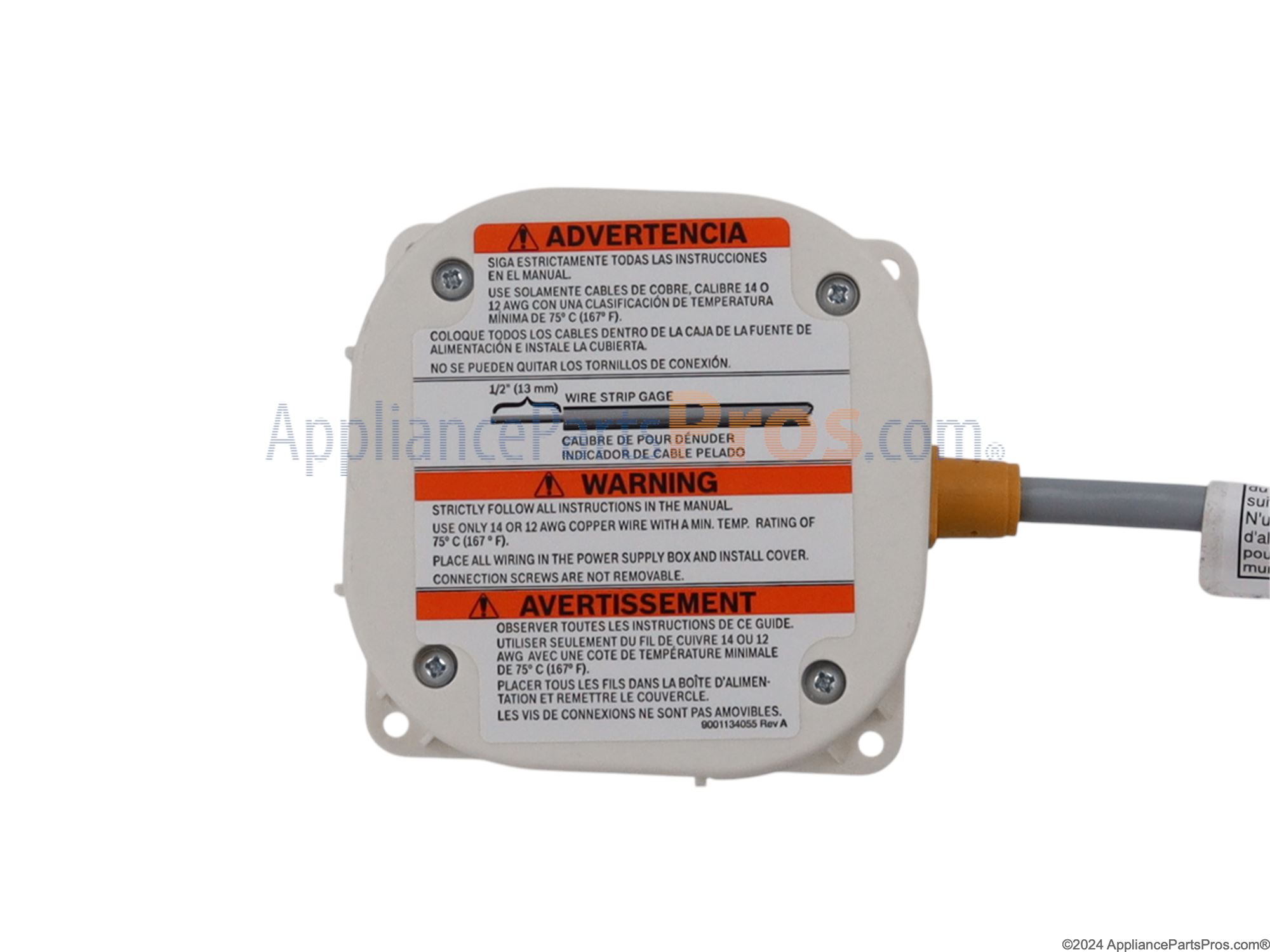

Neal F Grand Blanc , MI October 30, 2017 Power supply cable recalled by bosch local appliance store recommended by bosch was not helpful so i odered the upgraded part and did it myself Turn off power supply at breaker panel. Removed items under adjacent sink. Placed towel under water supply valve. Closed water supply valve and removed supply line with adjustable wrench. Placed second towel under disposal unit. Loosened clamp on washer drain hose at disposal and removed hose. Unplugged power cord from surge protector. Removed four screws from junction box cover and removed cover. Loosened screws from power supply cord at terminal block, loosened strain relief and pulled cord from box. Removed junction box to dishwasher cord blade connectors at terminal block using needle nose pliers, loosened cord retaining block and pulled power cable from junction box. Removed old junction box and replaced with new one supplied. Opened dishwasher door and removed two screws from retaining brackets under lip of kitchen counter. Removed toe kick trim and lowered front of washer using 1.5 turns via the adjuster screw. Slid dishwasher forward and rotated to access rear of machine. Pulled old power cord through cabinet wall and removed at dishwasher. Pushed new cord through access hole in cabinet wall, routed through strap on left side and connected to washer. Installed adhesive backed cord clip and pushed power supply cable into clip. Routed water supply back into cabinet access hole. Slid dishwasher under counter, raised height by applying 1.5 turns to height adjuster. Open washer door, positioned machine in final location and reinstalled screws into locator brackets under counter. Closed washer door. Removed cover from new junction box. Removed power supply cable strain relief from old junction box and installed on new one. Fed old power supply cord through strain relief and tightened relief. Moved ends of supply side wires into terminal and tightened clamps. Replaced cover on new junction box. Plugged supply cord into surge protector. Reconnected drain hose to disposal and tightened hose clamp. Removed towel from under disposal. Installed water supply line to valve and tightened with adjustable wrench. Open valve and checked for leaks. Removed towel under valve. Placed all items back under sink. Turned power supply back on at breaker panel. Tested system by running the washer for 9-10 minutes on rinse cycle. Read More... Do-It-Yourself Rating: Repair Time Estimate: 1-2 hours Tools: Adjustable Wrench, Nut Drivers, Pliers, Screwdrivers
Tom D Aptos , CA July 15, 2016 Missing a part that was difficult to identify A part was missing from a dishwasher purchased from a company that was going out of business. When the electrician tried to install it, he found that it was missing a critical, proprietary part that connected the power to the unit. The part did not appear on any diagrams provided with the machine. I contacted Appliance Parts Pros. They found an obscure diagram that showed the part, identified the part, and tracked it down for me. The part was priced reasonably and shipped quickly. Highly recommended. Read More... 4 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Nut Drivers, Pliers, Screwdrivers, Wrench Set
Marianne A Highlands Ranch , CO November 26, 2018 The terminal shorted out The cable supply and cord has to be replaced. Very simple. Saved hundreds of dollars in repair bills. Read More... 2 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Pliers, Screwdrivers

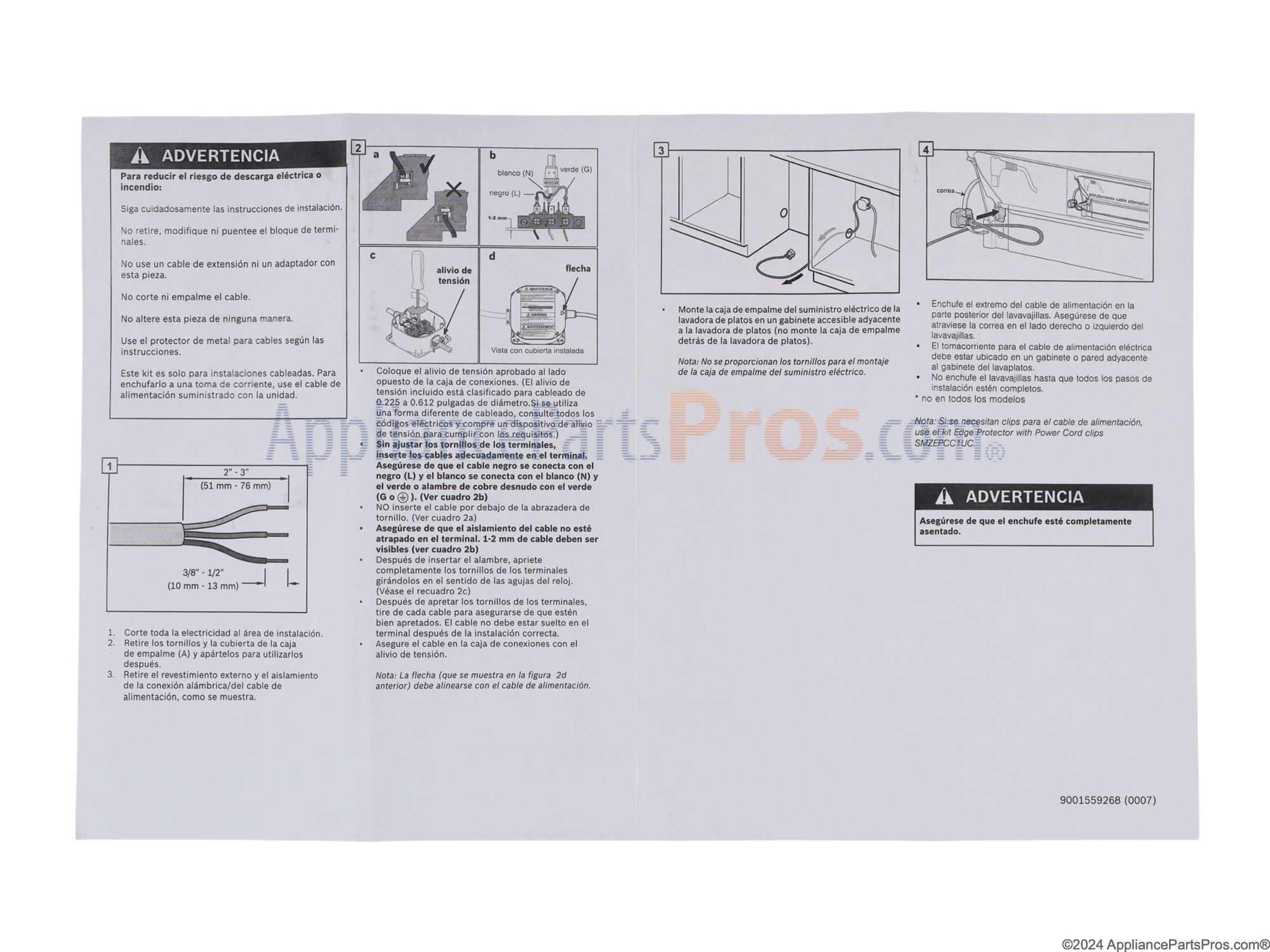

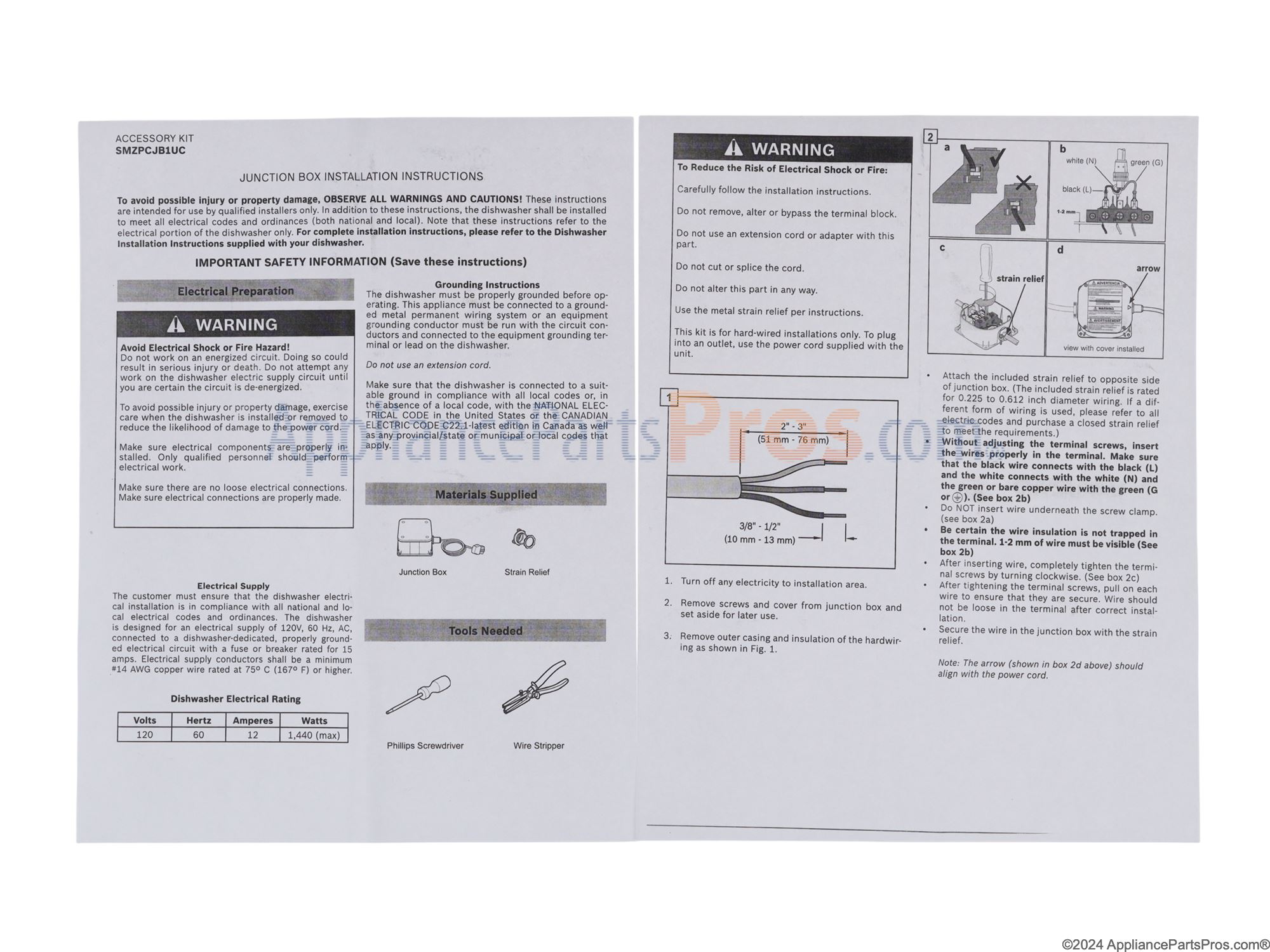

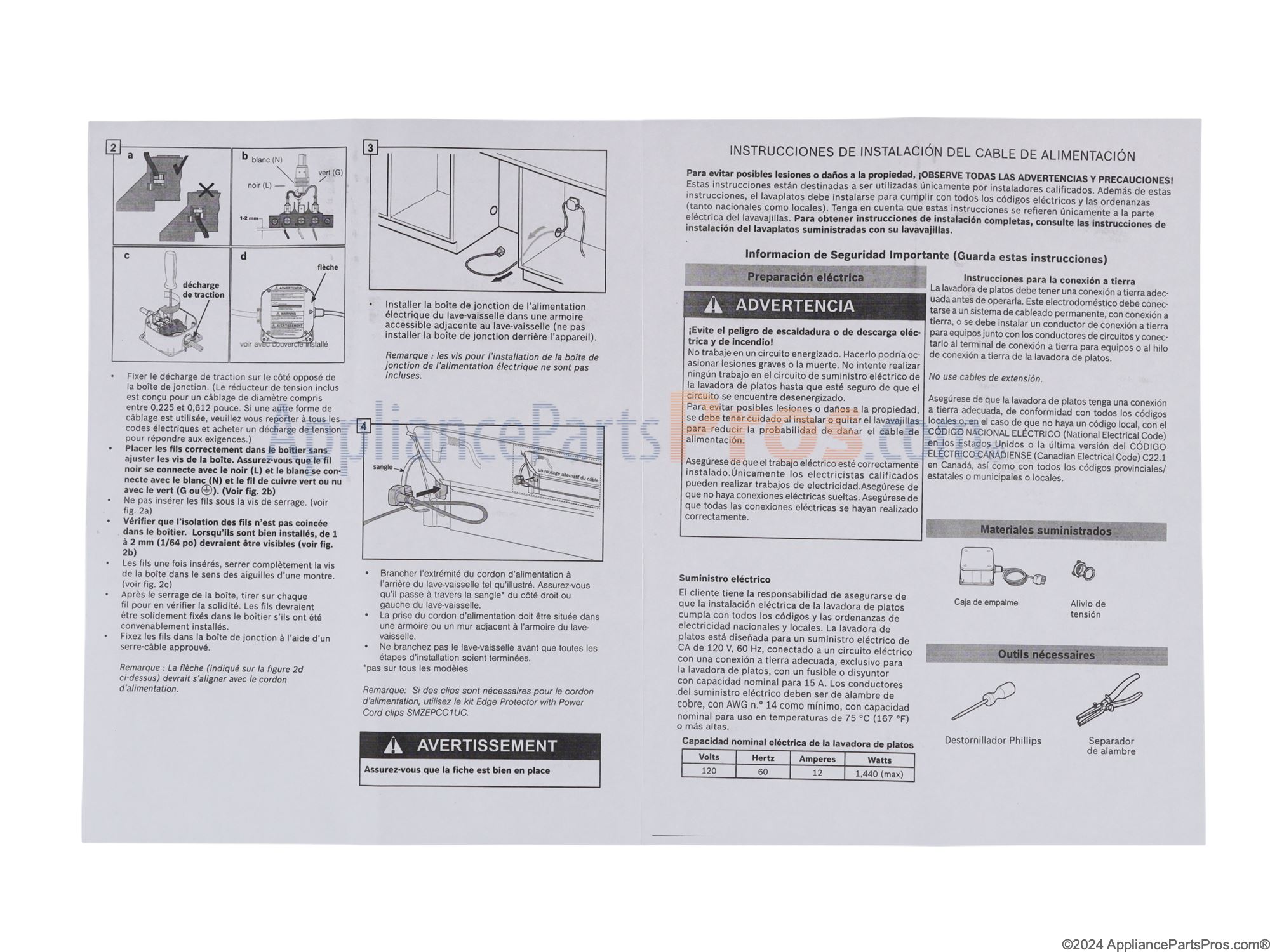

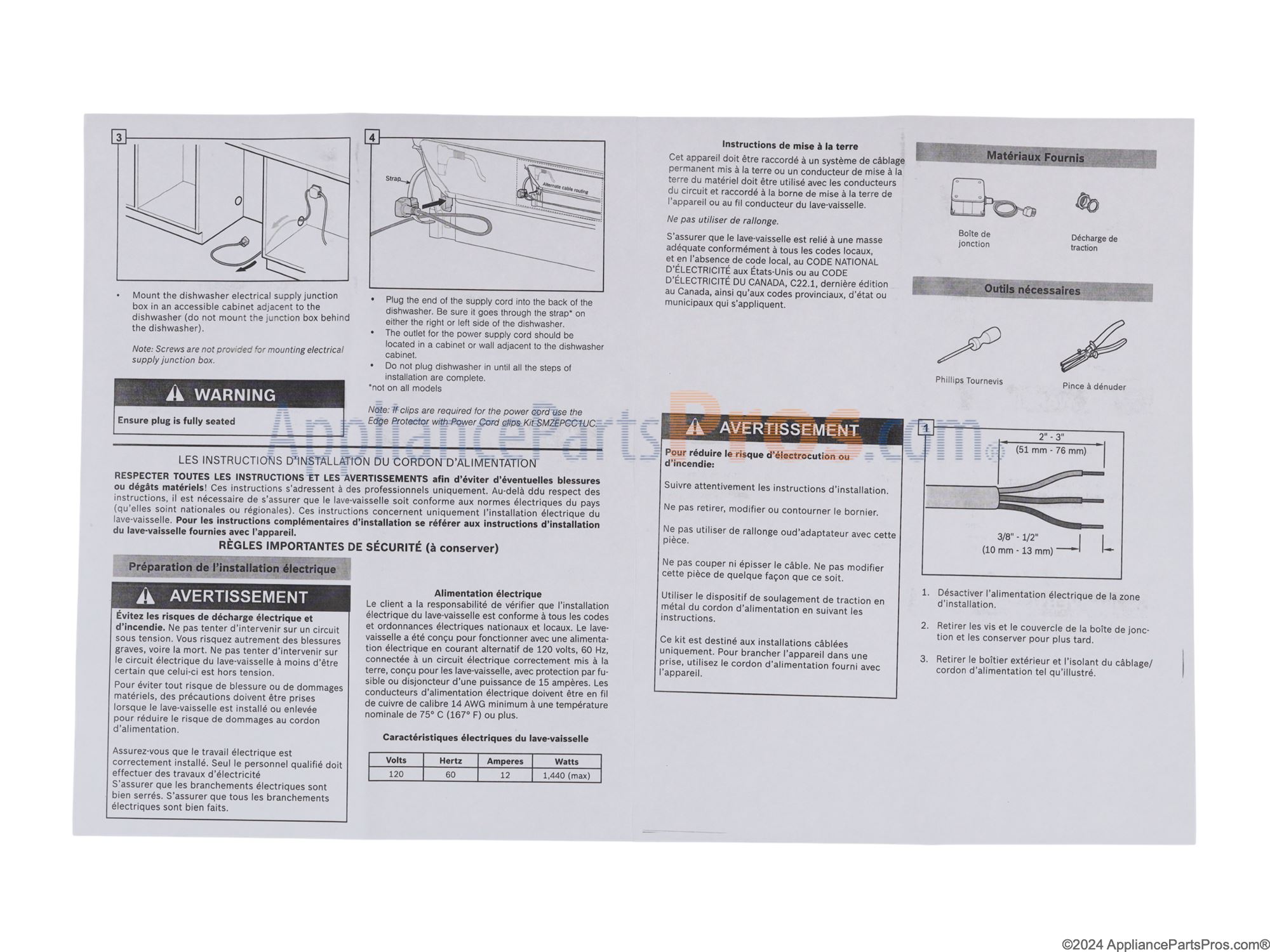

Mary U Sylvania , AL September 05, 2016 Appliance: Model SHX68T52UC Needed power cord Ordered from App.Parts Pro. was very satisfied with delivery time. Pulled up pdf of owners manual which was very clear. Found out how to install plug and also how to run dishwasher since it had been given to me without this manual.I would use Appl.Parts pro. whenever I need any other parts for this unit or any of my other appliance. GREAT JOB GUYS/GALS ! Read More... 2 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Jonathan S Anchorage , AK January 14, 2024 Appliance: Bosch Dishwasher SHX53T55UC/01 Melted plug and corroded circuit board connection. Replaced the circuit board and correctly installed the power cord to the electrical system. Read More... Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Screwdrivers
