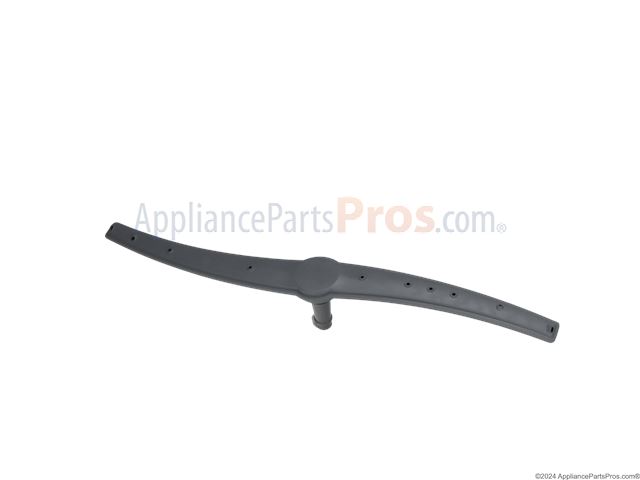

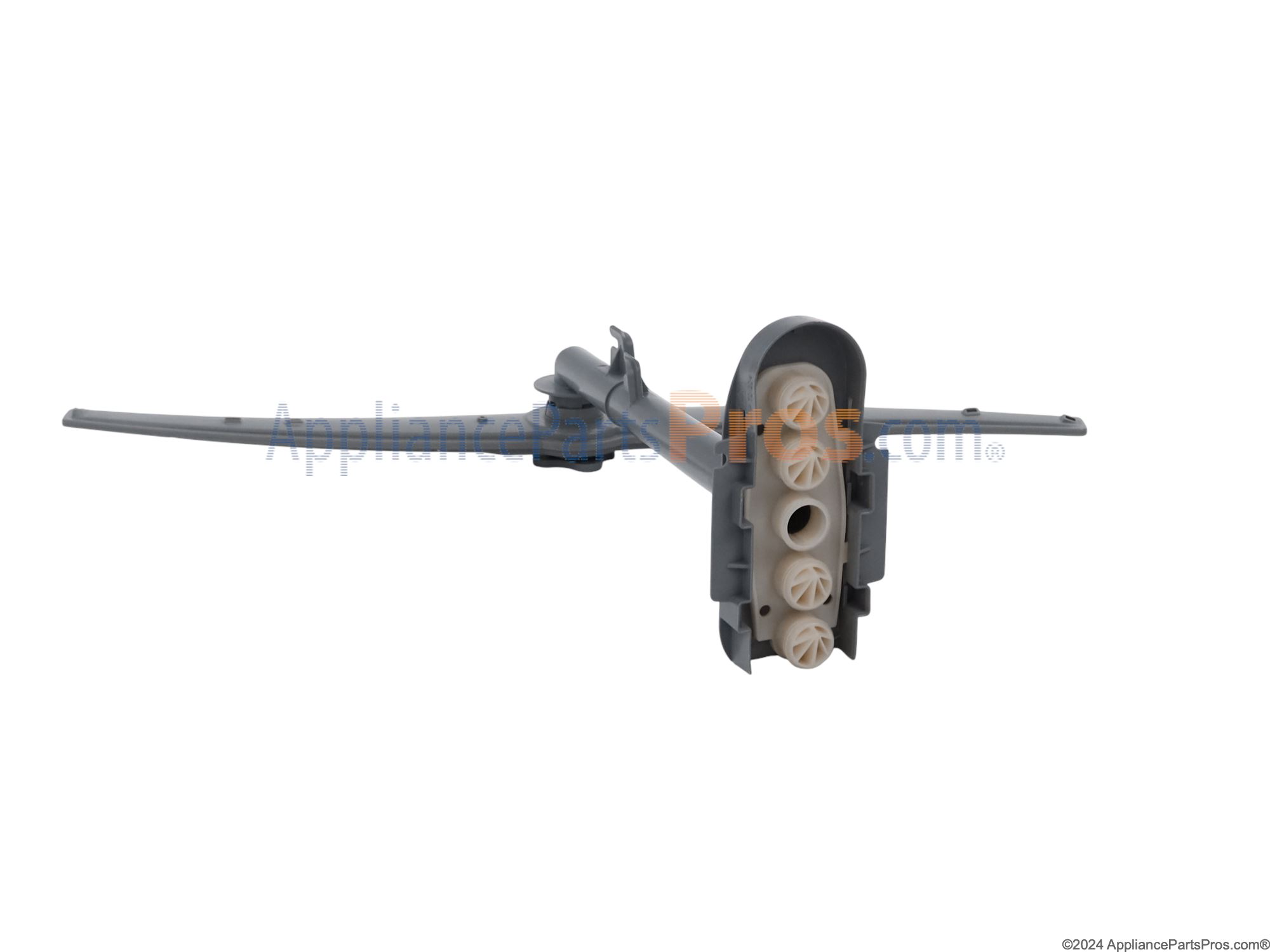

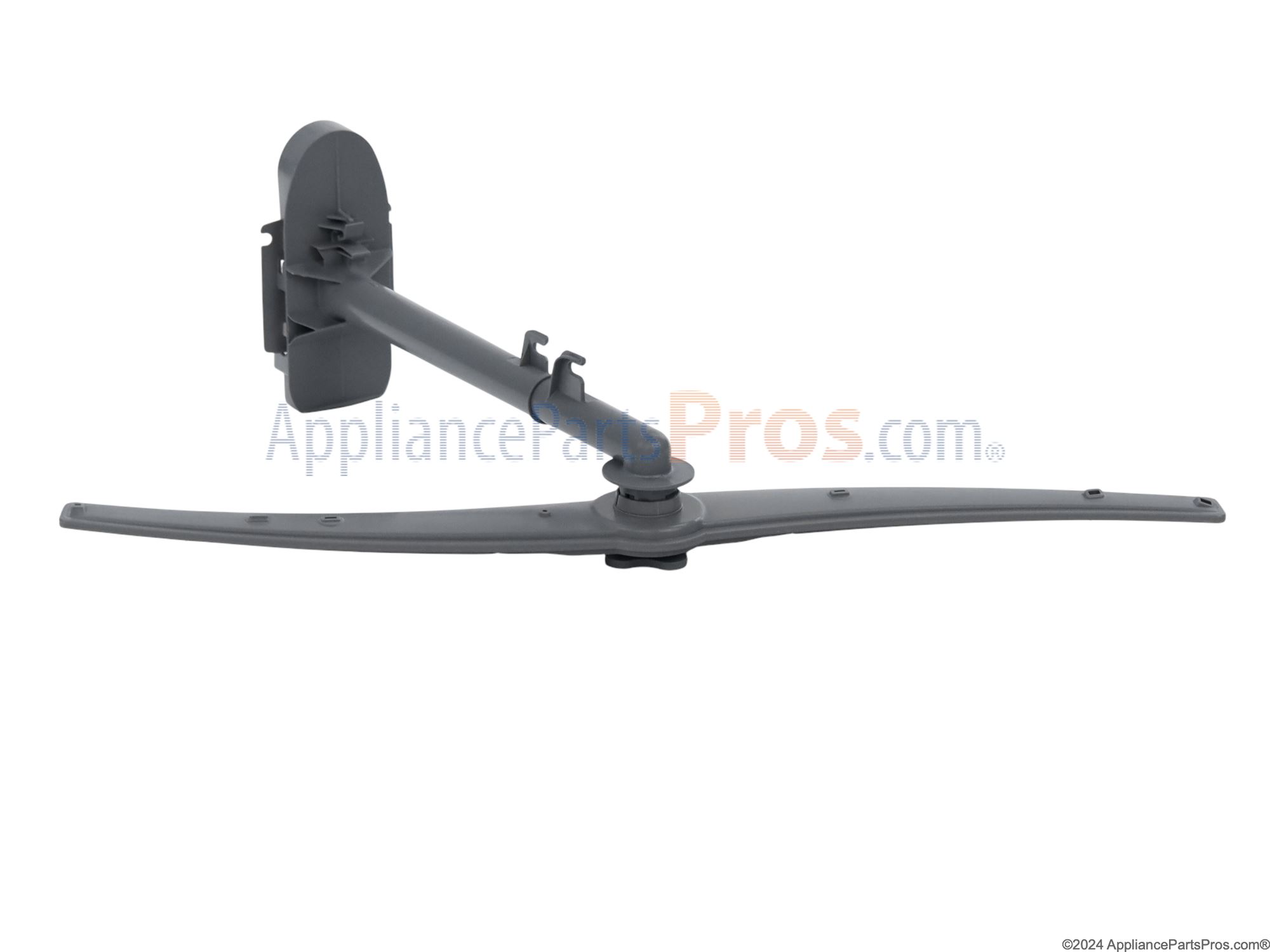

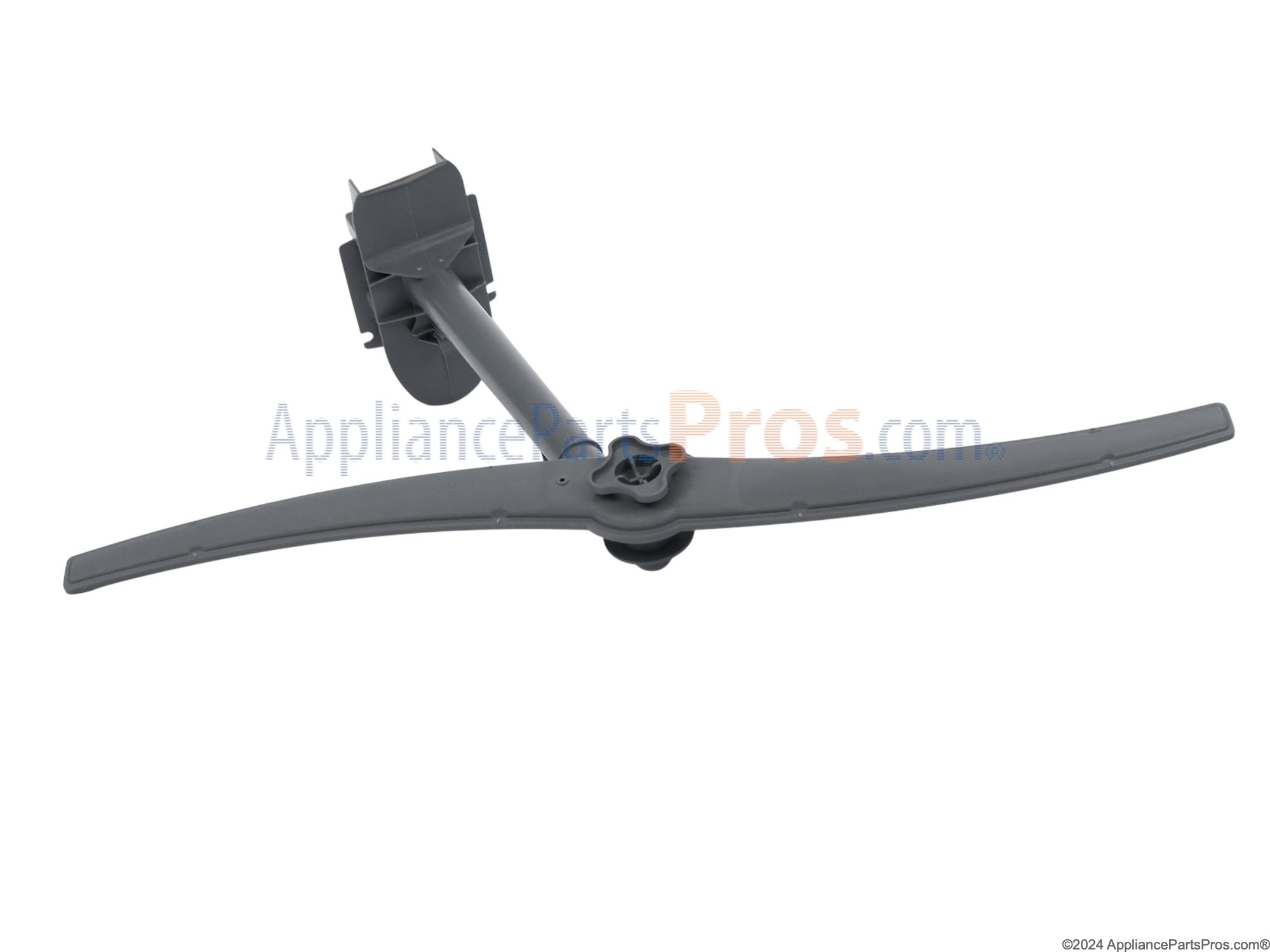

James R Jacksonville , FL May 25, 2020 Appliance: Bosch Dishwasher SHX68T55UC/02 Could not shut door without jiggling middle shelf because at align connections between spray arm and tube. Replaced both the Spray Arm and the Spray Arm Water Supply Tube. Highly recommend replacing base plate whenever the Spray Arm Water Supply Tube is replaced. Plastic tabs on the base plate hold those parts together and are likely to break (as seen on Appliance Parts Pros installation video!!!). I sensed tab weakness so just transferred parts needed from the new tube to the old tube and reinstalled the original tube / base plate assembly rather than risk breaking those plastic tabs. I should have ordered the base plate, but did not watch video before placing order. You'll need a common screwdriver to unspring tube retention clips as well as a Torx-20 driver to release the base plate. Spray arm replacement was straightforward. Read More... 9 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Screwdrivers
Philip F Henderson , NV March 10, 2021 Difficulty in closing top tray had to jam it into position in order to close the door. Replaced the spray arm. Read More... 4 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes
Shawn C West Valley City , UT June 18, 2018 Appliance: Model BOSH DISHWASHER We got the appliance for free and many of the parts were broken I only needed a flat head screwdriver to remove the clips holding the parts in. It took all of 10 minutes and the dish washer is running great now. Read More... 4 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Screwdrivers
Stu B Sussex , NJ December 26, 2017 Spray arm fell off. Ordered part Popped out old Clicked in new 15 seconds Works great Read More... 4 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes
Tony H Cypress , TX January 29, 2018 Appliance: Bosch Dishwasher SHP65T55UC/07 Dishwasher not cleaning like it used to Our Bosch dishwasher was not getting the dishes as clean as it once did. Plates were coming out very grimy and there was a lot of grit in the glasses. I ordered new spray arms for both the top and bottom racks. This seemed to solve the problem as the glasses and plates are clean again! Read More... 2 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes
