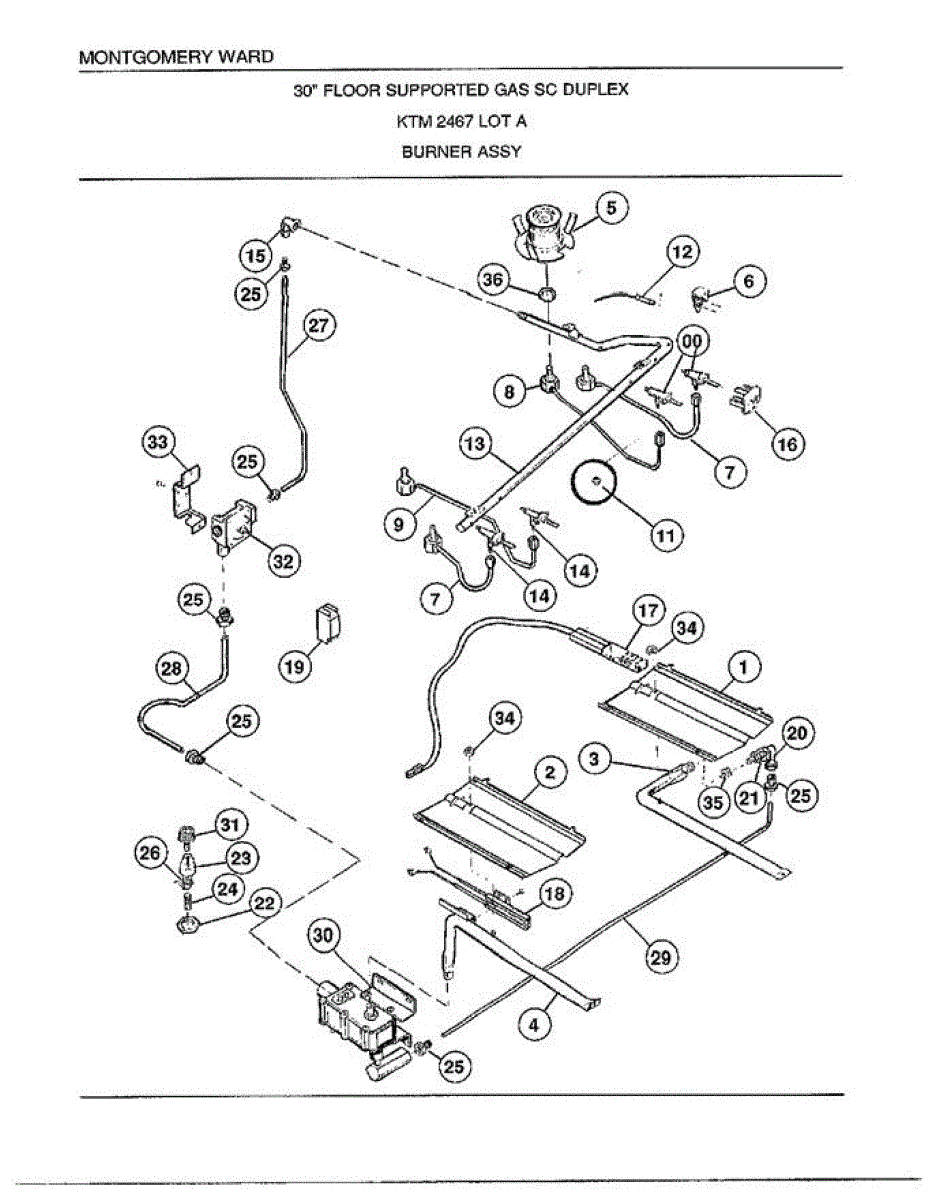

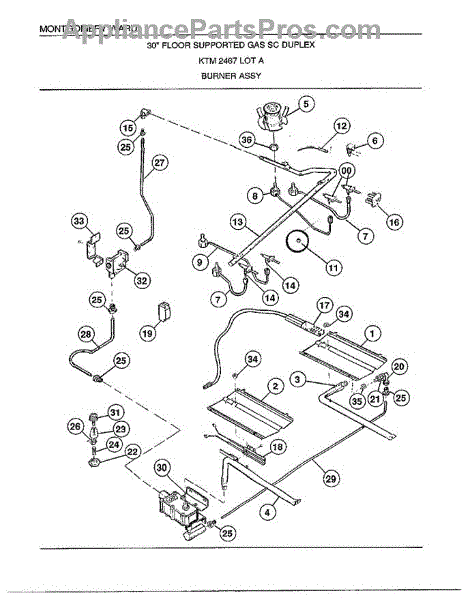

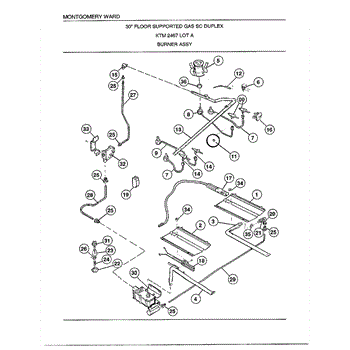

Parts for Frigidaire 2467A: Burner Assembly Parts

By Frigidaire. Fits some Frigidaire and Tappan stoves. Snap-in style.

This ferrule is a small compression fitting used to secure and seal a refrigerator water line connection, helping stop leaks and maintain proper flow to the ice maker or dispenser. It's a simple replacement to restore a tight water connection. What it does:

• Secures tubing to a compression or shutoff fitting to prevent leaks at the connection
• Restores a proper seal for water supply lines feeding the ice maker or dispenser
• Commonly used when a loose, dripping, or leaking water line is present
• Helps prevent water damage from failing or corroded fittings

• One ferrule

• Turn off the water supply and relieve line pressure before servicing
• Confirm tubing is cut square, fully inserted, and the ferrule is seated before tightening
• Tighten fittings per manufacturer guidance; avoid over-tightening which can damage tubing
• After installation, turn water back on and check carefully for leaks

This elbow is a threaded pipe fitting that redirects and secures a fluid line connection where space or alignment requires a 90° turn. It provides a compact, threaded junction to connect compatible appliance tubing or hose to a valve or port. What it does:

• Connects two threaded line ends at a 90° angle for tight routing in confined spaces
• Provides a sealed, threaded junction between a 1/2 in. NPT inlet and a 9/16-24 threaded outlet
• Helps stop leaks and maintains proper line alignment when the original elbow is worn or damaged
• Commonly used where a bent or cramped connection prevents a straight coupling

• One elbow fitting (1/2 in. NPT x 9/16-24)

• Turn off and depressurize the water supply (or system) before removing or installing fittings
• Start threads by hand to avoid cross-threading; tighten with appropriate wrench until snug
• Use plumber's tape or thread sealant only if specified by the appliance manufacturer

Replacement switch burner igniter that produces the spark needed to light a gas burner, restoring reliable ignition so burners light quickly and consistently for safer cooking. What it does:

• Generates the ignition spark to light a gas cooktop or range burner.
• Restores normal ignition when a burner won't spark or lights inconsistently.
• Stops intermittent clicking or repeated attempts to light caused by a failed igniter.
• Works as the electrical spark source paired with the burner valve and cap.

• Disconnect electrical power and shut off the gas supply before servicing.
• Access typically requires removing the cooktop or control panel—handle panels and wiring gently.
• Reconnect wires to matching terminals; do not force connectors or bend contacts.

Length - 7.53"

The Oven Igniter is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners or bake and broil burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven igniter can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven igniter include:

• Failure of the oven burners to ignite or light
• Delayed ignition or inconsistent burner lighting
• Visible damage or deterioration of the igniter element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This hex nut secures the appliance fuse or fuse holder in place, keeping the electrical connection stable and preventing the fuse from loosening during operation. Small but critical for reliable circuit protection. What it does:

• Fastens the fuse or fuse holder to the mounting stud or terminal
• Maintains a secure electrical contact to help the fuse function correctly
• Helps prevent vibration-related loosening or intermittent power faults
• A missing or loose nut can allow the fuse to shift or lose contact, causing power issues

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten to snug fit—do not overtighten; overtightening can damage threads or the fuse assembly
• Inspect mating threads and the fuse holder for wear; replace damaged parts as needed

Made by Frigidaire. This is a dual oven valve for bake and broil.
