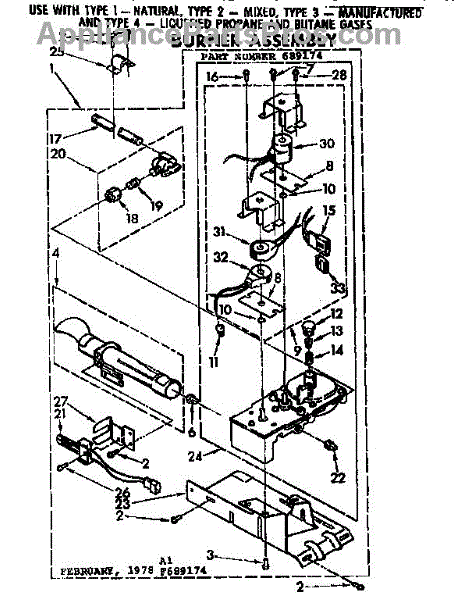

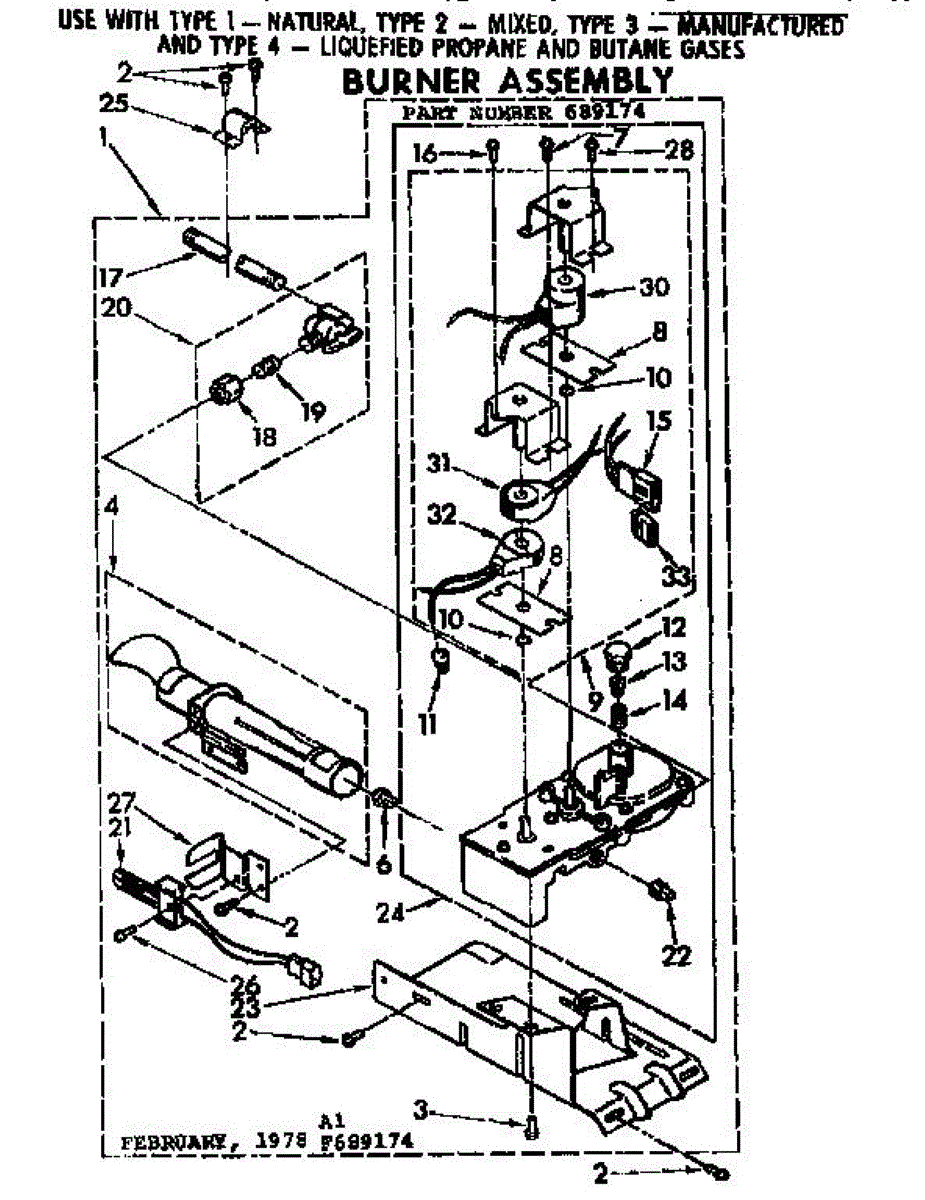

Parts for Kenmore 110.689174 (110689174, 110 689174): Burner Assembly Parts

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

If your dryer won't heat or flame won't stay lit, a corroded burner tube may be the cause. This assembly includes an adjustable air shutter for proper combustion.

This part has been discontinued by the manufacturer and is no longer available.

Dryer won't heat or flames are yellow? This butane burner orifice meters gas flow for clean, reliable ignition. Required for butane conversions.

Converting dryer from propane to natural gas? This orifice regulates gas flow in the burner assembly. Easy DIY fix, typically done in under 1 hour.

Screw: 8-16 x 3/8 inch.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

For mating plug use 691707.

Compression nut for dryer installation. Secures hoses and connections. Replace if stripped, corroded, or missing to ensure proper assembly and fit.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation
