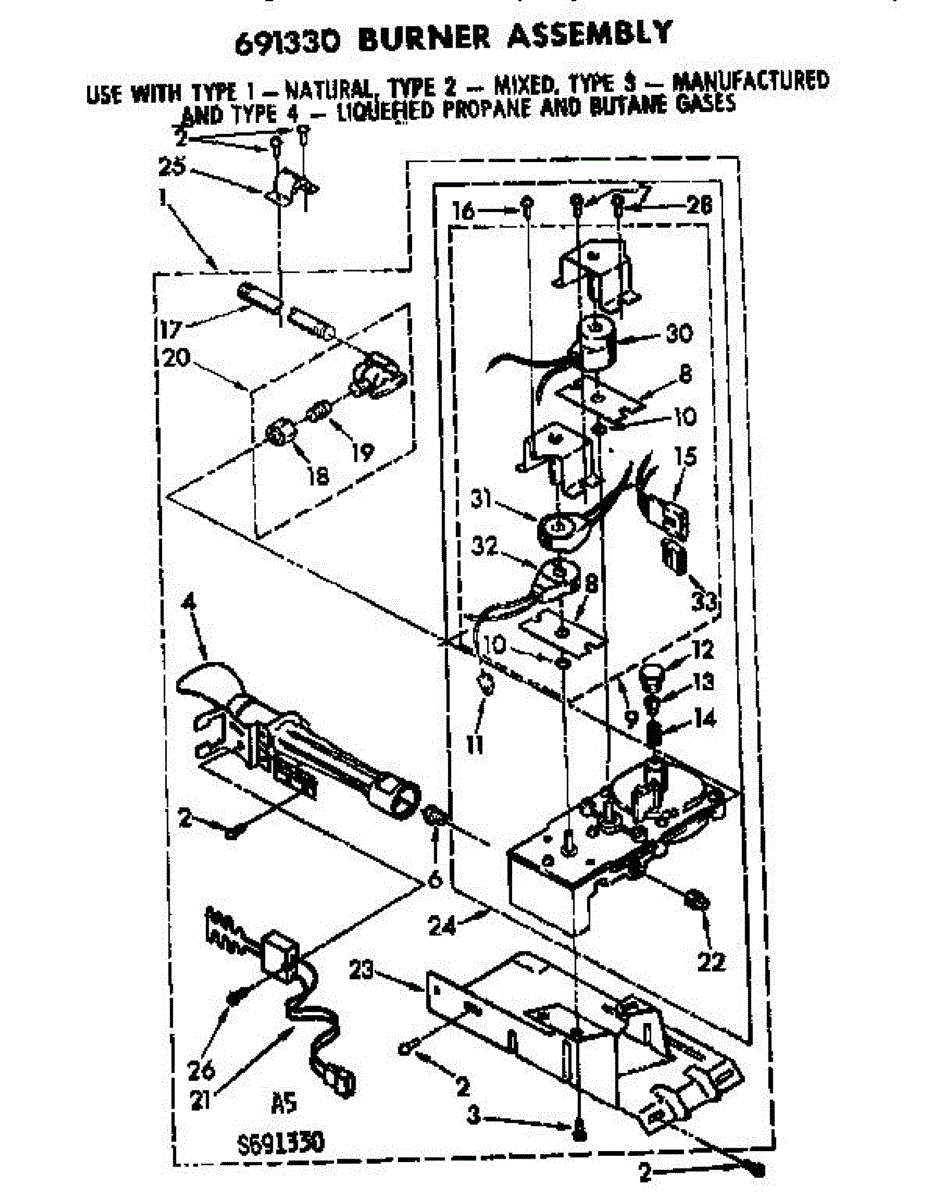

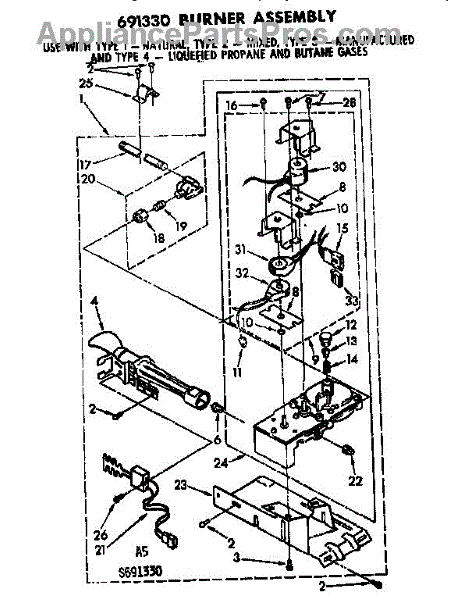

Parts for Kenmore 110.691330 (110691330, 110 691330): Burner Assembly Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice is the small gas passage that controls burner fuel flow to create a proper flame for cooking. It restores correct gas metering so the burner lights and maintains a steady flame. What it does:

• Regulates gas flow to the burner for a consistent, controllable flame
• Helps fix symptoms like weak or uneven flames, burners that won't stay lit, or delayed ignition
• Fits into the burner assembly where the gas line meets the burner tube
• Works with the appliance's existing valve and burner components to maintain safe operation

• One burner orifice

• Turn off the gas supply and unplug the appliance before servicing
• Inspect for debris or damage and replace if the orifice or seat is corroded or clogged
• Tighten to the manufacturer's torque spec; do not overtighten or force into the seat

This precision-drilled burner orifice is sized for Type 4 butane applications. It meters gas to the burner so flames ignite reliably and burn cleanly when the appliance is configured for butane per the manufacturer's specifications. What it does:

• Regulates gas flow to the burner head for proper flame size and shape
• Type 4 drilling intended for butane gas configurations specified by the manufacturer
• Replaces a missing or stripped orifice during service or gas-type conversion

• 1 burner orifice (Type 4, butane)

• Shut off gas supply and power; allow the appliance to cool before service
• Access the orifice at the burner base/manifold; remove the original with the correct wrench or socket
• Start threads by hand; tighten snugly—avoid overtightening or cross-threading
• After reassembly, leak-check with soapy water and verify flame; gas conversions should be performed following OEM instructions and local codes

The Natural Gas Orifice is an OEM replacement part for Whirlpool gas dryers. Installed within the dryer burner assembly, it regulates gas fuel flow into the burner.

Common causes relate to natural deposits obstructing the small gas port, as well wear inducing intermittent ignition of flames during many years of laundering cycles.

Symptoms of a failed orifice include:

• Slow or inefficient drying times and extended cycles
• Uneven or incomplete drying of loads
• Changes in flame appearance like higher than normal yellow tips

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Screw: 8-16 x 3/8 inch.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation
