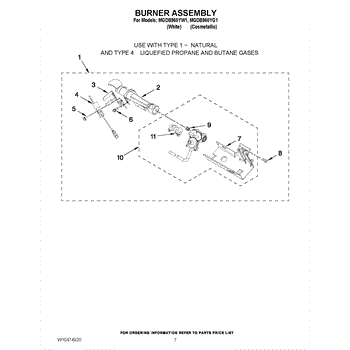

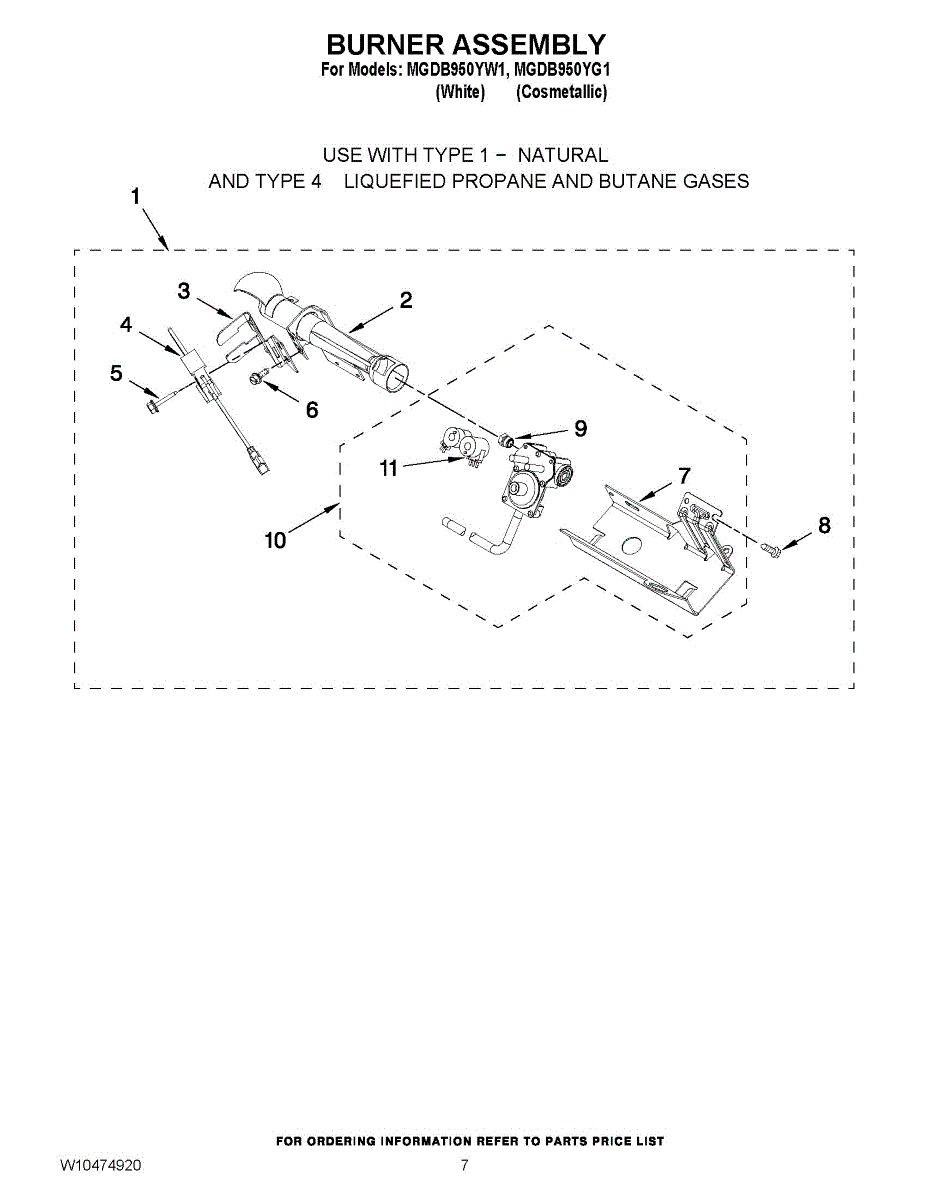

Parts for Maytag MGDB950YG1: 04 - Burner Assembly Parts

This is a gas burner tube that delivers and distributes the gas flame inside a gas dryer's heating assembly. It connects to the gas valve and directs the flame to heat the air that dries your clothes. Replace this burner tube if the dryer is not heating, heating unevenly, or if the tube is corroded, cracked, or shows signs of flame damage.

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Dryer won't heat or flames are yellow? This butane burner orifice meters gas flow for clean, reliable ignition. Required for butane conversions.

Converting dryer from LP to natural gas? This gas orifice regulates gas flow to the burner for proper heating. DIY-friendly swap, takes 20 minutes.

Left valve coil that powers the solenoid on a water inlet/valve assembly to control water flow. Replacing a worn or burnt coil helps restore proper valve operation so the dispenser or ice maker can fill when called. What it does:

• Energizes the left solenoid on the inlet/valve assembly to open and close the valve when the appliance requests water.
• Used when a coil is damaged, burnt, or not producing the magnetic field needed to actuate the valve.
• Common symptoms: no water to dispenser or ice maker, weak or intermittent flow, humming or buzzing from the valve, or visible burn/discoloration on the coil.
• Matches the OEM function for the left-side solenoid.

• Disconnect power and shut off the water supply before servicing the valve assembly.
• Note wiring and coil orientation before removal so the replacement installs in the same position.
• Handle the valve plunger and seating components carefully; do not contaminate valve seals or passages.
• If wiring terminals are corroded or damaged, replace connectors.
