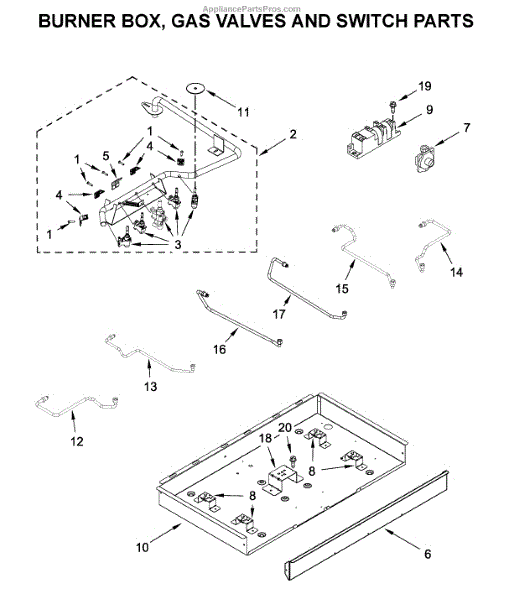

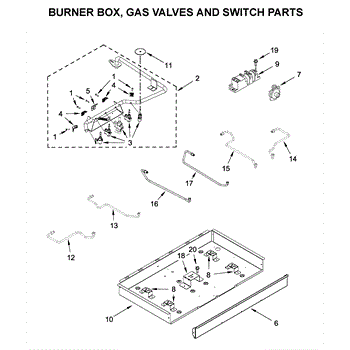

Parts for Ikea ICS655DS00: Burner Box, Gas Valves And Switch Parts

This manifold routes gas from the supply to the range/oven burners so they get the correct flow for normal heating. It restores proper fuel distribution to help burners ignite and maintain consistent flames. What it does:

• Distributes incoming gas to the burner valves so each burner can ignite and run
• Helps maintain consistent flame levels across burners for even cooking
• Used when a broken or cracked manifold restricts or leaks gas flow
• Can be a service item when burners fail to light, flame is weak, or oven won't heat

• One manifold

• Turn off gas supply and electrical power before starting any service
• Inspect fittings, gaskets and seals; replace any damaged parts and use approved thread sealant where required
• After installation, test for leaks and proper burner operation per OEM instructions

The Burner Valve is an OEM component specifically designed for Whirlpool gas cooktops. Located underneath each cooktop burner, the brass valve controls the flow of gas to its associated burner.

Machined with precision, the valve features a stable metal cylinder housing and an adjustable shaft valve to open and close the gas passageway. Coil spring-loaded mechanisms facilitate automated ignition sequences.

Causes of a bad burner valve include corrosion buildup within the valve restricting gas flow over time. Wear and tear to the shaft valve or spring components could render a burner inoperable.

Symptoms of a bad burner valve include:

• Inconsistent or unreliable burner ignition
• Reduced burner flame height and intensity
• Complete failure to ignite a single burner

Compatible with additional cooktop brands including Kenmore, Jenn-Air, and most KitchenAid models.

This gas valve assembly controls the flow of natural or LP gas to a range or oven burner, restoring proper fuel delivery for reliable ignition and cooking performance. Use as a direct replacement when the valve fails. What it does:

• Regulates gas flow to the burner(s) so the oven or range can ignite and maintain a flame
• Works with the appliance's safety and ignition systems to stop gas when the burner is off
• Commonly replaces valves when burners do not light, have no gas flow, or flame is intermittent
• Matches OEM function to restore normal operation without modifying existing controls

• Turn off gas supply and unplug the appliance before starting any work.
• Gas fittings must be leak-tested after installation.
• Do not modify the valve; follow appliance manufacturer instructions and local codes.

The Valve-Gas is an OEM part for Whirlpool gas cooktops. This valve is located underneath the cooktop and is responsible for controlling the flow of gas to each burner.

Symptoms of a bad gas valve can include:

• Inability to ignite or adjust certain burner flames
• Gas leaks or smells around the valve area
• Intermittent or irregular flame levels
• Yellow flames that pose a safety risk

Over time and with heavy usage, components inside the valve can wear down affecting proper gas regulation.

Compatible models also include KitchenAid, Jenn-Air, Magic Chef, Admiral, and some Kenmore units.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This burner box is the metal housing that holds the gas bake burner and related components in a gas oven. It protects internal parts and directs burner flames for consistent baking and broiling performance. What it does:

• Houses and secures the bake/broil burner and nearby components inside the oven cavity
• Directs and contains the burner flame for even heating when the oven is operating
• Helps prevent heat and flame from contacting other oven components
• Commonly replaced when the box is dented, corroded, cracked, or causing irregular oven heating

• For gas appliances, shut off gas supply and disconnect power before servicing
• Replacement may require removing oven racks and access panels; follow OEM service manual
• Inspect burner, igniter, and gaskets while replacing to ensure proper operation

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine replacement wire harness connects and routes power and signal lines between appliance components, restoring reliable electrical communication for normal operation and control response. What it does:

• Replaces damaged or frayed wiring that can interrupt power or signals
• Restores reliable connections between controls, motors, and sensors
• Helps resolve intermittent operation, loss of certain functions, or failure to start when caused by wiring faults
• Provides factory-style connectors and routing for secure, vibration-resistant connections

• Disconnect power to the appliance before starting any repairs
• Handle connectors carefully; match connector shapes and colors to the original
• Route the harness as the OEM diagram specifies and secure with clips or ties to prevent chafing

This orifice spud meters gas to the burner for a consistent, correctly sized flame. Replace a clogged or damaged spud to restore proper burner output and reliable ignition on your gas cooktop or range.

• Controls and meters gas flow through a calibrated opening to the burner
• Helps ensure proper flame size and color when matched to the correct burner and fuel type
• Common symptoms of a failing or clogged spud: weak or uneven flame, yellow tipping, or delayed ignition
• Damaged threads or a stripped orifice can prevent correct sealing and fuel delivery

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the orifice holder/manifold for the affected burner; remove the old spud with an appropriate orifice wrench or nut driver
• Start the new spud by hand to avoid cross-threading; tighten snugly—do not overtighten brass threads
• Restore gas and check for leaks with an approved leak-detection solution; verify flame quality and adjust per the service manual

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents
