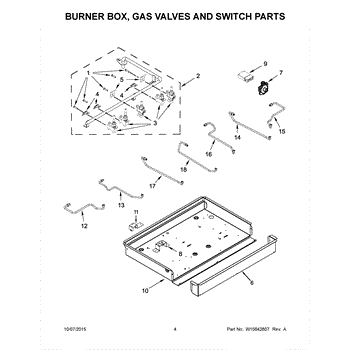

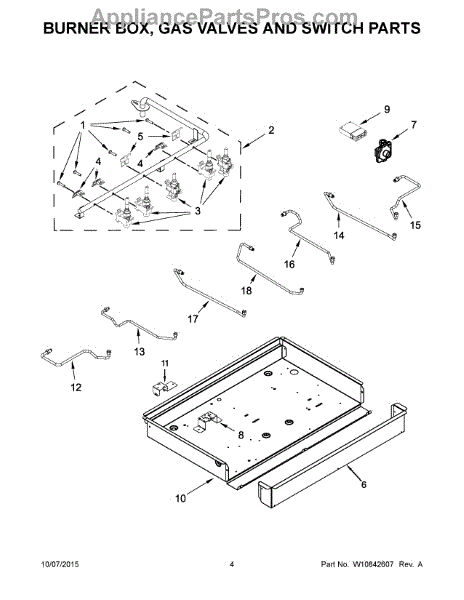

Parts for Kitchenaid KCGS950ESS02: 03 - Burner Box, Gas Valves And Switch Parts

This gas valve controls the flow of gas to the burner assembly so the appliance lights and maintains a steady flame. Replaces a failed valve to restore reliable ignition and heating performance. What it does:

• Regulates gas flow to the burner so the appliance can ignite and maintain a stable flame
• Works with the ignition system to open and close gas supply during cycles
• Commonly replaced when burners won't light or oven/burner flame is weak or intermittent
• Can prevent continuous gas flow when functioning properly

• Turn off electrical power and shut off the gas supply before servicing
• After installation, check all gas connections for leaks and verify proper operation
• Follow all local codes and manufacturer service literature when working on gas components

The Burner Valve is an OEM part for Whirlpool gas cooktops. It controls the flow of gas to each burner element, regulating both the pilot light and burner flame. Made of metal, it features a precision valve design to open and close gas lines safely.

Causes can be grime or debris buildup from years of use, impact damage, or natural wear of internal components.

Problems with faulty burner valves consist of:

• Inability to light or adjust burner flames
• Gas leaks from weakened valve seals
• Potential safety hazards from unreliable burner control

This OEM replacement part is compatible with additional brands including Maytag, Jenn-Air, Amana, Magic Chef, Admiral, and select Kenmore designs.

This gas valve controls fuel flow to a range or oven burner, restoring reliable ignition and steady flame for safe cooking. It replaces a faulty valve to stop gas leaks, no ignition, or inconsistent burner heat. What it does:

• Regulates gas flow to the oven or cooktop burner for proper ignition and flame control
• Stops or reduces gas flow if the valve fails, helping address gas smell or a burner that won't stay lit
• Prevents inconsistent heating caused by a malfunctioning control valve
• Works as the primary shutoff/control component between the appliance and main gas supply

• Turn off the gas supply and power to the appliance before starting; follow local codes for gas work
• Use approved fittings and a gas-rated thread sealant where required; check for leaks after installation with a soap solution
• Verify correct valve orientation and secure mounting to avoid strain on gas lines

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This is the spark ignition module for gas cooktops and ranges. It generates the high-voltage pulses that light the surface burners, restoring consistent ignition when multiple burners won't spark or there's no clicking when a knob is turned. What it does:

• Sends high-voltage pulses to the surface igniters when a burner switch is turned on
• Distributes spark to ignite gas at the burners
• Failure may cause no spark at any burners, weak or intermittent sparking on several burners, or burners that only light with a match

• One spark module

• Disconnect power and shut off gas supply before servicing
• Access location varies by model
• Move wires over one at a time to maintain correct connections
• Secure the module and test all burners for proper spark before reassembly

• If only one burner won't spark while others work, check that burner's igniter electrode and the switch harness before replacing the module.

This mounting bracket secures internal components or assemblies to the appliance chassis, keeping parts aligned and stable for reliable operation. Replace a broken or bent bracket to stop shifting parts and restore proper fit. What it does:

• Secures and supports internal components or assemblies to the appliance frame
• Keeps panels and control assemblies aligned to prevent rubbing or misalignment
• Stops rattling or movement caused by a damaged or missing bracket
• Maintains proper positioning for connected parts and wiring

• Disconnect power to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) typically required
• Keep existing fasteners if they are undamaged; replace stripped or missing screws

This orifice spud meters gas flow to a burner, ensuring the correct flame size and efficient combustion. Replace a worn or damaged spud to restore proper burner performance and consistent heating.

• Controls gas flow to the burner by setting the jet opening
• Helps maintain a steady, properly sized flame
• Common fix for issues like weak, uneven, or noisy flames
• Can resolve problems after conversion or service if the original jet is damaged

• Disconnect power and shut off gas before servicing
• Allow the appliance to cool; remove burner components to access the orifice
• Use the correct size nut driver/wrench; do not overtighten
• After installation, leak-check all connections and verify proper flame
