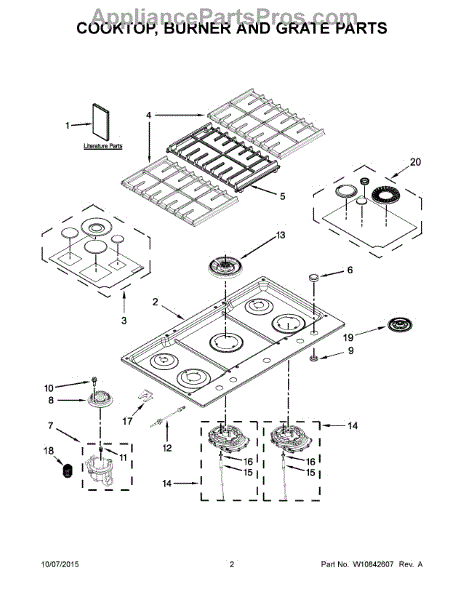

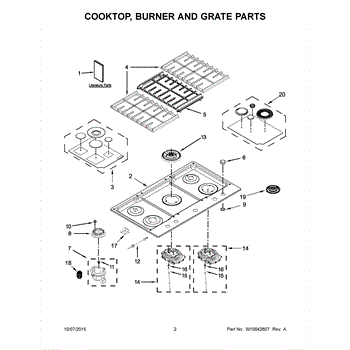

Parts for Kitchenaid KCGS950ESS02: 02 - Cooktop, Burner And Grate Parts

This burner cap kit replaces worn or damaged black burner caps on gas cooktops to restore proper flame shaping and even heat distribution for safer, more reliable cooking. Fits select gas range burner configurations. What it does:

• Covers the burner head to help direct and shape the flame for consistent heating
• Protects the burner base from spills, corrosion, and debris that can affect performance
• Helps reduce flare-ups and uneven cooking caused by damaged or missing caps
• Resolve visible flame irregularities, poor ignition, or partial burner shutdowns

• Turn off the cooktop and gas supply and allow components to cool before servicing
• Remove old caps, clean burner head and surrounding area, then seat new cap flat and centered
• No special tools typically required; check fit and ignition before full use

This grate kit replaces damaged or missing cooktop grates to restore a stable, level surface for cookware and safe burner operation. It helps maintain even heating and prevents pots from wobbling during use. What it does

• Provides a stable platform for cookware over gas burners
• Replaces cracked, warped, or heavily worn grates that cause instability
• Protects burner components from spills and direct contact with cookware
• Restores proper clearance for burner flames to help consistent heating

• One grate kit

• Turn off the appliance and allow the cooktop to fully cool before handling grates
• Lift and seat each grate carefully to ensure proper alignment and stable contact with the cooktop
• Handle enamel-coated grates gently to avoid chipping the finish

This burner grate replaces a damaged or missing grate on compatible gas ranges, restoring a stable surface for cookware and helping ensure safe, even cooking. Durable design supports pots and pans during normal use. What it does:

• Provides a stable, heat-resistant platform for cookware above a gas burner
• Replaces cracked, warped, or missing grates that cause pots to wobble
• Helps maintain correct burner flame contact for consistent cooking
• Restores stovetop usability when original grate is damaged or removed

• One burner grate

• Allow the range and burners to cool completely before handling
• This is a lift-off part on most ranges — no tools typically required; align and set into place
• Inspect neighboring components (burner caps, ignition ports) for damage while grates are removed
• If you smell gas or detect a leak, stop.

This genuine replacement control knob attaches to the control shaft on your appliance so you can turn and set functions as intended. Replace a cracked, stripped, or missing knob to restore smooth operation and a clean, factory look.

• Couples to the control stem to select settings and adjust levels
• Restores proper grip and turning action when the original is worn or broken
• Common symptoms it can address: knob cracked or missing, loose or slipping, won't turn the control, stripped insert
• Note: If the underlying control stem/shaft is damaged, additional parts may be required

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off the stem; avoid prying that could damage the shaft
• Align the new knob with the flat/indicator on the stem and press firmly into place
• Verify smooth operation and correct pointer alignment before use

This Holder (ORF) is a small mounting bracket that secures the ORF assembly in place, helping keep related components aligned for reliable operation. It's a direct-fit replacement designed to restore proper part positioning. What it does

• Anchors the ORF assembly so connected components remain stable during use
• Prevents loosening and misalignment that can cause rattling or improper operation
• Helps maintain correct clearance and part positioning within the appliance
• Works silently in the background to support neighboring parts and assemblies

• Disconnect power before beginning any repair to avoid electrical shock
• Remove surrounding panels or trim as needed to access the ORF area; keep fasteners organized
• Inspect mating surfaces and related parts; replace any damaged clips or screws for a secure fit

Auxiliary burner head that distributes flame on the small simmer burner of gas cooktops and ranges. Replaces a warped, clogged, or damaged head to restore reliable ignition, correct flame pattern, and consistent low-heat performance.

• Directs the gas/air mix through flame ports for even simmer heat
• Helps restore proper ignition when the old head is fouled or damaged
• Can help with delayed ignition or repeated clicking due to misaligned/blocked ports

• Shut off gas supply and disconnect power; allow the surface to cool completely
• Remove grate and burner cap; lift off the old head
• Clean the burner base and align the new head with the orifice and igniter; seat flat
• Reinstall the cap and grate; restore gas/power and verify flame quality and ignition

This is the gas cooktop/range rapid burner head. It directs gas and airflow to create an even, reliable flame on the large "rapid" burner, helping your cooktop heat quickly and cook evenly.

• Distributes gas through calibrated ports to form a stable flame on the rapid burner
• Can help resolve weak or uneven flames, delayed ignition, or frequent burner re-lighting
• Replacing a damaged, clogged, or warped head can restore proper burner performance
• Designed to fit the rapid (largest) burner position on compatible units

• Disconnect power and shut off gas before servicing
• Remove the burner cap, lift off the old head, and clean the mounting surface
• Align the new head with the orifice and locating tabs; seat it flat and secure any screws if present
• Reassemble, restore gas/power, and test for proper ignition and flame

This burner head sits atop the semi-rapid gas burner on the cooktop, shaping the flame and distributing heat evenly to your cookware for reliable day-to-day cooking performance.

• Directs gas and air mixture to create a stable, even flame on the semi-rapid burner
• Can help address uneven flames, poor ignition, or weak heating at that burner position
• Restores proper heat distribution when the original head is clogged, warped, or damaged
• Designed to fit the semi-rapid burner location as specified by the manufacturer

• Disconnect power and shut off gas before servicing
• Ensure the burner area is clean; remove debris that could affect flame pattern
• Align the ports and locating features carefully; do not overtighten any fasteners
• After installation, check for proper ignition and a consistent blue flame

The Bezel and Knob is an OEM replacement compatible with Whirlpool cooktops. The control display cover at the front of the cooktop protects digital interfaces while adding a polished aesthetic.

The bezel frames knob assemblies that enable precise temperature and setting adjustments during cooking. Causes for replacement include cracked or faded plastic from extended use over high heat sources.

Symptoms of a failing bezel and knob include:

• Unsightly appearance damage detracting from the resale value
• The potential of food debris or liquid underneath if integrity is compromised

This OEM replacement part is compatible with select KitchenAid and Jenn-Air as well.

This M4-0.7 screw is a small metric fastener used to secure panels, brackets, and internal components on compatible Whirlpool appliances. Replace stripped or missing screws to restore secure mounting and reduce rattles. What it does:

• Secures trim, access panels, brackets or small assemblies in place.
• Helps stop loose or vibrating panels that can cause noise or misalignment.
• Replaces missing, stripped, or damaged fasteners to restore proper fit.
• Compatible where an M4 diameter, 0.7mm thread-pitch screw is specified.

• Always unplug the appliance or shut off power at the breaker before servicing.
• Use the correct sized screwdriver or bit to avoid cam-out or head damage.
• Do not overtighten—tighten until snug and parts are properly seated.
• Keep removed hardware organized so replacements go back in the original locations.

This orifice spud is the sealed gas fitting that meters fuel to an oven burner, helping maintain a steady, correct flame for consistent baking and roasting performance. Replace a damaged or clogged spud to restore proper oven heating. What it does:

• Controls the flow of gas from the valve to the oven burner for a steady flame
• Helps maintain consistent oven temperature and reliable heating
• Can prevent weak, uneven, or intermittent burner flames when functioning properly
• Works as the interface between the gas valve/orifice holder and the burner tube

• One orifice spud

• Turn off the gas supply and unplug the appliance before starting work
• Use appropriate wrench tools and avoid overtightening; inspect seals and fittings for leaks after installation
• If you smell gas, stop; follow all local codes and safety recommendations
• Your appliance's service manual or parts diagram for exact location and removal steps

This orifice spud meters natural gas to the burner for proper flame size and combustion, helping the oven or range heat evenly and operate safely at higher elevations. What it does:

• Replaces the burner orifice that controls gas flow to a specific burner for correct flame appearance and performance
• Helps restore stable ignition and steady flame when the orifice is damaged or clogged
• Can correct weak, uneven, or yellow/sooty flames caused by an incorrect or obstructed orifice
• Used when adjusting for natural gas service at higher altitudes per manufacturer guidance

• Turn off gas supply and power to the appliance before servicing
• Handle small parts carefully and avoid dropping into burner ports

This surface ignitor produces the spark that lights a gas cooktop's surface burner, restoring reliable ignition and safer cooking. Easy replacement for one non-sparking or weak burner. What it does:

• Generates the high-voltage spark that lights a surface burner when the knob is turned
• Replaces a cracked, corroded, or non-sparking ignitor
• Helps stop continuous clicking or no-light symptoms at a single burner
• Works with the burner cap and electrode to create consistent ignition

• One surface ignitor (single ignition electrode assembly)

• Disconnect power to the range and shut off the gas supply before servicing
• Handle the ceramic tip carefully; avoid touching the electrode with bare hands
• Keep screws and parts organized

This surface ignitor creates the spark that lights a gas range burner so burners light reliably. Designed as a direct-replacement ignitor for compatible Whirlpool gas cooktops and ranges. What it does

• Produces the spark at a surface burner to ignite the gas flow
• Restores normal burner ignition when a burner won't light or sparks only intermittently
• Works with the range's ignition system and burner cap to start cooking flames
• Fragile ceramic/metal electrode; failure typically shows as no spark or weak/intermittent sparking

• One surface ignitor

• Disconnect power (and gas supply if applicable) before starting any repair
• Handle the ignitor carefully — ceramic and the electrode are fragile and can break if dropped or flexed
• Do not touch the electrode/ceramic with bare hands; oils can shorten component life
• Test ignition after restoring power

Surface ignitor restores the ignition spark to a gas range surface burner so the burner can light reliably. Use this direct replacement when a burner produces weak sparks or won't ignite. What it does:

• Generates the spark that ignites gas at a surface/burner assembly.
• Replaces a cracked, worn or non-sparking electrode to restore ignition.
• Commonly used when a burner clicks but does not light or produces intermittent sparks.
• Works as the single electrode component in a surface burner ignition assembly.

• Turn off electrical power and gas supply before service.
• Handle the ceramic tip carefully — avoid touching or bending the electrode.
• Ensure proper connection of the ignitor's wire and correct seating in the burner assembly.

This orifice holder mounts beneath the surface burner head on gas ranges/cooktops, routing gas from the valve through the orifice and supporting the igniter. Replacing a damaged holder restores consistent flame and reliable burner ignition.

• Directs gas from the surface burner valve to the orifice and burner head
• Supports the burner base and provides a mounting point for the igniter/electrode
• Helps maintain proper flame height and pattern
• Common symptoms include a burner that won't light, intermittent ignition, or uneven/weak flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, burner caps, and burner heads to access the holder
• Transfer the orifice spud and igniter/electrode from the old holder to the new holder as required
• After reassembly, turn gas back on and check all connections with a non-corrosive leak-detection solution; verify proper burner ignition and flame

This surface burner igniter creates the spark that lights gas burners on a cooktop, restoring reliable ignition for safe cooking. It replaces a worn or cracked electrode so burners will light quickly and consistently. What it does:

• Generates the spark at the burner to ignite the gas when the control is turned on
• Commonly replaces cracked, worn, or fouled electrodes that cause no-spark or weak-spark symptoms
• Can fix intermittent ignition or burners that click continuously but fail to light
• Works with the cooktop's ignition system to provide consistent startup performance

• 1 surface burner igniter

• Disconnect power and shut off the gas supply before starting any work
• Handle the ceramic-insulated electrode carefully to avoid cracking or contamination
• Access may require removing the cooktop or burner bezel; refer to your model's service instructions
• After installation, restore power and gas and test all burners for proper ignition; inspect wiring and the control module if ignition issues persist.

This surface burner spark electrode generates the high-voltage spark that lights a cooktop or range burner. Replace it to restore quick, reliable ignition when a burner clicks but won't light or sparks intermittently. What it does

• Creates the ignition spark at the burner head to light gas
• Works with the spark module and switch harness to start the flame
• Common symptoms: burner clicks but won't ignite, intermittent or weak spark, needs a match to light, visible cracks in the ceramic insulator
• A cracked, fouled, or shorting electrode can prevent proper ignition

• 1 surface spark electrode

• Disconnect power and shut off gas; allow the cooktop/range to cool before servicing
• Lift off the burner cap and head to access the electrode; transfer any screws or brackets from the original if needed
• Handle the ceramic insulator carefully; avoid bending the tip
• Reassemble the burner parts, ensure the electrode tip position matches the original, restore power/gas, and test for a strong, consistent spark

This small retaining ring secures a component in place to help keep moving parts aligned and stable during operation. It provides a simple, durable hold to prevent unwanted movement and maintain proper appliance function. What it does:

• Holds shafts, bearings or assemblies in position to prevent axial movement
• Helps maintain alignment of rotating or sliding parts
• Worn or cracked rings can allow parts to shift, causing noise, vibration or binding
• Replacing a damaged ring restores secure fit and reduces related symptoms

• Disconnect power before servicing the appliance to avoid shock or injury
• Use appropriate snap-ring or pliers tools for safe removal and installation
• Inspect mating grooves and surrounding components for wear when replacing the ring

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This replacement tension spring restores proper tension for a moving component in select Whirlpool appliances, helping parts return to position and reducing noise or sagging. Use the correct spring to bring worn or broken tension back to spec. What it does:

• Provides tension for a moving part so components return to their proper resting position.
• Replaces a worn, stretched, or broken spring that can cause loose or sagging parts.
• Reduces rattling, clunking, or other noise caused by insufficient spring tension.
• Helps restore normal operation when movement or alignment problems are caused by a failed spring.

• Disconnect power to the appliance before starting any repair.
• Springs can be under tension — wear eye protection and gloves and use proper tools.
• Take note of the original routing and attachment points before removal; a photo can help during reassembly.

The Cap-Burner is an OEM part for Whirlpool coooktops. It rests at the top of the cooktop cavity and protects the burner tubes and igniter coils below. The cap is designed to shield these delicate components from grease, spills, and debris during cooking.

Causes of a bad cap-burner can include warping or cracks from high heat exposure over time, or damage from impact or accidental cuts and scratches during cleaning.

Symptoms of a bad cap-burner include:

• Uneven or sporadic burner flame patterns
• Burner tubes visible below cap areas
• Hot spots forming on burner coils
• Igniter coils malfunctioning or failing to light burners

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This replacement griddle provides a flat cooking surface for stovetop and range use, restoring even contact for pancakes, bacon, and grilled sandwiches. Designed to match OEM fit and finish for direct replacement. What it does:

• Replaces a worn or damaged range griddle to restore a flat, stable cooking surface
• Enables even heating contact for griddled foods like pancakes and sandwiches
• Helps eliminate hotspots or warped cooking surface symptoms
• Returns proper alignment with the cooktop for safe, stable use

• One replacement griddle

• Remove power to the appliance and allow all surfaces to cool before handling
• Handle with care to avoid scratching the cooking surface; use proper lifting points
• Follow your model's service manual for removal and reinstallation steps
• If hardware or clips are missing from the appliance, obtain OEM fasteners separately
