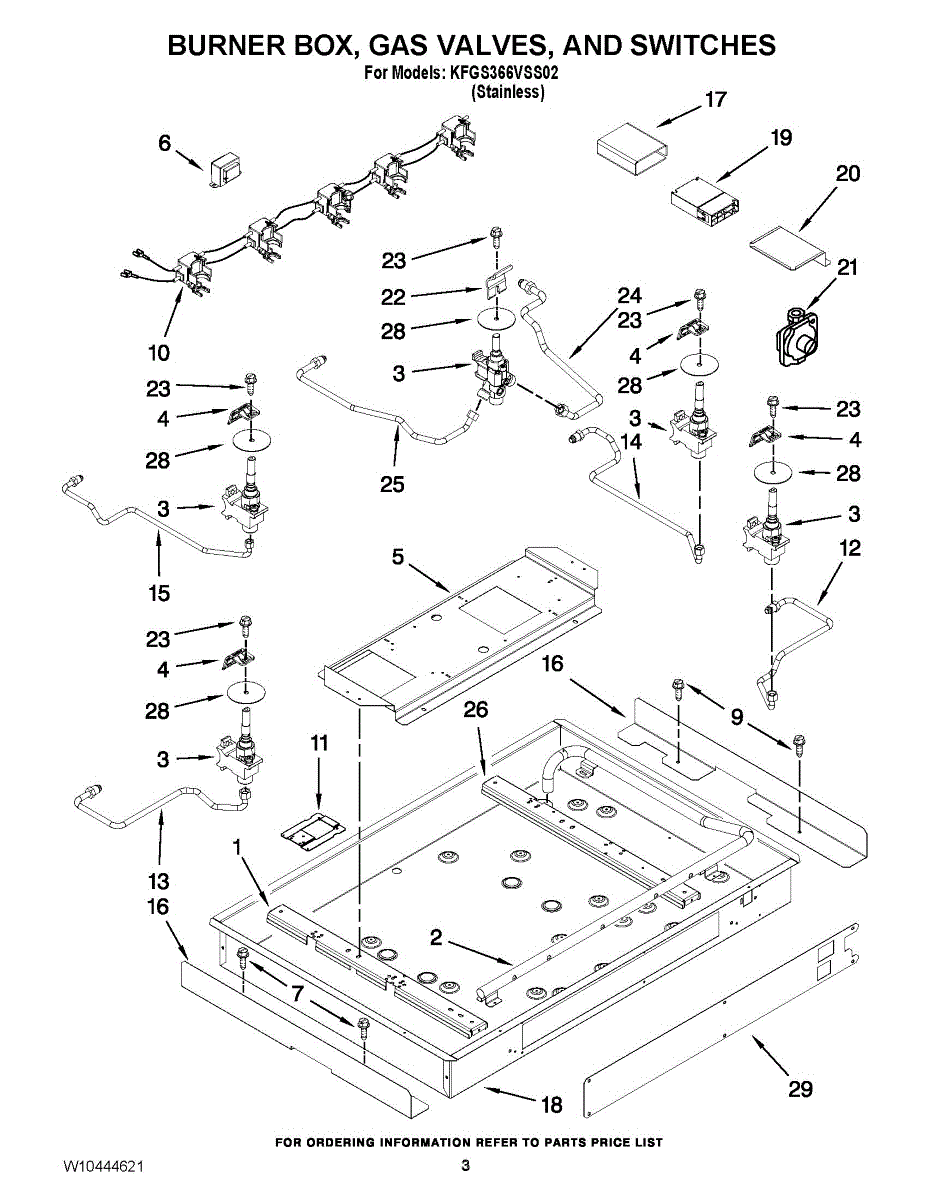

Parts for Kitchenaid KFGS366VSS02: 02 - Burner Box, Gas Valves, And Switches Parts

This gas valve controls the flow of natural gas or propane to the oven/range burner, restoring reliable ignition and steady heat for baking and broiling. Direct replacement for failed or leaking valve assemblies. What it does:

• Regulates gas flow to the oven/range burner so the burner lights and maintains temperature.
• Stops gas flow when the safety system detects a fault, preventing unsafe conditions.
• Commonly replaces valves that leak, fail to open, or prevent the oven from heating.
• Helps resolve symptoms like no bake/broil heat, intermittent ignition, or continuous clicking/try-to-light cycles.

• One gas valve assembly.

• Turn off gas supply and electrical power before attempting service; follow local codes.
• Tighten gas fittings to manufacturer torque specs and perform a leak test after installation.
• Some installations may require removing the range/oven front or burner components for access.

A replacement gas valve that controls gas flow to the oven or range burner, restoring safe ignition and flame regulation so the appliance heats reliably. Designed to match OEM fit and restore proper gas delivery. What it does:

• Opens and closes to regulate gas flow to the burner or oven for ignition and sustained flame
• Helps resolve symptoms like no ignition, intermittent flame, or burners that won't stay lit when valve failure is confirmed
• Works with the appliance's safety and control systems to enable normal heating cycles
• Replaces a failed or leaking valve when diagnostics show the valve is the faulty component

• One gas valve

• Installation requires shutting off the gas supply and disconnecting power first; follow all local codes
• Tighten gas line connections to the manufacturer's torque specs and check for leaks with a soap solution or gas leak detector
• Verify valve part number and appliance compatibility before installation

This dual-way valve controls gas flow to a range's burners, restoring proper ignition and flame control for safe cooking. It replaces a faulty valve to stop gas leaks, weak flames, or burners that won't light reliably. What it does:

• Directs and regulates gas flow to burner ports for consistent flame strength
• Restores proper ignition when a burner won't light or has intermittent flames
• Helps stop gas flow when valve action is failed or leaking
• Works as the valve component that responds to control knob position for on/off and adjustment

• Turn off gas supply and unplug the appliance before beginning work
• Use soap-and-water test to check for leaks after installation; never use an open flame
• Follow all OEM instructions and local codes when installing

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement wire harness connects the door/lid switch assembly to the washer's control circuitry, restoring proper signaling for start, pause and safety interlock functions. It's designed as a direct-fit replacement for the original harness. What it does:

• Routes power and signal connections between the washer's switch and control board so the machine recognizes door/lid state
• Restores normal start/stop and safety-interlock behavior when a damaged harness causes intermittent or no response
• Prevents electrical arcing and loose-connection faults by replacing worn or frayed wires and terminals
• Helps eliminate symptoms like washer not starting, stopping mid-cycle, or not detecting the door/lid closed

• One replacement wire harness

• Disconnect power before beginning any repair to avoid electrical shock
• Inspect connector orientation and terminal clips; match wire colors and pin positions for proper installation
• Replace with the exact harness; do not splice or tape high-current connections

This reignition spark module controls the surface-burner ignition system, sending high-voltage to the igniters and re-lighting the flame if it goes out. Replace a weak or failed module to restore dependable burner lighting and safety re-ignition.

• Sends high-voltage spark pulses to the surface burner igniters when a knob is turned on
• Stops sparking once flame is detected and re-ignites if the flame is lost
• Helps resolve symptoms such as no spark at the burners, intermittent ignition, or continuous clicking
• Central control for multiple burner ignition circuits

• Disconnect electrical power and shut off gas supply before servicing
• Handle electronics carefully; avoid static discharge
• Note wire locations and terminal labels; move connectors one at a time to the new module
• Mount securely and ensure a proper chassis ground before testing burner ignition

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.
