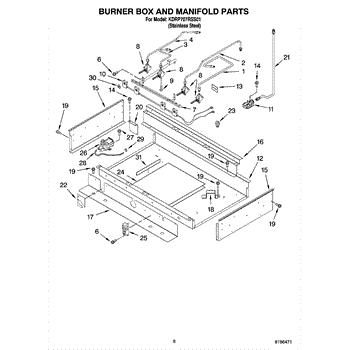

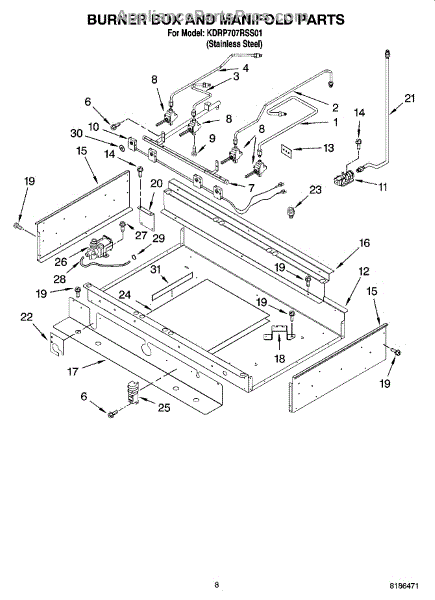

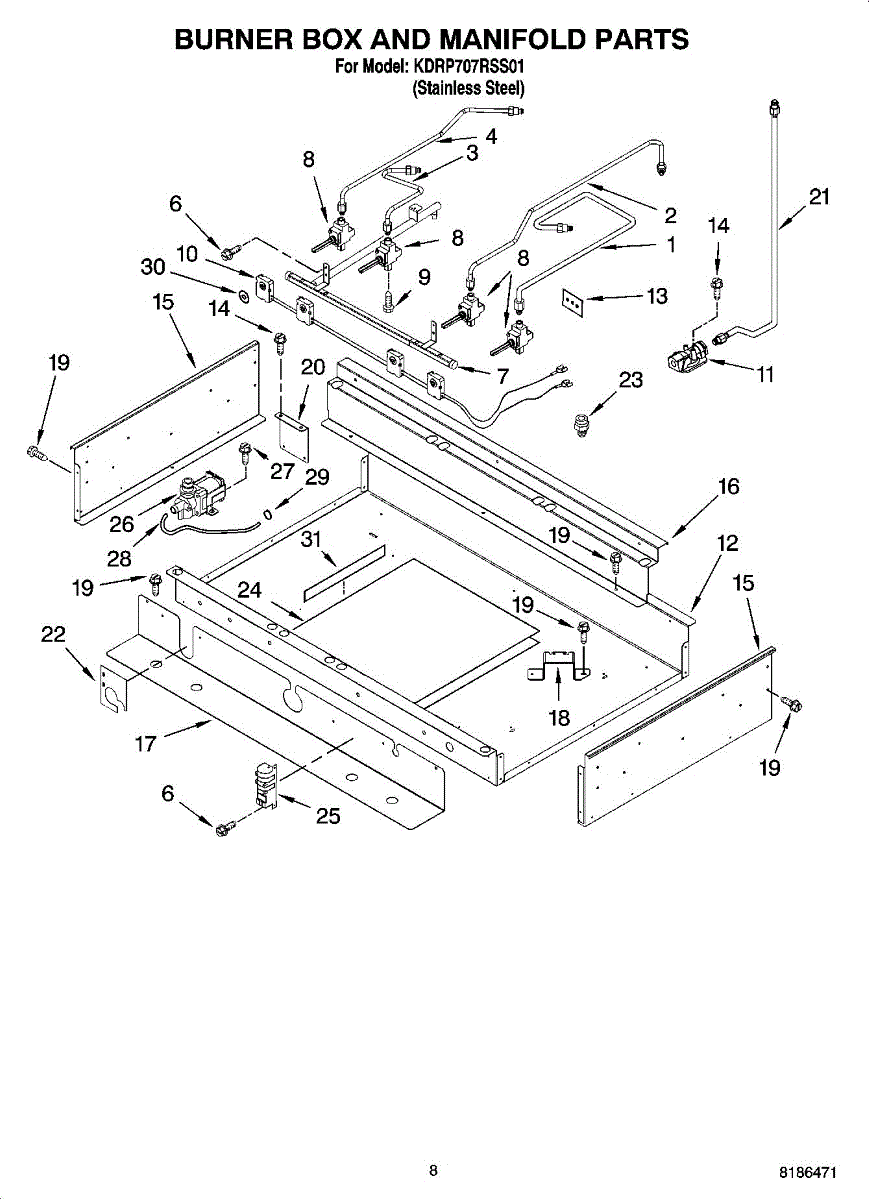

Parts for Kitchenaid KDRP707RSS01: 07 - Burner Box And Manifold Parts

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

Gas valve shaft seal.
