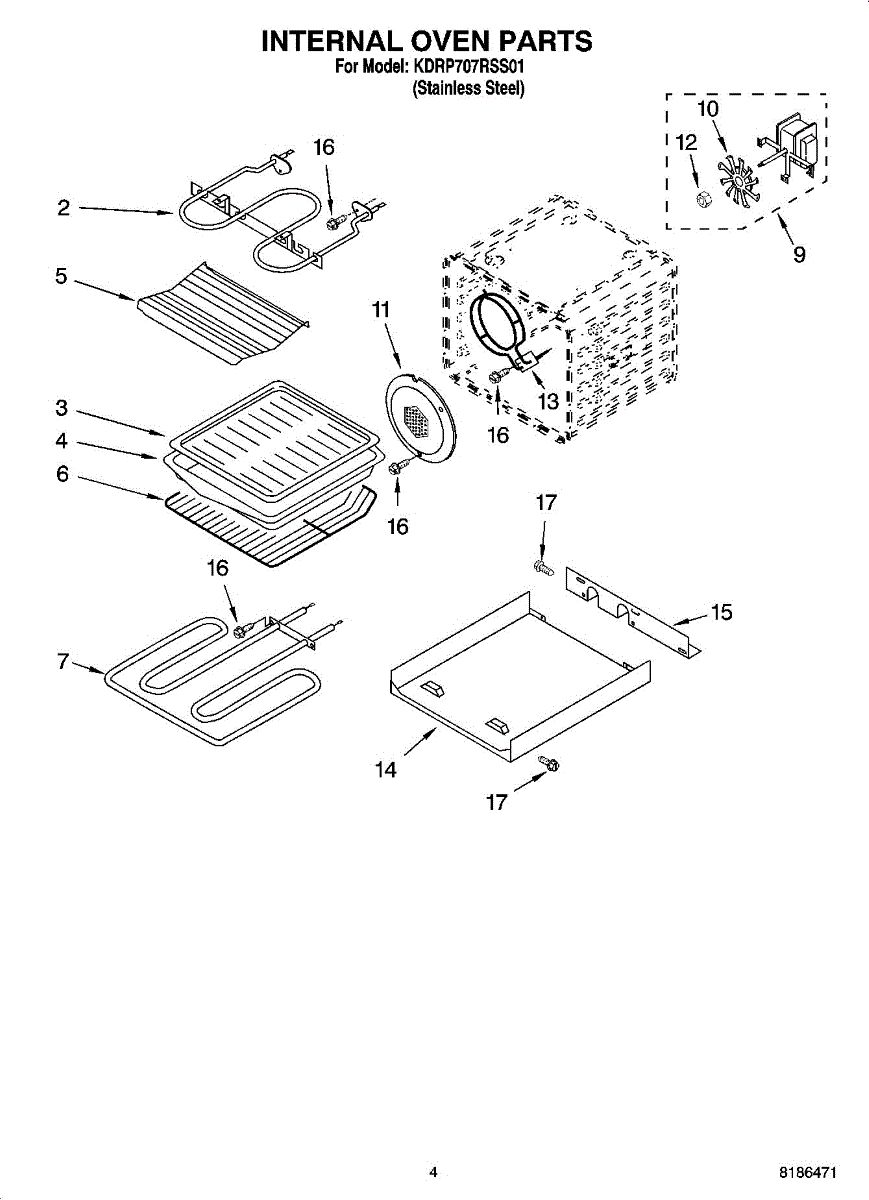

Parts for Kitchenaid KDRP707RSS01: 03 - Internal Oven Parts

The Broil Element is an OEM part for Whirlpool ovens. This element is located at the top of the oven and provides the high heat necessary for broiling food.

Causes of a faulty Broil Element can vary. One indicator is visible damage like blistering, bulging, or breaks in the element. Another sign could be a lack of heat when the broil function is turned on, which might signal a burned-out element. If the element is constantly tripping the circuit breaker, it could point to an electrical issue.

Symptoms of a malfunctioning Broil Element include:

• Food not broiling or browning properly.
• The oven not reaching the set temperature or taking longer than usual to heat.
• Unusual electrical odors or sparks coming from the element area during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

For broil pan use WP3196076.

For broil pan grid use WP3195996.

This broiler pan restores a sturdy broiling surface in your oven. It holds food for high-heat broiling while the lower tray catches drippings to help reduce smoke and keep the oven cavity cleaner.

• Provides a durable surface for broiling under the broil element or flame
• Collects grease and juices beneath the food during high-heat cooking
• Replaces pans that are missing, warped, chipped, or heavily rusted
• Helps cut down on smoke and mess from burnt-on residue on a damaged pan

• Allow the oven to cool completely before handling
• Slide the pan onto the appropriate rack position per your model's instructions; no tools required
• Use oven mitts—surfaces and edges can be hot after broiling
• If your model uses a separate broiler grid or rack, position it on top of the pan before cooking

The Rack is an OEM part for Whirlpool wall ovens. It provides a durable surface for baking and cooking food items. These racks are engineered to maximize capacity while withstanding high heat.

Causes of a bad rack include standard wear and tear from regular cleaning cycles in addition to exposure to grease buildup despite cleaning. Racks support significant weight loads during cooking cycles.

Symptoms of a bad rack include:

• Visible bends, cracks, or detachment of rack elements
• Lack of support leads to spilled/dropped food safety concerns
• Food or debris lodged in rack imperfections promotes residue buildup
• Compromised rack integrity reduces usable oven space for cooking

This Whirlpool OEM replacement rack directly fits the original location and restores full cooking functionality. Models also include Maytag, KitchenAid, Jenn-Air, and select Kenmore ovens for lasting performance.

The Bake Element Kit is an OEM part for Whirlpool ranges. It is designed to provide the necessary heat for baking and roasting within the oven cavity. This element is located at the bottom of the oven and heats up when electricity passes through it, creating the right cooking environment for even and effective baking.

Causes of a bad bake element can include a burnout from age or overuse, where the element can physically break or develop hot spots resulting in uneven cooking. Corrosion or residue build-up can also impact its performance, leading to inadequate heating.

Symptoms of a bad Bake Element Kit include:

• Lack of heat production in the oven
• Uneven cooking or baking
• Visible damage to the element, such as blistering or splits

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This convection fan blade replaces a damaged or worn blade to restore proper air circulation for more even baking and roasting in convection ovens. It mounts to the oven's convection motor and helps maintain consistent cooking temperatures. What it does:

• Circulates hot air across the oven cavity for even browning and faster cook times
• Replaces cracked, warped or missing blades that cause vibration or scraping noises
• Reduces hot/cold spots that lead to unevenly cooked food
• Helps the convection system maintain stable airflow for consistent results

• Disconnect power to the appliance and allow the oven to cool completely before beginning.
• Remove oven back panel or interior cover per your model's service instructions to access the fan assembly.
• Handle the blade carefully—edges may be sharp; secure blade to motor hub using the original fastener and correct orientation.
• If the fan motor or mounting hardware is damaged, inspect and replace those components as needed.

This 6mm acorn nut secures exposed threaded studs and protects threads while giving a finished appearance. It's a simple replacement fastener that restores proper fit and helps prevent snagging or corrosion on accessible assemblies. What it does:

• Caps and secures exposed studs or bolts to keep assemblies fastened
• Protects threads from damage, dirt, and moisture
• Restores a finished look to trim, panels, or hardware mounts
• Can stop rattling or looseness when a worn/ missing nut is the cause

• One 6mm acorn nut

• Use the correct 6mm socket or nut driver; tighten until snug—avoid overtightening
• Disconnect power and follow appliance safety procedures before working near electrical or moving components
• Inspect mating threads for damage and replace the mating fastener if stripped

This surface cooktop element provides the heating source for electric ranges and replaces a damaged or non-working burner to restore normal cooking heat. Designed to match OEM fit and function for compatible Whirlpool ranges. What it does:

• Heats cookware for stovetop cooking when the burner control is turned on
• Replaces a burned-out or broken surface element that no longer heats
• Can resolve symptoms like no heat from the burner, intermittent heating, or visible damage to the element
• Restores even heating when the original element has hot spots or partial failure

• Disconnect power at the breaker or unplug the range before servicing to avoid shock
• Allow the element and cooktop to cool completely before removing or installing
• Remove the old element by unplugging the connector or detaching mounting hardware, then connect the new element securely

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned
