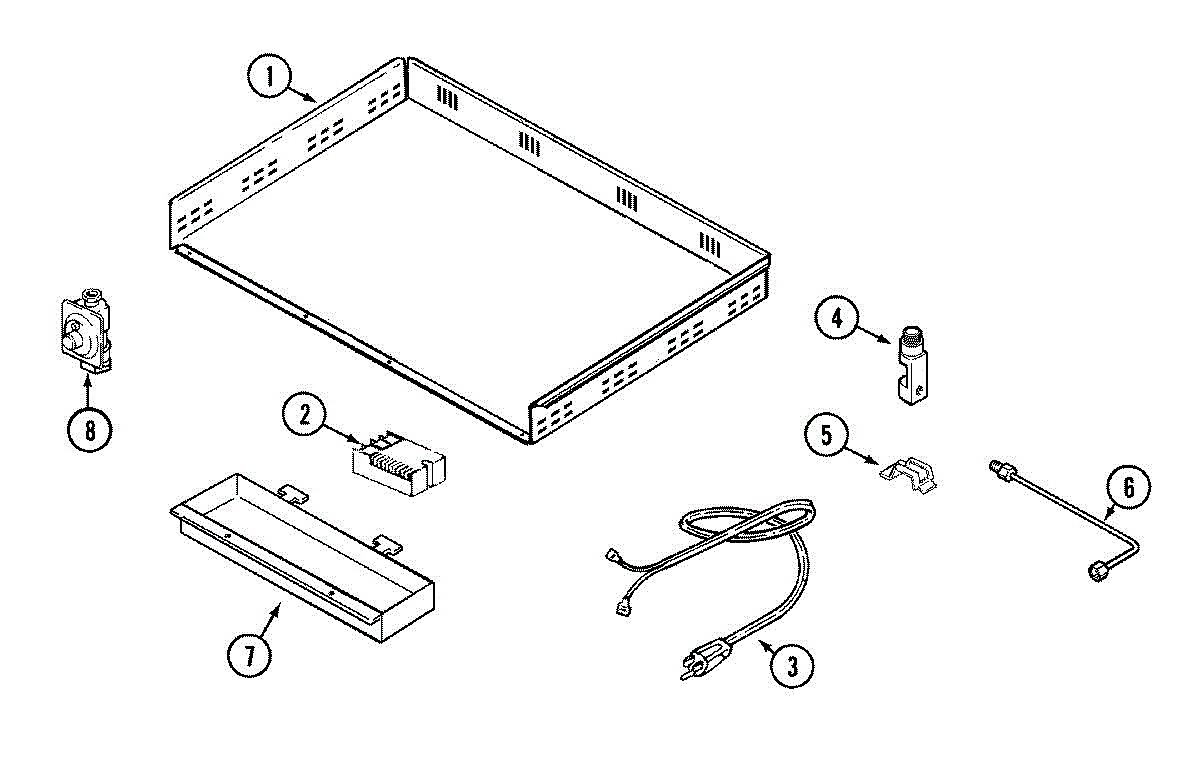

Parts for Jenn-Air CCGP2420PR: 01 - Burner Box Parts

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
