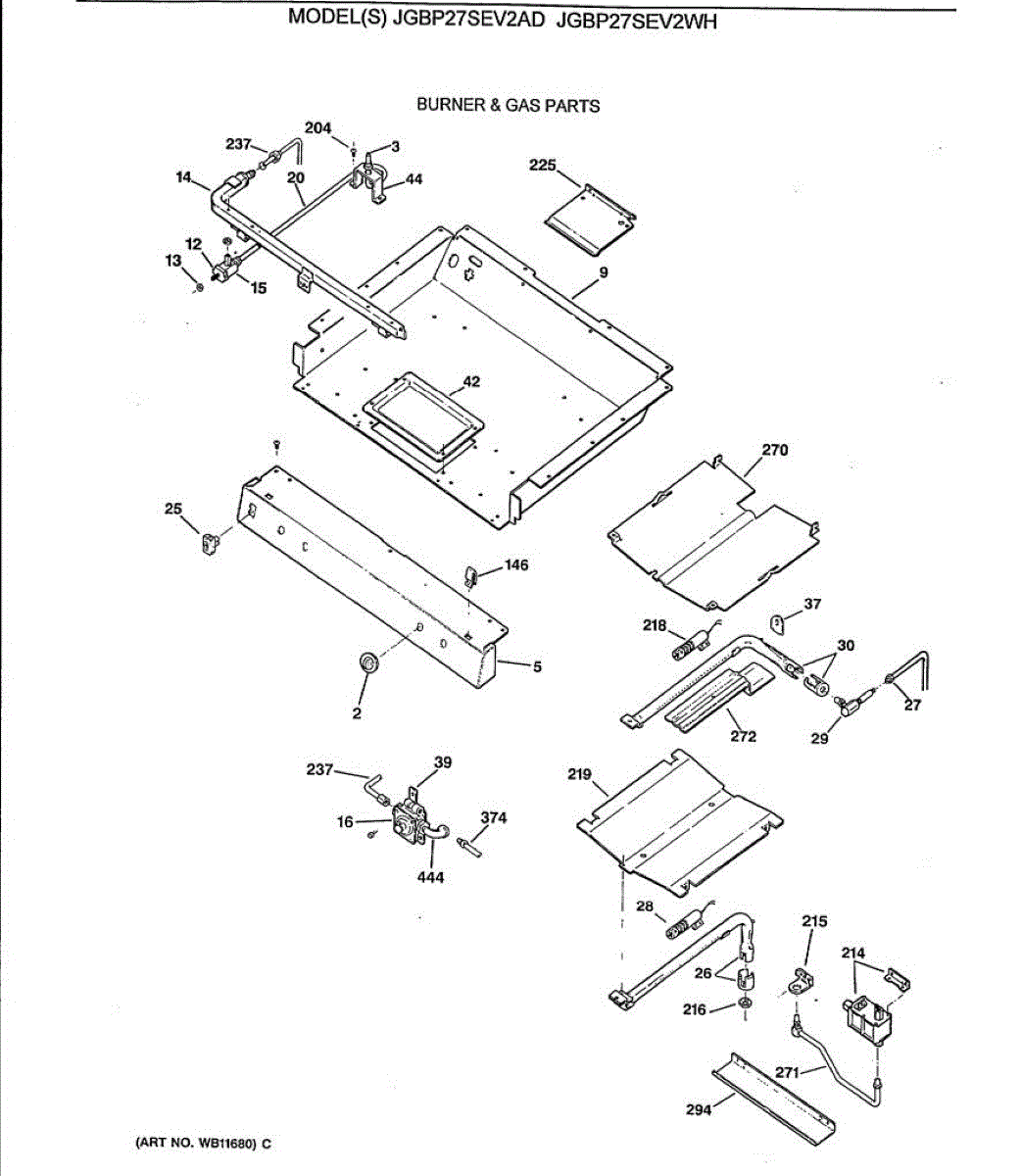

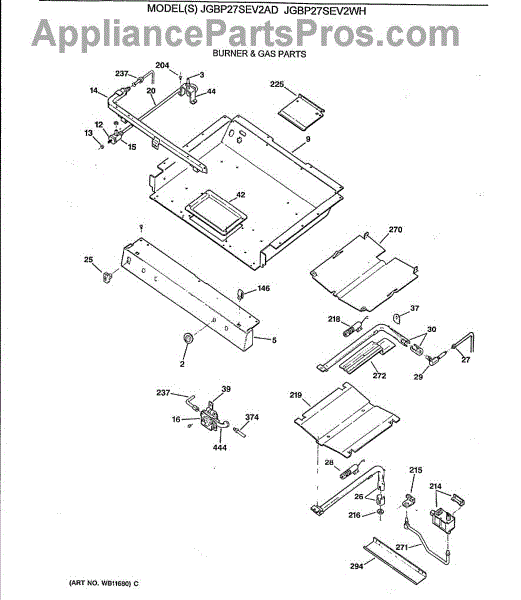

Parts for Ge JGBP27SEV2AD: 01 - Burner & Gas Parts

Color: Black

Burner orifice spud for your range. Installs in the gas valve to regulate fuel flow to burners. Replace if cracked, clogged, or missing.

Burner orifice spud for gas ranges. Installs in burner assembly to regulate gas flow. Replace if damaged, worn, or when converting between natural gas and LP.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Color: Black

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Oven won't heat but broiler works? This safety valve controls gas flow to bake and broil burners. Common when one side fails but the other still works.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Tube burner supply for gas ranges. Connects the orifice to the burner assembly. Replace if cracked, damaged, or when converting between fuel types.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.

Single speed nut fastener that provides threads for screws on appliances. Secures sheet-metal panels, brackets, or trim. Replace if missing or worn.

This PM mini manual is the official service and operation guide that provides clear instructions for programming, setup, and basic troubleshooting. Keep it on hand to understand control functions and safe servicing steps. What it does:

• Explains control features, menu navigation, and programming procedures
• Guides diagnosis of common control or programming symptoms
• Helps verify proper settings after repairs or power interruptions
• Serves as a reference for technicians and informed DIY repairs

• Read the manual fully before attempting any service or programming
• Follow all safety warnings; disconnect power before working on electrical parts
• Keep the manual dry and store with appliance documentation for future reference
• If replacing a control, use the manual to ensure correct setup and calibration

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.
