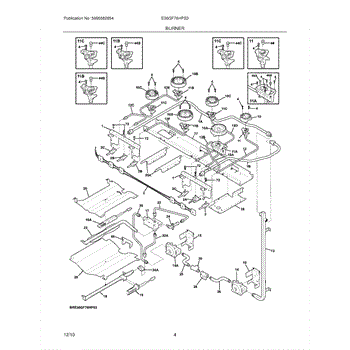

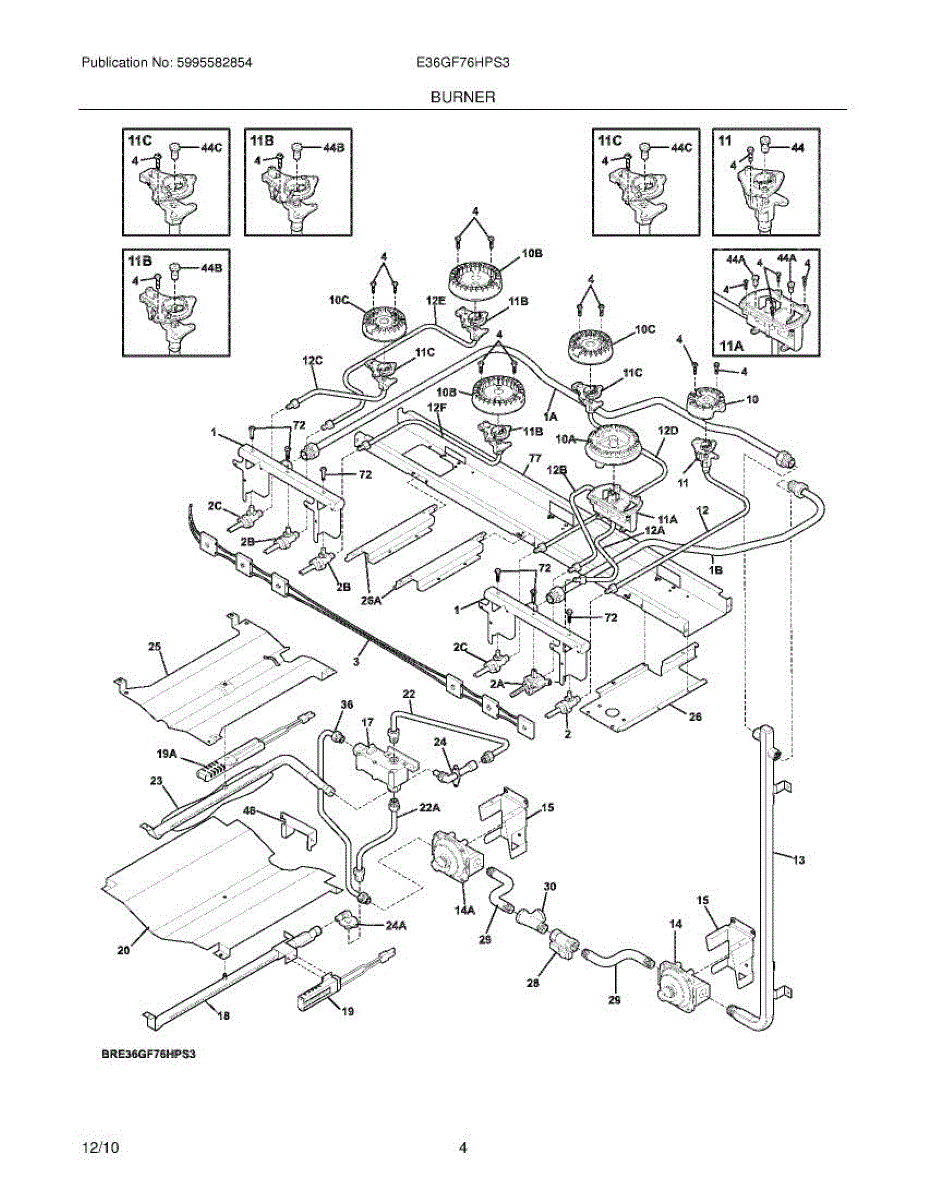

Parts for Electrolux E36GF76HPS3: 05 - Burner Parts

Replace your range's gas manifold if it's cracked, corroded, or leaking. This manifold distributes gas to the burners and installs inside the cooktop.

Replace a faulty top burner valve if your cooktop burner won't ignite, flame is too low, or gas won't shut off. Moderate DIY repair in 30-45 minutes.

Fix a burner that won't light, won't stay lit, or has uneven flames with this top burner valve. Controls gas flow to individual burners on gas cooktops.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

Gas pressure regulator for cooktop burner systems. Mounts to the manifold to control fuel flow. Replace if cracked, leaking, or showing wear.

Fixes oven not heating or slow to heat issues. Controls gas flow to burner for safe ignition. Common repair for delayed heating or no heat problems.

Fix delayed oven ignition or gas odor with this spark electrode. Creates the spark that lights your oven burner. DIY repair in under 1 hour.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

This baffle directs cold air inside the refrigerator to help maintain even temperatures and protect stored food. It replaces a damaged or broken deflector to restore correct airflow and cooling performance. What it does:

• Guides cold air from the evaporator toward fresh-food or freezer compartments
• Helps prevent uneven cooling and localized warm spots
• Reduces frost buildup caused by disrupted airflow
• Restores proper circulation when cracked, warped, or missing

• Disconnect power to the appliance before starting any repair
• Typically installs with clips or screws; retain fasteners from the original part
• Handle with care to avoid cracking plastic tabs during removal or installation

Lower baking element that installs in the bottom of your range oven cavity. Replace if cracked, warped, broken, or no longer heating evenly during use.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This water inlet valve controls water flow to the refrigerator's ice maker and water dispenser, restoring normal dispensing and ice production when the valve is faulty or leaking. What it does

• Opens and closes to allow water into the ice maker and dispenser as commanded by the refrigerator.
• Stops water flow to prevent overfilling; a failed valve can cause no water, slow flow, or continuous filling.
• Commonly linked to symptoms such as no ice production, weak or no water from the dispenser, or visible leaks at the valve.

• One water inlet valve assembly.

• Disconnect power and shut off the water supply before starting work.
• Relieve line pressure and have towels ready for residual water when disconnecting fittings.
• Inspect and replace any worn water line fittings or gaskets; tighten connections to manufacturer torque—do not overtighten plastic fittings.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

This wiring harness connects the appliance's electrical components so controls and motors receive power and signals for normal operation. Replacing a damaged harness restores reliable electrical connections and helps prevent intermittent faults. What it does:

• Routes power and signal wires between control board, motors, switches, and sensors
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation or loss of function
• Stops connection-related symptoms such as no power to components, unexpected shutdowns, or control failures
• Prevents potential arcing from damaged connectors when installed correctly

• Disconnect all power to the appliance before beginning disassembly to avoid shock or injury
• Take photos of original routing and connector positions to aid reassembly
• Route harness to avoid pinching, sharp edges, or heat sources and secure with original clips or fasteners
• If connectors are corroded or damaged, replace them with the correct OEM harness rather than splicing

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
