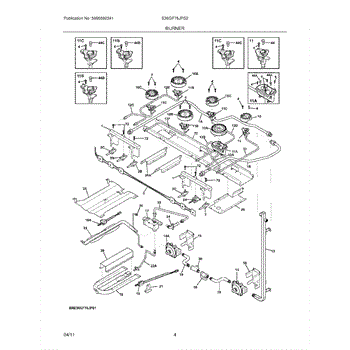

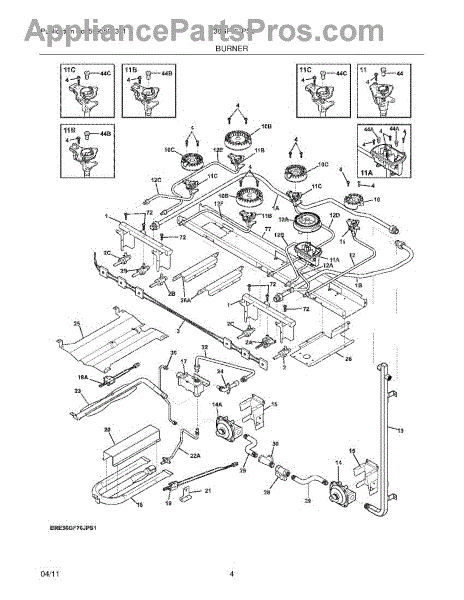

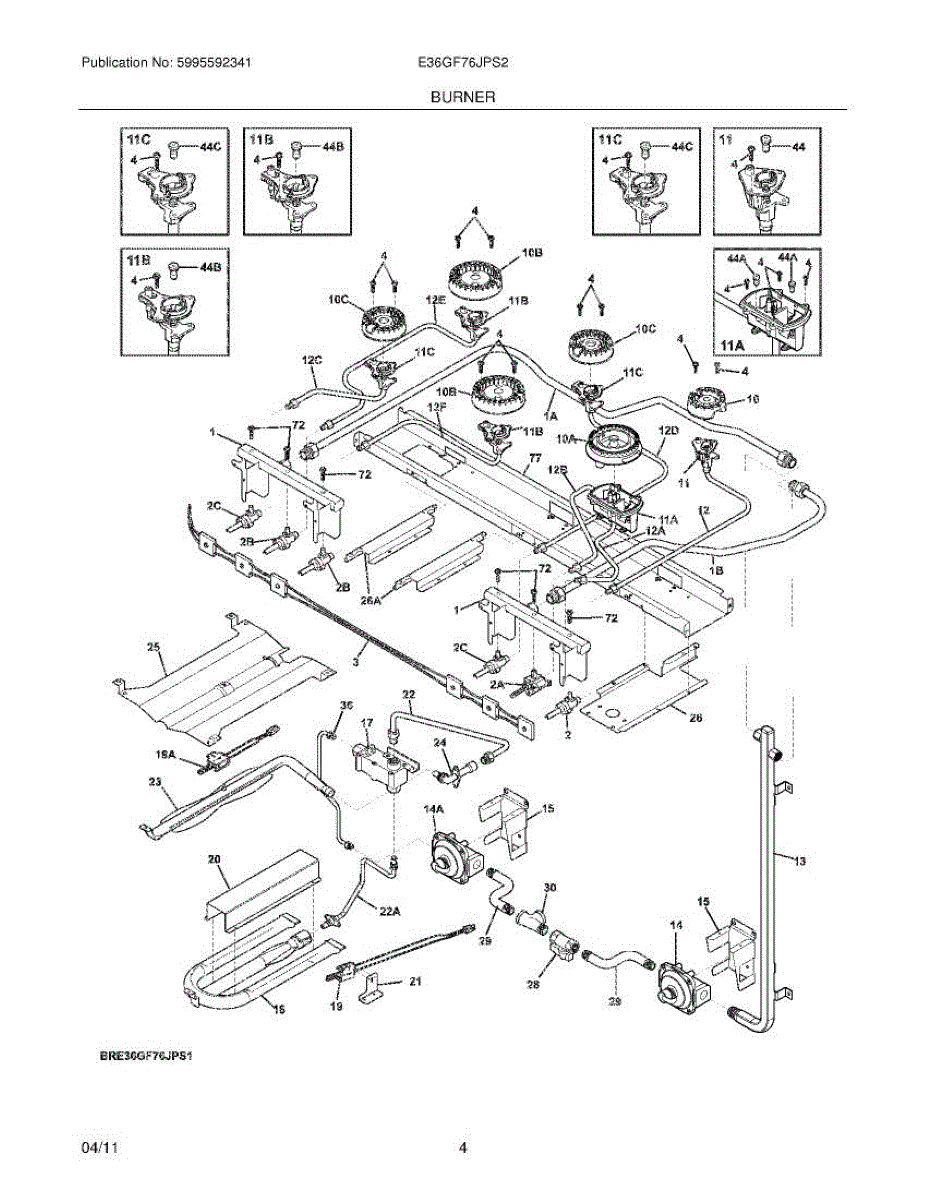

Parts for Electrolux E36GF76JPS2: 05 - Burner Parts

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

This assembly combines the spark igniter electrode with the orifice holder for a gas surface burner. It restores dependable ignition and proper gas delivery so the burner lights quickly and consistently.

• Provides the spark to ignite the surface burner
• Routes gas from the valve through the orifice holder to the burner head
• Typical symptoms: burner won't light, clicks but no flame, intermittent ignition, or cracked/chipped igniter insulator
• Replacing a damaged assembly restores reliable ignition at that burner

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner head; lift the top or access panel as your model requires
• Disconnect the spark wire, unfasten the old assembly, mount the new one, and reconnect the wire
• Restore gas and power, then check connections for leaks with an approved solution and test ignition

This ignitor and orifice assembly provides the ignition source and gas orifice for a gas oven or range burner, restoring reliable ignition for cooking. Replaces a worn or damaged ignitor/orifice to help the burner light correctly. What it does:

• Supplies the ignition element and properly sized orifice so the burner can light and maintain a stable flame.
• Replaces burned-out or cracked ignitors that cause slow or no ignition.
• Replaces clogged or damaged orifices that can cause weak or uneven flames.
• Common symptoms it can address: burner won't light, repeated clicking with no ignition, or a weak/uneven flame.

• Turn off the appliance power and shut off the gas supply before servicing.
• Handle the ignitor carefully—the ceramic/sensing tip is brittle and can break if dropped or bumped.
• Disconnect electrical connectors and note wire positions before removal; reconnect exactly as found.

This replacement part is a safety valve. This part is found in various types of refrigerators or freezers and is able to ensure that the appliance is running smoothly and safely during use. A new safety valve might be needed if the user notices that the current one is no longer working properly. This may include it having a leak or making unfamiliar sounds. The user should be able to access the back of the appliance to replace or repair this part.This is a genuine OEM replacement part made by Frigidaire, sold individually. The item, made of durable materials, is meant to last a long time.

This is the spark electrode used to ignite the gas in the oven. It creates a spark at the burner to light the flame so your oven can heat reliably.

• Generates the spark that lights the oven burner
• A failed electrode can cause no heat, delayed ignition, or the oven not lighting
• Intermittent sparking or clicking without ignition may indicate a worn or cracked tip
• Carbon buildup or damage to the ceramic insulator can prevent proper ignition

• Disconnect power and shut off gas before servicing
• Access the burner area, note wire routing, and handle the ceramic insulator carefully
• Position the electrode tip at the specified gap to the burner per service literature
• Test for proper spark and burner ignition after reassembly

The Ignitor is an OEM replacement part for Frigidaire gas ovens and ranges. It is responsible for igniting the gas to produce a flame for cooking or baking. The ignitor heats up to a high temperature and then ignites the gas, ensuring efficient and reliable operation of your appliance.

Over time, ignitors can wear out due to repeated heating cycles, exposure to moisture, or general aging. A failing ignitor may struggle to reach the necessary temperature, preventing the oven or range from igniting properly.

Symptoms of a bad ignitor include:

• The oven not heating or taking an unusually long time to preheat
• Weak or inconsistent burner flames
• Clicking sounds without ignition of the burner
• A visible crack or damage to the ignitor element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This water inlet valve controls water flow to the refrigerator's ice maker and water dispenser, restoring normal dispensing and ice production when the valve is faulty or leaking. What it does

• Opens and closes to allow water into the ice maker and dispenser as commanded by the refrigerator.
• Stops water flow to prevent overfilling; a failed valve can cause no water, slow flow, or continuous filling.
• Commonly linked to symptoms such as no ice production, weak or no water from the dispenser, or visible leaks at the valve.

• One water inlet valve assembly.

• Disconnect power and shut off the water supply before starting work.
• Relieve line pressure and have towels ready for residual water when disconnecting fittings.
• Inspect and replace any worn water line fittings or gaskets; tighten connections to manufacturer torque—do not overtighten plastic fittings.

The Burner Orifice is an OEM part for Frigidaire ranges. This part regulates the flow of gas to the burners, ensuring proper combustion and heat output.

Causes of a bad burner orifice can include clogging from debris or food particles, corrosion or damage to the orifice opening, or improper installation or misalignment.

Symptoms of a bad burner orifice include:

• Uneven or flickering flames on the burners
• Yellow or orange-colored flames instead of a steady blue flame
• Burners producing excessive noise or popping sounds
• Difficulty in igniting the burners or keeping them lit
• Inconsistent heat output or hot and cold spots on the cooking surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This wiring harness connects the appliance's electrical components so controls and motors receive power and signals for normal operation. Replacing a damaged harness restores reliable electrical connections and helps prevent intermittent faults. What it does:

• Routes power and signal wires between control board, motors, switches, and sensors
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation or loss of function
• Stops connection-related symptoms such as no power to components, unexpected shutdowns, or control failures
• Prevents potential arcing from damaged connectors when installed correctly

• Disconnect all power to the appliance before beginning disassembly to avoid shock or injury
• Take photos of original routing and connector positions to aid reassembly
• Route harness to avoid pinching, sharp edges, or heat sources and secure with original clips or fasteners
• If connectors are corroded or damaged, replace them with the correct OEM harness rather than splicing

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
