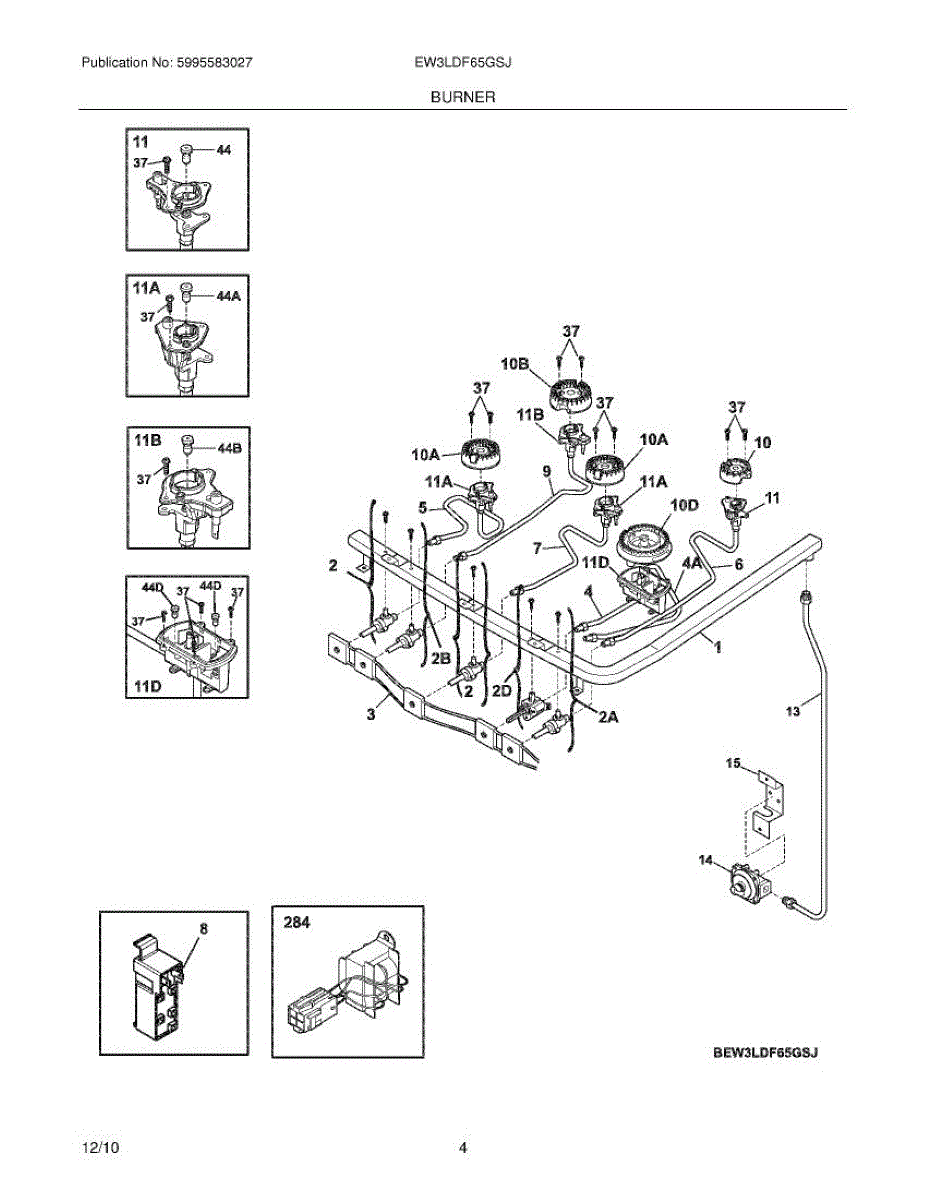

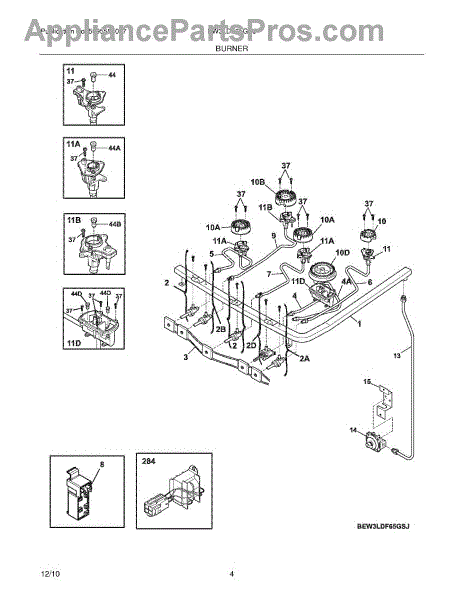

Parts for Electrolux EW3LDF65GSJ: 05 - Burner Parts

Gas manifold assembly for ranges. Distributes gas to burners. Replace if cracked, leaking, or damaged. Includes connection points for burner valves.

Range not heating or display blank? This electronic control board manages oven functions and temperature. Moderate difficulty repair requiring basic tools.

Gas supply tube for range burners. Installs between the manifold and burner valve. Replace if cracked, corroded, or leaking to restore safe gas flow.

Gas burners won't ignite and there's no clicking sound? The spark module provides the electrical spark to light all burners. DIY repair in under 1 hour.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly delivers gas to the oven burner and secures the ignitor, allowing reliable ignition and consistent baking or broiling heat. Replace a damaged or clogged assembly to restore normal oven lighting. What it does

• Routes gas to the oven burner and positions the ignitor for proper ignition
• Helps the ignitor light the burner so the oven reaches and holds set temperatures
• Commonly used when the oven fails to light, the ignitor glows but no flame appears, or flame is weak/intermittent
• Works as a direct-fit replacement for the original factory assembly

• One ignitor orifice assembly

• Turn off electrical power and shut off the gas supply before starting work
• Access usually requires removing the oven burner box or broiler drawer
• Handle the ignitor and tubing carefully; damaged ignitors or bent fittings can cause malfunction or gas leaks

Directs and meters gas to the oven burner while providing the ignition pathway. Replace this assembly if worn, damaged, or cracked to restore burner function.

Replaces a worn or faulty gas pressure regulator on your range. Installs on the gas supply line to control fuel flow. Order now if damaged or leaking.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating an

LP gas orifice for range conversion or replacement. Installs in burner assembly to regulate propane flow. Replace if damaged, missing, or wrong size.

LP gas orifice for gas range burners. Replace this brass fitting if cracked, clogged, or when converting fuel type. Ensures proper gas flow rate.

LP gas conversion orifice for range burners. Replaces worn, damaged, or missing orifices when converting from natural gas to liquid propane fuel.

Replacement gas burner orifice for ranges and cooktops. Meters fuel flow to the burner. Replace if worn, clogged, or damaged to restore proper fit.

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

This replacement shield is a molded protective cover that helps keep appliance wiring and internal components safe from heat, moisture and accidental contact. It restores the appliance's original protection and helps maintain reliable operation. What it does:

• Covers and protects wiring, terminals or control components from debris and direct heat
• Prevents accidental contact with live parts during normal use
• Helps reduce the risk of shorting or damage from loose debris
• Restores the appliance's factory shielding to reduce noise from vibrating parts

• One replacement shield

• Disconnect power before servicing to avoid shock risk
• Handle carefully; edges may be sharp and clips or tabs can be brittle on older units
• Retain and reuse factory fasteners when possible; replace broken clips with OEM parts
• Verify proper alignment and secure fit so the shield does not contact moving parts

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas val

Secures and stabilizes internal components in your gas range. Replace this mounting bracket if cracked, bent, or worn to restore proper alignment.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal compo

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
