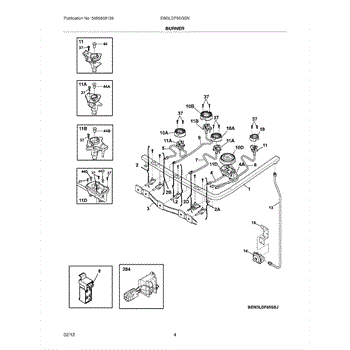

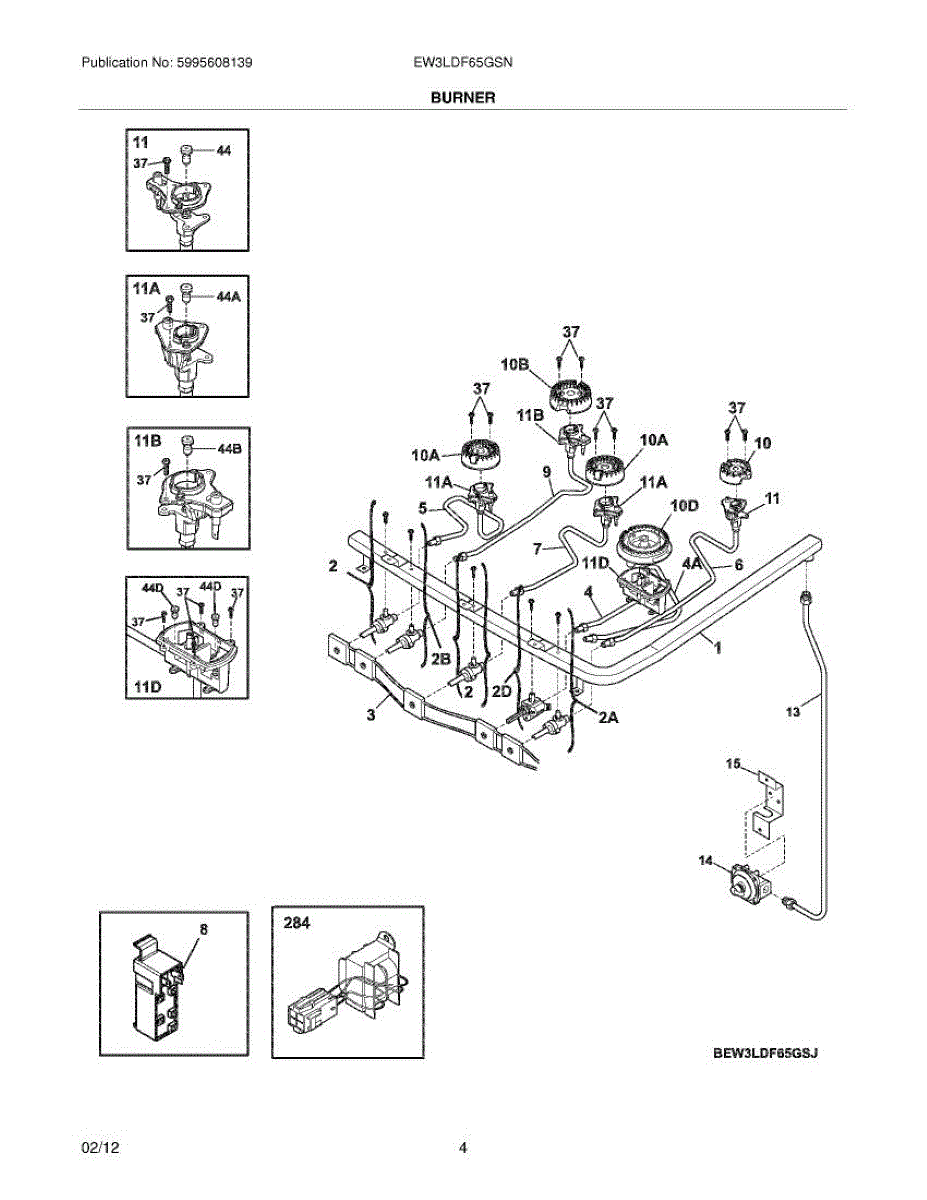

Parts for Electrolux EW3LDF65GSN: 05 - Burner Parts

The Spark Module Kit is an OEM part for Frigidaire ranges. This kit includes the spark module and necessary components for installation, responsible for providing the electrical spark needed to ignite the gas burners on the stove.

Common causes of a bad spark module include electrical faults, wear and tear from regular use, or damage from power surges.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or inconsistent sparks
• Clicking sound without burner ignition
• Only some burners igniting

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly delivers gas to the oven burner and secures the ignitor, allowing reliable ignition and consistent baking or broiling heat. Replace a damaged or clogged assembly to restore normal oven lighting. What it does

• Routes gas to the oven burner and positions the ignitor for proper ignition
• Helps the ignitor light the burner so the oven reaches and holds set temperatures
• Commonly used when the oven fails to light, the ignitor glows but no flame appears, or flame is weak/intermittent
• Works as a direct-fit replacement for the original factory assembly

• One ignitor orifice assembly

• Turn off electrical power and shut off the gas supply before starting work
• Access usually requires removing the oven burner box or broiler drawer
• Handle the ignitor and tubing carefully; damaged ignitors or bent fittings can cause malfunction or gas leaks

This ignitor orifice assembly directs and meters gas to the oven burner and provides the correct ignition pathway for reliable lighting. Replaces a worn or damaged assembly to restore consistent ignition and proper burner operation. What it does:

• Controls gas flow to the oven burner through the correct orifice size for safe ignition
• Works with the oven ignitor to allow the burner to light when called for
• Helps stop delayed lighting, weak flames, or burners that fail to light
• Fits into the burner manifold and aligns with factory ignition components

• One ignitor orifice assembly

• Turn off gas supply and disconnect power before servicing
• Install only the exact replacement part for your model;
• Tighten connections to OEM torque and check all fittings for leaks with a soapy water solution

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

LP orifice / size #93 (9.5k)

LP orifice / size #84 (5k)

LP orifice / size #1.09 (14k)

This orifice is the small gas-fitting that meters fuel to a range or cooktop burner, helping maintain the correct flame for safe, even cooking. Replacing a worn or clogged orifice restores expected burner performance and heat control. What it does

• Meters and directs gas from the valve to the burner for proper combustion
• Helps maintain an even, stable flame and consistent heat output
• A clogged or damaged orifice can cause weak, uneven, or noisy flames
• Correct orifice sizing is required for safe burner operation and efficient cooking

• One orifice

• Turn off gas supply and power to the appliance before servicing
• Replace only with the exact orifice specified for your appliance
• After installation, check all connections for leaks using a soap solution or a gas leak detector

This transformer supplies the low-voltage power needed by an appliance's control system so the user interface and control board operate correctly. Replaces a worn or failed transformer to restore proper control voltage and reliable operation. What it does:

• Converts incoming line voltage to the lower control voltage used by the appliance's control board and display.
• Common symptom: control panel or display is dim, blank, or intermittently responsive.
• Common symptom: control functions (timers, cycles, lights) fail or reset unexpectedly.
• Helps stabilize control voltage to prevent erratic electronic behavior.

• One transformer

• Disconnect all power (unplug or shut off breaker) before accessing internal components.
• Observe proper wiring and polarity; match connections to the original transformer and secure terminal fasteners.
• Use appropriate mounting hardware and strain reliefs; avoid pinching or exposing wires.

This replacement shield is a molded protective cover that helps keep appliance wiring and internal components safe from heat, moisture and accidental contact. It restores the appliance's original protection and helps maintain reliable operation. What it does:

• Covers and protects wiring, terminals or control components from debris and direct heat
• Prevents accidental contact with live parts during normal use
• Helps reduce the risk of shorting or damage from loose debris
• Restores the appliance's factory shielding to reduce noise from vibrating parts

• One replacement shield

• Disconnect power before servicing to avoid shock risk
• Handle carefully; edges may be sharp and clips or tabs can be brittle on older units
• Retain and reuse factory fasteners when possible; replace broken clips with OEM parts
• Verify proper alignment and secure fit so the shield does not contact moving parts

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This support bracket secures and stabilizes internal appliance components to keep assemblies aligned and reduce vibration. Simple replacement restores proper mounting where worn or damaged brackets allow movement. What it does:

• Provides a secure mounting point for internal parts and assemblies
• Keeps panels and components aligned to prevent rubbing or misalignment
• Reduces rattling or vibration caused by a broken or loose bracket
• Commonly replaced when brackets are bent, cracked, or missing fasteners

• Disconnect power and water (if applicable) before starting any repair.
• Keep track of all fasteners and mounting hardware; some original screws may be reused.
• Use basic hand tools; avoid overtightening to prevent damage to bracket or mounting points.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
