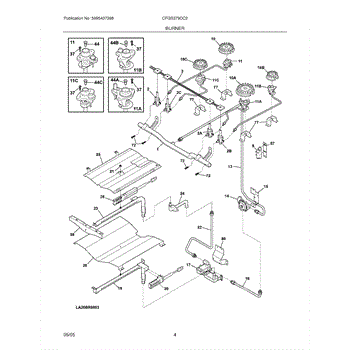

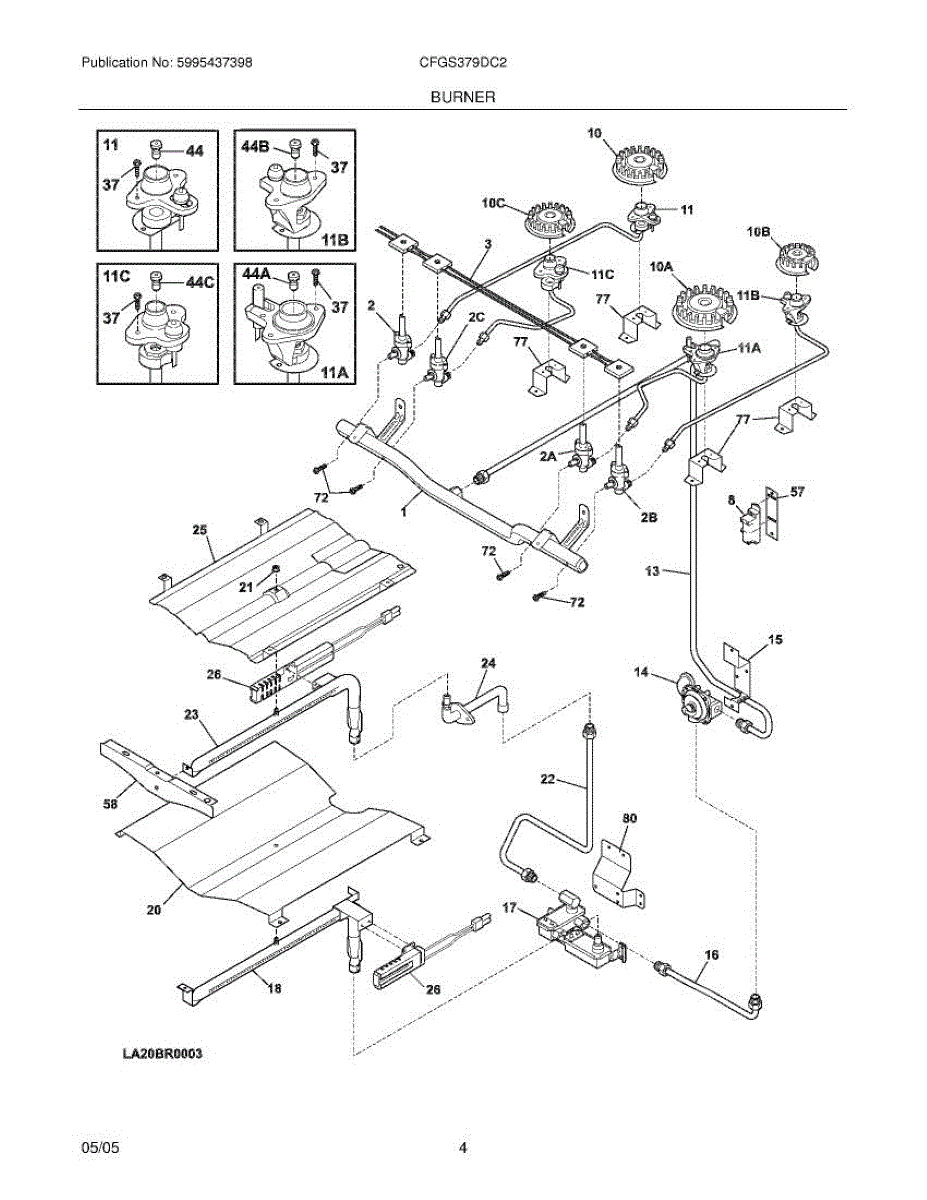

Parts for Frigidaire CFGS379DC2: 05 - Burner Parts

This top burner gas valve controls gas flow to a single cooktop burner, restoring proper flame control and allowing safe ignition and adjustment. It's designed as a direct replacement part for compatible gas ranges. What it does:

• Regulates gas to one top/burner for steady flame control
• Helps resolve symptoms like burner failing to light, weak or inconsistent flame, or inability to adjust flame level
• Works with the burner orifice and valve stem assembly to modulate gas flow
• Intended for use only on compatible range models and configurations

• Turn off gas supply and disconnect power before servicing
• Use proper fittings and torque; inspect connections and test for leaks with a gas leak solution after installation

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner head is used on gas ranges to provide the cooking heat. The burner head is attached to the burner tube assembly that supplies the gas. When the burner is ignited, the holes in the burner head produce the flame that is used for cooking. Over time, food spills and normal corrosion may cause the holes in the burner head to become clogged or damaged. If this occurs, food will not cook evenly, or the burner may not ignite. The burner head should be removed and replaced. Turn the gas and power off to the stove. Remove the burner grate and burner cap and set them aside. Lift the burner head off the stove and dispose of it. Place the new burner head over the burner base and make sure the pin goes inside it. Seat the burner head level over the hole and make sure it is level. Place the burner cap and grate back on the stove. Reconnect the gas and power.This burner head is an authentic OEM replacement part sourced directly from the manufacturer for use on gas ranges by Kenmore, Frigidaire, Crosley, and Electrolux. It is a silver metal part that is sold individually.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Regulator is an OEM part for Frigidaire ranges and cooktops. It's designed to maintain a safe and consistent gas flow to the burners, ensuring optimal performance and efficiency during cooking. This regulator adjusts the pressure of the gas coming from your home's supply line to match the requirements of the appliance, allowing for precise temperature control and reliable operation.

Causes of a bad regulator can include general wear and tear over time, exposure to high temperatures or cleaning chemicals that degrade its components, or a malfunction within the regulator itself, such as a stuck valve or broken diaphragm.

Symptoms of a bad Regulator include:

• Inconsistent flame size or color
• Burners not lighting
• A noticeable gas smell when the cooktop or range is on
• Weak or uneven heating performance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A replacement safety valve kit that restores a safety shutoff component to appliances, helping stop flow when a fault is detected so the unit can operate safely. Fits compatible Frigidaire appliances that use this OEM kit. What it does

• Replaces the appliance's safety valve assembly to restore proper shutoff function
• Prevents continued fuel or water flow when a fault or unsafe condition occurs
• Commonly used when the appliance fails to start, fails to heat, or shows safety-related shutdowns
• Helps resolve intermittent operation or safety trip symptoms tied to a failed valve

• One safety valve kit (single complete replacement kit)

• Disconnect power and gas/water supply before starting any repair
• Follow the appliance's service manual or wiring diagram for correct routing and connections
• Use proper tools and safety gear;
• Test for leaks and proper operation after installation and before returning the appliance to service

The Oven Igniter is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners or bake and broil burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven igniter can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven igniter include:

• Failure of the oven burners to ignite or light
• Delayed ignition or inconsistent burner lighting
• Visible damage or deterioration of the igniter element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

For 5k burner.

For 12k burner.

This top burner orifice meters gas to a 14,000-BTU surface burner on your range, maintaining the correct flame size and heat output. Replace a worn or incorrect orifice to restore consistent burner performance and control. What it does

• Regulates gas flow to the 14,000-BTU top burner for proper flame height and shape
• Helps resolve weak or oversized flames and uneven heating
• Can reduce yellow/orange flame tipping and improve simmer control
• Supports reliable ignition by ensuring correct fuel metering

• One 14,000-BTU top burner orifice

• Shut off gas supply and power; allow the cooktop/range to cool before service
• Remove burner cap and head to access the orifice; use the correct socket/wrench
• Install and snug—do not overtighten; verify it's the correct orifice for the burner position and gas type specified for your model
• Reassemble, check for leaks with a soapy-water solution, and verify a stable, blue flame (adjust air shutter if applicable)

For 9.5k burner.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
