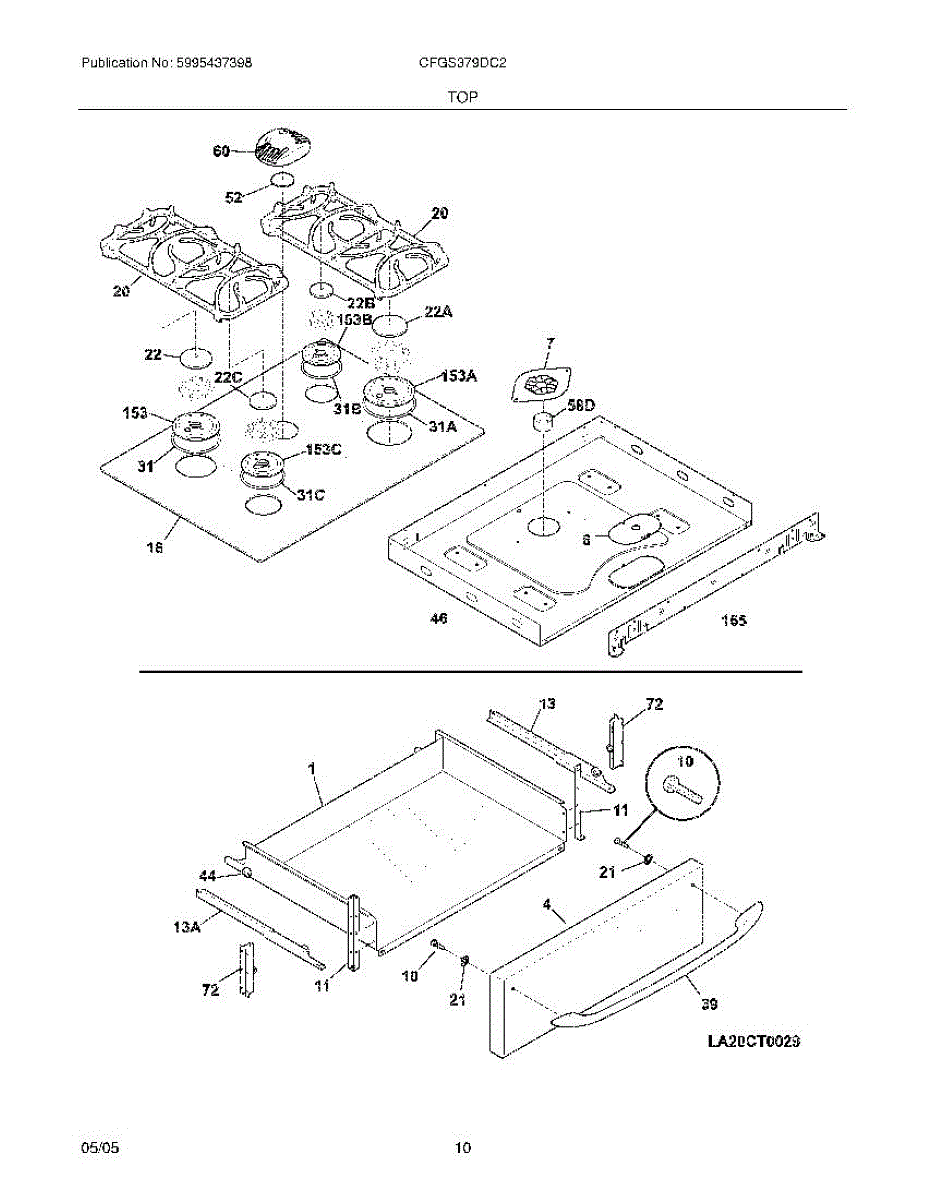

Parts for Frigidaire CFGS379DC2: 09 - Top / Drawer Parts

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

The Support Roller Washer is an OEM part for Frigidaire dryers, designed to ensure the smooth and stable operation of the dryer drum. Positioned between the support roller and the shaft, this washer plays a critical role in reducing friction and wear, allowing the drum to rotate smoothly and quietly.

Causes of these symptoms often stem from normal wear and tear, which can lead to the degradation of the washer over time.

Symptoms of a bad Dryer Support Roller Washer include:

• Unusual noises, such as squeaking or grinding, indicating increased friction during drum rotation
• The dryer drum appears to wobble or is misaligned during operation
• Increased vibration of the dryer, which can lead to wear on other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner seal fits around a cooktop burner to help keep spills and debris out of the burner housing and provide a stable, centered burner location for consistent heating. It restores a flush seal between the burner and the cooktop surface. What it does:

• Forms a protective gasket around the burner to block food, grease and liquids from entering the cooktop cavity
• Cushions and centers the burner, reducing wobble and promoting even element-to-surface contact
• Helps reduce smoke or odors caused by spills burning on exposed internal surfaces
• Restores proper fit after a cracked, torn or missing seal

• One burner seal

• Disconnect power to the appliance before servicing; if the range is gas, shut off the gas supply
• Remove the burner or lift the cooktop per your model's service instructions to access the seal area
• Clean and dry the mounting surface thoroughly before installing the new seal
• Press the seal into place; do not stretch excessively or use solvents/adhesives unless your model's instructions specify

This burner seal is a replacement gasket that fits around a surface burner to help keep food and liquids out of the cooktop cavity and make cleanup easier. Simple wear replacement for torn or collapsed seals. What it does:

• Forms a protective gasket between the surface burner and cooktop to limit spills and debris entering the cavity
• Helps keep the burner cap seated correctly and reduces grime buildup around the burner area
• Makes routine cleaning faster by preventing trapped food and liquid
• Common signs you need this part: visible gap or torn seal around the burner, frequent debris buildup, or a burner cap that sits uneven

• Turn off the cooktop and gas supply and allow all parts to fully cool before starting.
• Remove the burner cap and lift out the old seal; align and press the new seal into place around the burner opening.
• Reinstall the burner cap, restore power/gas, and test burner operation for correct seating and appearance.

This burner seal is a replacement gasket that fits around a cooktop burner to help keep the burner area sealed and easier to clean. It helps maintain a proper seal between the burner base and the cooktop surface. What it does:

• Seals the gap between the burner and cooktop to limit food, grease and liquid from entering the burner cavity
• Helps keep the burner seated and reduces wobble or misalignment
• Supports cleaner cooktop surfaces and simplifies wipe-downs
• Can help maintain consistent ignition area by keeping debris away from the burner base

• Turn off power to the appliance and ensure the cooktop is completely cool before starting.
• Remove burner grate and lift off the burner cap and burner head as needed to access the seal.
• Clean the seating area of any grease or debris, then press the new seal evenly into place before reassembling.

This surface burner seal sits between the burner and the cooktop opening to block spills and air leaks, helping the burner seat correctly and keeping the cooktop area cleaner.

• Creates a tight seal between the surface burner and the cooktop opening
• Helps prevent liquids and debris from getting under the cooktop
• Supports proper burner alignment and consistent heat/flame
• Replace if torn, brittle, swollen, or permanently compressed; common signs include seepage under the top, uneven heating/flame, or the burner not sitting level

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the cooktop to cool completely.
• Remove grates, burner cap, and burner head/base as applicable; lift off the old seal.
• Clean the mating surfaces; position the new seal evenly around the opening.
• Reassemble burner parts and test for proper seating and even heating/flame.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
