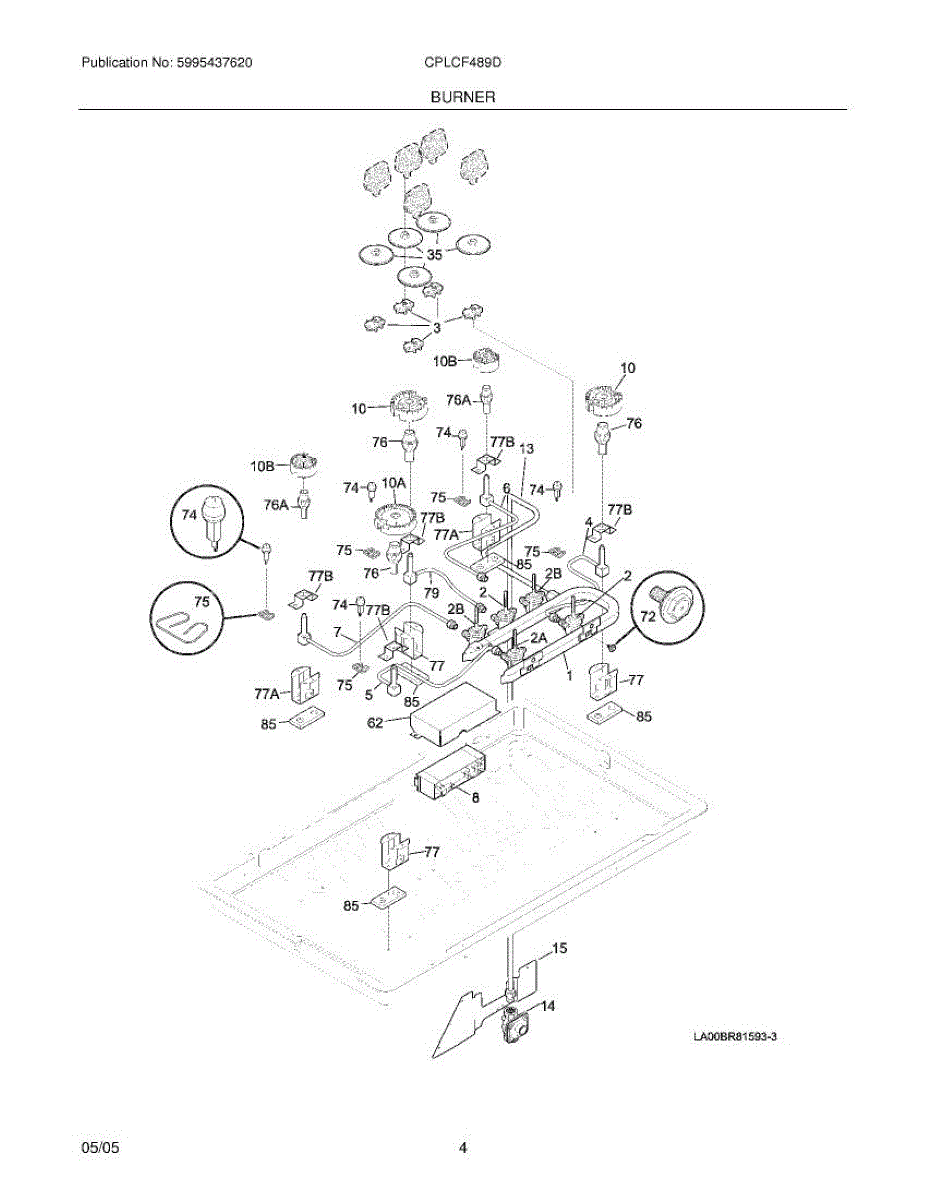

Parts for Frigidaire CPLCF489DC3: 05 - Burner Parts

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement igniter lights the gas in your range or wall oven. It restores dependable burner ignition so cooking starts promptly and safely when you turn the control or select a bake/broil setting.

• Generates the ignition source (spark or heat) required to light the gas at the burner
• Common symptoms of a failed igniter: burner won't light, no spark/glow, intermittent or delayed ignition
• Replacing a weak or cracked igniter helps prevent raw gas buildup and improves lighting consistency

• Disconnect power and shut off the gas supply before servicing
• Handle the igniter element/ceramic carefully; avoid impact and contamination
• Reuse existing mounting hardware and route leads away from heat/flame as originally installed
• After installation, restore gas and power, then test for prompt ignition and proper flame; check for leaks

This replacement tube restores a damaged or missing refrigerator tubing connection so the appliance can route fluids where intended and operate reliably. It's a direct-fit service part for the matching OEM assembly. What it does

• Provides a sealed conduit for fluid flow inside the refrigerator
• Re-establishes a proper connection when the original tube is cracked or broken
• Helps stop leaks or pooling caused by a damaged line
• Supports normal operation of the associated water/defrost subsystem

• One replacement tube as shown

• Only install when the appliance is powered off and disconnected from its water supply if applicable
• Inspect adjoining fittings and replace any worn clamps or seals to ensure a leak-free connection
• Use appropriate tools; avoid sharp bends that can kink or restrict the tube

This burner tube routes gas from the manifold to the oven burner, providing an even gas flow for reliable ignition and stable heat. Replace a damaged or corroded tube to restore proper burner operation. What it does:

• Directs gas from the oven manifold to the burner ports for combustion
• Helps maintain even flame distribution for consistent oven heating
• Prevents gas leaks caused by cracks, rust, or misalignment
• Can resolve ignition issues or weak/uneven flames when the tube is damaged

• Turn off gas supply and unplug the appliance before starting work
• Inspect mounting bracket and gaskets; replace if worn to ensure a proper seal
• Handle the tube carefully to avoid bending or damaging the ports

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
