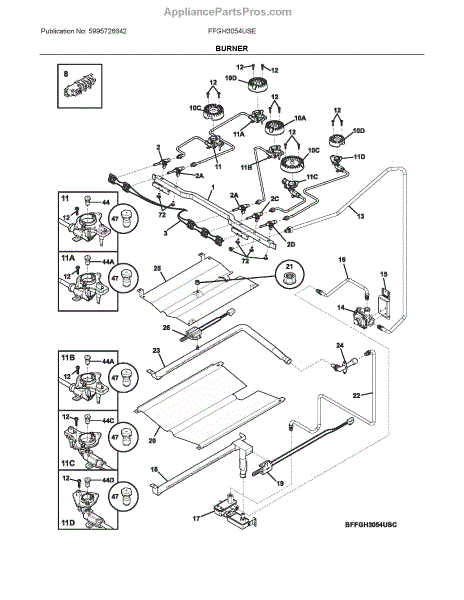

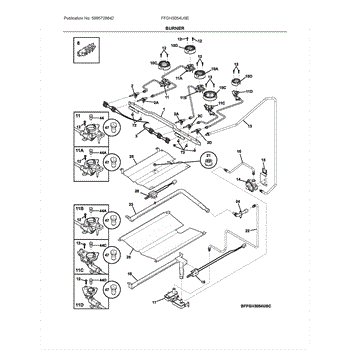

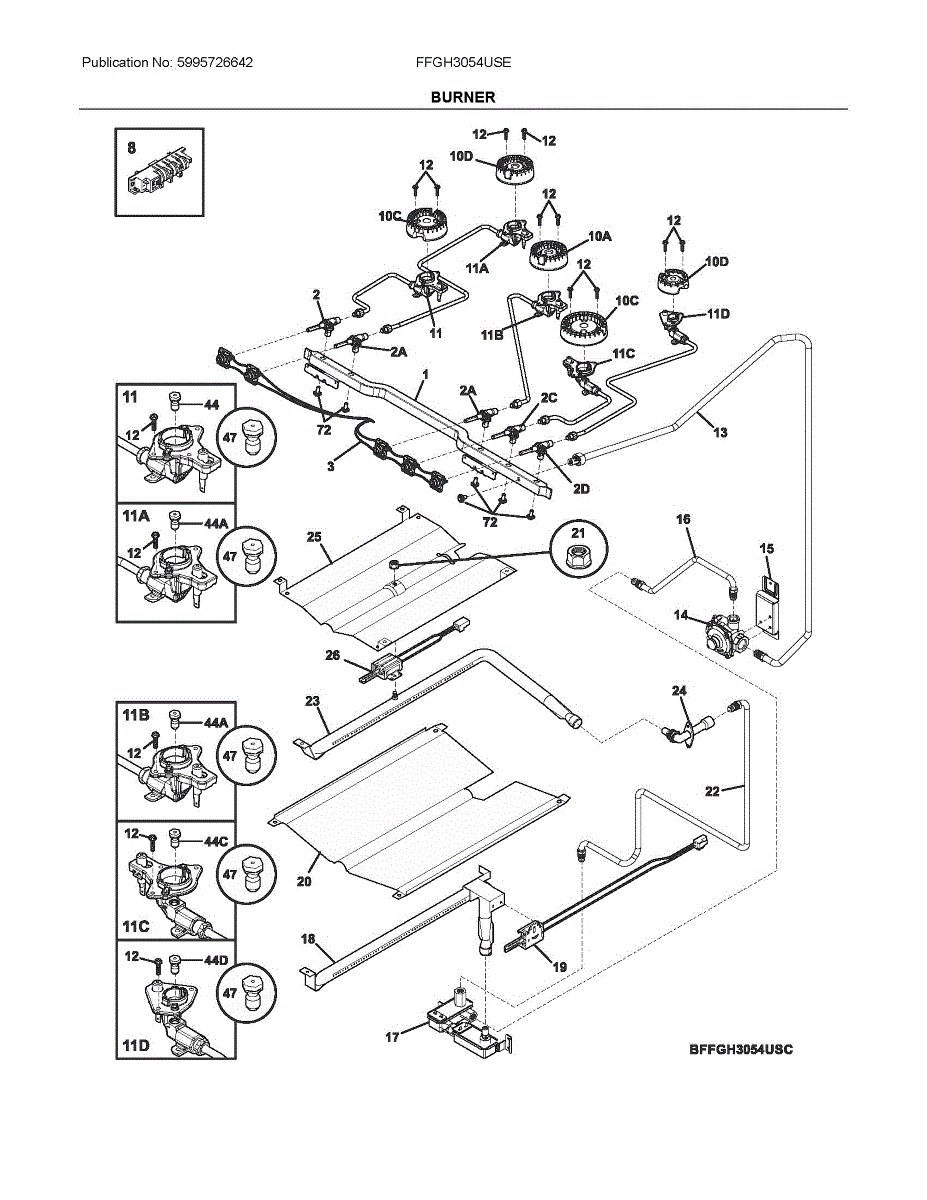

Parts for Frigidaire FFGH3054USE: Burner Parts

The Gas Valve is an OEM part for Frigidaire gas ranges. It controls the flow of gas to the surface burners, enabling precise temperature adjustments and safe operation. This valve operates by opening and closing to allow gas to pass through when the burner is turned on and shutting off the flow when it is turned off.

Causes of a bad gas valve can include mechanical wear, debris buildup that obstructs the valve, or failure of the electrical components that control the valve's operation.

Symptoms of a bad Gas Valve include:

• Gas burner failing to light despite the ignition sparking
• Uneven flame or a flame that goes out unexpectedly
• A noticeable gas smell when the appliance is in use, indicating a potential leak
• Inability to adjust the flame height or heat level on the burners

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Surface Burner Valve is an OEM replacement part for Frigidaire ranges. It controls the flow of gas to one of the surface cooking burners, allowing for temperature control on that burner.

Causes of a bad surface burner valve can include wear and tear from extensive use over time, damage to the valve components due to impact or mishandling, or issues with the gas control mechanism failing to function properly.

Symptoms of a bad surface burner valve include:

• Inability to adjust flame height or turn burner on/off
• Burner only works at one setting or unpredictably adjusts itself
• Leaking gas smell coming from the valve area
• Yellow burner flames instead of clean blue flames

This part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ranges.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


This water inlet valve controls water flow to the refrigerator's dispenser and ice system so you get a steady supply when needed and stop unwanted leaks. It replaces a worn or failing valve to restore proper water delivery. What it does:

• Opens and closes to allow water into the ice maker and dispenser
• Stops water flow when dispenser/ice fill is inactive
• Commonly replaced when water won't dispense or ice maker won't fill
• Needed if the valve is leaking or causing water drips

• Disconnect power and shut off the water supply before replacing the valve
• Handle with care and inspect inlet/outlet fittings and gaskets for proper sealing
• Reconnect water and power, then check for leaks and proper water flow after installation
• Follow manufacturer instructions

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner is an OEM part for Frigidaire gas ranges and cooktops. It is a stainless steel component that emits radiant heat from below the cooktop grates, facilitating safe, efficient cooking.

Proper burner operation is essential for dependable cooking performance. The burner utilizes a gas control valve and orifice to deliver a precisely regulated flame that heats pots and pans quickly and evenly.

Causes of a bad burner can include cracks or holes developing from use over time, or damaged brass burners from spills or heat exposure.

Symptoms of a bad burner include:

• Irregular or uneven cooking temperatures
• Burner flames that are too high or low
• Yellow flame tips instead of blue
• Non-selective control or inability to adjust flames

Replacing the burner with a genuine Frigidaire part restores robust heat output. This ensures safe, efficient operation. It is also compatible with Gas ranges by Electrolux, Gibson, Kelvinator, and Kenmore.

The Burner is an OEM part for Frigidaire gas ranges and cooktops. It is a stainless steel component that emits radiant heat from below the cooktop grates, facilitating safe, efficient cooking.

Proper burner operation is essential for dependable cooking performance. The burner utilizes a gas control valve and orifice to deliver a precisely regulated flame that heats pots and pans quickly and evenly.

Causes of a bad burner can include cracks or holes developing from use over time, or damaged brass burners from spills or heat exposure.

Symptoms of a bad burner include:

• Irregular or uneven cooking temperatures
• Burner flames that are too high or low
• Yellow flame tips instead of blue
• Non-selective control or inability to adjust flames

Replacing the burner with a genuine Frigidaire part restores robust heat output. This ensures safe, efficient operation. It is also compatible with Gas ranges by Electrolux, Gibson, Kelvinator, and Kenmore.


The Gas Burner is an OEM replacement part for Frigidaire gas wall ovens and cooktops. It facilitates safe and efficient cooking by providing a controlled source of flame.

Symptoms of a bad gas burner include:

• Uneven or unpredictable heating across the burner surfacea
• Flames not igniting or not staying ignited
• Burner components cracking, rusting, or becoming discolored
• Gas smells coming from the burner area

Causes of gas burner issues can be wear over time, contamination of ports/orifices affecting gas flow, or damage to ignition components. Ceramic burner materials may also degrade with heavy use or exposure.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This ignitor orifice assembly connects the oven igniter to the gas supply, helping the burner light reliably for consistent heating. Replaces a worn or damaged orifice assembly to restore proper ignition performance. What it does:

• Directs gas flow from the manifold to the oven igniter/burner for controlled ignition
• Helps the igniter create a stable flame for consistent oven heating
• Commonly replaced when burners fail to light, flame is weak, or ignition is intermittent
• Designed to match OEM fit and function for direct replacement

• One ignitor orifice assembly

• Turn off gas supply and electricity to the appliance before starting work
• Use appropriate tools; fittings are tight and leak-tested after installation

This ignitor orifice assembly routes gas to the igniter on compatible gas ranges and ovens, enabling reliable burner ignition and consistent flame control. Replacing a worn or damaged assembly restores proper ignition performance. What it does:

• Directs gas flow from the valve to the igniter/burner to allow ignition
• Ensures a focused, steady flame for consistent cooking heat
• Addresses ignition issues like repeated clicking, failed lighting, or weak flame
• Works as a replacement component when the existing orifice is clogged, corroded, or damaged

• Turn off gas supply and disconnect power before servicing.
• Basic hand tools typically required; follow OEM disassembly steps for access.
• After installation, check for gas leaks and proper ignition before normal use.

This ignitor orifice assembly controls gas flow to the oven burner so the ignitor can light the burner reliably. It restores proper gas delivery for consistent ignition and safer oven operation. What it does:

• Directs and meters gas to the oven burner so the ignitor can establish a stable flame
• Helps prevent weak or uneven flames that can cause poor heating
• Commonly replaces assemblies that are cracked, clogged, or failing to deliver gas to the burner
• Supports reliable ignition when the oven won't light or only lights sporadically

• One ignitor orifice assembly

• Turn off gas supply and electrical power before beginning work
• Installation requires basic appliance skills; inspect nearby burner and ignitor for damage
• Do not modify the part; use exact replacement to maintain safe gas flow

This ignitor orifice assembly controls gas delivery to the oven burner so the ignitor can light the burner reliably. Replacing a worn or damaged assembly restores proper ignition for safe, consistent baking and broiling. What it does:

• Routes and meters gas from the valve to the oven burner so the ignitor can light the flame
• Supports consistent ignition timing for steady burner operation
• Common symptom: oven won't light or takes multiple attempts to light
• Common symptom: weak or uneven flame across the burner

• Turn off the appliance power and shut off the gas supply before servicing
• Inspect surrounding gaskets and fittings; replace damaged components and use thread sealant rated for gas if required
• After installation, test for leaks and proper ignition following local codes and manufacturer guidance

This ignitor orifice assembly routes and meters gas to the ignitor/burner to promote reliable lighting and a steady flame for gas ovens and ranges. Replaces a damaged or clogged orifice to help restore normal ignition behavior. What it does:

• Controls and directs gas flow to the ignitor area so the burner can light consistently.
• Works with the igniter and burner for proper ignition sequencing on gas ovens/ranges.
• Common symptom indicator: oven or burner won't light, flame is weak or uneven, or ignition is intermittent.
• Helps prevent gas flow issues caused by a blocked or worn orifice.

• Shut off gas supply and disconnect power before starting any repair.
• Use the correct OEM replacement and follow the appliance's service manual for removal and installation.
• Do not overtighten fittings; ensure seals/gaskets are seated properly and check for gas leaks after reassembly.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Regulator is an OEM replacement part for Frigidaire gas ranges and cooktops. It is a valve component that regulates gas flow from the supply line into the appliance burners. Carefully controlling fuel input maintains proper and safe burner flame sizes.

Symptoms of a bad regulator include:

• Burners producing uneven or excessively high flames
• Inability to reduce burner flames properly
• Gas leaks at the regulator connections

Causes of failure involve wear of internal sealing parts over extended use. Corrosion or debris clogging gas passages can also disrupt flow regulation.

This OEM Frigidaire replacement regulator ensures optimal and reliable burner performance. Compatible with some Amana, Electrolux, and KitchenAid models as well, regular replacements prevent dangerous gas line issues from developing.

The Valve is an OEM replacement part for Frigidaire ranges. Located along the gas line leading to the oven burners, it regulates gas flow and controls burner ignitions. Proper valve function is critical for safe and efficient cooking performance.

Causes of a bad valve can include wear from prolonged use, corrosion or clogging of small internal passages over many years. Damage may also occur if exposed to extreme heat or sudden temperature changes.

Symptoms include:

• Inconsistent or intermittent burner ignition
• Flames that fluctuate in size or temperature
• Gas leaks around connections that develop
• Failure of the oven or burners to ignite properly

Compatible models include Electrolux, Gibson, and select Kenmore ranges.

This replacement surface burner head restores proper flame on your gas range or cooktop. It mixes gas and air and directs the flame through the ports for even heat and reliable ignition when the original head is clogged or damaged.

• Distributes gas through flame ports for stable, even heating
• Supports quick, consistent ignition when paired with a working igniter
• Helps address weak, uneven, yellow, or noisy flames
• Replaces burner heads that are warped, pitted, cracked, or corroded

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, lift off the old head, and clear debris from the seating area
• Align the new head with the igniter/electrode and locating features; seat it fully and level
• Restore gas and power; verify ignition and check for a uniform flame around all ports

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

This replacement baffle is the internal guide that channels flow inside the appliance so it operates as designed. Replace a cracked or missing baffle to restore proper circulation and eliminate rattles from loose or damaged pieces.

• Directs internal airflow/circulation along the intended path
• Shields adjacent components from direct spray, debris, or heat
• Helps maintain consistent performance and reduce vibration/noise
• Replace if the original is cracked, warped, loose, or missing

• Disconnect power before service; allow any hot surfaces to cool
• Use your model's parts diagram to locate the baffle; retain screws/clips for reuse
• Install in the same orientation; do not overtighten to avoid cracking
• Run a brief test to check for proper operation and no noise

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This baffle is an air deflector used to direct airflow inside the appliance, helping maintain even temperatures and proper ventilation. It replaces a worn or damaged baffle to restore intended airflow paths and performance. What it does:

• Redirects internal air to help even out temperatures and airflow distribution
• Helps prevent localized hot or cold spots that can affect performance
• Can reduce abnormal airflow noise caused by loose or damaged deflectors
• Restores correct airflow routing after impact or cracking

• High-level swap; usually secures with clips or screws—inspect mounting points before installing
• Disconnect power (or unplug) and remove any shelving or panels that block access
• Handle carefully to avoid cracking thin plastic fins or tabs
• Replace hardware before completing installation

The Oven broil Igniter is an OEM part for Frigidaire ovens and ranges. This component is responsible for igniting the gas in the oven burner, allowing the oven to heat up. It works by drawing electrical current through the igniter filament until it becomes hot enough to ignite the gas, providing the flame necessary for cooking.

Common causes for an Oven Igniter to fail include a burnt-out filament, a break in the igniter's ceramic base, or a malfunction within the igniter's electrical system.

Symptoms of a bad Oven Igniter include:

• Oven not starting or heating up
• Gas smell when the oven is turned on
• Weak or no glow from the igniter element
• Unusual noises when attempting to ignite the gas

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Bushing is an OEM part for Frigidaire cooktops. This part serves as an interface between the control knob and the appliance, ensuring smooth operation and protecting both the knob and the control panel from wear and tear. The bushing fits snugly around the valve's stem, reducing friction and providing stability as the knob is turned to adjust the heat settings of the cooktop.

Causes of a bad Bushing can include degradation from frequent use, exposure to high heat, or accidental damage during cleaning or use, which can lead to the bushing becoming loose or worn out.

Symptoms of a malfunctioning Bushing include:

• Loose-feeling knobs that wobble or are difficult to turn
• Excessive wear or visible damage to the knob or panel area
• Difficulty in achieving precise temperature control
• Unusual noise when turning the knobs

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The LP Conversion Kit is an OEM part for Frigidaire gas ranges. This kit allows for the conversion of the range's fuel type from natural gas to LP (liquefied petroleum) gas. It ensures the safe and efficient operation of the gas range when using LP gas as the fuel source.

Causes of a bad LP conversion kit can include incorrect installation, missing components, or damaged parts.

Symptoms of an improper fuel conversion or a bad LP conversion kit may include:

• Uneven flame
• Improper heating
• Unusual gas smells

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This replacement wire restores a damaged or broken electrical connection so the appliance can receive power and operate reliably. It provides a direct, OEM-matching conductor for restoring circuit continuity. What it does:

• Replaces a damaged or frayed wire that can interrupt power to controls, motors, or lights
• Restores a reliable electrical connection to stop intermittent operation or failure to start
• Prevents arcing or poor contact caused by corrosion, breaks, or exposed conductors
• Matches OEM fit and function for a direct replacement when routing and connectors align

• One replacement wire as shown

• Disconnect power to the appliance before beginning any work
• Use proper crimping or connector tools if splice/terminal replacement is required; secure wire away from heat and moving parts
• If connectors, insulation, or surrounding components show damage, replace them as well

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
