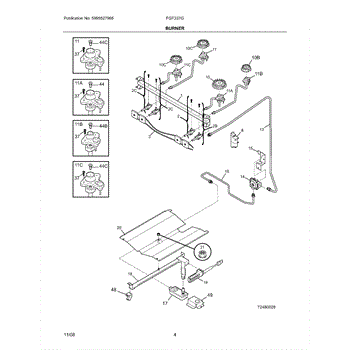

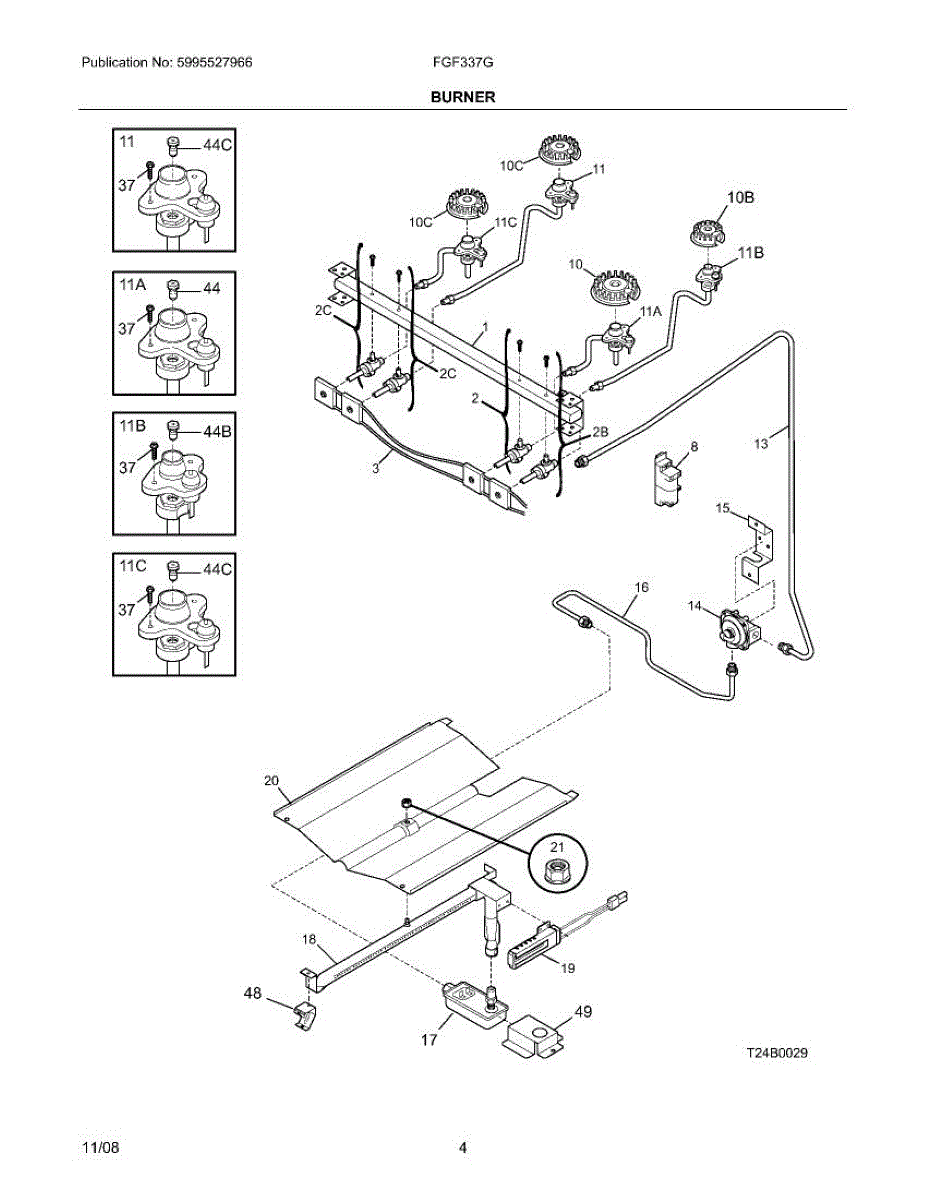

Parts for Frigidaire FGF337GUE: 05 - Burner Parts

This manifold pipe routes gas from the valve to your range burners. Replace yours if it's cracked, corroded, or leaking to restore safe fuel distribution.

Burner won't light or flame won't adjust? This top burner valve controls gas flow to your cooktop burner. Restores proper flame control and ignition.

This gas valve controls the flow of gas to a surface burner on a gas range. It is connected to the burner control knob and regulates flame height from low to high settings. Replace this valve if the burner won't ignite, the flame cannot be adjusted properly, or you detect a gas smell when the knob is in the off position.

Burner won't light or flame height won't adjust? This top burner valve controls gas flow to restore reliable ignition and precise flame control.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replaces cracked or corroded sealed burner head on gas ranges and cooktops. Restores proper flame distribution when original part is damaged or clogged.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Combines the gas orifice housing with spark igniter for gas range burners. Replace if cracked, corroded, or damaged to restore proper gas flow and ignition.

Burner orifice meters gas flow to your range burner. Replace if clogged, damaged, or wrong size for fuel type conversion between natural gas and propane.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This is a replacement refrigerant/line connection tube that links the service valve to the regulator line, restoring a sealed pathway for proper cooling system operation. It fits systems using a 3/8" tube connection. What it does:

• Connects the service/stop valve to the regulator/line, maintaining a sealed refrigerant path
• Restores proper flow and pressure routing when the original tube is damaged, cracked, or leaking
• Commonly replaced for visible leaks, hissing at the valve area, or loss of cooling tied to a line break
• Works as a direct, single-piece tubing connector where a 3/8" connection is specified

• One tube to valve connector (3/8" tube)

• Installation requires appliance access and basic refrigeration line handling; tighten fittings to OEM torque specs and verify leak-free with an appropriate leak detector
• Wear safety glasses and gloves; avoid breathing refrigerant vapors and follow manufacturer service documentation

Oven won't light even with glowing igniter? Safety valve controls gas flow to burner. Moderately easy repair with gas line disconnect required.

Oven burner distributes gas and air mixture for even baking flames. Replace if rusted, corroded, or producing uneven flame patterns in your range.

Oven won't light or takes forever to heat? A weak igniter is usually the culprit. Moderately easy DIY repair—most complete it in 15-30 minutes.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Natural gas burner orifice meters gas flow to range burners. Replace worn or clogged orifices for stable flame. Used for LP to natural gas conversions.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Mounting bracket for gas ranges. Secures components inside your range. Replace if bent, broken, or missing to restore proper structural support.

Size: 8-18ab x 0.5 inch.

Size: 8-18ab x 0.5 inch.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.
